Introduction
The Aclara I-210+ is a revenue-grade electric meter designed for accurate energy measurement, particularly suited for private sub-metering applications such as campgrounds and other recreational facilities. This meter provides advanced functionality for monitoring and managing energy consumption. It is engineered to offer reliable performance and integrate into modern Smart Grid systems, providing real-time instrumentation and power quality monitoring.
Key features include:
- Reliable and accurate sub-metering for revenue recapture.
- AMR/AMI Plug-n-Play functionality for seamless integration.
- Capability to be upgraded for wireless functionality with Wild Energy's system.
Product Overview

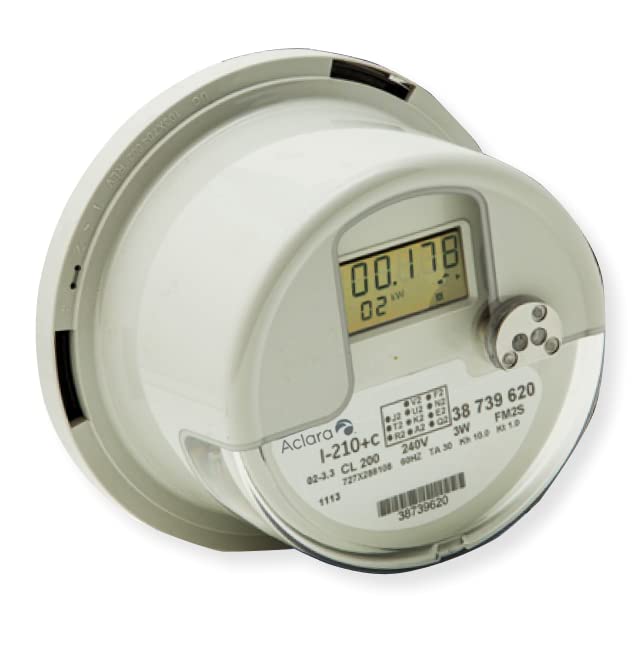

Figure 1: Aclara I-210+ Electric Meter. This image displays the Aclara I-210+ electric meter, a revenue-grade sub-meter. The digital display shows a reading of 00.178 kW. The meter's label indicates it is a 240V, 3W device, model I-210+.
Setup and Installation
Installation of the Aclara I-210+ electric meter requires specialized knowledge and should only be performed by a qualified electrician or trained professional. Incorrect installation can lead to electrical hazards, damage to the meter, or inaccurate readings.
- Ensure all power to the installation site is disconnected before beginning any work.
- Follow all local electrical codes and regulations.
- The meter is designed for 240V operation. Verify the electrical supply matches this requirement.
- This model is not wireless by default but can be upgraded for wireless functionality with Wild Energy's system.
- Important Note: This product is not for use in the state of California. For specific guidance or alternative solutions, contact Wild Energy Inc.
Operating the Meter
Once properly installed and powered, the Aclara I-210+ meter will automatically begin measuring and displaying energy consumption. The digital display provides real-time readings of kilowatt-hours (kWh) and other relevant metrics.
- Reading the Display: The primary display shows the cumulative energy consumption in kilowatt-hours (kWh). Other screens may cycle through or be accessible via a button (if present, not specified) to show instantaneous power (kW), voltage, current, and power factor.
- Data Access: The meter provides easy access to critical information, enabling users to monitor energy usage and power quality. For advanced data retrieval and integration with AMR/AMI systems, refer to the specific communication module documentation (if upgraded).
Maintenance
The Aclara I-210+ electric meter is designed for long-term, reliable operation with minimal maintenance. Regular inspection is recommended to ensure optimal performance.
- Cleaning: Periodically wipe the exterior of the meter with a soft, dry cloth to remove dust and debris. Do not use abrasive cleaners or solvents.
- Visual Inspection: Routinely check for any visible signs of damage, loose connections, or environmental ingress. If any issues are observed, contact a qualified professional for assessment.
- Calibration: As a revenue-grade meter, the I-210+ is factory calibrated. Recalibration is generally not required under normal operating conditions.
Troubleshooting
If you encounter issues with your Aclara I-210+ electric meter, consider the following basic troubleshooting steps. For complex problems, always consult a qualified electrician.
- No Display:
- Verify that power is supplied to the meter.
- Check circuit breakers or fuses in the electrical panel.
- Inaccurate Readings (Suspected):
- Ensure the meter is correctly wired according to the installation diagrams.
- Confirm the meter's specifications (e.g., 240V) match the electrical system.
- If discrepancies persist, contact a professional for diagnostic testing.
- Communication Issues (if upgraded):
- Check the wireless module's status indicators.
- Ensure the wireless system components are within range and properly configured.
Do not attempt to open or repair the meter yourself, as this may void the warranty and pose safety risks.
Specifications
| Attribute | Value |
|---|---|
| Model Number | I-210+ |
| Brand | Aclara |
| Manufacturer | Aclara |
| Min. Operating Voltage | 240 Volts |
| Measurement Type | Ammeter (measures current, primarily used for energy/power measurement) |
| Power Source | Battery Powered (likely for internal clock/memory, main power from line) |
| First Available Date | June 30, 2022 |
Warranty and Support
Specific warranty terms and support details for the Aclara I-210+ electric meter are typically provided at the point of purchase or by the manufacturer. Please refer to your purchase documentation or contact Aclara directly for comprehensive warranty information and technical support.
For inquiries related to upgrades for wireless functionality or specific applications, contact Wild Energy Inc.
