Westpoint Stainless Steel 5 Gas Burner Full Safety Freestanding Cooking Range

Introduction

This manual provides essential information for the safe and efficient use of your new Westpoint Stainless Steel 5 Gas Burner Freestanding Cooking Range. Please read these instructions thoroughly before installation, operation, or maintenance. Retain this manual for future reference.

Setup and Installation

Proper installation is crucial for the safe and optimal performance of your cooking range. It is highly recommended that installation be performed by a qualified and certified technician, especially for gas and electrical connections.

Unpacking

• Carefully remove all packaging materials from the appliance.
• Inspect the cooking range for any signs of damage during transit. Report any damage immediately to your retailer.
• Ensure all accessories, such as oven racks, trays, and burner caps, are present.

Placement and Dimensions

The Westpoint WCLR-9650G0CIID is a freestanding unit. Ensure adequate ventilation and clearance from combustible materials. Refer to the diagram below for product dimensions.

The cooking range positioned in a kitchen setting, with clear labels indicating its dimensions: 90 cm width, 60 cm depth, and 85 cm height.

Gas and Electrical Connection

Gas and electrical connections must comply with local codes and regulations. This appliance requires a gas supply and an electrical connection for the auto-ignition, oven light, and timer functions. Always ensure the main power supply is disconnected before any installation or maintenance work.

Operating Instructions

Familiarize yourself with the control knobs and functions before operating the appliance.

Front view of the Westpoint WCLR-9650G0CIID cooking range, showcasing its five gas burners, control knobs, and integrated oven with a double glass door.

An annotated diagram highlighting key components of the Westpoint cooking range, including the glass lid, stainless steel top, 5 gas burners, timer, double knob, light, oven fan, grid, 110L electric oven, and oven tray.

Gas Burner Operation

• Auto Ignition: To ignite a burner, push and turn the corresponding knob counter-clockwise to the maximum flame position. The auto-ignition system will spark. Hold the knob for a few seconds until the flame is stable.
• Flame Adjustment: Once ignited, adjust the flame size by turning the knob between the maximum and minimum flame settings.
• Safety Feature (FFD): Each burner is equipped with a Flame Failure Device (FFD). If the flame accidentally extinguishes, the FFD will automatically cut off the gas supply to prevent leaks.

A close-up view of an ignited gas burner, illustrating the Flame Failure Device (FFD) sensor designed to enhance safety by preventing gas leaks if the flame extinguishes.

Oven Operation

• Temperature Control: Use the oven control knob to select the desired cooking temperature. The oven thermostat will regulate the internal temperature.
• Grill Function: The oven includes a grill function for browning and searing. Position food on the appropriate rack for grilling.

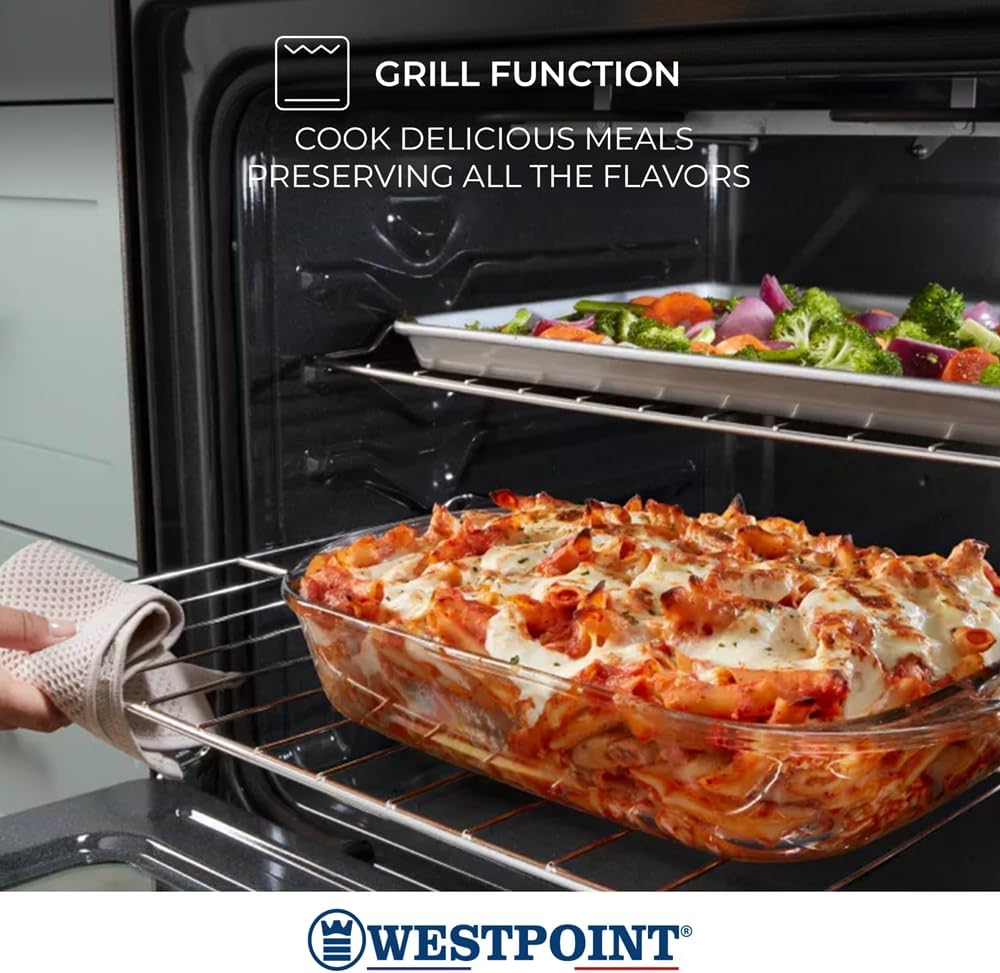

Inside the oven, a dish of baked pasta is shown on the lower rack, while a tray of roasted vegetables is on the upper rack, demonstrating the grill function's capability to cook various meals.

• Turnspit: For even cooking of poultry or roasts, utilize the integrated turnspit. Secure the food on the spit and activate the turnspit function.
• Timer Function: The digital timer allows you to set precise cooking durations. The display is easy to read, helping you monitor cooking progress.
• Double Glass Oven Door: The double glass door provides insulation and allows you to monitor cooking without opening the oven, maintaining consistent temperature.
• Oven Capacity: The oven boasts a generous 110-liter capacity, accommodating larger dishes and multiple items simultaneously.

The cooking range with an overlay indicating the spacious 110-liter oven capacity, suitable for large dishes and multiple items.

Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your cooking range. Always ensure the appliance is cool and disconnected from the power supply before cleaning.

Cleaning the Cooktop

• Remove burner caps and pan supports. Wash them with warm, soapy water.
• Wipe the stainless steel top with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads that can scratch the surface.
• Ensure all parts are completely dry before reassembling.

Cleaning the Oven

• Remove oven racks and trays. Clean them with warm, soapy water or an appropriate oven cleaner.
• Wipe the interior of the oven with a damp cloth and a mild detergent. For stubborn stains, use a specialized oven cleaner following the product instructions.
• Clean the double glass oven door with a glass cleaner.

General Care

• Regularly check gas hoses and connections for any signs of wear or leaks.
• Do not use steam cleaners or high-pressure cleaning devices on the appliance.
• For optimal performance, ensure the burners are clean and free from food debris.

Troubleshooting

Before contacting customer service, please refer to the following common issues and their potential solutions.

If the problem persists after attempting these solutions, or if you encounter any issues not listed here, please contact a qualified service technician.

Specifications

Below are the technical specifications for the Westpoint WCLR-9650G0CIID Freestanding Cooking Range.

Warranty and Support

Your Westpoint cooking range is designed for durability and performance. For information regarding product warranty, including extended warranty options and accidental damage protection plans, please refer to your purchase documentation or contact your retailer.

For technical support, service requests, or genuine spare parts, please contact the authorized Westpoint service center or your point of purchase. Always provide your model number (WCLR-9650G0CIID) and purchase date when seeking support.
