1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Westgate LED Rotatable Wall Pack, Model LW360-60W-50K-G2. This fixture is designed for general site lighting in outdoor environments such as alleys, loading docks, doorways, pathways, and parking areas. Please read these instructions thoroughly before installation and retain them for future reference.
2. Safety Information
WARNING: Risk of electric shock. Disconnect power at the fuse or circuit breaker before installing or servicing.
- Installation must be performed by a qualified electrician in accordance with all national and local electrical codes.
- Ensure the supply voltage is correct for the fixture (120 Volts AC).
- Do not handle live wires. Always ensure power is off before working on the fixture.
- Wear appropriate personal protective equipment (PPE) during installation, including safety glasses and gloves.
- Ensure the fixture is securely mounted to prevent falling.
- Do not modify the fixture in any way. Unauthorized modifications may void the warranty and create safety hazards.
- This product is rated IP65, suitable for wet locations. Ensure all connections are properly sealed to maintain this rating.
3. Product Features
- Rotatable Heads (with Set Screw) for adjustable light direction.
- Three 1/2" Threaded Knockouts: One on the bottom, and one on each side for versatile wiring options.
- TIR Optic Lens - TYPE II for efficient light distribution.
- Die-cast aluminum housing with powder coat finish (Dark Bronze) for durability and weather resistance.
- 7-Year Warranty for long-term reliability.
- IP65 rated, suitable for wet outdoor locations.
Image 3.1: Angled view of the Westgate LED Wall Pack, showcasing its robust dark bronze housing and dual LED light panels.
4. Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- 1 x Westgate LED Wall Pack (Model LW360-60W-50K-G2)
- Mounting Hardware (screws, anchors, gaskets as applicable)
- Instruction Manual (this document)
5. Setup and Installation
Important: Ensure power is disconnected at the circuit breaker before beginning installation.
5.1 Mounting the Fixture
- Choose a suitable mounting location on a wall or vertical surface, ensuring it can support the fixture's weight (approximately 6 pounds).
- Mark the desired mounting points using the fixture's mounting plate as a template.
- Drill pilot holes if necessary, and insert appropriate wall anchors for your mounting surface.
- Secure the mounting plate to the wall using the provided mounting hardware. Ensure it is level and firmly attached.
- Carefully attach the fixture body to the mounting plate, ensuring all gaskets are properly seated to maintain the IP65 rating.
Image 5.1: Front view of the Westgate LED Wall Pack, showing the two LED panels and the mounting screw locations at the base.
5.2 Electrical Wiring
All wiring must comply with local and national electrical codes.
- Route the electrical supply wires through one of the 1/2" threaded knockouts on the fixture.
- Connect the supply wires to the fixture's wires:
- Black wire (Live) to Black wire (Live)
- White wire (Neutral) to White wire (Neutral)
- Green/Bare Copper wire (Ground) to Green/Bare Copper wire (Ground)
- Secure all wire connections with appropriate wire nuts or connectors.
- Ensure all connections are tight and properly insulated.
- Carefully tuck all wires into the junction box or fixture housing, ensuring no wires are pinched.
- Close and secure the fixture cover, ensuring a watertight seal.

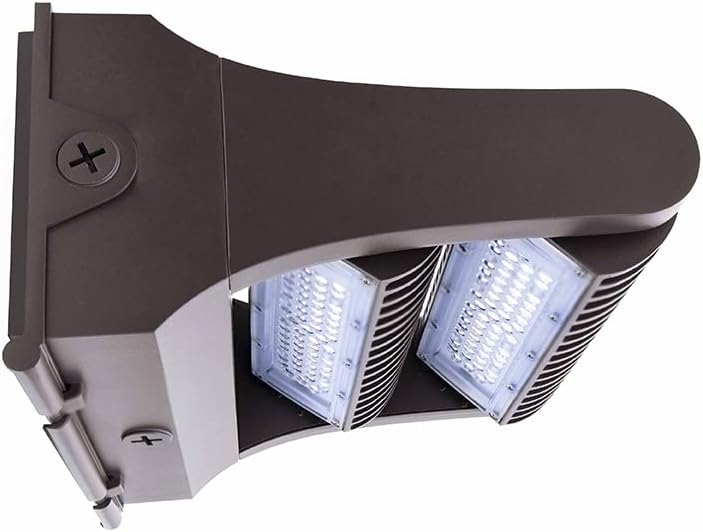

Image 5.2: Side view of the Westgate LED Wall Pack, illustrating the profile and potential access points for wiring.
6. Operating Instructions
- Once installation and wiring are complete, restore power at the circuit breaker.
- The LED Wall Pack will illuminate.
- To adjust the light direction, carefully loosen the set screws on the rotatable heads, adjust to the desired angle, and then securely tighten the set screws. Do not overtighten.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your LED Wall Pack.
- Cleaning: Periodically clean the exterior of the fixture with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or optical components. Ensure power is off before cleaning.
- Inspection: Annually inspect the fixture for any signs of damage, loose connections, or wear. Check for any water ingress or corrosion. Address any issues promptly.
- LEDs: The LED light source is designed for long life and is not user-serviceable. Do not attempt to replace individual LEDs.
8. Troubleshooting
If you experience issues with your LED Wall Pack, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fixture does not illuminate. | No power supply. Loose wiring connection. Faulty circuit breaker/fuse. | Check power supply at the source. Verify all wire connections are secure (ensure power is off). Reset circuit breaker or replace fuse. |
| Light flickers or dims. | Unstable power supply. Loose wiring. Incompatible dimmer (if applicable, though this fixture is not specified as dimmable). | Consult an electrician to check power stability. Check and secure all wiring connections (ensure power is off). Ensure no dimmer is used unless specified. |
| Water inside the fixture. | Improper sealing during installation. Damaged gasket. | Immediately disconnect power. Open fixture, dry thoroughly, and re-seal all entry points and covers. Replace damaged gaskets. |
If the problem persists after attempting these solutions, contact Westgate customer support or a qualified electrician.
9. Specifications
| Brand | Westgate |
| Model Name | LW360-60W-50K-G2 |
| UPC | 845060072310 |
| Color | Dark Bronze |
| Material | Die-Cast Aluminum with Powder Coat Finish |
| Light Source Type | LED |
| Wattage | 60 watts |
| Voltage | 120 Volts (AC) |
| Indoor/Outdoor Usage | Outdoor |
| Special Features | IP65 Rated, Suitable for Wet Locations |
| Mounting Type | Wall Mount |
| Item Weight | 6 Pounds |
| Dimensions (Approximate) | 9.1" (Width) x 8.8" (Height) x 5.2" (Depth) |
Image 9.1: Dimensional drawing of the Westgate LED Wall Pack, showing approximate measurements of 9.1 inches width, 8.8 inches height, and 5.2 inches depth.
10. Warranty Information
This Westgate LED Wall Pack (Model LW360-60W-50K-G2) is covered by a 7-Year Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. For warranty claims or further details, please contact Westgate customer support.
11. Support and Contact
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Westgate customer support.
You can find more information and contact details on the official Westgate website or through their Amazon store page:
