81'' Heavy Duty Rotary Tiller User Manual

1. Product Overview

The AGT INDUSTRIAL 81'' Heavy Duty Rotary Tiller is designed for efficient soil preparation in agricultural settings. This robust machine connects to tractors with 3-point linkage and requires 30-50 HP PTO output. It features a gear-driven system, adjustable hitch clevis for offset tilling, and six tines per flange for thorough soil mulching.

Key Features:

• Ideal for tractors with 35 to 50 HP PTO output.
• Gear-driven transmission for powerful and reliable performance.
• Adjustable Hitch Clevis for offset tilling capability.
• Six tines per flange, ensuring maximum mulching of material.
• Laser-balanced shaft with flanges spaced at 10 inches.
• Height-adjustable rear cover for a smooth finish and safety.
• Blades made of durable 28SIMNB boron steel, individually exchangeable.
• Includes a PTO shaft with a friction clutch for enhanced safety.

Figure 1: Overview of the 81'' Heavy Duty Rotary Tiller and its PTO shaft.

2. Safety Information

Operating heavy machinery requires strict adherence to safety protocols to prevent injury or damage. Read and understand all safety warnings before operating the rotary tiller.

General Safety Precautions:

• Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and sturdy footwear.
• Ensure all guards and safety shields are in place and properly secured before operation.
• Keep hands, feet, and clothing away from rotating parts, especially the tines and PTO shaft.
• Never allow passengers on the tractor or tiller during operation.
• Before performing any maintenance, adjustments, or clearing clogs, always shut off the tractor engine, disengage the PTO, and wait for all moving parts to stop completely.
• Be aware of your surroundings. Check for buried obstacles, utility lines, or other hazards in the tilling area.
• Operate the tiller only on stable, level ground. Avoid steep slopes or uneven terrain.
• Ensure the PTO shaft is correctly attached and secured with safety chains. The friction clutch on the PTO shaft is a safety feature; do not bypass or modify it.

3. Setup and Assembly

Proper setup is crucial for safe and effective operation of your rotary tiller.

3.1 Attaching to the Tractor:

1. Position the tractor on a level surface and engage the parking brake.
2. Carefully back the tractor towards the tiller, aligning the tractor's 3-point hitch arms with the tiller's mounting pins.
3. Connect the lower lift arms first, securing them with appropriate pins and clips.
4. Connect the top link of the 3-point hitch to the tiller's top mounting point. Adjust the top link to ensure the tiller is level from front to back.
5. Ensure all hitch connections are secure and free from excessive play.

Figure 2: Tiller's 3-point hitch frame for tractor attachment.

3.2 Connecting the PTO Shaft:

1. Ensure the tractor's PTO is disengaged and the engine is off.
2. Align the PTO shaft with the tractor's PTO spline and the tiller's input shaft.
3. Push the PTO shaft onto the splines until the locking pin engages. Pull on the shaft to ensure it is securely locked.
4. Attach the safety chains from the PTO shaft to the tractor and tiller to prevent rotation of the shield.
5. Verify that the PTO shaft has sufficient clearance throughout the full range of motion of the 3-point hitch. The PTO shaft included is a Series 4 with a slip clutch.

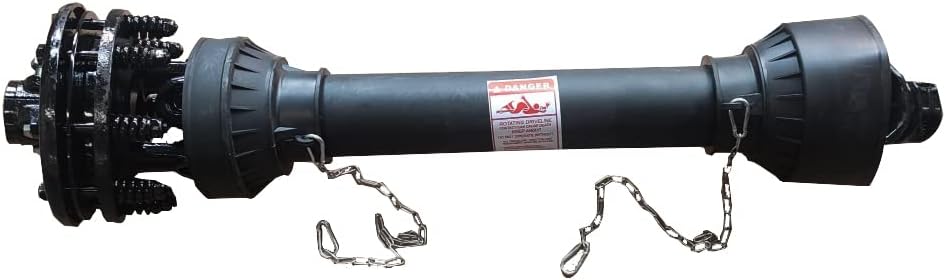

Figure 3: The PTO shaft with integrated slip clutch.

3.3 Adjusting Hitch Clevis and Skid Shoes:

• The adjustable lower hitch clevis allows for offsetting the tiller to the right or left, useful for working close to fences or obstacles. Adjust as needed for your application.
• Adjustable skid shoes control the tilling depth. Lowering the skid shoes will result in shallower tilling, while raising them will allow for deeper tilling. Ensure both skid shoes are set to the same height for even tilling.

4. Operating Instructions

Follow these steps for effective and safe operation of your rotary tiller.

4.1 Pre-Operation Checklist:

• Verify all bolts and nuts are tightened, especially on the tines and hitch points.
• Check the oil level in the gearbox.
• Ensure all safety guards are in place.
• Clear the tilling area of any debris, rocks, or foreign objects.

4.2 Tilling Procedure:

1. Start the tractor engine and allow it to warm up.
2. Engage the PTO at a low RPM, gradually increasing to the recommended operating speed (540 RPM for the PTO shaft, resulting in 270 RPM for the rotor shaft).
3. Slowly lower the tiller into the soil using the tractor's 3-point hitch hydraulic control. Do not drop the tiller rapidly.
4. Maintain a consistent forward speed appropriate for the soil conditions. Slower speeds are generally better for breaking up tough soil, while faster speeds can be used for lighter cultivation.
5. For very hard or compacted soil, multiple passes at increasing depths may be necessary.
6. The height-adjustable rear cover helps to smooth the tilled soil and prevent debris from being thrown excessively.
7. When turning or at the end of a pass, raise the tiller completely out of the ground before disengaging the PTO or turning sharply.

Figure 4: Detail of the six tines per flange, designed for effective mulching.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your rotary tiller.

5.1 Daily Checks:

• Inspect tines for wear, damage, or looseness. Replace worn or damaged tines promptly.
• Check all bolts and nuts for tightness.
• Clear any accumulated soil, debris, or plant material from the tiller, especially around the rotor shaft and gearbox.
• Inspect the PTO shaft for damage and ensure the safety shields are intact.

5.2 Lubrication:

• Gearbox Oil: Check the oil level in the main gearbox regularly (e.g., every 10-20 hours of operation). Refer to the gearbox manufacturer's recommendations for oil type and capacity. Change oil annually or as recommended.
• Grease Points: Lubricate all grease zerks (e.g., on the PTO shaft universal joints, rotor bearings) with appropriate grease at recommended intervals (e.g., every 8-10 hours of operation).

Figure 5: The robust gear drive system, requiring regular oil checks.

5.3 Blade Replacement:

Worn blades reduce tilling efficiency. Blades are individually exchangeable.

1. Ensure the tiller is disconnected from the tractor and all moving parts have stopped.
2. Support the tiller securely.
3. Remove the bolts securing the worn blade to the flange.
4. Install the new blade, ensuring it is oriented correctly. Use new locking hardware if specified.
5. Tighten bolts to the recommended torque specifications.

6. Troubleshooting

This section provides solutions to common issues you might encounter.

7. Specifications

Technical specifications for the AGT-TAS81 Rotary Tiller.

8. Warranty and Support

For warranty information, technical support, or to order replacement parts, please contact AGT INDUSTRIAL directly. Keep your purchase receipt and model number (AGT-TAS81) handy when contacting support.

Refer to the official AGT INDUSTRIAL website or your purchase documentation for the most up-to-date warranty terms and contact details.
