1. Introduction
Welcome to the user manual for your new HXSJ V600 96-Key Wired Gaming Keyboard. This manual provides essential information on setting up, operating, maintaining, and troubleshooting your device. Please read this manual thoroughly to ensure optimal performance and longevity of your keyboard.
2. Safety Information
To ensure safe operation and prevent damage, please observe the following safety guidelines:
- Keep the keyboard away from liquids and excessive moisture.
- Avoid exposing the keyboard to extreme temperatures.
- Do not attempt to disassemble or modify the keyboard. This may void the warranty and cause damage.
- Use only the provided USB cable for connection.
- Clean the keyboard with a soft, dry cloth. Avoid harsh chemicals.
3. Product Overview
The HXSJ V600 is a high-performance 96-key wired gaming keyboard designed for an enhanced typing and gaming experience. It features a compact layout, vibrant RGB backlighting, and durable two-color injection keycaps.
Figure 3.1: Top view of the HXSJ V600 96-key wired gaming keyboard, showcasing its compact layout and keycap design.
4. Key Features
The HXSJ V600 keyboard offers a range of features designed for gamers and everyday users:
- 96-Key Layout: A compact design that retains most essential keys, optimizing desk space.
- Wired Connectivity: Reliable USB connection for stable and responsive performance.
- RGB Backlighting: Enjoy a wonderful RGB rainbow backlight via pudding keycaps, enhancing your gaming setup.
- Two-Color Injection Keycaps: Durable keycaps with legends that won't fade, providing a comfortable typing experience.
- Adjustable Tripod: Allows for ergonomic positioning to suit your preference.
- Water-like ABS Curved Keycap Design: Designed for comfortable and precise key presses.
- Plug & Play: No additional software or drivers required for basic functionality.
- Wide Compatibility: Supports operating systems including Win XP, Win7, Win8, Win10, Android, and Mac OS.
- WIN Key Lock Function: Press WIN+L to lock the WIN and APP keys simultaneously, preventing accidental interruptions during gaming. Press again to unlock.
- 26-Key Conflict-Free Design: Ensures that multiple simultaneous key presses are registered accurately, crucial for gaming performance.
Figure 4.1: The HXSJ V600 keyboard highlighting its RGB lighting and 96-key layout.

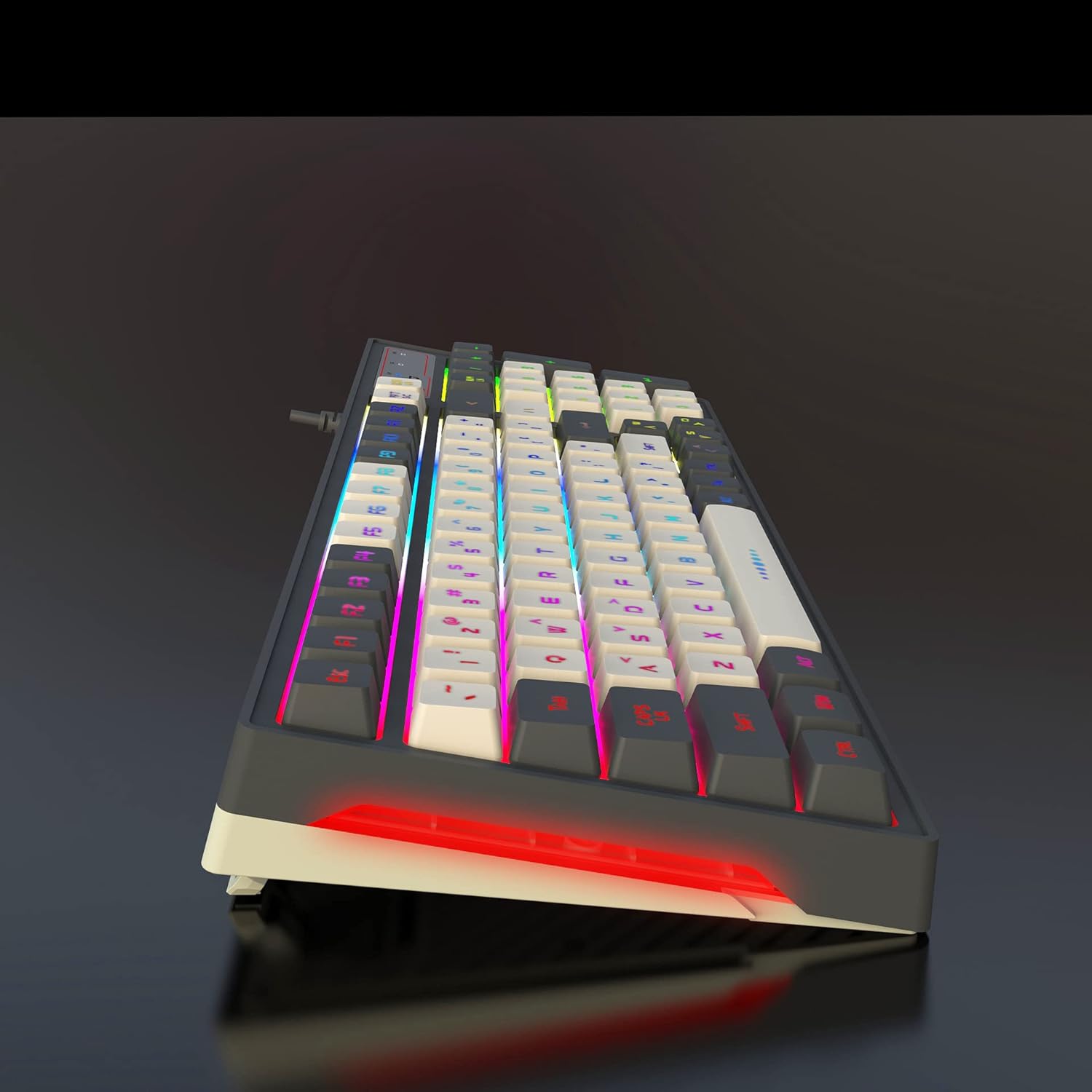

Figure 4.2: Illustration demonstrating the 26-key conflict-free design, ensuring accurate input during intense gaming sessions.
5. Package Contents
Please check the box for the following items:
- 1 x HXSJ V600 96-Key Wired Gaming Keyboard
- 1 x USB Cable
Figure 5.1: The HXSJ V600 keyboard and its packaging, illustrating the contents included in the box.
6. Setup Instructions
Follow these steps to set up your HXSJ V600 keyboard:
- Unpack: Carefully remove the keyboard and USB cable from the packaging.
- Connect: Insert the USB connector of the keyboard cable into an available USB port on your computer.
- System Recognition: Your operating system (Windows, Mac OS, Android) should automatically detect and install the necessary drivers. No additional software installation is required for basic functionality.
- Adjust: Adjust the keyboard's tripod feet for your preferred typing angle.
7. Operating Instructions
The HXSJ V600 keyboard operates as a standard QWERTY keyboard. Below are specific functions:
7.1 Backlight Control
The keyboard features dynamic RGB backlighting. Specific key combinations for changing lighting modes or brightness are typically indicated on the keycaps themselves or in a quick start guide not provided in this manual. Experiment with the function keys (F1-F12) in combination with the 'Fn' key if present, or dedicated lighting keys, to cycle through effects.
7.2 Special Functions
- WIN Key Lock: To prevent accidental presses of the Windows key during gaming, press WIN+L. This will lock both the WIN key and the APP key. Press WIN+L again to unlock them.
8. Maintenance and Care
Proper care will extend the life of your keyboard:
- Cleaning: Use a soft, lint-free cloth to wipe the surface of the keyboard. For dust between keys, use compressed air. Do not use liquid cleaners directly on the keyboard.
- Storage: When not in use, store the keyboard in a dry, cool place away from direct sunlight.
- Cable Care: Avoid bending or twisting the USB cable excessively to prevent internal damage.
9. Troubleshooting
If you encounter issues with your HXSJ V600 keyboard, refer to the table below for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Keyboard not responding | Loose USB connection; Faulty USB port; Driver issue. | Ensure USB cable is securely plugged in. Try a different USB port. Restart your computer. |
| Backlight not working or flickering | Lighting mode off; Software glitch; Hardware issue. | Check keyboard lighting controls (Fn + specific keys). Restart computer. |
| Keys not registering or ghosting | Dust/debris under keycap; Software conflict. | Clean under keycaps with compressed air. Ensure no conflicting software is running. The 26-key conflict-free design minimizes this issue. |
| WIN key is locked | WIN key lock function activated. | Press WIN+L again to unlock the WIN and APP keys. |
If the problem persists after trying these solutions, please contact customer support.
10. Technical Specifications
| Feature | Specification |
|---|---|
| Brand | HXSJ |
| Model | V600 |
| Number of Keys | 96 |
| Connectivity Technology | Wired (USB) |
| Special Features | Backlit (RGB), 26-Key Conflict-Free |
| Keycap Material | Acrylonitrile Butadiene Styrene (ABS) - Two-color injection |
| Cable Length | 1.8m (approx.) |
| Compatible Devices | PC |
| Operating System Support | Win XP/Win7/Win8/Win10/Android/Mac OS |
| Item Weight | 770 g |
| Package Dimensions | 40.79 x 16.9 x 4.7 cm |

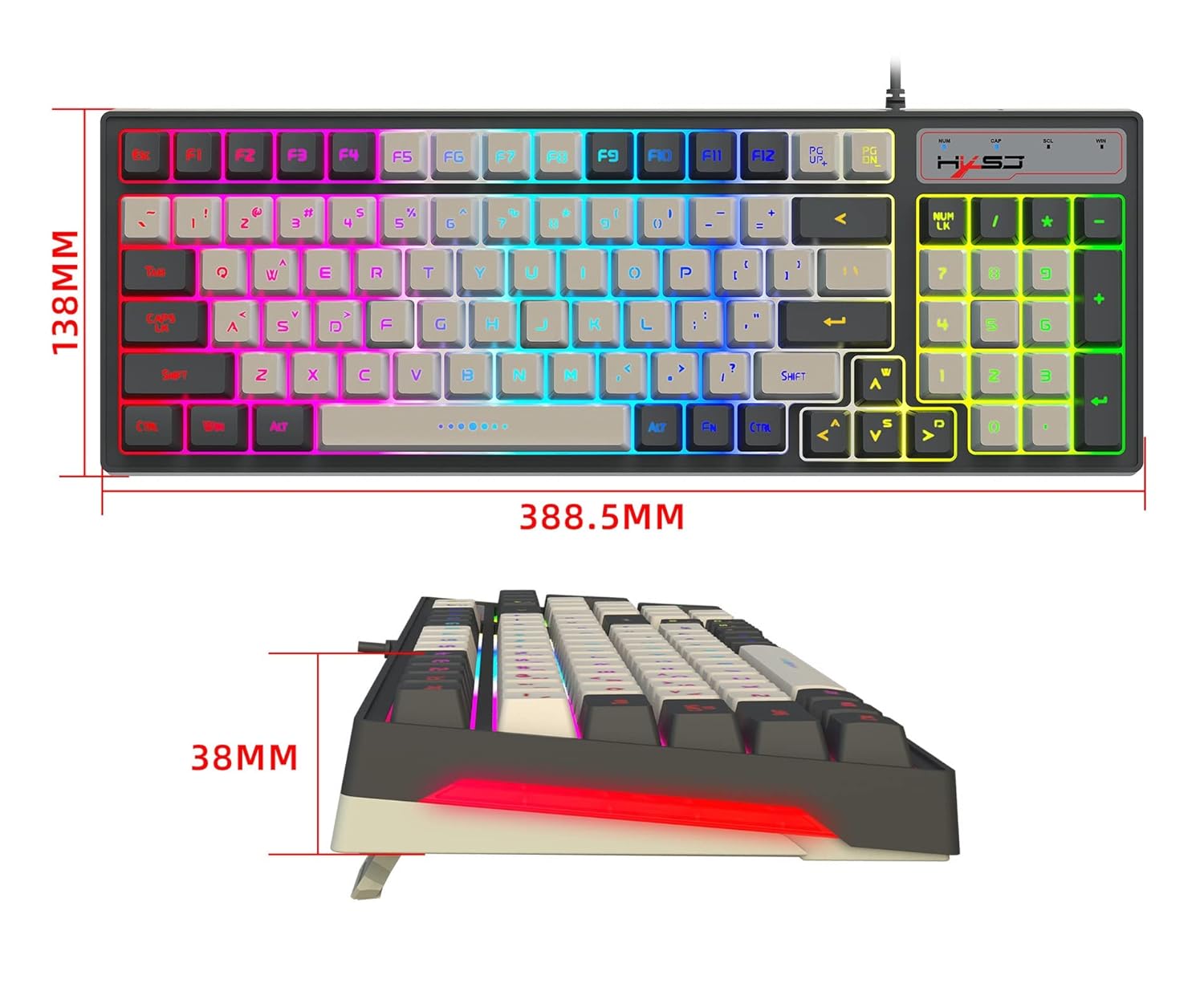

Figure 10.1: Diagram illustrating the dimensions of the HXSJ V600 keyboard.
11. Warranty and Support
Warranty: This product typically comes with a 10-day replacement policy from the date of purchase, subject to the terms and conditions of the retailer. Please retain your proof of purchase for any warranty claims.
Support: For further assistance, technical support, or warranty inquiries, please contact the retailer or manufacturer directly. Refer to your purchase documentation for specific contact details.
