NIBBI PWK32 Carburetor Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your NIBBI PWK32 Carburetor. Designed for 300cc to 350cc motorcycle engines, this carburetor aims to optimize engine performance and fuel efficiency. Please read these instructions thoroughly before installation and use.

Figure 1: Overview of the NIBBI PWK32 Carburetor and included jets.

2. Setup and Installation

The NIBBI PWK32 Carburetor is compatible with a wide range of 300cc to 350cc motorcycle engines, including models from Yamaha, Honda, Kawasaki, Suzuki, and various off-brand dirt bikes and ATVs. Ensure your old carburetor's size is compatible with the dimensions provided in Figure 4 before proceeding with installation.

2.1 Package Contents

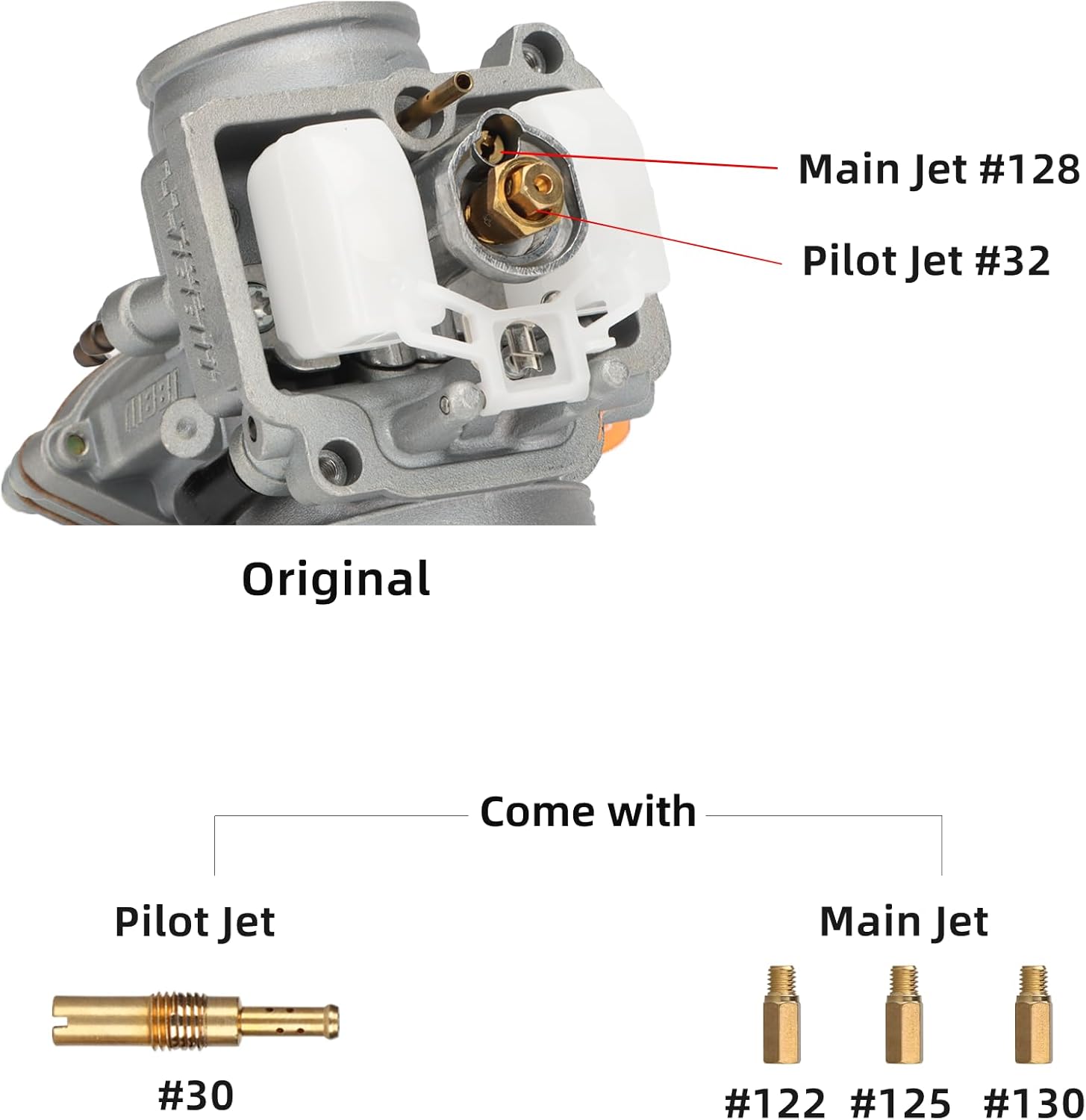

• 1 x Carburetor (Main Jet #128, Pilot Jet #32)
• 4 x Extra Main Jets (#122, #125, #130)
• 1 x Extra Pilot Jet (#30)
• 2 x Stickers
• 1 x Manual

Figure 2: Package contents and key specifications.

2.2 Jetting Information

The carburetor comes pre-installed with Main Jet #128 and Pilot Jet #32. Additional jets are provided for fine-tuning to suit specific engine requirements and environmental conditions. Refer to Figure 6 for a visual guide to the jets.

Figure 3: Main and Pilot Jet details.

2.3 Dimensions and Compatibility

The PWK32 carburetor is designed for 300cc-350cc engines. Detailed dimensions are provided to ensure proper fitment. Please compare these dimensions with your existing setup.

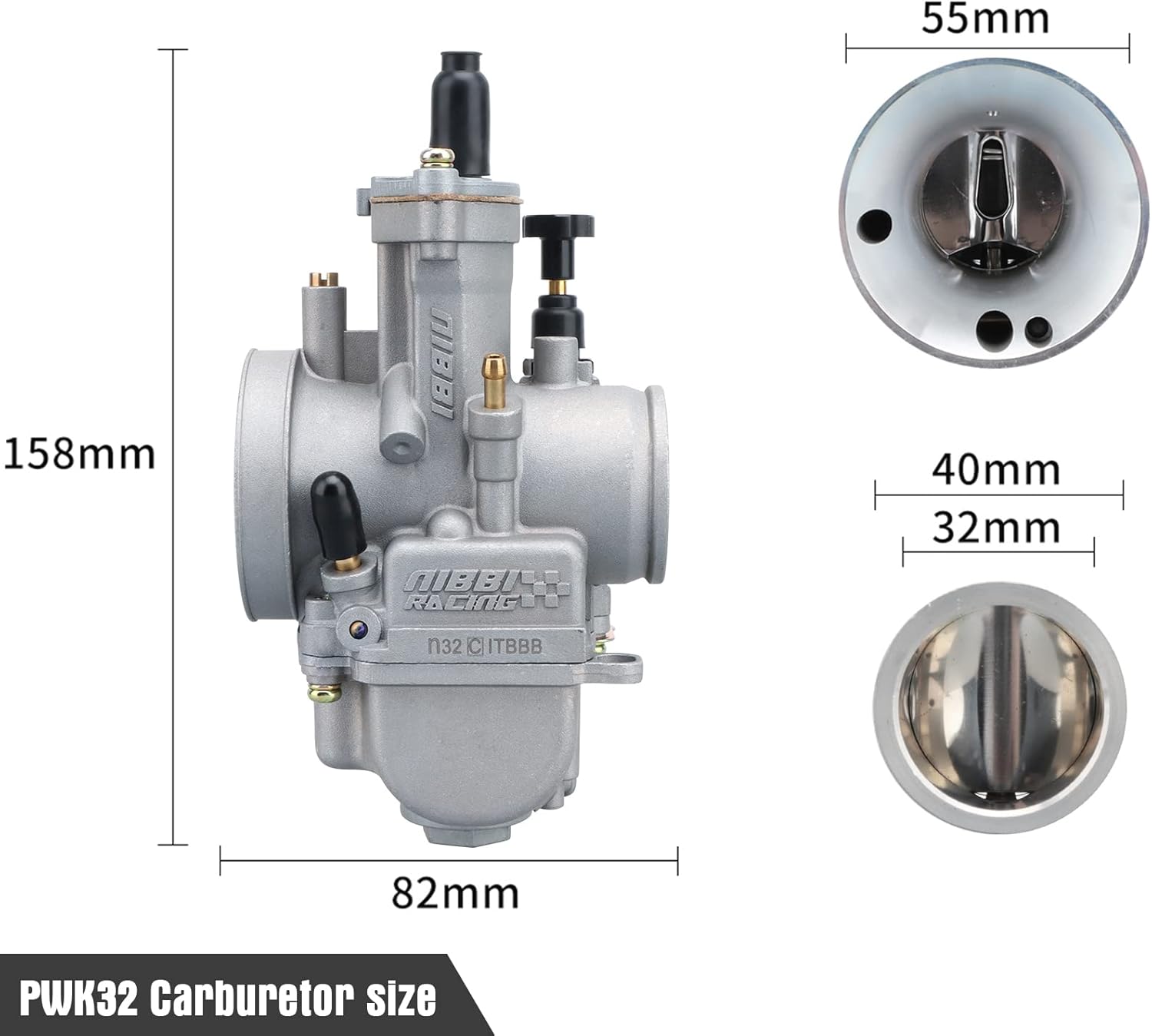

Figure 4: NIBBI PWK32 Carburetor dimensions.

Figure 5: Carburetor installed on a motorcycle engine.

Figure 6: Carburetor displacement chart for NIBBI PWK series.

Figure 7: Compatible vehicle types.

2.4 Installation Video

3. Operation

The NIBBI PWK32 Carburetor is engineered to provide improved throttle response and overall engine performance. Its precisely calibrated fuel delivery system contributes to enhanced fuel efficiency.

3.1 Performance Features

Figure 8: Performance features including increased airflow and larger bore size.

3.2 Adjustments

The carburetor features adjustable air and fuel mixture screws. Turning the air mix screw clockwise will enrich the mixture, while turning it anticlockwise will lean the mixture. Proper adjustment is crucial for achieving the ideal air-fuel ratio for your engine.

Figure 9: Adjustable air and fuel mixture screws.

Figure 10: Labeled components for adjustment.

3.3 Atomization Effect Video

4. Maintenance

The NIBBI PWK32 Carburetor is constructed from high-quality zinc alloy materials and rigorously tested to ensure longevity and durability. Regular maintenance is essential to ensure reliable performance for years to come.

Figure 11: High-quality zinc alloy construction.

4.1 Cleaning

Periodically inspect and clean the carburetor jets and internal components to prevent blockages and maintain optimal fuel flow. The provided jet kit includes various sizes and cleaning tools to assist with this process.

5. Specifications

6. Troubleshooting

If you encounter any issues with your NIBBI PWK32 Carburetor, first ensure that all connections are secure and that the air and fuel mixture screws are correctly adjusted. Verify that the fuel supply is clean and unobstructed. If problems persist, it is recommended to consult a qualified mechanic or contact NIBBI customer support for assistance.

7. Warranty and Support

For information regarding warranty coverage, technical support, or replacement parts for your NIBBI PWK32 Carburetor, please refer to the official NIBBI website or contact their customer service department directly. Keep your purchase receipt as proof of purchase for any warranty claims.
