VLOXO Cordless Electric Scissors (Model AT001) Instruction Manual

1. Introduction

Thank you for choosing the VLOXO Cordless Electric Scissors, Model AT001. This versatile multi-cutting tool is designed for efficient cutting of various materials such as cardboard, leather, plastic mats, carpets, and felt. It features a 4.2V rechargeable battery, a safety lock, and an automatic sharpening system for consistent performance. Please read this manual thoroughly before use to ensure safe and optimal operation.

2. Safety Information

Always prioritize safety when operating any power tool. Failure to follow these instructions may result in injury or damage to the product.

• Keep hands and fingers away from the blade: The rotating blade is sharp and can cause severe injury.
• Safety Lock-off: The tool is equipped with a safety lock switch. Both the trigger and the lock-out switch must be pressed simultaneously to operate the tool. Release the safety switch after the tool starts.
• Not for fabric or precision cuts: This tool is designed for thicker materials and is not suitable for delicate fabrics or cuts requiring high precision.
• Do not use while charging: Ensure the device is unplugged from the charger before operation.
• Keep the area around the blade guard clean: Remove dust and chips regularly to prevent obstruction and maintain blade sharpness.
• Store in a cool, dry place: When not in use for extended periods, store the tool and its accessories in the provided storage box.

3. Package Contents

The VLOXO Cordless Electric Scissors package includes the following items:

• (1) 4.2V Electric Scissor Unit
• (1) TYPE-C Charge Cable
• (1) Storage Case
• (1) User Manual

4. Product Overview

Familiarize yourself with the components of your VLOXO Cordless Electric Scissors:

• Cutting Blade: The octagonal blade responsible for cutting.
• Blade Guard: Provides protection around the blade.
• Safety Lock-off: Prevents accidental activation.
• Power Trigger: Activates the cutting blade when the safety lock is disengaged.
• Charging Socket: USB Type-C port for recharging the battery.
• Charging Indicator Light: Displays charging status (Red for charging, Green for fully charged).

5. Setup

5.1. Initial Charging

Before first use, fully charge the battery. A full charge typically takes 3-5 hours.

1. Connect the provided TYPE-C charge cable to the charging socket on the tool.
2. Plug the other end of the cable into a compatible USB power adapter (not included).
3. The charging indicator light will illuminate red during charging.
4. Once fully charged, the indicator light will turn green.
5. Disconnect the charger before use.

Note: If the tool is not used for a long time, please charge it regularly to maintain battery health.

6. Operating Instructions

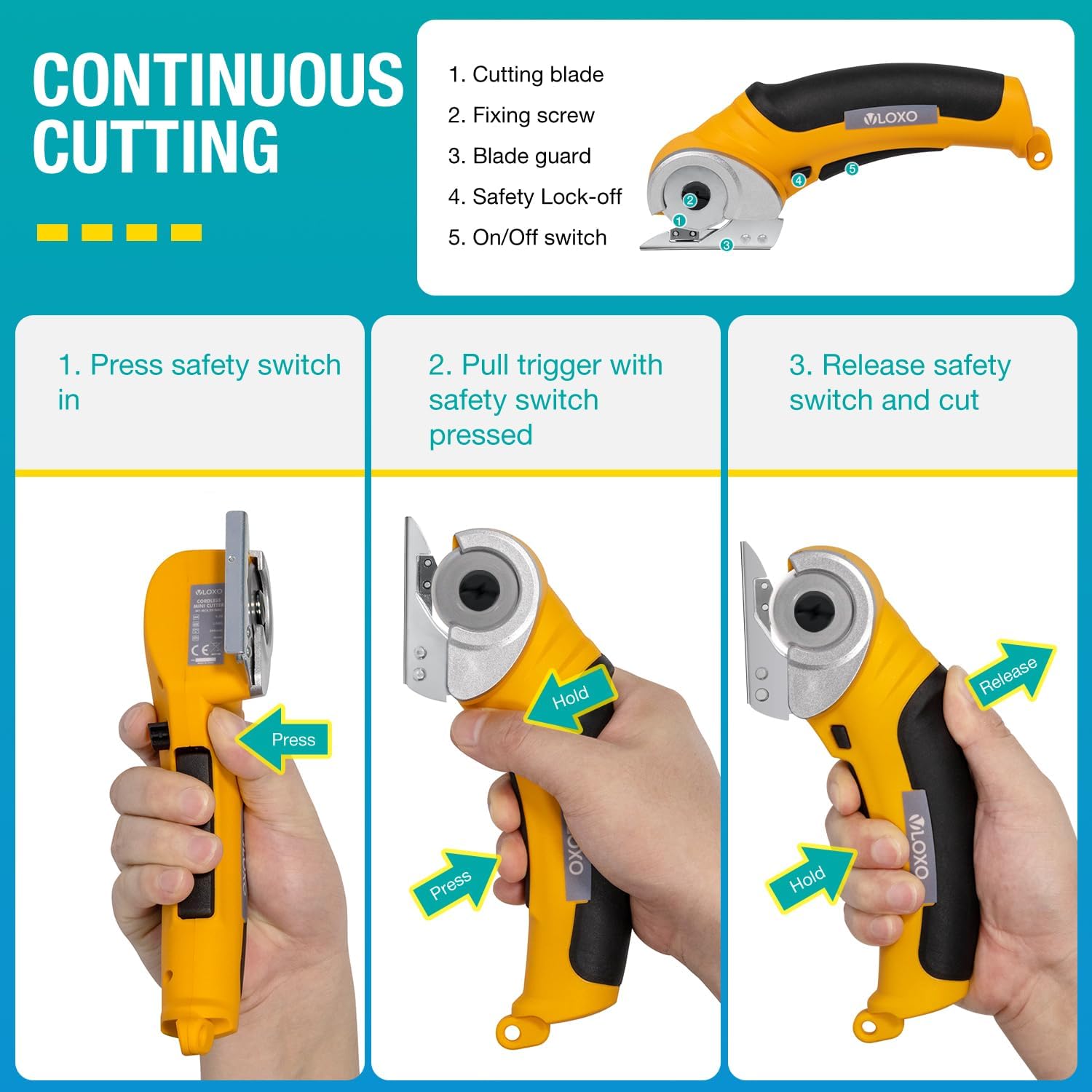

6.1. Activating the Tool

1. Ensure the tool is fully charged and disconnected from the power source.
2. Press and hold the safety lock-off switch.
3. While holding the safety lock-off switch, press the power trigger to start the blade rotation.
4. Once the blade is rotating, you may release the safety lock-off switch.
5. To stop the tool, release the power trigger.

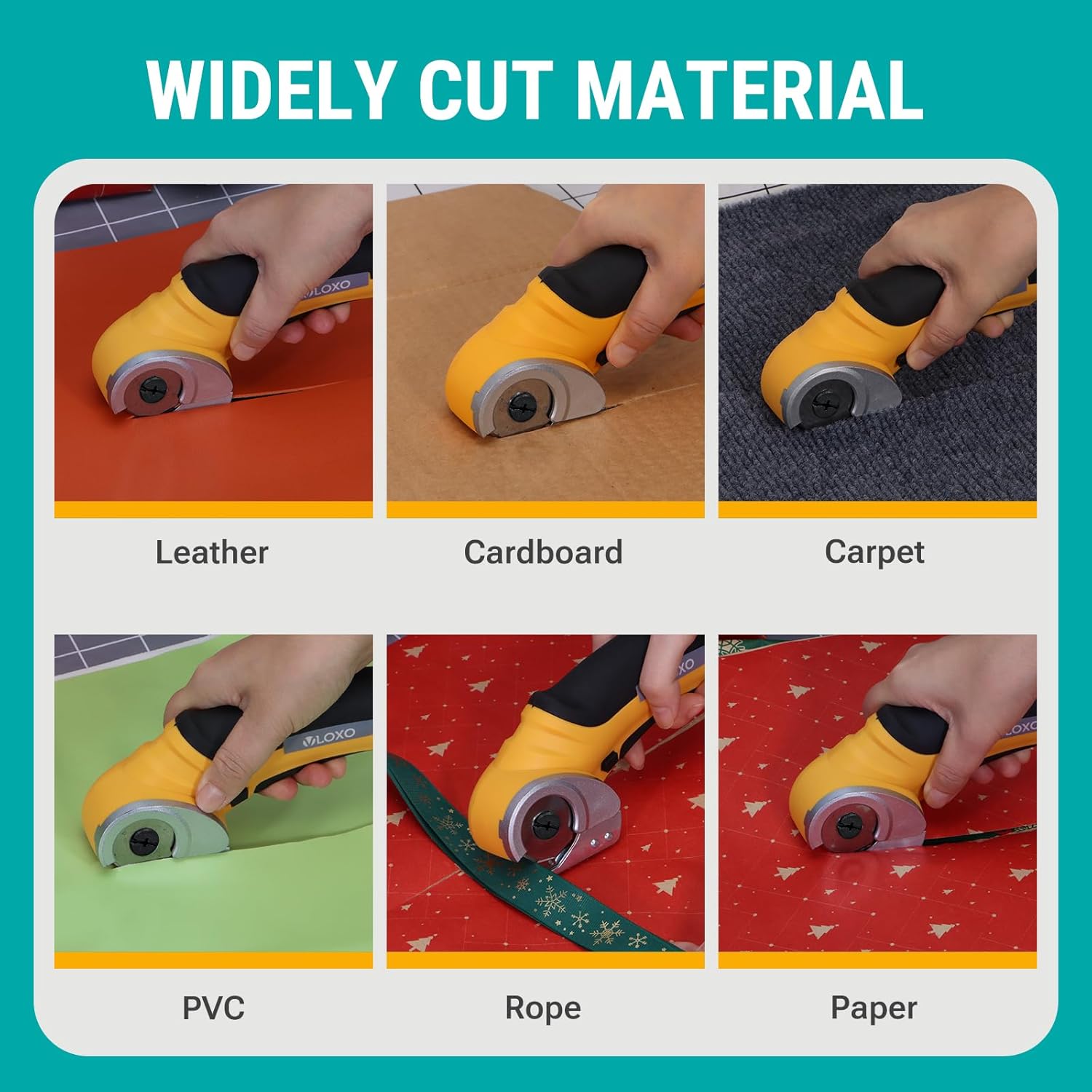

6.2. Cutting Materials

The VLOXO Cordless Electric Scissors are suitable for cutting materials up to 1/4 inch (6mm) thick. These include:

• Cardboard
• Leather
• Plastic Mats
• Carpets
• Felt
• Rope
• Paper

Important: This tool is not recommended for cutting delicate fabrics or for tasks requiring high precision. Always ensure the material is flat and stable before cutting.

6.3. Official Product Videos

Watch these official product videos from VLOXO for demonstrations and usage tips:

7. Maintenance

7.1. Blade Sharpening

The electric box cutter is equipped with an automatic sharpening system that keeps the octagonal blade sharp during use. To ensure smooth cuts, regularly inspect the blade and the area around the blade guard.

7.2. Cleaning

After each use, remove any accumulated dust, debris, or material chips from around the blade guard. This can be done by blowing them out with compressed air or using a small brush. A clean blade area ensures optimal performance and prevents material from getting tangled.

8. Troubleshooting

• Tool not turning on: Ensure the battery is fully charged. Press the safety lock-off switch and the power trigger simultaneously.
• Slower speed or weak cutting: This often indicates a low battery. Recharge the tool fully.
• Material getting tangled: Ensure the blade area is clean and free of debris. The tool is not designed for very thin or delicate fabrics, which may tangle.
• Blade not cutting smoothly: Although the blade is self-sharpening, excessive build-up of material or prolonged heavy use may affect its performance. Clean the blade area thoroughly.

9. Specifications

10. Warranty & Support

For warranty information, technical support, or any questions regarding your VLOXO Cordless Electric Scissors, please contact VLOXO customer service through the retailer where the product was purchased or visit the official VLOXO website.

We are committed to providing high-quality products and excellent customer service.
