1. Introduction
Thank you for choosing the RoyPow C45 12V 3-Amp Smart Battery Charger. This device is designed to efficiently charge and maintain various 12V batteries, including LiFePO4, lead-acid, AGM, gel cell, and deep cycle batteries. It features intelligent charging modes and multiple safety protections to ensure optimal battery health and user safety.
Package Contents
- RoyPow C45 Battery Charger Unit
- Battery Clamps (Alligator Clips)
- Ring Terminals (M6)
- AC Power Cord
- User Manual (This document)

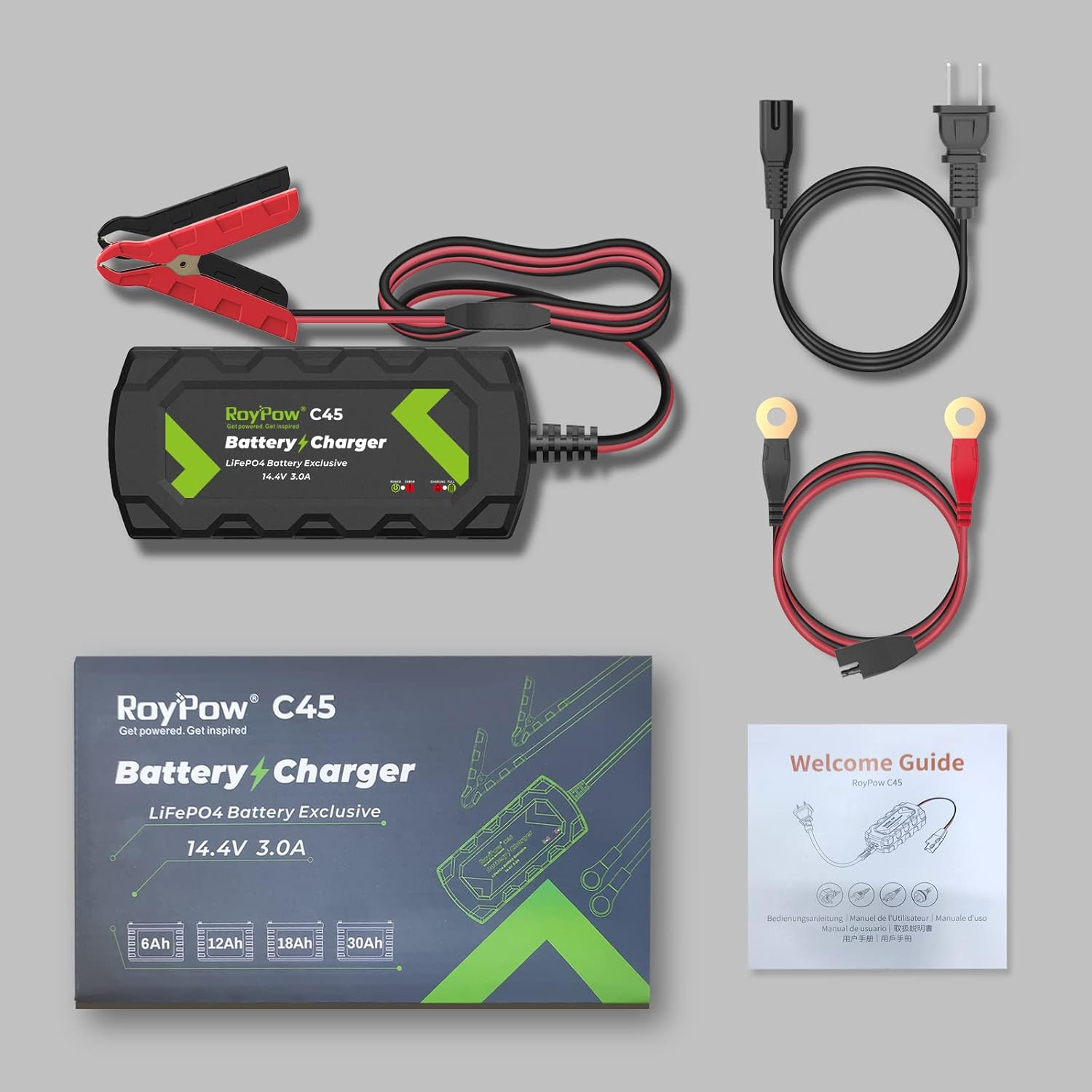

Image: Contents of the RoyPow C45 Battery Charger package, showing the charger unit, alligator clamps, ring terminals, and user guide.
2. Safety Information
Please read all safety instructions carefully before using the charger. Failure to do so may result in injury or damage to the charger or battery.
- Always ensure proper ventilation when charging batteries.
- Do not expose the charger to rain, moisture, or extreme temperatures.
- Avoid charging frozen or damaged batteries.
- Ensure the charger is disconnected from the power outlet before making or breaking connections to the battery.
- Connect the positive (+) charger lead to the positive (+) battery terminal and the negative (-) charger lead to the negative (-) battery terminal.
- Wear eye protection and gloves when working with batteries.
- Keep out of reach of children.
Built-in Protections
The RoyPow C45 charger incorporates multiple safety features to protect both the user and the battery:
- Short Circuit Protection: Prevents damage from accidental short circuits.
- Overload Protection: Safeguards against excessive current draw.
- Over-Current Protection: Limits output current to safe levels.
- Over-Voltage Protection: Prevents charging at dangerously high voltages.
- Over-Temperature Protection: Shuts down if the charger overheats.
- Reverse Connection Protection: Prevents damage if battery terminals are connected incorrectly.
Image: Visual representation of the RoyPow C45 charger's internal circuitry highlighting its multi-protection features, including overload, over-current, over-voltage, over-temperature, short circuit, and reverse connection protection.
3. Setup and Connection
The RoyPow C45 charger offers two types of connectors for versatile use: alligator clamps and ring terminals.
Choosing the Right Connector
- Alligator Clamps: Ideal for temporary connections to battery terminals, often used for automotive or marine batteries.
- Ring Terminals: Suitable for semi-permanent installations, providing a secure connection to battery posts.
Image: Comparison of the two types of battery connectors provided: ring terminals for secure, semi-permanent attachment and alligator clamps for quick, temporary connections.
Connection Steps
- Select Connector: Choose either the alligator clamps or ring terminals based on your application.
- Connect to Battery:
- Connect the red (+) connector to the positive (+) battery terminal.
- Connect the black (-) connector to the negative (-) battery terminal.
- Ensure connections are secure and free from corrosion.
- Connect to Charger: Plug the chosen connector cable into the RoyPow C45 charger unit.
- Connect to Power: Plug the AC power cord into the charger unit, then plug the other end into a standard wall outlet (100-240V AC).
Image: The RoyPow C45 charger connected to a 12V battery using alligator clamps, demonstrating the correct connection procedure for charging.
4. Operating Instructions
Once properly connected, the RoyPow C45 charger will automatically begin the charging process. It features intelligent detection and charging stages.
Indicator Lights
The charger is equipped with LED indicators to display its status:
- Power Indicator (Green LED): Illuminates when the charger is connected to AC power.
- Charging Indicator (Red LED): Illuminates when the battery is actively charging.
- Charged/Maintain Indicator (Green LED): Illuminates when the battery is fully charged and the charger has switched to maintenance (trickle charge) mode.
Image: A detailed view of the RoyPow C45 charger's LED indicators, showing the power, charging, and charged/maintain status lights.
Charging Process
- After connecting the charger to the battery and power outlet, the Power Indicator (Green) will light up.
- The Charging Indicator (Red) will illuminate, indicating that charging is in progress.
- Once the battery reaches full charge, the Charging Indicator (Red) will turn off, and the Charged/Maintain Indicator (Green) will light up. The charger will then automatically switch to trickle charge mode to maintain the battery's optimal state without overcharging.
The charger provides a 14.4V charge voltage and 3A charge current for efficient charging.
Image: The RoyPow C45 charger connected to a battery, illustrating the active charging process with an output of 14.4V and 3A, and the indicator light showing charging status.
Dead Battery Activation
This charger is capable of activating deeply discharged batteries. If a 12V battery is over-discharged and its voltage drops to as low as 1 volt, the RoyPow C45 can initiate a recovery process to bring it back to a chargeable state. This auto-repair function helps extend battery life.
Image: The RoyPow C45 charger connected to a battery, depicting the activation of a deeply discharged battery with a visual representation of energy flow.
5. Compatibility
The RoyPow C45 is a highly versatile battery maintainer compatible with a wide range of 12V battery types:
- LiFePO4 Batteries: Specifically designed for 12V Lithium Iron Phosphate batteries.
- Lead-Acid Batteries: Standard automotive and deep cycle lead-acid batteries.
- Flooded Batteries: Traditional wet-cell batteries.
- AGM Batteries: Absorbed Glass Mat batteries.
- Gel Cell Batteries: Gel electrolyte batteries.
- Deep Cycle Batteries: Batteries designed for regular deep discharge.
This makes it suitable for various applications including automotive, motorcycles, marine vehicles, RVs, Powersport equipment, lawn & garden equipment, and children's toys.
Image: The RoyPow C45 charger connected to a car battery, illustrating its compatibility with 12V Lithium, AGM, SLA, and Gel batteries.
6. Maintenance
To ensure the longevity and optimal performance of your RoyPow C45 battery charger, follow these simple maintenance guidelines:
- Cleaning: Disconnect the charger from power and battery before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use harsh chemicals or abrasive cleaners.
- Storage: Store the charger in a cool, dry place when not in use. Avoid areas with high humidity or extreme temperatures.
- Cable Inspection: Regularly inspect the power cord and connector cables for any signs of damage, fraying, or exposed wires. Replace if damaged.
- Connector Care: Keep the battery clamps and ring terminals clean and free from corrosion to ensure good electrical contact.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Charger not turning on (No Power Indicator) | No AC power; Faulty power outlet; Damaged power cord. | Check AC power connection. Try a different outlet. Inspect power cord for damage. |
| Charging Indicator (Red) does not light up | Incorrect battery connection (reverse polarity); Battery voltage too low (below 1V); Battery is already fully charged; Faulty battery. | Verify correct polarity (+ to +, - to -). Ensure battery voltage is above 1V for activation. Check if the Charged/Maintain Indicator (Green) is on. Test battery condition. |
| Charger gets warm during operation | Normal operation during charging. | This is normal. Ensure adequate ventilation around the charger. If it becomes excessively hot, disconnect and contact support. |
| Charged/Maintain Indicator (Green) does not light up after prolonged charging | Battery not reaching full charge; Faulty battery. | Allow more time for charging, especially for large or deeply discharged batteries. Test battery condition. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | C45 |
| Input Voltage | 100-240V AC, 50/60Hz |
| Output Voltage | 12 Volts DC |
| Output Current | 3 Amps |
| Charge Voltage | 14.4V |
| Compatible Battery Types | 12V LiFePO4, Lead-acid, Flooded, AGM, Gel Cell, Deep Cycle |
| Dimensions (L x W x H) | 4.19 x 1.94 x 1.23 inches (10.64 x 4.93 x 3.12 cm) |
| Item Weight | 5.3 ounces (150 grams) |
| Cable Length | Approximately 2 meters (total cord length) |
| Protections | Short Circuit, Overload, Over-Current, Over-Voltage, Over-Temperature, Reverse Connection |
9. Warranty and Support
RoyPow products are manufactured to high-quality standards. For warranty information and technical support, please refer to the official RoyPow website or contact their customer service directly.
For further assistance, you may visit the RoyPow Store on Amazon.
