Introduction
This manual provides instructions for the ZHNN Wireless CarPlay AI Box, a multimedia video box designed to integrate wireless CarPlay and Android Auto functionality into vehicles equipped with factory wired CarPlay. This device features an Android 10 system with 4GB RAM and 64GB storage, offering a plug-and-play solution for enhanced in-car entertainment and navigation.
Setup Guide
1. Package Contents
- ZHNN Wireless CarPlay AI Box
- USB-C to USB-A Cable
- User Manual (this document)
2. Device Overview
Familiarize yourself with the ports and indicators on the AI Box.
Image: Detailed view of the CarPlay AI Box, highlighting the Type-C port, indicator light, reset hole, SIM card slot, and SD card slot. It also shows the correct orientation for inserting SIM and SD cards (SIM chip face down, SD chip face up).
3. Inserting SIM/SD Card (Optional)
If you plan to use mobile data or expand storage, insert a SIM card or SD card into the designated slots. Ensure correct orientation as shown in the diagram.
- For SIM card: Insert with the notch side facing outward into the upper slot.
- For SD card: Insert with the chip face up into the lower slot.
Video: This video demonstrates the process of inserting a SIM card into the AI Box and connecting the device to a car's USB port. It shows the initial boot-up sequence and how to access the Android system by selecting "CarPlay" on the car's display.
4. Connecting to Your Vehicle
The ZHNN Wireless CarPlay AI Box is designed for vehicles with factory-installed wired CarPlay. Follow these steps to connect:
- Ensure your vehicle's engine is running or the ignition is in accessory mode.
- Locate the USB port in your vehicle that supports wired CarPlay.
- Connect one end of the provided USB-C cable to the AI Box and the other end (USB-A) to your vehicle's CarPlay USB port.
- The AI Box will power on, and an indicator light will illuminate.
- On your vehicle's infotainment screen, select the "CarPlay" option. This action will initiate the AI Box's Android system.
Image: The AI Box connected to a car's USB port, demonstrating the simple plug-and-play installation process.
Image: Visual representation of the AI Box enabling both Wireless CarPlay (for iOS 10+) and Wireless Android Auto (for Android 11.0+) on a car's display.

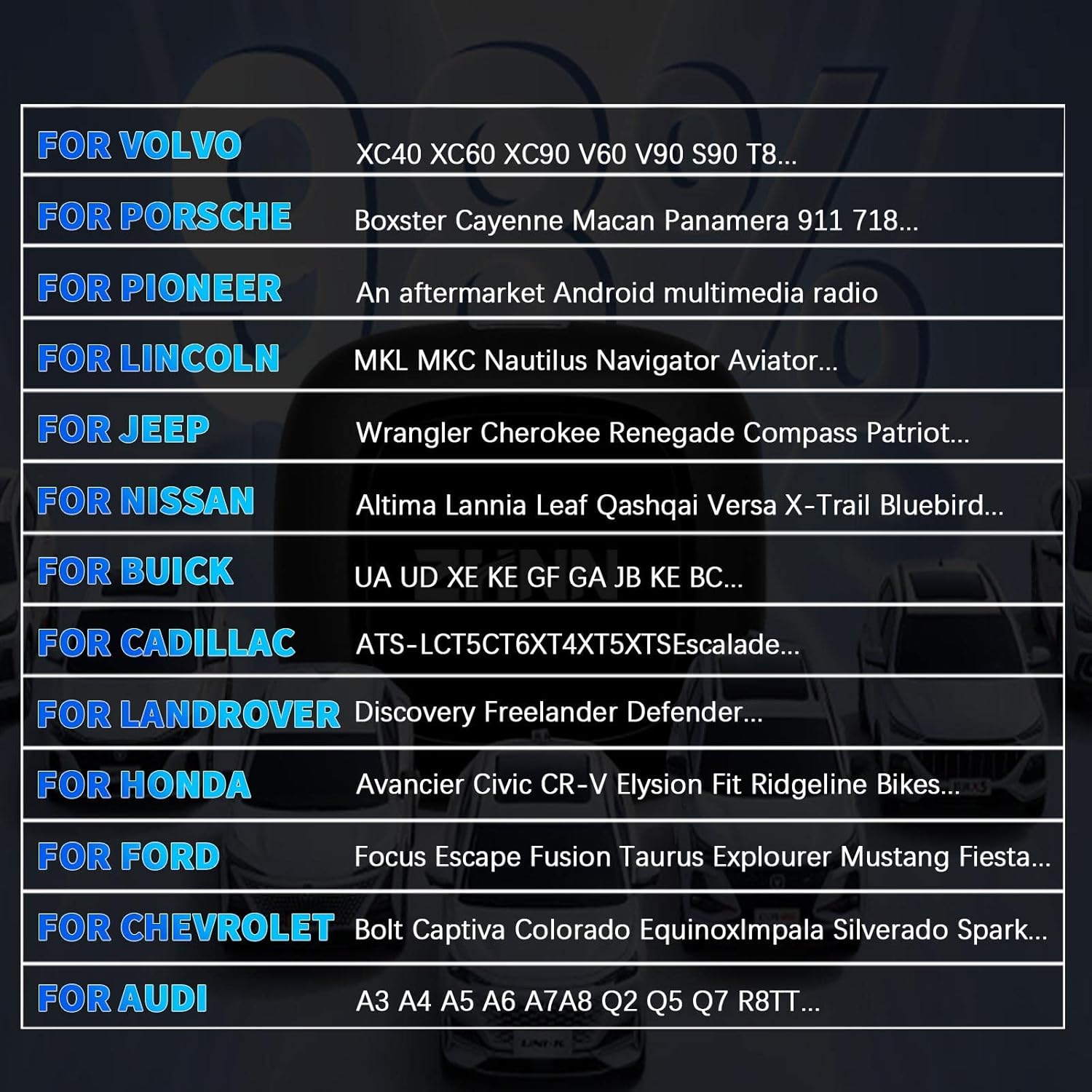

Image: A compatibility chart listing various car brands and models that support the ZHNN Wireless CarPlay AI Box.
Operating Instructions
1. Navigating the Android System
Once the AI Box has booted and the Android system is displayed on your car's screen, you can navigate using the car's touchscreen or control knob (if supported). The interface is similar to a standard Android tablet.
Image: The car's display showing the upgraded Android 10 system, featuring popular applications like Netflix, YouTube, and navigation, demonstrating the expanded capabilities.
2. Wireless CarPlay and Android Auto
The primary function of the AI Box is to enable wireless CarPlay and Android Auto. After the Android system loads:
- Ensure your smartphone's Bluetooth and Wi-Fi are enabled.
- On the AI Box's Android interface, open the "CarPlay" or "Android Auto" application.
- Follow the on-screen prompts to pair your smartphone via Bluetooth.
- Once paired, the system will automatically connect to wireless CarPlay or Android Auto.
3. Installing and Using Applications
The AI Box runs on Android 10, allowing you to download and install various applications from the Google Play Store (requires internet connection via SIM card or Wi-Fi hotspot).
- Access the Google Play Store from the main menu.
- Log in with your Google account.
- Search for and install desired applications (e.g., navigation, streaming, music).
Image: The car's display showcasing a variety of entertainment and utility applications, emphasizing the capability to download and use more apps from the Play Store.
Maintenance
To ensure the longevity and optimal performance of your ZHNN Wireless CarPlay AI Box, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to clean the exterior of the device. Avoid liquid cleaners or abrasive materials.
- Temperature: Do not expose the device to extreme temperatures (hot or cold) or direct sunlight for extended periods.
- Storage: When not in use for a long time, disconnect the device from the car's USB port and store it in a cool, dry place.
- Software Updates: Periodically check for software updates within the device's settings to ensure you have the latest features and bug fixes.
Troubleshooting
If you encounter issues with your ZHNN Wireless CarPlay AI Box, refer to the following common solutions:
No Display on Car Screen
- Check Connection: Ensure the USB cable is securely connected to both the AI Box and the car's CarPlay USB port.
- CarPlay Activation: Verify that your car's infotainment system is set to "CarPlay" mode.
- Power Cycle: Disconnect the AI Box, turn off your car, wait a few minutes, then restart the car and reconnect the AI Box.
- Vehicle Compatibility: Confirm your vehicle has factory wired CarPlay. The device is not compatible with vehicles that do not have wired CarPlay.
Wireless CarPlay/Android Auto Not Connecting
- Bluetooth/Wi-Fi: Ensure Bluetooth and Wi-Fi are enabled on your smartphone.
- Forget Device: On your smartphone, forget the AI Box from your Bluetooth settings and try pairing again.
- Restart AI Box: Navigate to the "Car" app on the AI Box's Android system and select "Restart" if available, or simply unplug and replug the device.
- Software Update: Check if there are any available software updates for the AI Box.
Apps Not Loading or Slow Performance
- Internet Connection: Verify the AI Box has a stable internet connection (via SIM card or Wi-Fi hotspot).
- Clear Cache: In Android settings, try clearing the cache of problematic applications.
- Restart: Restart the AI Box as described above.
- Storage: Ensure sufficient free storage space on the device.
Device Overheating
- Ventilation: Ensure the device is placed in a well-ventilated area and not covered.
- Usage: Prolonged use of demanding applications can generate heat. If overheating persists, reduce usage or contact support.
If these steps do not resolve the issue, please contact ZHNN customer support for further assistance.
Specifications
| Model Number | Multimedia Video Box |
| Operating System | Android 10 |
| Processor | Qualcomm eight-core processor |
| Memory | 4GB RAM + 64GB Storage |
| Connectivity Technology | Wi-Fi (802.11 a/b/g/n/ac, 2.4G+5G), 4G Full Netcom |
| Wireless Communication Standard | Bluetooth (4.2 BLE + 5.0 BLE) |
| Navigation | Built-in GPS+Glonass+Beidou satellite positioning |
| Power Input | 5V ± 0.2V = 1.0A |
| Compatible Devices | Smartphone (requires factory wired CarPlay in vehicle) |
| Dimensions | 5.59 x 4.8 x 1.61 inches |
| Item Weight | 5 ounces |
Warranty and Support
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support, product inquiries, or assistance with troubleshooting beyond this manual, please contact ZHNN customer service through the platform where the product was purchased or visit the official ZHNN website for contact details.
