Pyle PDWRBT46WT Bluetooth Indoor/Outdoor Speaker System Instruction Manual

1. Introduction

The Pyle PDWRBT46WT is a 300-watt peak power, dual waterproof 4-inch 2-way full-range speaker system designed for both indoor and outdoor use. Featuring Bluetooth wireless music streaming, a 1/2-inch high-compliance polymer tweeter, and heavy-duty ABS construction, these speakers are suitable for various environments including homes, boats, marine applications, decks, patios, and poolside areas. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your speaker system.

Figure 1: Pyle PDWRBT46WT Speaker System

2. What's in the Box

Please check the contents of the package to ensure all items are present:

• (2) Speakers
• Mounting Brackets
• Mounting Hardware
• Speaker Cable (11.48 ft. / 3.5m)
• Power Adapter (DC12V, 2A)

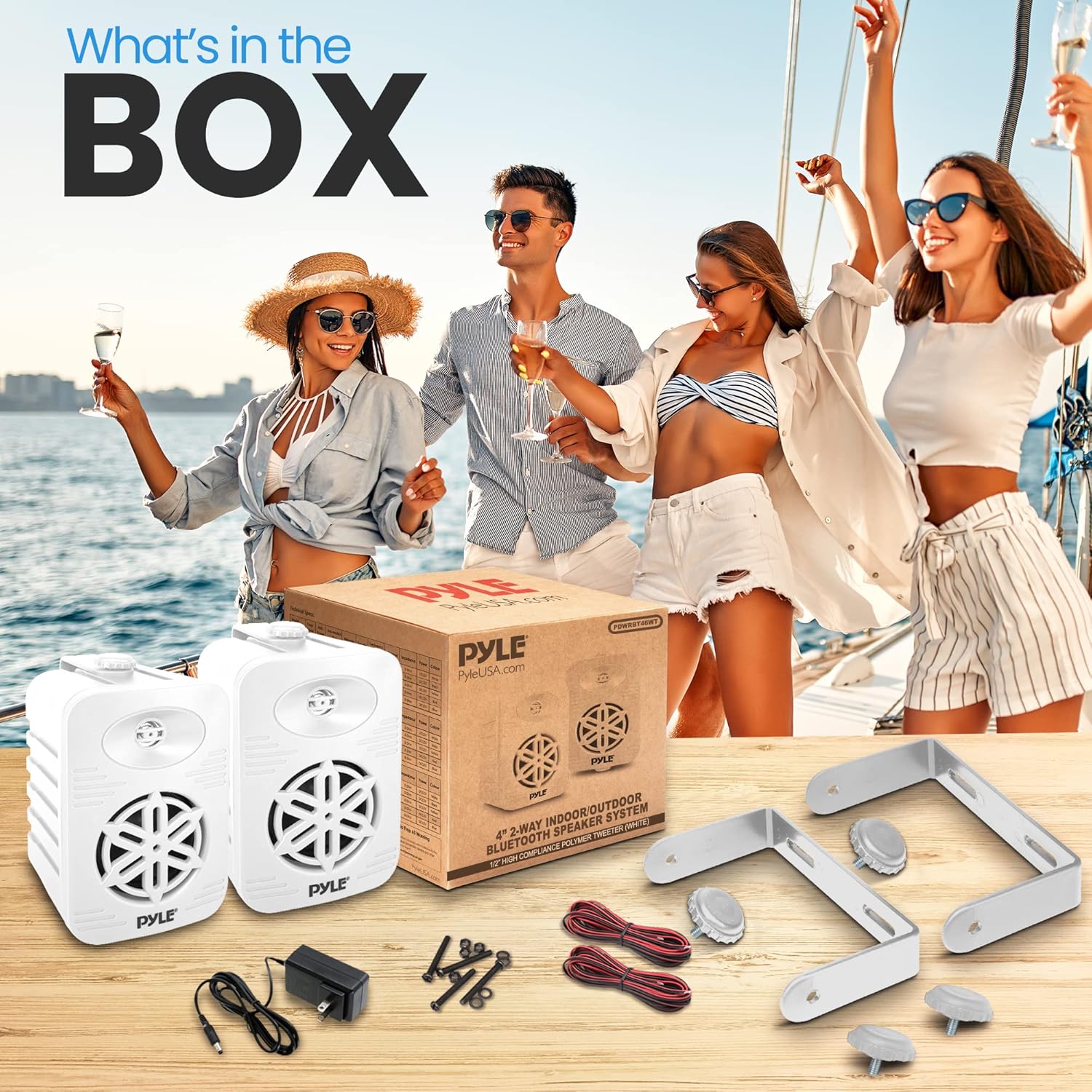

Figure 2: Included components of the PDWRBT46WT speaker system.

3. Features

• Full Range Audio: 300-watt peak power / 150W RMS with 4" aluminum injection cones subwoofer and 1/2" high compliance polymer tweeter for comprehensive stereo sound.
• Bluetooth Compatible: Built-in Bluetooth Wireless Streaming Receiver (Version 4.0) for hassle-free audio streaming from smartphones, tablets, laptops, and computers. Bluetooth Network Name: 'Pyle', Password: '0000' (4 Zeroes). Wireless Range: 30'+ ft.
• Quick-Connect Terminals: Features a capacitor crossover network for distinct sound separation. Easy wire connection using quick connect/disconnect speaker terminals.
• Waterproof Construction: Heavy-duty ABS construction and marine-grade waterproof design ensure safe use in environments with heavy water splashes. Ideal for boats, marine, decks, patios, poolside, and general outdoor use.
• Universal Mounting: Can be mounted either horizontally or vertically using the included brackets and hardware.

Figure 3: Bluetooth wireless streaming capability.

Figure 4: Marine-grade waterproof design.

4. Setup

4.1 Mounting the Speakers

1. Determine the desired mounting location. The speakers can be mounted horizontally or vertically.
2. Attach the mounting brackets to the desired surface using the provided mounting hardware. Ensure the surface is sturdy enough to support the speakers.
3. Secure the speakers to the mounting brackets. Adjust the angle as needed for optimal sound projection.

Figure 5: Examples of speaker placement in outdoor environments.

4.2 Wiring and Power Connection

1. Connect the speaker cable to the quick-connect terminals on the back of both speakers. Ensure correct polarity (red to positive, black to negative).
2. Plug the power adapter into the DC12V input on the powered speaker.
3. Plug the power adapter into a suitable power outlet. The speakers will emit a tone indicating they are searching for a Bluetooth device.

Figure 6: Rear view showing quick connect terminals and power input.

5. Operating Instructions

5.1 Bluetooth Pairing

1. Ensure the speakers are powered on. You will hear a tone indicating Bluetooth pairing mode.
2. On your smart device (smartphone, tablet, etc.), navigate to the Bluetooth settings.
3. Turn on Bluetooth. The device will begin searching for available devices.
4. Select 'Pyle' from the list of available devices.
5. If prompted for a password, enter '0000' (four zeroes).
6. Once successfully paired, you will hear a confirmation tone. You can now stream audio wirelessly to your speakers.

5.2 Audio Playback

Once paired, simply play your desired audio from your connected device. Adjust the volume using your device's controls.

6. Maintenance

• Cleaning: Use a soft, damp cloth to clean the speaker surfaces. Avoid harsh chemicals or abrasive cleaners.
• Water Exposure: While waterproof, avoid submerging the speakers. Ensure all connections are secure to prevent water ingress.
• Storage: If storing for extended periods, especially in harsh weather, consider bringing the speakers indoors to prolong their lifespan.

7. Troubleshooting

• No Power: Ensure the power adapter is securely plugged into both the speaker and a working power outlet.
• No Sound: Check that the speakers are powered on and successfully paired via Bluetooth. Verify the volume level on both your device and the speakers. Ensure speaker cables are correctly connected.
• Bluetooth Disconnection: Ensure your device is within the 30'+ ft. wireless range. Try unpairing and re-pairing the device.
• Poor Sound Quality: Check for interference from other electronic devices. Ensure the audio source is of good quality.

8. Specifications

9. Warranty and Support

This product comes with a limited warranty. For specific warranty details, registration, or technical support, please refer to the documentation included with your purchase or visit the official Pyle website. Keep your purchase receipt as proof of purchase.
