Morphy Richards Kenzo Cold Press Slow Juicer 150W User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and care of your Morphy Richards Kenzo Cold Press Slow Juicer. Please read these instructions thoroughly before first use and retain for future reference.

Image 1: Overview of the Morphy Richards Kenzo Slow Juicer, emphasizing its ability to produce fresh, healthy, and nutrient-rich juice with low noise operation and minimum waste.

2. Product Components

The Morphy Richards Kenzo Cold Press Slow Juicer package includes the following components:

• Juicer Main Unit
• Juicer Jar
• Rotary Cleaning Brush
• Strainer
• Auger (Squeezing Screw)
• Hopper/Feeding Tube
• Food Pusher
• Frozen Dessert Attachment
• Juice Container
• Pulp Container
• Manual Cleaning Brush
• Instruction Manual
• Warranty Card

Image 2: The assembled juicer unit shown with its dedicated juice and pulp collection containers.

3. Setup Instructions

1. Unpack: Carefully remove all components from the packaging. Retain packaging for storage or future transport.
2. Clean: Before first use, wash all detachable parts (juicer jar, strainer, auger, hopper, containers, brushes) with warm soapy water. Rinse thoroughly and dry. The main unit should be wiped with a damp cloth.
3. Assemble:
   • Place the juicer jar onto the main motor unit, ensuring it clicks securely into place.
   • Insert the strainer into the juicer jar.
   • Place the auger (squeezing screw) into the center of the strainer.
   • Attach the hopper/feeding tube assembly onto the top of the juicer jar, aligning the marks and twisting until locked.
   • Position the juice container under the juice outlet and the pulp container under the pulp outlet.
4. Power Connection: Ensure the juicer is correctly assembled before plugging the power cord into a suitable electrical outlet (230 Volts).

4. Operating Instructions

Follow these steps for optimal juicing results:

1. Prepare Ingredients: Wash fruits and vegetables thoroughly. Cut ingredients into small pieces that fit easily into the feeding tube. Remove hard seeds, pits, and thick peels (e.g., citrus, pineapple).
2. Start Juicing: Turn the juicer ON using the power button. The 150W DC motor operates at 60 RPM for efficient cold pressing.
3. Feed Ingredients: Gradually feed the prepared ingredients into the feeding tube. Use the food pusher gently to guide ingredients down. Do not force ingredients, as this can cause blockages.
4. Reverse Function: If ingredients become jammed or cause a blockage, press the "REV" button. This will rotate the auger in the anti-clockwise direction to clear the blockage. Release the button to return to normal operation.
5. Juice Collection: Fresh juice will flow into the juice container, and pulp will be expelled into the pulp container.
6. Frozen Dessert Attachment: For making frozen desserts, replace the standard strainer with the frozen dessert attachment. Ensure frozen fruits are slightly thawed for best results.
7. Finish: Once juicing is complete, turn the juicer OFF and unplug it from the power outlet.

Image 3: The juicer demonstrating its capability to extract nut milk from almonds and coconut.

5. Maintenance and Cleaning

Regular cleaning ensures the longevity and performance of your juicer. Always unplug the appliance before cleaning.

1. Disassemble: Carefully disassemble the juicer in reverse order of assembly.
2. Rinse: Rinse all detachable parts under running water immediately after use to prevent pulp from drying and sticking.
3. Clean Strainer: Use the rotary cleaning brush and manual cleaning brush to thoroughly clean the fine mesh strainer. This is crucial for maintaining juicing efficiency.
4. Wash Parts: Wash the juicer jar, auger, hopper, food pusher, and containers with warm soapy water. Rinse well.
5. Main Unit: Wipe the main motor unit with a damp cloth. Do not immerse the main unit in water or any other liquid.
6. Drying: Allow all parts to air dry completely before reassembling or storing.
7. Dishwasher Safety: The item is not dishwasher safe. Clean all parts by hand.

Image 4: Detailed view of the fine mesh filter, highlighting its design for efficient juice extraction and minimal wastage.

6. Troubleshooting

7. Specifications

• Brand: Morphy Richards
• Model: Kenzo Cold Press Slow Juicer
• Color: Rose Gold
• Special Feature: Filter
• Product Dimensions (D x W x H): 14.3 x 14.3 x 29.3 Centimeters
• Material: Acrylonitrile Butadiene Styrene (ABS), Stainless Steel
• Maximum Power: 150 Watts
• Wattage: 150 Watts
• Power Source Type: Corded Electric
• Voltage: 230 Volts
• Controller Type: Button
• Number Of Speeds: 1
• Blade Material: Stainless Steel
• Item Weight: 3600 Grams
• Recommended Uses: Fruits, Vegetables, Leafy Greens

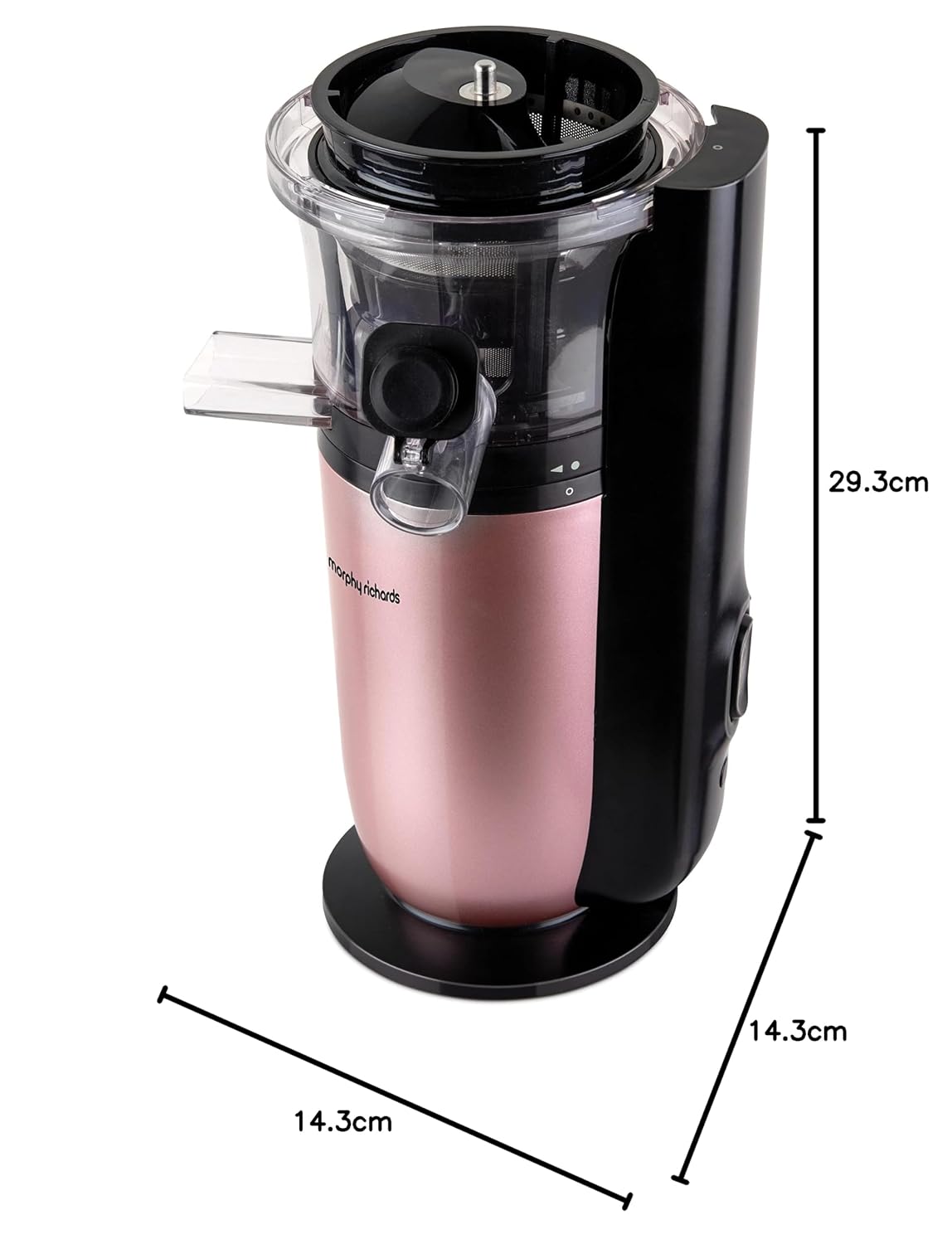

Image 5: Product dimensions of the Morphy Richards Kenzo Slow Juicer.

8. Warranty and Support

Your Morphy Richards Kenzo Cold Press Slow Juicer comes with a 2-year manufacturer warranty.

For warranty claims, service, or any product-related inquiries, please contact:

• Importer Contact: Bajaj Electricals Ltd, 45/47, Veer Nariman Road, Mumbai 400001
• Phone: 02241280000
• Email: consumercare@bajajelectricals.com

Please retain your purchase receipt and warranty card for proof of purchase.
