American Bass Hawk-8 8-inch Midrange Midbass Car Speakers

Introduction

Thank you for choosing American Bass Hawk-8 8-inch Midrange Midbass Car Speakers. These speakers are designed to deliver powerful and clear audio performance in your vehicle. This manual provides essential information for proper installation, operation, and maintenance to ensure optimal performance and longevity of your speakers.

Safety Information

• Always disconnect the vehicle's battery before performing any electrical work.
• Ensure all wiring is properly insulated to prevent short circuits.
• Mount speakers securely to prevent movement during vehicle operation.
• Avoid exposing speakers to excessive moisture or extreme temperatures.
• Consult a professional installer if you are unsure about any installation steps.

Package Contents

Verify that all items are present in the package:

• Two (2) American Bass Hawk-8 8-inch Midrange Midbass Car Speakers
• Two (2) Metal Grills

Setup and Installation

Proper installation is crucial for optimal sound quality and speaker longevity. Follow these general guidelines:

1. Speaker Placement: Choose a suitable location in your vehicle that allows for secure mounting and proper sound dispersion. Ensure the mounting depth of 3.4 inches is accommodated.
2. Mounting: Securely fasten the speakers using appropriate hardware. The speakers feature a stamped steel basket for durability.
3. Wiring: Connect the speaker terminals to your amplifier. These speakers have a 4 Ohm impedance. Ensure correct polarity (+ to + and - to -) to avoid phase issues. The 1.5-inch CCAW high-temperature voice coil is designed for robust power handling.
4. Grill Installation: Attach the included metal grills to protect the speaker cones from physical damage.

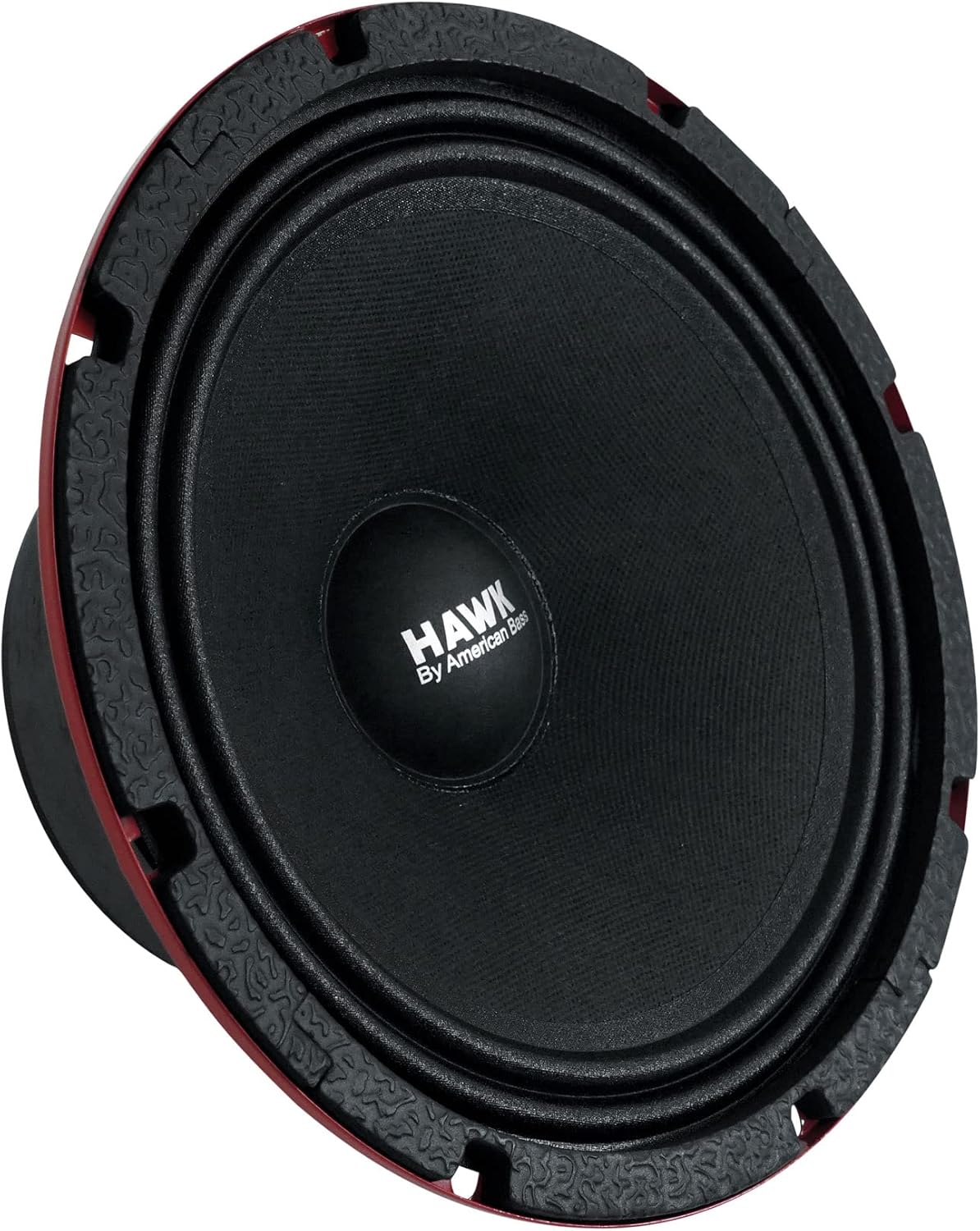

Image: American Bass Hawk-8 8-inch midrange speaker, angled view.

Image: American Bass Hawk-8 speaker with the protective metal grill installed.

Image: Side view of the American Bass Hawk-8 speaker, showing the magnet and wiring terminals.

Operating Instructions

Once installed, connect your American Bass Hawk-8 speakers to a compatible car audio amplifier. These speakers are rated for 600 Watts Max power handling. Ensure your amplifier's output matches the speaker's power requirements to prevent damage.

• Amplifier Settings: Adjust your amplifier's gain and crossover settings appropriately. For midrange/midbass speakers, a high-pass filter is typically recommended to prevent low frequencies that can cause distortion or damage.
• Frequency Response: The speakers are designed to reproduce frequencies from 100 Hz to 8000 Hz.
• Sensitivity: With a sensitivity of 97 dB, these speakers are efficient in converting amplifier power into sound.
• Volume Control: Always start with low volume and gradually increase it to a comfortable listening level. Avoid prolonged listening at excessively high volumes to prevent hearing damage and speaker fatigue.

Maintenance

Minimal maintenance is required for your American Bass Hawk-8 speakers:

• Cleaning: Periodically wipe the speaker grills and surrounds with a soft, dry cloth to remove dust and debris. Do not use harsh chemicals or abrasive cleaners.
• Inspection: Occasionally check wiring connections for tightness and inspect the speaker cones for any signs of damage.
• Environmental Protection: While robust, avoid exposing the speakers to direct sunlight for extended periods or extreme temperature fluctuations, which can degrade materials over time.

Troubleshooting

If you experience issues with your speakers, refer to the following common troubleshooting steps:

• No Sound:
  • Check all wiring connections from the amplifier to the speakers for secure contact and correct polarity.
  • Verify the amplifier is powered on and functioning correctly.
  • Ensure the audio source is playing and volume levels are adequate.
• Distorted Sound:
  • Reduce the amplifier's gain setting. Overdriving the amplifier can cause distortion.
  • Check for proper crossover settings on your amplifier to ensure speakers are not playing frequencies outside their optimal range.
  • Inspect speaker cones for any physical damage or obstructions.
• One Speaker Not Working:
  • Swap the non-working speaker with a working one (if applicable) to determine if the issue is with the speaker or the wiring/amplifier channel.
  • Check the specific wiring for the affected speaker.

Specifications

Detailed technical specifications for the American Bass Hawk-8 speakers:

Image: Diagram showing general specifications for the American Bass Hawk-8 speaker.

Warranty Information

American Bass Hawk-8 speakers come with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your purchase or visit the official American Bass website. Keep your proof of purchase for warranty claims.

Support

For technical assistance, product inquiries, or support, please contact American Bass customer service through their official website or the contact information provided with your product documentation.

Website: Visit the American Bass Store on Amazon
