ecozy Portable Ice Maker Countertop IM-BS260C User Manual

1. Product Overview

The ecozy Portable Ice Maker is designed for convenient ice production on your countertop. It produces 9 bullet-shaped ice cubes in approximately 6 minutes and can generate up to 26 lbs of ice in 24 hours. The unit features a self-cleaning function and offers two ice cube sizes.

Figure 1: The ecozy Portable Ice Maker in Aqua color, a compact and efficient countertop appliance.

2. Setup and First Use

2.1 Unpacking and Placement

• Carefully remove the ice maker from its packaging.
• Check that all accessories are present: ice scoop, ice bags, and ice basket.
• Place the ice maker on a flat, stable surface away from direct sunlight and heat sources.
• Ensure at least 6 inches (approximately 15 cm) of clearance around the sides and back of the unit for proper ventilation. This is crucial for efficient operation and to prevent overheating.
• Allow the unit to stand upright for at least 1 hour before plugging it in. This allows the refrigerant to settle.

2.2 Initial Cleaning

Before first use, it is recommended to clean the ice maker. Use the self-cleaning function as described in the Maintenance section (Section 4.1).

2.3 Water Requirements

Use purified water for optimal ice quality and to prolong the life of your ice maker. Avoid using distilled water as it may affect the ice sensing mechanism.

3. Operating Instructions

3.1 Adding Water

• Open the top lid of the ice maker.
• Pour purified water into the water reservoir up to the 'MAX' fill line. Do not overfill.

Figure 2: Illustrates the process of filling the ice maker with water before operation.

3.2 Power On and Ice Size Selection

• Plug the ice maker into a grounded electrical outlet.
• Press the ON/OFF button to start the ice making process. The 'POWER' indicator will illuminate.
• Press the SELECT button to choose between small or large ice cubes. The corresponding indicator (SMALL or LARGE) will light up.

Figure 3: The ice maker produces two sizes of bullet-shaped ice cubes for various uses.

3.3 Ice Production

• The first batch of ice will be ready in approximately 6 minutes.
• The ice maker will continue to produce ice until the ice basket is full or the water reservoir is empty.
• The 'ICE FULL' indicator will light up when the basket is full, and the unit will pause operation.
• The 'ADD WATER' indicator will light up when the water level is low, and the unit will pause operation. Refill the reservoir to resume.

Figure 4: The ice full sensor automatically detects when the ice basket is at capacity.

3.4 Noise Level

The ecozy ice maker operates at a low noise level, typically under 35dB, comparable to a running refrigerator.

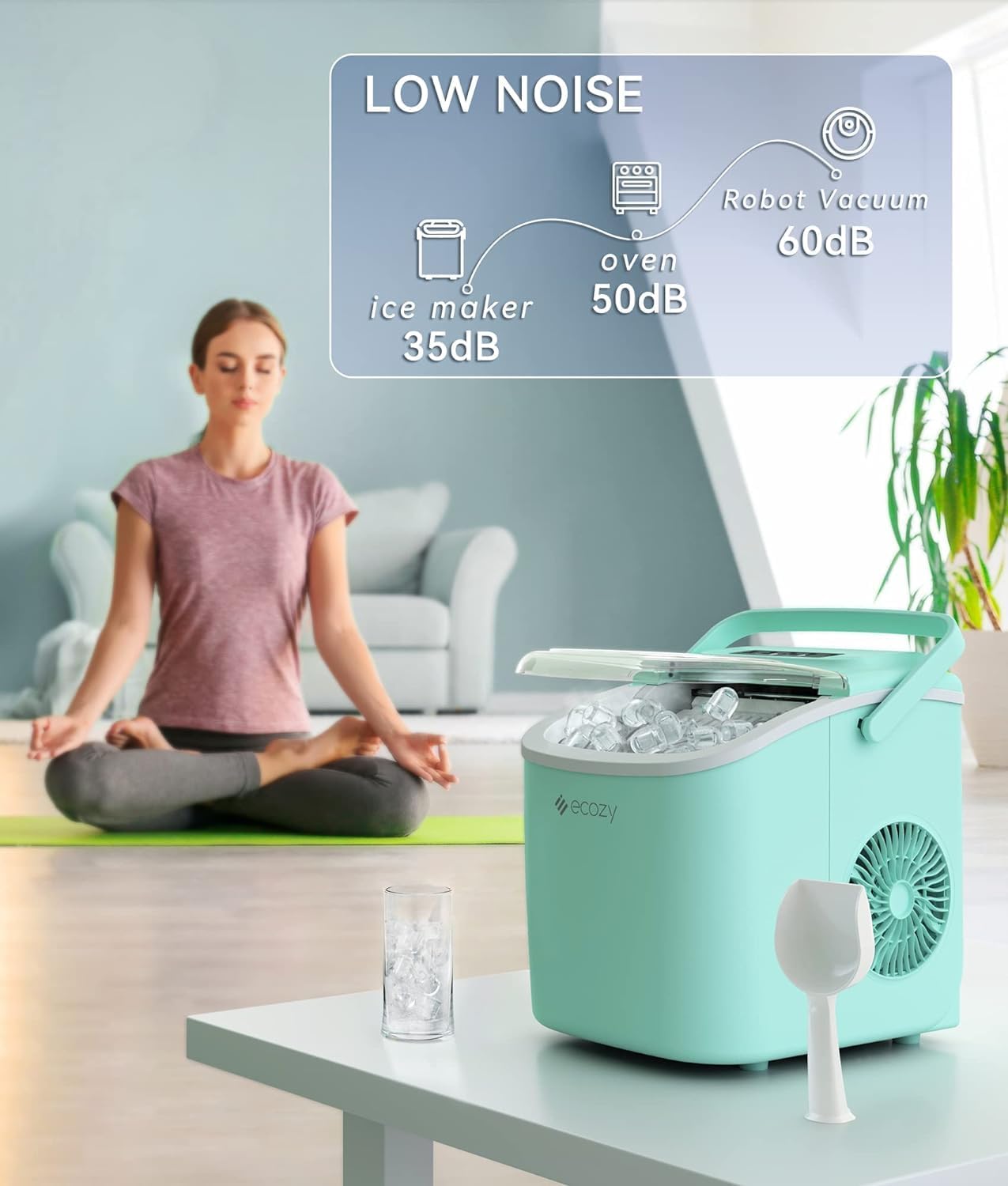

Figure 5: The ice maker is designed for quiet operation, making it suitable for various environments.

4. Maintenance

4.1 Self-Cleaning Function

• Ensure the ice maker is empty of ice and water.
• Fill the water reservoir with clean water.
• Press and hold the SELECT button for 3-5 seconds to activate the self-cleaning mode.
• The unit will circulate water for approximately 30 minutes to clean internal components.
• Once the cycle is complete, drain the water as described in Section 4.2.

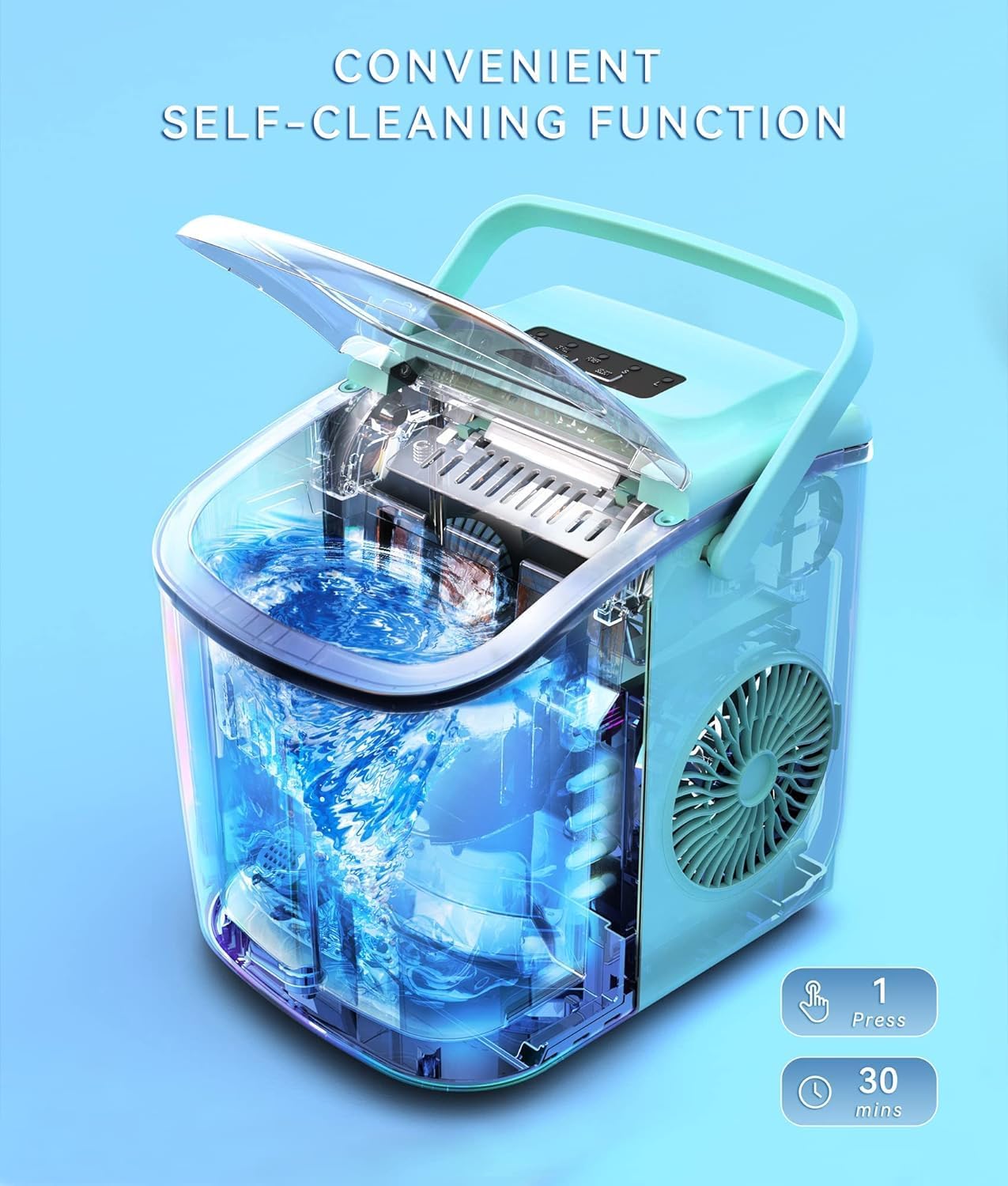

Figure 6: The self-cleaning feature ensures thorough cleaning of the ice maker's interior.

4.2 Draining the Water

• Unplug the ice maker from the power outlet.
• Locate the drainage plugs at the back of the unit.
• Place a container under the drainage plugs and remove them to allow water to drain completely.
• Once drained, replace the plugs securely.

4.3 Storing Ice

The ice maker is not a freezer and will not keep ice frozen indefinitely. For long-term storage, transfer ice cubes to the included ice bags and store them in your freezer.

Figure 7: Ice can be transferred to a cooler or freezer for storage, as the unit does not maintain freezing temperatures.

4.4 General Cleaning and Storage

• Wipe the exterior with a soft, damp cloth.
• For long-term storage, perform a self-cleaning cycle, drain all water, and ensure the unit is completely dry inside before storing in a cool, dry place.

5. Troubleshooting

• Ice cubes sticking together: This can occur if ice melts slightly and refreezes. Use the included ice scoop to gently break them apart.
• 'ADD WATER' indicator is on: The water reservoir is low. Refill with purified water.
• 'ICE FULL' indicator is on: The ice basket is full. Remove some ice to resume production.
• No ice production: Check power connection, water level, and ensure the unit has had sufficient time to settle after transport.

6. Specifications

7. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or visit the official ecozy website. If you encounter any issues or require assistance, please contact ecozy customer service.

You can find more information and support on the ecozy Store on Amazon.
