1. Introduction
This manual provides essential information for the safe and efficient operation and maintenance of your MalTec MasterCut5700W gasoline chainsaw. Please read all instructions carefully before use to ensure proper handling and to prevent injury or damage to the equipment.
The MalTec MasterCut5700W is a powerful 5.7 hp, 58 cm³ two-stroke engine chainsaw designed for various wood cutting tasks, including preparing firewood, construction work, and felling trees. It features an easy-start system, automatic chain lubrication, and an anti-vibration system for user comfort and safety.
Video: Product Overview
This video provides a general overview of a chainsaw's features and capabilities, offering a visual introduction to the product type.
2. Safety Information
Always prioritize safety when operating a chainsaw. Failure to follow safety guidelines can result in serious injury or death.
- Personal Protective Equipment (PPE): Always wear appropriate PPE, including a safety helmet, eye protection, hearing protection, heavy-duty gloves, chainsaw protective trousers, and safety boots.
- Read the Manual: Familiarize yourself with all controls, safety features, and operating procedures before starting the chainsaw.
- Work Area: Ensure the work area is clear of bystanders, children, and pets. Maintain a stable footing and clear escape routes.
- Fuel Handling: Mix and handle fuel in a well-ventilated area, away from ignition sources. Use the correct fuel-to-oil ratio (25:1 for this model).
- Kickback Prevention: Be aware of kickback risks. Hold the chainsaw firmly with both hands, avoid cutting with the tip of the guide bar, and ensure the chain brake is functional.
- Maintenance: Regularly inspect the chainsaw for damage, loose parts, and proper chain tension. Never operate a damaged chainsaw.
3. Setup and Assembly
Before operating your MalTec MasterCut5700W chainsaw, proper assembly and preparation are crucial.
3.1 Unboxing and Component Identification
Carefully remove all components from the packaging. The package includes the chainsaw unit, two guide bars (16" and 18"), two chains, a guide bar cover, a tool kit for assembly, a fuel mixing container, and two-stroke oil.
Figure 3.1: MalTec MasterCut5700W Chainsaw with key dimensions (41cm length, 23.5cm width, 26.5cm height). Also shows two chains (60cm and 53cm) and two guide bars (51.5cm and 45cm) with a cover (44.5cm length, 10.5cm height).
3.2 Installing the Bumper Spike
Attach the bumper spike to the chainsaw body using the provided screws and Allen key. This spike helps stabilize the chainsaw during cutting.
3.3 Guide Bar and Chain Installation
- Remove the transmission protection cover by unscrewing the nuts.
- Place the guide bar onto the studs.
- Carefully loop the chain around the drive sprocket and guide bar. Ensure the cutting edges of the chain are facing the correct direction (refer to the arrow on the guide bar or chain for direction of movement).
- Reinstall the transmission protection cover, ensuring the chain tensioner pin engages with the hole in the guide bar. Lightly tighten the nuts, but do not fully secure them yet.
Figure 3.2: Close-up of the chain tension adjustment mechanism on the chainsaw. The image shows the guide bar, chain, and the adjustment screw for proper tensioning.

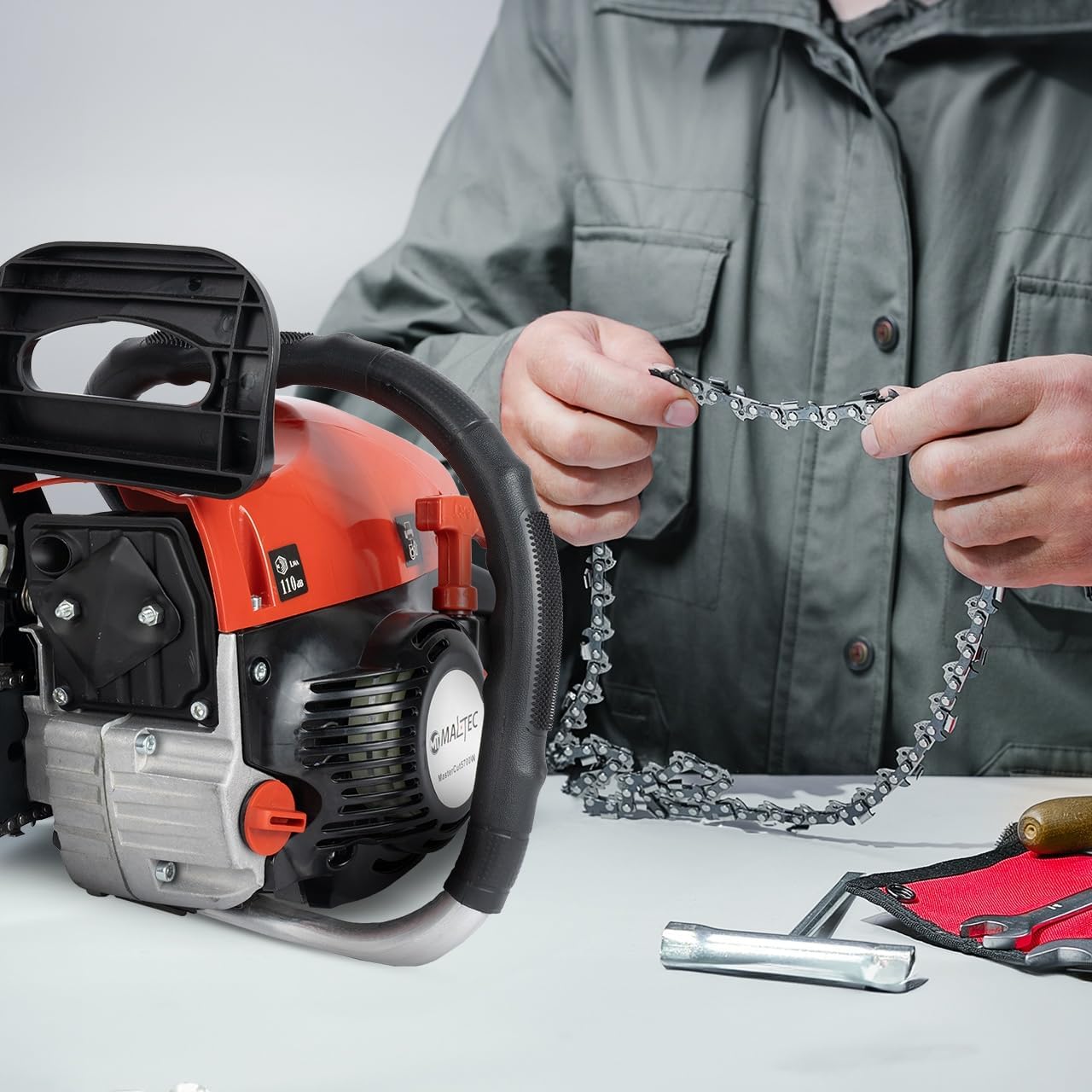

Figure 3.3: A person installing the chain onto the guide bar and drive sprocket of the chainsaw, ensuring correct orientation.
3.4 Adjusting Chain Tension
Use the provided screwdriver to adjust the chain tension. Turn the adjustment screw until the chain is snug against the guide bar but can still be pulled freely by hand. Once tension is correct, fully tighten the nuts on the transmission protection cover.
3.5 Fuel and Oil Filling
- Fuel Mixture: Prepare a mixture of unleaded gasoline (SP95) and two-stroke engine oil at a 25:1 ratio (25 parts gasoline to 1 part oil). Use the provided mixing container for accuracy.
- Fuel Tank: Fill the fuel tank with the prepared mixture.
- Chain Oil Tank: Fill the separate oil tank with appropriate chain lubricant. This model features automatic chain lubrication.
Figure 3.4: Close-up of the chainsaw's guide bar and chain, showing oil dripping onto the chain, illustrating the automatic lubrication system.
Video: Chainsaw Assembly and Chain Adjustment
This video demonstrates the assembly process of a similar gasoline chainsaw, including installing the guide bar and chain, and adjusting chain tension. While the model may differ, the general steps are applicable.
4. Operating Instructions
Follow these steps for safe and effective operation of your MalTec MasterCut5700W chainsaw.
4.1 Starting the Chainsaw
- Ensure the chain brake is engaged (pushed forward).
- Set the ON/OFF switch to the "ON" position.
- Engage the choke (if cold start).
- Press the primer bulb several times until fuel is visible.
- Place the chainsaw on a firm, flat surface. Hold the front handle firmly with one hand and place your foot on the rear handle to stabilize it.
- Pull the starter cord with a smooth, steady motion until the engine fires (usually a few pulls).
- Once the engine fires, disengage the choke (if engaged).
- Pull the starter cord again until the engine runs smoothly.
- Disengage the chain brake before cutting.
Video: Starting a Thermal Chainsaw
This video provides a detailed demonstration of starting a thermal pruning chainsaw. Pay attention to the starting procedure and safety features.
4.2 Cutting Techniques
- Always hold the chainsaw firmly with both hands.
- Ensure the chain is moving at full speed before making contact with the wood.
- Use the bumper spike to pivot the chainsaw for controlled cuts.
- Be aware of the wood's tension to avoid pinching the guide bar or experiencing kickback.
- For felling trees, follow proper felling techniques and safety zones.
Figure 4.1: A person operating the MalTec MasterCut5700W chainsaw to cut logs, demonstrating typical use.
Figure 4.2: A close-up view of the chainsaw's chain cutting through a log, showing sawdust being produced.

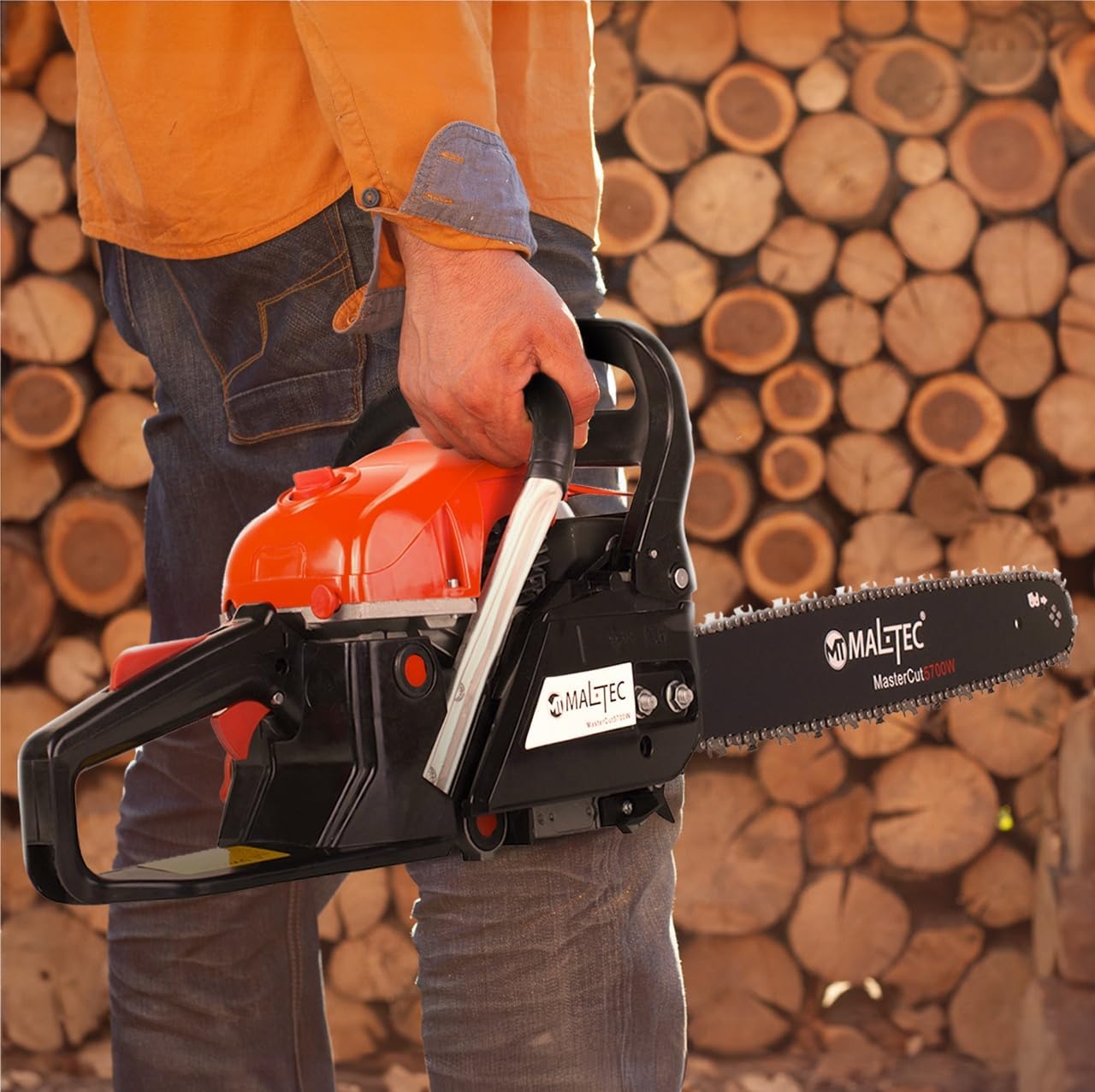

Figure 4.3: A person holding the MalTec MasterCut5700W chainsaw, illustrating the ergonomic design and handle position.
Video: Chainsaw Cutting Demonstration
This video demonstrates general cutting techniques with a chainsaw. Note that this video features a battery-powered model, but the cutting principles are similar.
4.3 Safety Features
- Chain Brake: The chain brake is a critical safety feature designed to stop the chain instantly in case of kickback or loss of control. Always ensure it is functional before use.
- Anti-Vibration System: The chainsaw is equipped with an effective anti-vibration system to reduce user fatigue during prolonged operation.
- Hand Guard: Special hand guards provide additional protection for the operator's hands.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your chainsaw.
- Chain Lubrication: The chainsaw features an automatic chain lubrication system. Regularly check the chain oil level and refill as needed.
- Chain Sharpening: A sharp chain is essential for efficient and safe cutting. Sharpen the chain regularly or replace it when dull.
- Air Filter: Clean the air filter periodically to maintain optimal engine performance.
- Spark Plug: Inspect and clean the spark plug as part of routine maintenance. Replace if necessary.
- General Cleaning: Keep the chainsaw clean from sawdust, debris, and oil residue.

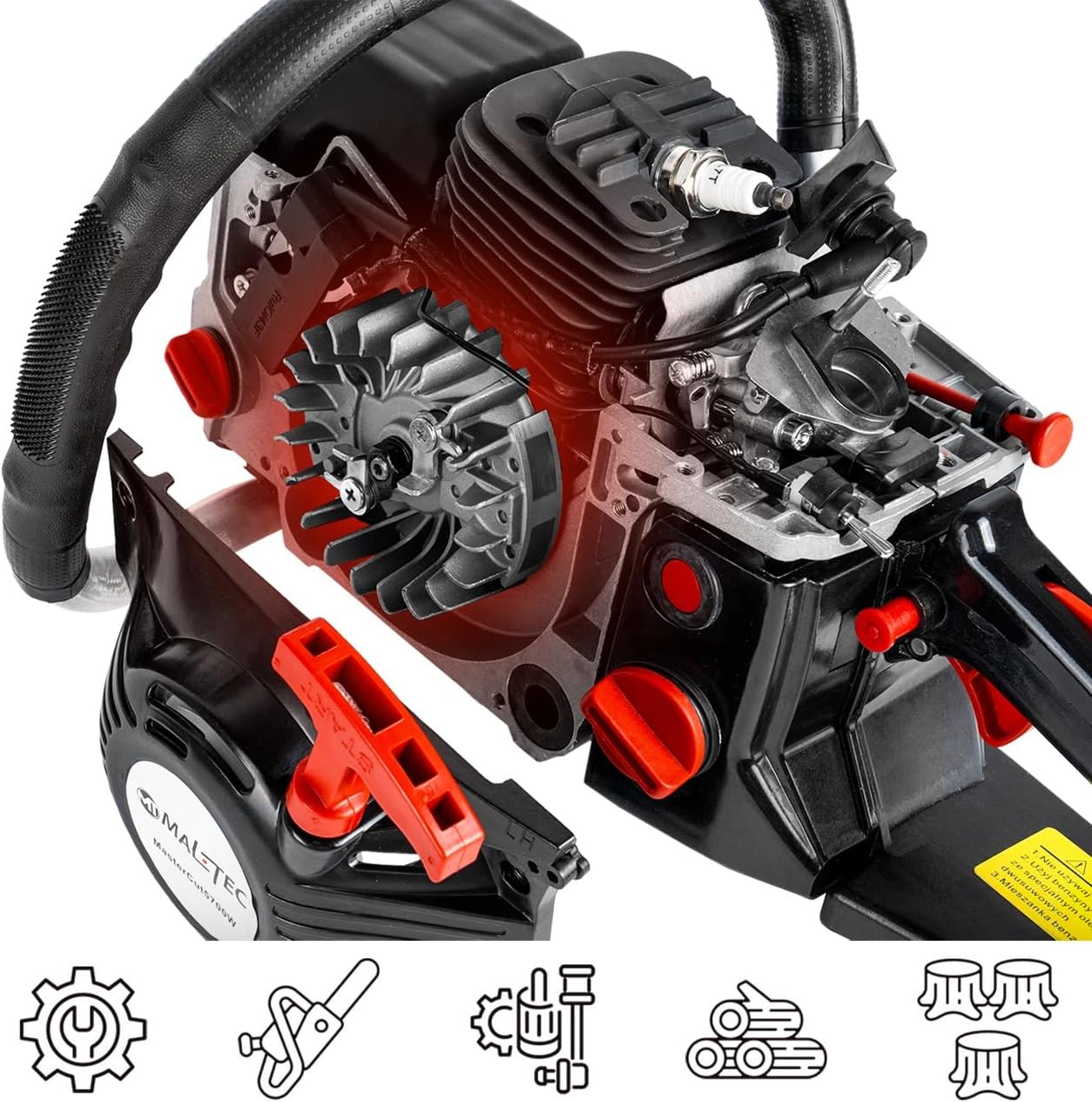

Figure 5.1: An exploded view showing the internal engine components of the chainsaw, highlighting areas for maintenance such as the spark plug and air filter.
6. Troubleshooting
This section addresses common issues you might encounter with your chainsaw.
| Problem | Possible Cause | Solution |
|---|---|---|
| Chainsaw does not start or is difficult to start. | Incorrect starting procedure, old/improper fuel mixture, clogged fuel filter, fouled spark plug, incorrect carburetor adjustment. | Follow the correct starting procedure (Section 4.1). Use fresh 25:1 fuel mixture. Clean or replace fuel filter/spark plug. Consult a service professional for carburetor adjustment. |
| Chain does not move or moves slowly. | Chain brake engaged, incorrect chain tension, dull chain, insufficient chain lubrication. | Disengage chain brake. Adjust chain tension (Section 3.4). Sharpen or replace chain. Check chain oil level and refill. |
| Excessive vibration during operation. | Loose components, damaged chain/guide bar, worn anti-vibration mounts. | Check all nuts and bolts for tightness. Inspect chain and guide bar for damage and replace if necessary. If problem persists, consult a service professional. |
| Engine loses power or stalls. | Clogged air filter, improper fuel mixture, engine overheating. | Clean or replace air filter. Ensure correct fuel mixture. Allow engine to cool down. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | MalTec |
| Model | MasterCut5700W |
| Engine Type | Two-stroke |
| Maximum Power | 5.7 hp |
| Engine Capacity | 58 cm³ |
| Maximum Engine Speed | 11000 rpm |
| Idle Speed | 3300 rpm |
| Chain Pitch | 0.325" |
| Guide Bar Sizes | 16", 18" |
| Fuel-Oil Ratio | 25:1 |
| Fuel Tank Capacity | 550 ml |
| Oil Tank Capacity | 260 ml |
| Ignition System | CDI |
| Air Filter | Yes |
| Oil Supply System | Automatic pump with regulator |
| Anti-Vibration System | Yes |
| Weight (without guide bar and chain) | 5.5 kg |
| Dimensions (without guide bar) | 41 x 23.5 x 26.5 cm |
| Maximum Cutting Length | 40 cm |
8. Warranty and Support
The MalTec MasterCut5700W chainsaw comes with a 3-year warranty, as indicated in the product information. For warranty claims, technical support, or spare parts inquiries, please contact your original retailer or the MalTec customer service department.
Always ensure you have your proof of purchase and product model number (MasterCut5700W) ready when contacting support.
