Introduction
Thank you for choosing the Helavo Bariatric Walker. This heavy-duty rollator is designed to provide exceptional stability, comfort, and mobility support for individuals requiring a higher weight capacity. With its reinforced aluminum frame, height-adjustable features, and all-terrain wheels, it offers a reliable solution for enhanced independence. Please read this manual thoroughly before assembly and use to ensure safe and proper operation.
Safety Information
- Always ensure all locking mechanisms are engaged before use, especially the parking brakes when sitting.
- Do not exceed the maximum weight capacity of 500 lbs (227 kg).
- Ensure the walker is fully open and stable before applying weight.
- Regularly check all parts for wear and tear, especially wheels, brakes, and frame connections.
- Avoid using the walker on excessively steep inclines or uneven surfaces that could compromise stability.
- Consult a healthcare professional for guidance on proper walker use if you have specific mobility needs.
Components Overview
Familiarize yourself with the main components of your Helavo Bariatric Walker:
- Reinforced Aluminum Frame: Provides robust support and durability.
- Height-Adjustable Handles: Ergonomic grips for comfortable and secure handling.
- Braking System: Hand brakes for slowing and parking.
- Large, Padded Seat: Offers a comfortable resting spot.
- Padded Backrest: Vertically adjustable for optimal posture and comfort.

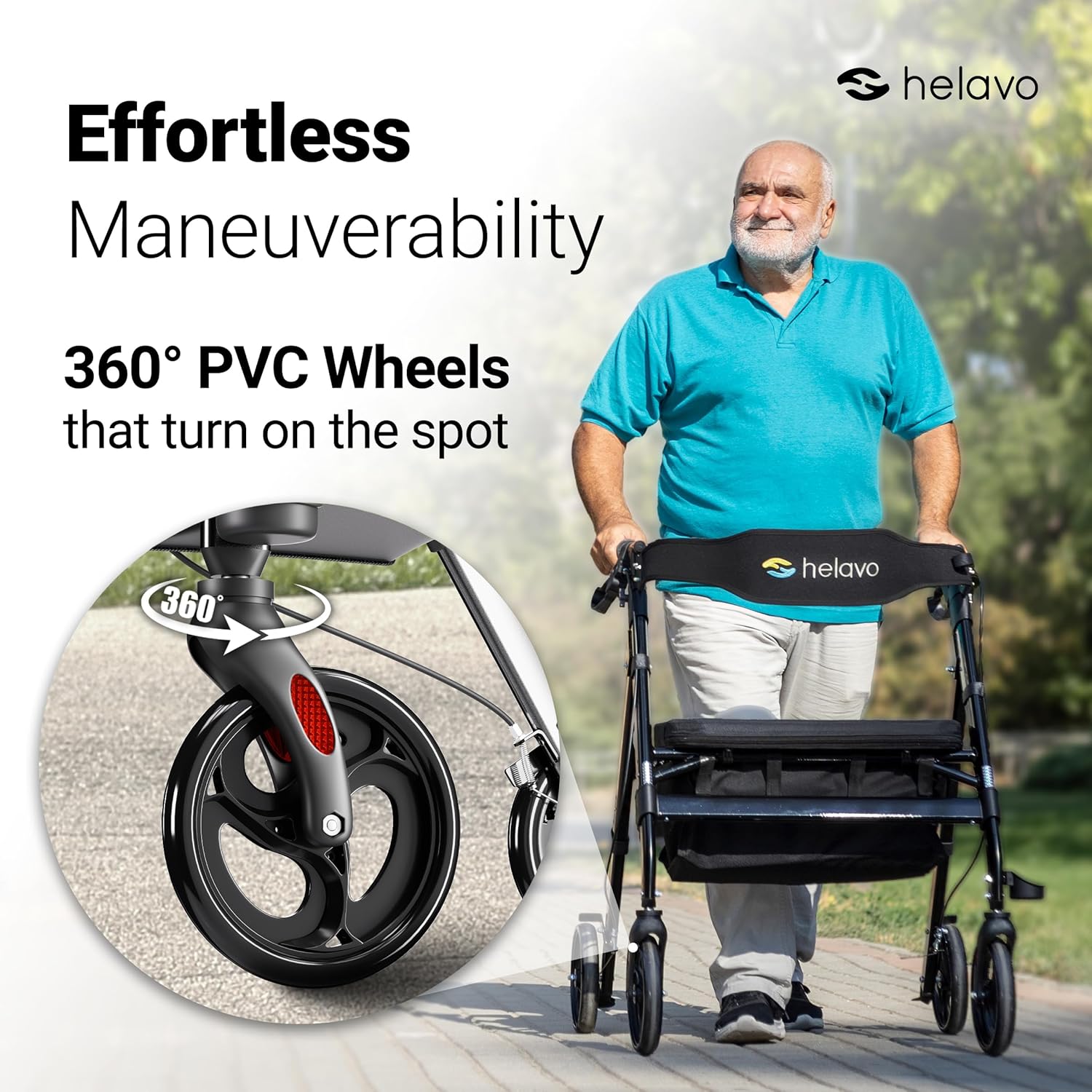

- 8-inch PVC Wheels: All-terrain wheels with reinforced spokes for smooth maneuverability.
- Under-Seat Storage Basket: Spacious compartment for personal items.
- Integrated Cane Holder: Convenient storage for a walking cane.
- Cup/Bottle Holder: For easy access to beverages.
This image displays the Helavo Bariatric Walker from the front-left angle, highlighting its robust design, large wheels, padded seat, and integrated cup holder. The packaging box indicating "500 lbs CAPACITY" is visible in the background.
Setup and Assembly
The Helavo Bariatric Walker is designed for hassle-free assembly. No tools are required.
- Unfold the Walker: Carefully remove the walker from its packaging. Stand it upright and gently pull the handles apart until the frame fully extends and locks into place. Ensure the seat drops down and is securely positioned.
- Attach the Backrest: Slide the padded backrest onto the designated vertical bars at the rear of the walker. Ensure it clicks securely into place. The backrest is vertically adjustable.
- Adjust Handle Height: Locate the adjustment buttons on the side of the handle tubes. Press the buttons and slide the handles up or down to your desired height. Release the buttons to lock the handles in position. Ensure both handles are at the same height.
- Adjust Seat Height (if applicable): The seat height can be adjusted between 20.9 inches and 22.8 inches. Refer to the specific mechanism for seat height adjustment, typically involving a pin or lever system on the frame supporting the seat.
- Attach Accessories: Secure the cup holder and cane holder to the designated attachment points on the frame.
- Final Check: Before first use, ensure all parts are securely fastened, and the walker is stable. Test the brakes.
This image shows a man placing the folded Helavo Bariatric Walker into the trunk of a car, demonstrating its portability. An inset image illustrates the compact folded dimensions (37.7" H x 28.3" W x 13.7" D).
Operating Instructions
Walking with the Rollator
- Stand upright with the walker in front of you, holding both handles firmly.
- Push the walker forward a short distance.
- Step forward with one foot, then bring the other foot to meet it. Maintain a steady pace.
- Keep your body close to the walker for optimal balance and support.
Braking System
- To Slow Down or Stop: Gently squeeze the brake levers located on the handles. The more you squeeze, the more the walker will slow down.
- To Engage Parking Brakes: Push the brake levers downwards until they lock into place. This will prevent the walker from moving, which is essential when sitting or standing.
- To Release Parking Brakes: Pull the brake levers upwards until they disengage.
This close-up image focuses on the ergonomic handles and the brake levers of the Helavo Bariatric Walker, demonstrating their design for comfortable grip and easy operation.
Using the Seat
- Ensure the walker is on a flat, stable surface.
- Engage both parking brakes by pushing the levers down. Verify the walker is completely stationary.
- Turn around and slowly lower yourself onto the padded seat. Use the handles for support if needed.
- To stand up, lean forward, push off the handles, and slowly rise. Release the parking brakes before resuming walking.
This image illustrates the dimensions of the Helavo Bariatric Walker's seat (20.1" x 14.2") and its adjustable height range, from a minimum of 20.9" to a maximum of 22.8".
Maintenance
- Cleaning: Wipe down the frame and seat with a damp cloth and mild detergent. Avoid abrasive cleaners. Ensure all parts are dry before storage.
- Wheel Care: Periodically check the wheels for debris (hair, lint, etc.) and remove them to ensure smooth rolling.
- Brake Inspection: Test the brakes regularly to ensure they engage and disengage properly. If the brakes feel loose or ineffective, consult the troubleshooting section or contact customer support.
- Storage: Store the walker in a dry, clean place away from extreme temperatures. The walker can be folded for compact storage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Walker does not roll smoothly. | Debris in wheels; loose wheel axle. | Remove debris from wheels. Check and tighten wheel axles if loose. |
| Brakes are not engaging or are too loose. | Brake cable needs adjustment; worn brake pads. | Adjust the tension of the brake cable (refer to a professional if unsure). If pads are worn, contact customer support for replacements. |
| Walker feels unstable or wobbly. | Frame not fully locked; height adjustments uneven. | Ensure the frame is fully unfolded and locked. Verify that both handles are adjusted to the same height. |
| Difficulty folding the walker. | Mechanism obstructed; not engaging release correctly. | Check for any obstructions. Ensure the folding mechanism (e.g., lifting the seat strap) is fully engaged. |
Specifications
- Model Number: D1050
- Weight Capacity: 500 lbs (227 kg)
- Frame Material: Reinforced Aluminum
- Tire Type: PVC Tires
- Wheel Size: 8 inches
- Handle Height Adjustment: 33.1" to 39.0" (84 cm to 99 cm)
- Seat Height Adjustment: 20.9" to 22.8" (53 cm to 58 cm)
- Product Dimensions (Unfolded): 30.01"D x 28.35"W x 38.98"H (76.2 cm D x 72 cm W x 99 cm H)
- Folded Dimensions: 37.8" x 28.3" x 13.8" (96 cm x 72 cm x 35 cm)
- Item Weight: 21.4 lbs (9.7 kg)
- Color: Black
Warranty and Support
The Helavo Bariatric Walker comes with a standard one-year warranty, which can be extended to three years upon registration. This warranty covers manufacturing defects and ensures the quality of your product.
For any questions, concerns, replacement parts, or warranty claims, please contact Helavo customer support. Our team is available 24/7 to assist you.
Contact Information: Please refer to the contact details provided on the Helavo official website or product packaging for the most up-to-date support information.
