1. Introduction
Thank you for choosing the Aoodor Oval Galvanized Raised Garden Bed Kit. This manual provides essential information for the safe assembly, operation, and maintenance of your new garden bed. This modular design allows for various configurations, providing an ideal environment for growing vegetables, flowers, and herbs.
Image 1.1: The Aoodor Oval Galvanized Raised Garden Bed Kit, ready for planting.
2. Safety Information
Please read and understand all safety instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Sharp Edges: The metal panels may have sharp edges. Always wear protective gloves during assembly.
- Protective Edging: The kit includes heavy-duty rubber covering for sharp edges. Ensure this is properly installed to prevent scratches and injuries to users, children, and pets.
- Stable Placement: Place the raised garden bed on a level, stable surface to prevent tipping.
- Weight: Once filled with soil, the garden bed will be heavy. Do not attempt to move it when filled.

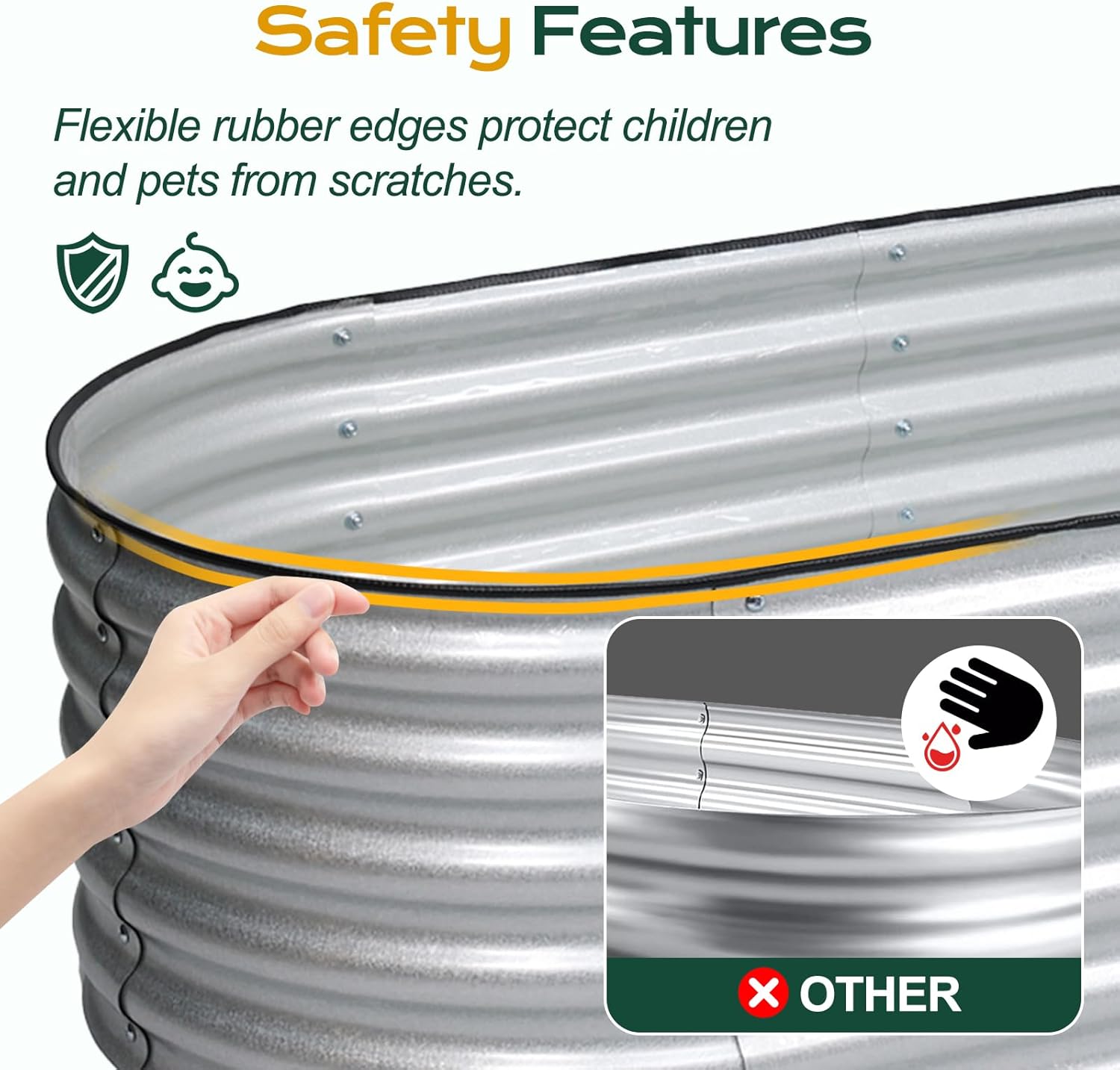

Image 2.1: Detail of the flexible rubber edge protector, designed to cover sharp edges for safety.
3. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- Corner Panels
- Side Panels
- Screws, Washers, and Nuts
- Rubber Strip (for edge protection)
Image 3.1: Visual representation of the kit contents and initial assembly steps.
4. Assembly Instructions
Assembly is straightforward and requires no specialized construction knowledge. It is recommended to have a second person assist with assembly.
- Assemble Corner Panels: Begin by connecting the corner panels using the provided screws, washers, and nuts. Do not fully tighten the bolts at this stage.
- Attach Side Panels: Connect the side panels to the corner panels, forming the desired shape (oval in this case). Insert screws, place washers, and hand-tighten nuts.
- Tighten All Fasteners: Once all panels are in place and the desired shape is achieved, systematically tighten all screws and nuts securely.
- Install Rubber Strip: After all screws are tightened, carefully place the rubber strip along the top edge of the entire garden bed. Ensure it fits snugly to cover any sharp edges.
The modular design allows for four different sizes by combining varying numbers of side panels. Refer to the packaging or product diagrams for specific configuration options.
Image 4.1: Detail illustrating the robust construction with thickened corner panels and reinforced screw points.
5. Usage
This raised garden bed is designed for outdoor use and is suitable for growing a variety of plants.
- Soil Preparation: The open-bottom design allows for direct drainage into the ground, preventing waterlogging and promoting healthy root growth. For weed suppression, consider placing a layer of cardboard or landscape fabric at the bottom before adding soil.
- Plant Selection: The 17-inch height is suitable for various plants. Root vegetables like carrots, potatoes, and beets typically require about 10 inches of depth. Leafy vegetables such as lettuce, spinach, chives, and garlic can thrive with approximately 5 inches of depth.
- Watering: Due to the open bottom, ensure adequate watering, especially during dry periods, as excess water will drain naturally.
Image 5.1: The open-bottom design facilitates natural drainage and root expansion into the native soil.

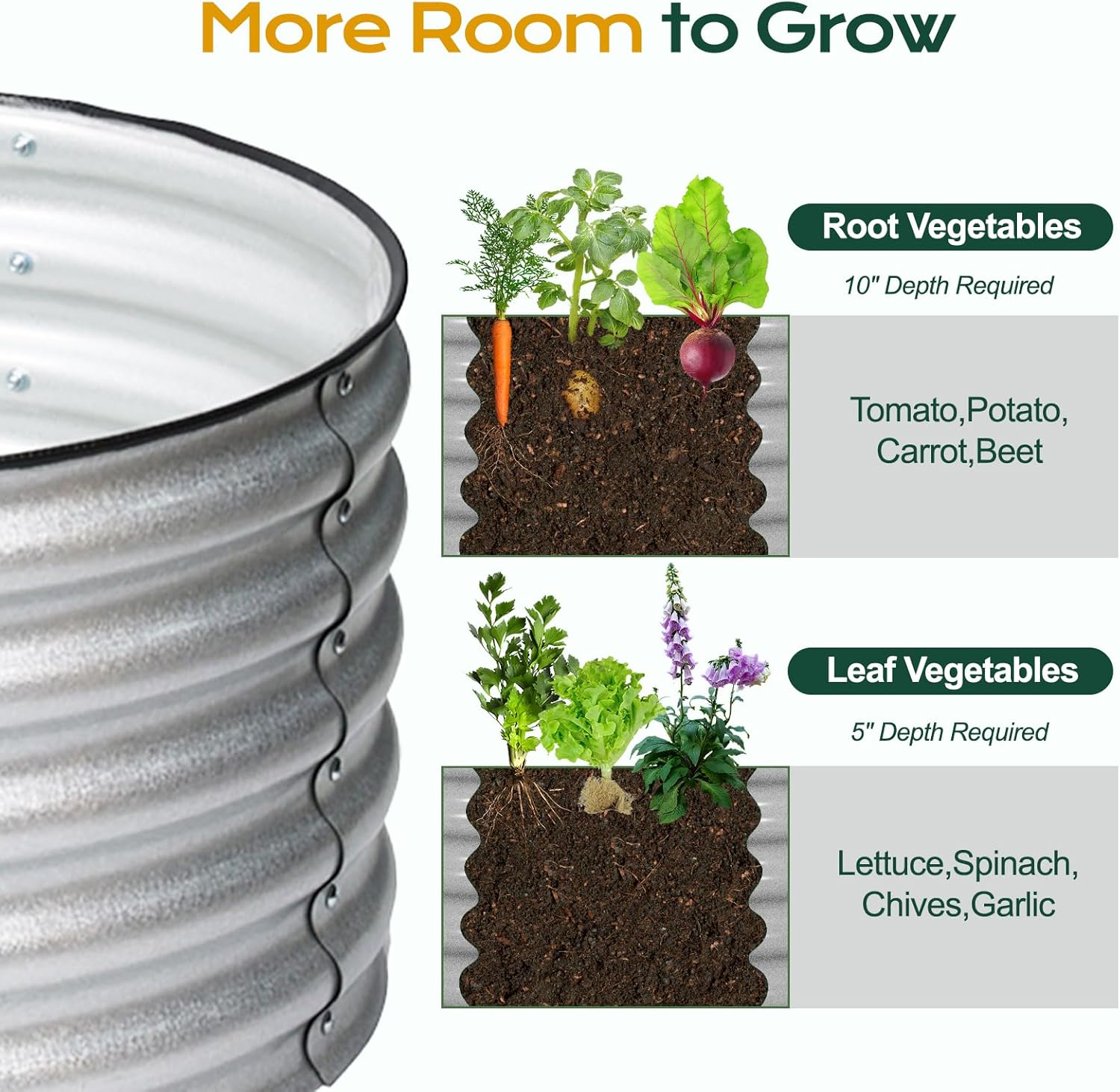

Image 5.2: Guidance on appropriate soil depths for different types of plants.
6. Maintenance
The Aoodor Raised Garden Bed is constructed from durable galvanized steel with a zinc coating, designed for minimal maintenance and long-term use.
- Cleaning: Periodically wipe down the exterior with a damp cloth to remove dirt and debris. Avoid abrasive cleaners that could damage the coating.
- Rust Resistance: The galvanized steel is rust-resistant, making it suitable for humid environments and various weather conditions.
- Inspection: Annually inspect all fasteners to ensure they remain tight. Check the rubber edge strip for any signs of wear or damage and replace if necessary.
Image 6.1: The galvanized steel construction ensures durability against fading and rust in various weather conditions.
7. Troubleshooting
If you encounter any issues with your Aoodor Raised Garden Bed, please refer to the following common solutions:
- Wobbly Structure: Ensure all screws and nuts are fully tightened. If the ground is uneven, try to level the area where the garden bed is placed.
- Water Retention Issues: Verify that the open bottom is not obstructed. If the native soil has poor drainage, consider adding a layer of gravel or coarse sand beneath the garden bed before filling with planting soil.
- Damaged Edge Strip: If the rubber edge strip is damaged or comes loose, it can be re-secured or replaced. Contact customer support for replacement parts.
8. Specifications
Detailed specifications for the Aoodor Oval Galvanized Raised Garden Bed Kit (Model 800-099-SE):
| Feature | Detail |
|---|---|
| Model Number | 800-099-SE |
| Shape | Oval |
| Color | Silver |
| Material | Aluzinc, Aluminum, Steel, Rubber |
| Dimensions (L x W x H) | 60" x 24" x 17" (5 x 2 x 1.5 Ft) |
| Item Weight | 5 Pounds |
| Capacity | 60 Liters |
| Special Features | Rust Resistant, Safe Edge, Weather Resistant |
| Planter Form | Raised Bed |
| Unit Count | 1.0 Count |

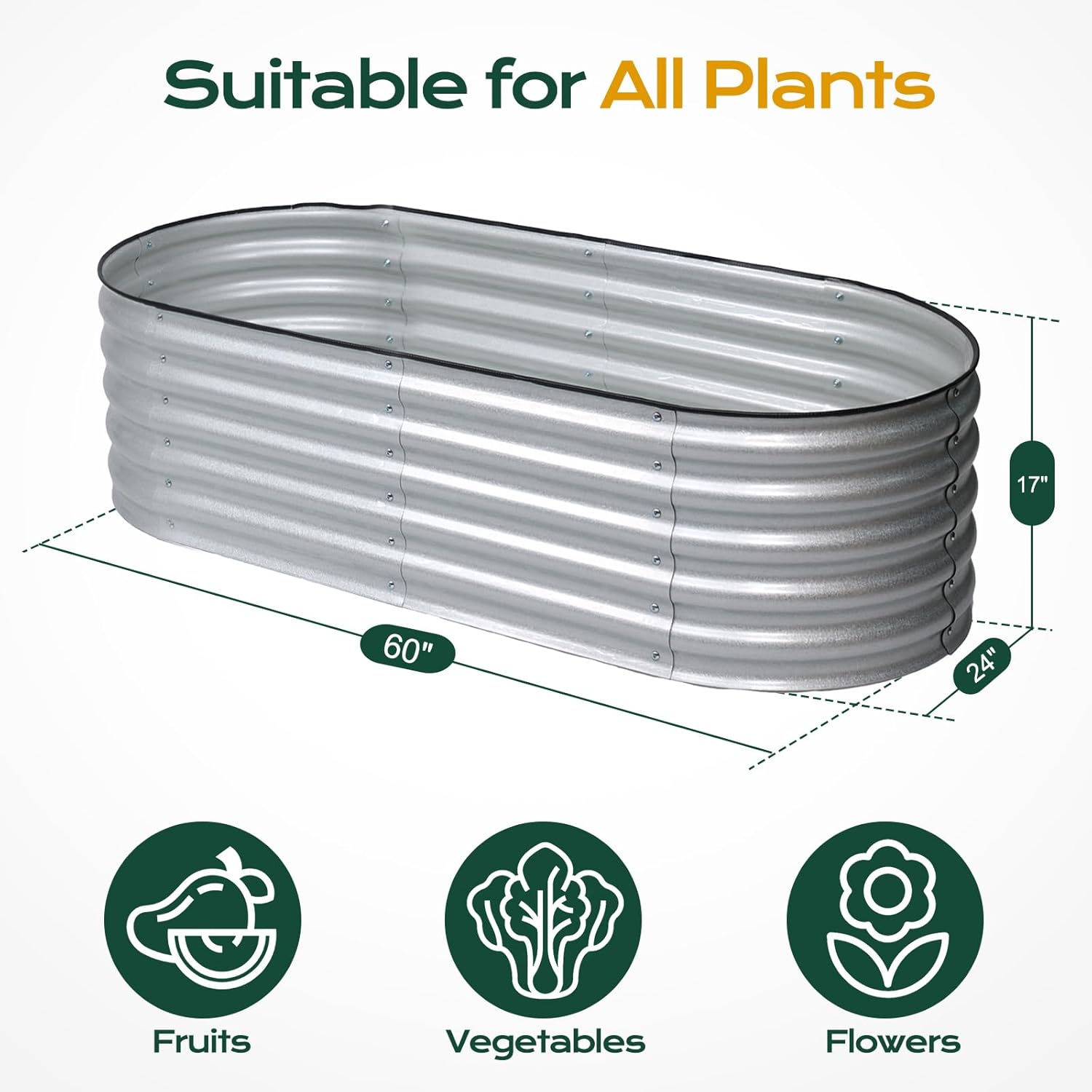

Image 8.1: Key dimensions of the Aoodor Oval Galvanized Raised Garden Bed.
9. Warranty and Support
Aoodor is committed to providing high-quality products. For any questions, concerns, or warranty claims, please contact Aoodor customer support through the retailer where the product was purchased. Keep your purchase receipt for warranty purposes.
Return Policy: This product typically has a 30-day return/replacement policy from the date of purchase. Please refer to the retailer's specific return policy for details.
