1. Introduction
Thank you for choosing the Darche HI-VIEW1600 Annex. This instruction manual provides essential information for the safe and effective setup, operation, and maintenance of your annex. Designed to complement your Darche HI-VIEW1600 rooftop tent, this annex offers an expansive and protected living space, perfect for camping and outdoor adventures.
It is built with durability, light-blocking, and waterproofing in mind, ensuring comfort and safety in various weather conditions. Please read this manual thoroughly before initial use.

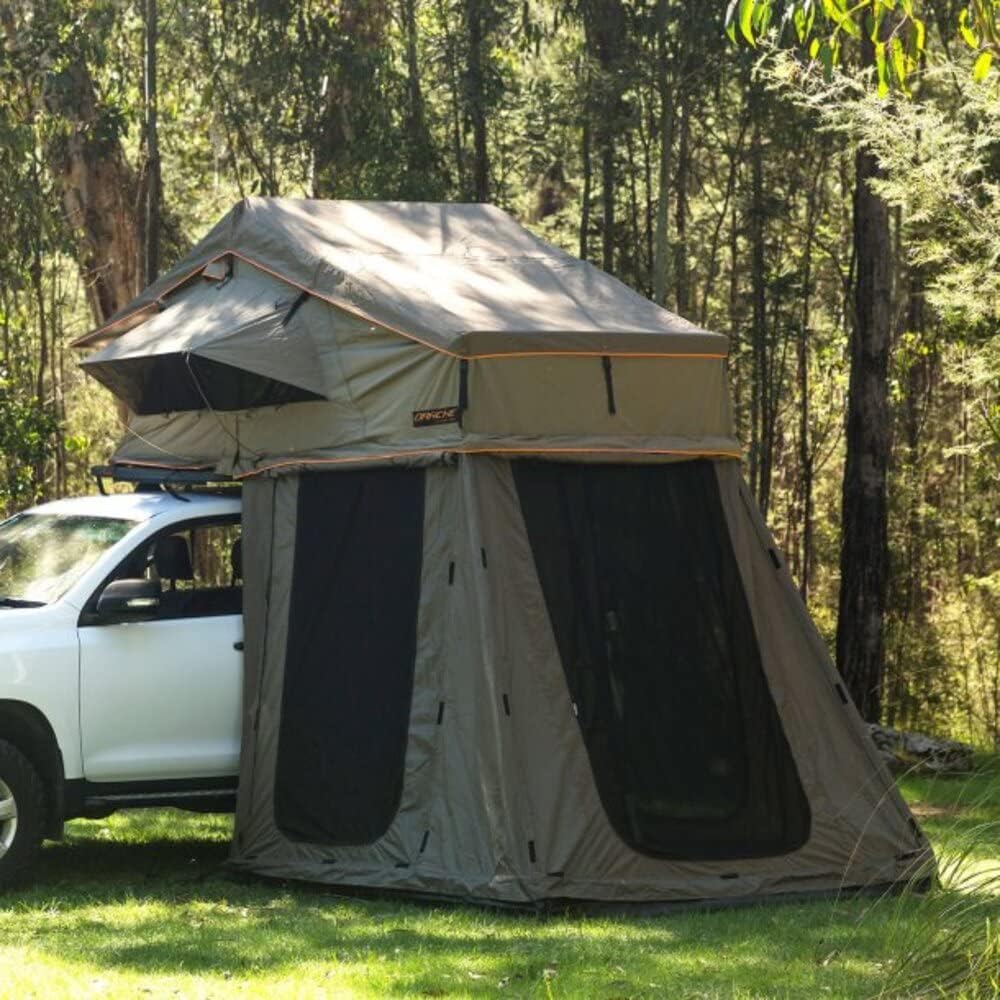

Image: The Darche HI-VIEW1600 Annex fully deployed, providing an extended living area next to a vehicle with a rooftop tent.
2. Safety Information
Always prioritize safety when setting up and using your annex. Failure to follow these guidelines may result in injury or damage to the product.
- Weather Conditions: While the annex is waterproof (PU 2000mm) and windproof, avoid setting it up in extreme weather conditions such as severe storms, high winds, or heavy snowfall. Always monitor weather forecasts.
- Site Selection: Choose a level, clear area free from sharp objects, overhead power lines, and potential falling debris. Ensure adequate clearance around the vehicle and annex.
- Securing the Annex: Always use all provided guy ropes and pegs to securely anchor the annex to the ground. This prevents damage from wind and ensures stability.
- Fire Safety: Keep all heat sources, open flames, and cooking equipment away from the annex fabric. The material is not fireproof.
- Ventilation: Ensure proper ventilation, especially if using any heating or cooking appliances nearby.
- Children and Pets: Supervise children and pets around the annex to prevent accidents.
3. Setup Instructions
Follow these steps for a proper and secure setup of your Darche HI-VIEW1600 Annex.
- Prepare the Site: Park your vehicle on a level surface. Ensure the rooftop tent is fully deployed and stable.
- Unpack the Annex: Carefully remove the annex from its storage bag. Identify all components: annex body, poles, pegs, and guy ropes.
- Attach to Rooftop Tent: Locate the attachment points on the rooftop tent and the annex. Securely zip or clip the annex to the base of your HI-VIEW1600 rooftop tent.
- Extend the Annex: Unfold the annex body downwards from the rooftop tent.
- Insert Poles: Assemble the main support poles and insert them into the designated sleeves or grommets on the annex. Raise the annex structure.
- Secure with Pegs: Stake down all corners and attachment points of the annex to the ground using the provided pegs. Ensure the fabric is taut but not overstretched.
- Attach Guy Ropes: Extend and secure all guy ropes from the annex to the ground, using additional pegs. Adjust tensioners to ensure stability, especially in windy conditions.
- Optional Awning Setup: If your annex includes an integrated awning, extend the awning poles and secure them with additional guy ropes and pegs as needed.
Image: A user demonstrates the attachment process of the annex to the rooftop tent.
Image: A side view of the Darche HI-VIEW1600 Annex, showcasing its spacious design and integration with the rooftop tent.
4. Operating the Annex
The Darche HI-VIEW1600 Annex is designed for versatility and comfort.
- Access: Entry and exit are typically through the main zippered door. The annex also provides access to the ladder leading up to the rooftop tent.
- Windows: The annex features three windows. These can be opened for ventilation or closed for privacy and weather protection. They often include mesh screens to keep insects out.
- Removable Floor: The floor of the annex is removable. This allows for easy cleaning or conversion of the space for different uses, such as a cooking area or a sheltered seating space directly on the ground.
- Panoramic View: By rolling up the walls, you can enjoy a 360-degree panoramic view of your surroundings, enhancing your outdoor experience.
- Internal Space: The annex provides ample space, comfortably accommodating 2 adults and 1 child for sleeping or serving as a communal living area.
Image: The interior of the annex, highlighting the ladder access to the rooftop tent and the generous floor space.
Image: The annex providing a comfortable and sheltered space on a beach, with children enjoying the outdoor environment.
5. Maintenance
Proper maintenance will extend the life of your Darche HI-VIEW1600 Annex.
- Cleaning: Clean the annex fabric with a soft brush or sponge and mild soap (non-detergent) and lukewarm water. Do not use harsh chemicals or abrasive cleaners. Rinse thoroughly and allow to air dry completely before packing away.
- Drying: Always ensure the annex is completely dry before packing it away. Packing a damp annex can lead to mildew, mold, and fabric degradation. If you must pack it wet, unpack and dry it as soon as possible.
- Zippers: Keep zippers clean and free of dirt and sand. Lubricate them periodically with a silicone-based spray to ensure smooth operation.
- Poles and Pegs: Clean poles and pegs after each use. Check for any bends or damage. Replace damaged components as needed.
- Storage: Store the annex in a cool, dry place, away from direct sunlight and extreme temperatures.
Image: Detail of the annex zipper, indicating robust construction for durability.
6. Troubleshooting
Here are some common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leakage | Improper setup, damaged fabric, worn seams | Ensure proper tension and pegging. Inspect fabric for tears; repair with patch kit. Apply seam sealer to worn seams. |
| Annex unstable in wind | Insufficient pegging or guy rope tension | Ensure all pegs are fully driven into the ground. Tighten all guy ropes. Consider using heavier-duty pegs in soft ground. |
| Difficulty with zippers | Dirt/sand in zipper teeth, fabric caught | Clean zipper teeth with a brush. Apply silicone lubricant. Carefully pull fabric away from zipper path. |
| Mold or mildew growth | Packed away damp | Clean with a mild solution of white vinegar and water. Rinse thoroughly and dry completely in sunlight. Prevent by always drying fully before storage. |
7. Specifications
Key specifications for the Darche HI-VIEW1600 Annex:
- Model Number: T050801633A
- Color: Khaki
- Dimensions (L x W x H): 2500mm x 2200mm x 1800mm
- Maximum Head Height: 1800mm
- Water Resistance: PU 2000mm
- Features: Waterproof, Windproof, Removable Floor, 3 Removable Windows, 360-degree Panoramic View (walls rolled up)
- Recommended Use: Camping, Outdoor Adventures, Car Side Shelter
Image: A top-down schematic illustrating the annex dimensions (2500mm length, 2200mm width) when attached to a vehicle.

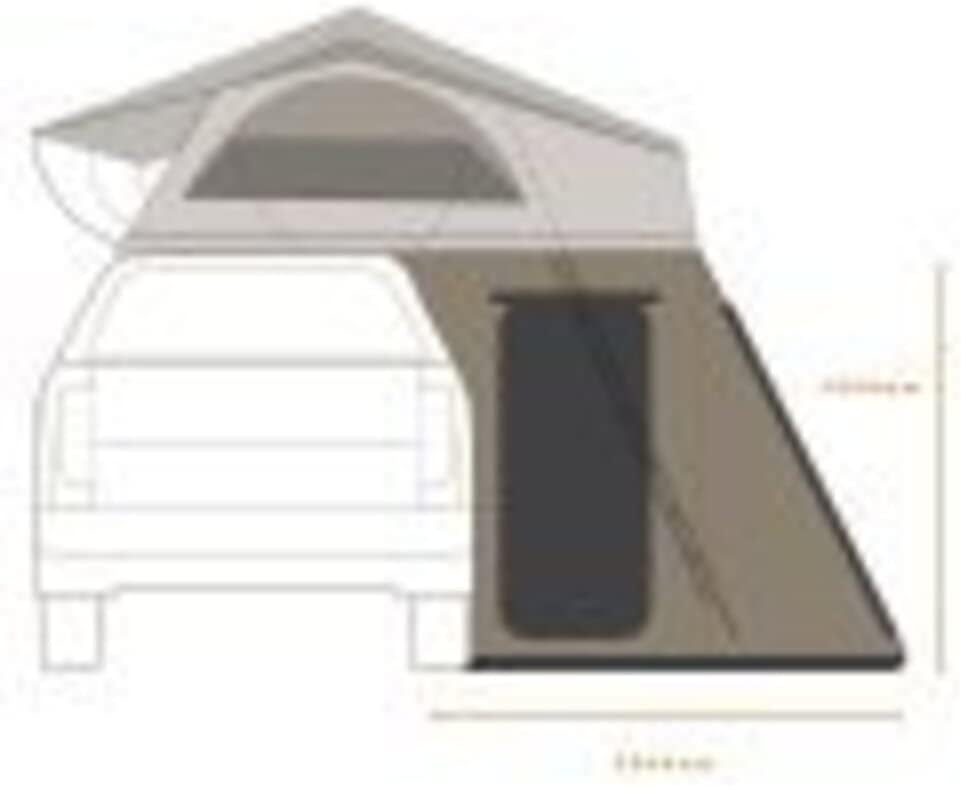

Image: A side profile schematic indicating the annex height of 1800mm.
8. Warranty and Support
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Darche products are designed for durability and performance, and specific warranty terms may vary by region and retailer.
If you encounter any issues or require technical assistance, please contact the Darche customer support team or your authorized dealer. When contacting support, please have your product model number (T050801633A) and purchase details ready.
