1. Introduction
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Ingco AC20246 Portable Electric Horizontal Air Compressor. This compressor is designed for both home and professional applications, offering a 24-liter capacity and powered by a 2 HP motor. It delivers up to 400 liters of air per minute, suitable for various tasks from inflating household items to powering industrial tools.

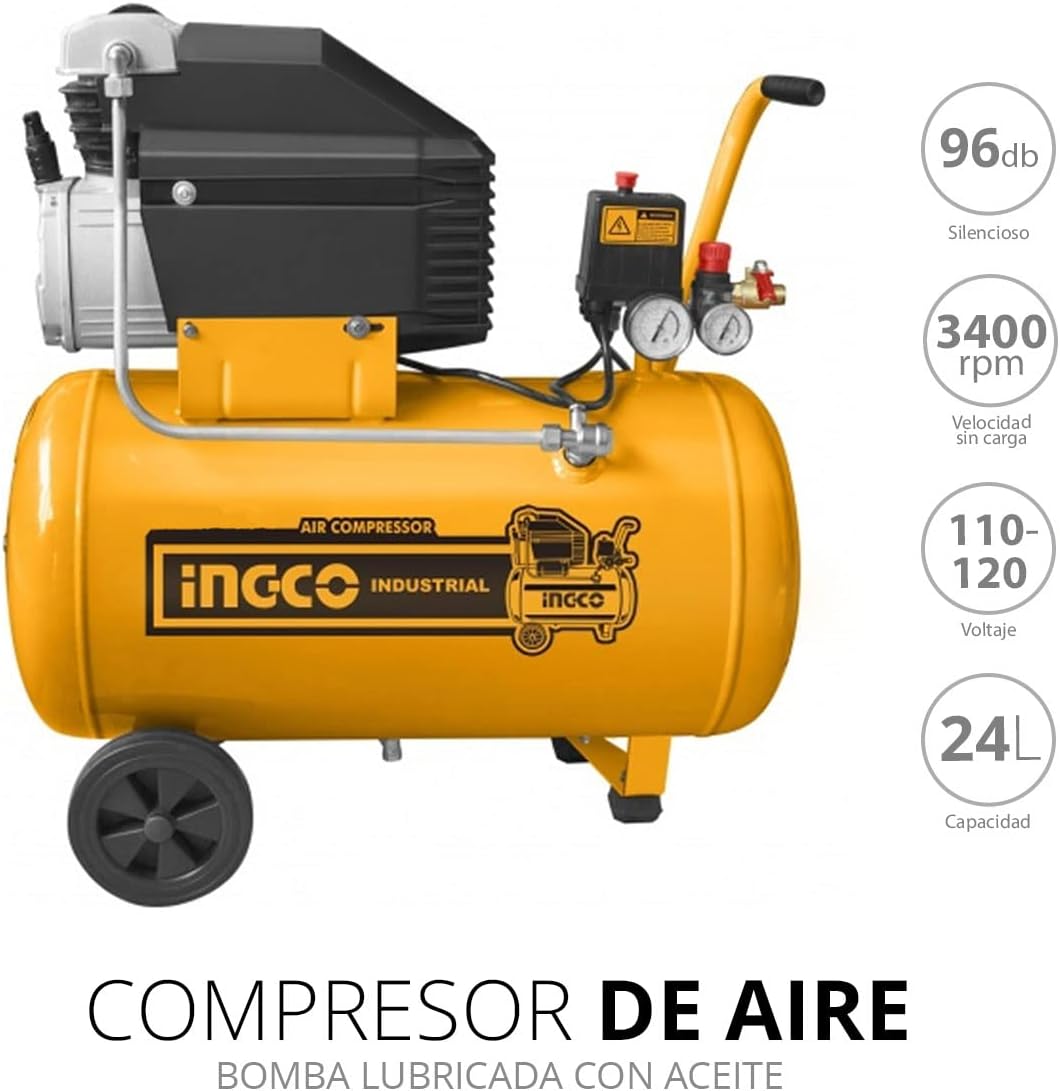

Image 1.1: The Ingco AC20246 Portable Electric Horizontal Air Compressor. This image displays the overall design of the compressor, including its yellow tank, black motor housing, wheels, and pressure gauges.
2. Safety Instructions
Always observe the following safety precautions to reduce the risk of injury or damage to the compressor.
- Electrical Safety: Ensure the power supply matches the compressor's voltage requirements. Do not operate in wet conditions or with damaged cords. Always use a grounded outlet.
- Pressure Safety: Never exceed the maximum operating pressure. Do not tamper with safety valves. Always wear appropriate eye protection when operating.
- Ventilation: Operate the compressor in a well-ventilated area to prevent overheating and ensure proper air intake.
- Personal Protective Equipment (PPE): Wear safety glasses or goggles, hearing protection, and appropriate clothing.
- Stability: Place the compressor on a stable, level surface. The unit features two fixing points for enhanced stability and slip resistance.
- Maintenance: Disconnect power before performing any maintenance or adjustments.
- Children and Bystanders: Keep children and bystanders away from the operating area.
3. Product Components
Familiarize yourself with the main parts of your air compressor:
- Air Tank: 24-liter capacity for compressed air storage.
- Motor: 2 HP (1.5 KW) electric motor.
- Pump Assembly: Compresses air into the tank.
- Pressure Gauges: Display tank pressure and regulated outlet pressure.
- Pressure Regulator: Adjusts the output air pressure.
- Safety Valve: Releases excess pressure to prevent over-pressurization.
- Air Outlet: Connection point for air hoses and tools.
- Drain Valve: Located at the bottom of the tank for moisture removal.
- Air Filter: Protects the pump from dust and debris.
- Wheels and Handle: For portability and easy maneuvering.
Image 3.1: Diagram showing the Ingco AC20246 Air Compressor with labels indicating power characteristics such as voltage, motor power, tank size, and maximum pressure.
4. Setup Instructions
4.1 Unpacking and Assembly
- Carefully remove the compressor and all components from the packaging.
- Attach the wheels and handle if they are not pre-assembled. Ensure all fasteners are securely tightened.
- Locate and install the air filter.
- Check the oil level in the pump (if applicable for this model). Refer to the oil sight glass or dipstick. Add oil if necessary, using only compressor oil.
4.2 Placement and Electrical Connection
- Place the compressor on a firm, level surface in a clean, well-ventilated area.
- Ensure the power switch is in the 'OFF' position.
- Connect the power cord to a suitable grounded electrical outlet that matches the compressor's voltage (110-120V ~ 50Hz).
5. Operating Instructions
5.1 Initial Start-up and Break-in
- Before first use, ensure the tank drain valve is closed.
- Turn the pressure regulator knob fully counter-clockwise to the lowest setting.
- Turn the power switch to 'ON'. Allow the compressor to run and build pressure until it reaches its maximum pressure and shuts off automatically.
- Open the drain valve to release all air from the tank. This process helps to break in the motor and pump components. Repeat this cycle a few times.
5.2 General Operation
- Connect your air hose and desired pneumatic tool or inflation accessory to the air outlet.
- Turn the power switch to 'ON'.
- Adjust the pressure regulator knob clockwise to increase the output pressure to the required level for your task. Monitor the regulated pressure gauge.
- Begin your task. The compressor will cycle on and off automatically to maintain tank pressure.
- After use, turn the power switch to 'OFF', disconnect the power cord, and release any remaining air pressure from the tank and hose.
5.3 Applications
This compressor is versatile and can be used for:
- Inflation: Tires (car, bicycle), mattresses, inflatable toys, swimming pools, balloons, and balls.
- Pneumatic Tools: Powering nail guns, impact wrenches, spray guns, and other air-powered tools for construction, carpentry, and automotive workshops.
- Cleaning: Blowing dust and debris from surfaces.
Image 5.1: A person inflating a car tire using an air hose connected to an air compressor. This demonstrates a common application for the compressor.
Image 5.2: A worker using a pneumatic screwdriver on an assembly line. This illustrates the use of the compressor with industrial pneumatic tools.
Image 5.3: A person wearing a respirator and using a spray gun to paint a car panel. This shows the compressor's utility in automotive painting applications.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your air compressor.
6.1 Daily Maintenance
- Drain Tank: Open the drain valve at the bottom of the tank daily to release accumulated moisture. This prevents rust and extends tank life.
- Check for Leaks: Listen for air leaks around fittings and connections. Tighten as necessary.
6.2 Weekly/Monthly Maintenance
- Inspect Air Filter: Check the air filter for dirt and debris. Clean or replace the filter element as needed. A high-quality filter with paper filling protects the piston and air cylinder, extending compressor life.
- Check Oil Level (if applicable): Ensure the oil level is within the recommended range. Add or change oil according to the manufacturer's specifications.
- Cylinder Inspection: The compressor features an inspection opening to check the internal wear condition of the cylinder at any time.
6.3 General Care
- Keep the compressor clean and free from obstructions.
- Store in a dry, protected area when not in use.
7. Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Compressor does not start | No power; tripped circuit breaker; faulty switch | Check power connection; reset breaker; contact service |
| Compressor runs continuously or cycles too frequently | Air leak; faulty pressure switch; drain valve open | Check for leaks and tighten connections; close drain valve; contact service for pressure switch |
| Low air pressure at outlet | Regulator set too low; air leak; clogged air filter | Adjust regulator; check for leaks; clean/replace air filter |
| Excessive noise or vibration | Loose components; worn parts; insufficient oil (if applicable) | Tighten fasteners; inspect for worn parts; check oil level; contact service |
| Motor overheats and shuts off | Poor ventilation; prolonged use; low voltage | Ensure adequate ventilation; allow cool-down periods; check power supply |
8. Technical Specifications
Detailed specifications for the Ingco AC20246 Air Compressor (Model UAC20246):
| Feature | Specification |
|---|---|
| Model Number | UAC20246 |
| Voltage Frequency | 110-120V ~ 50Hz |
| Motor Power | 1.5 KW (2 HP) |
| Motor RPM (No-load speed) | 3400 / minute |
| Tank Capacity | 24 Liters (6.3 Gallons) |
| Maximum Working Pressure | 8 Bar (116 PSI) |
| Air Flow Capacity | 400 Liters / minute |
| Noise Level | 96 dB |
| Power Source | Corded Electric |
| Product Dimensions | 10 x 20 x 37 cm |
| Item Weight | 209 grams (Note: This weight seems unusually low for an air compressor of this size and capacity, please verify with product packaging.) |
| Special Features | Portable |
| Included Components | Air receiver tank |
9. Warranty Information
Ingco products are manufactured to high-quality standards. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. The warranty period typically begins from the date of purchase. Please retain your proof of purchase for any warranty claims. For specific warranty terms and conditions, refer to the documentation included with your product or contact Ingco customer support.
The compressor is designed for continuous operation and offers a lifespan of over 3000 working hours, ensuring reliable performance for your workshop, home, or workspace.
Image 9.1: The Ingco AC20246 Air Compressor with an overlay indicating '3000+ HRS', highlighting its long operational life.
10. Customer Support
If you have any questions, require technical assistance, or need to report an issue with your Ingco AC20246 Air Compressor, please contact our customer support team. Refer to the contact information provided on the product packaging or the official Ingco website for the most up-to-date support details.
When contacting support, please have your product model number (AC20246 or UAC20246) and purchase date readily available.
