1. Introduction
Thank you for purchasing the OUTON LED Floor Lamp. This manual provides detailed instructions for the safe and efficient use of your new lamp. Please read it thoroughly before assembly and operation, and retain it for future reference.
2. Product Features
- Super Bright & Long Lifespan: Equipped with 12W LED lights, providing 1080LM. Features soft, anti-glare light, ideal for reading, writing, and detailed tasks. Designed for over 50,000 hours of use.
- 4 Color Temperature & Stepless Dimmable: Offers four color temperature settings (Warm, Warm White, Cool White, Daylight) and stepless brightness adjustment from 5% to 100%.
- Remote & Touch Control: Convenient touch control on the lampshade for power and color temperature adjustments. Includes a remote control for adjusting settings from a distance, with 5 preset color modes.
- Memory Function & 1-Hour Timer: The lamp remembers your last selected brightness and color temperature. A 1-hour timer can be set to automatically turn off the lamp.
- Flexible Gooseneck & Stable Metal Base: Features an adjustable gooseneck for directing light as needed. The sturdy metal base ensures stability on various floor types.
3. Package Contents
Please check the package for the following items:
- LED Floor Lamp (multiple sections)
- Lamp Base
- Remote Control
- AC Power Adapter
- User Manual
4. Assembly Instructions
Assembly of the OUTON LED Floor Lamp is straightforward and typically takes less than 5 minutes. No tools are required.
- Carefully unpack all components from the box.
- Connect the lamp sections by screwing them clockwise until secure. Ensure the power cord runs freely through the sections.
- Attach the assembled lamp pole to the metal base by screwing it clockwise until firmly seated.
- Plug the AC power adapter into a suitable wall outlet.
Image: Assembly steps for the OUTON LED Floor Lamp, showing how sections connect and the base attaches.
Image: OUTON LED Floor Lamp Dimensions and Key Components.
5. Operating Instructions
5.1. Remote Control Operation
The remote control allows for convenient adjustment of the lamp's settings from a distance.
- Power Button: Press to turn the lamp ON or OFF.
- Brightness Adjustment: Use the '+' and '-' buttons to increase or decrease brightness steplessly.
- Color Temperature Adjustment: Use the sun icon buttons to cycle through the 4 color temperatures (Warm, Warm White, Cool White, Daylight).
- Preset Color Modes: The remote has 5 dedicated buttons for quick access to preset color and brightness combinations.
- 1-Hour Timer: Press the '1H' button to activate the 1-hour timer, after which the lamp will automatically turn off.
Image: OUTON LED Floor Lamp Remote and Touch Control Functions.
Image: Detailed view of the OUTON LED Floor Lamp remote control.
5.2. Touch Control Operation
The lampshade features integrated touch controls for basic functions.
- Power Button (on lampshade): Short press to turn ON/OFF. Long press to set the 1-hour timer.
- Mode Button (M on lampshade): Short press to change color temperatures. Long press to adjust brightness steplessly.
5.3. Color Temperature and Dimming
The lamp offers versatile lighting options:
- Warm (3000K): Ideal for relaxation and creating a cozy atmosphere.
- Warm White (4000K): Suitable for general lighting and comfortable reading.
- Daylight (5000K): Bright and clear, perfect for tasks requiring focus.
- Cool White (6500K): Energizing light for detailed work or bright environments.
Brightness can be adjusted from 5% to 100% for all color temperatures.

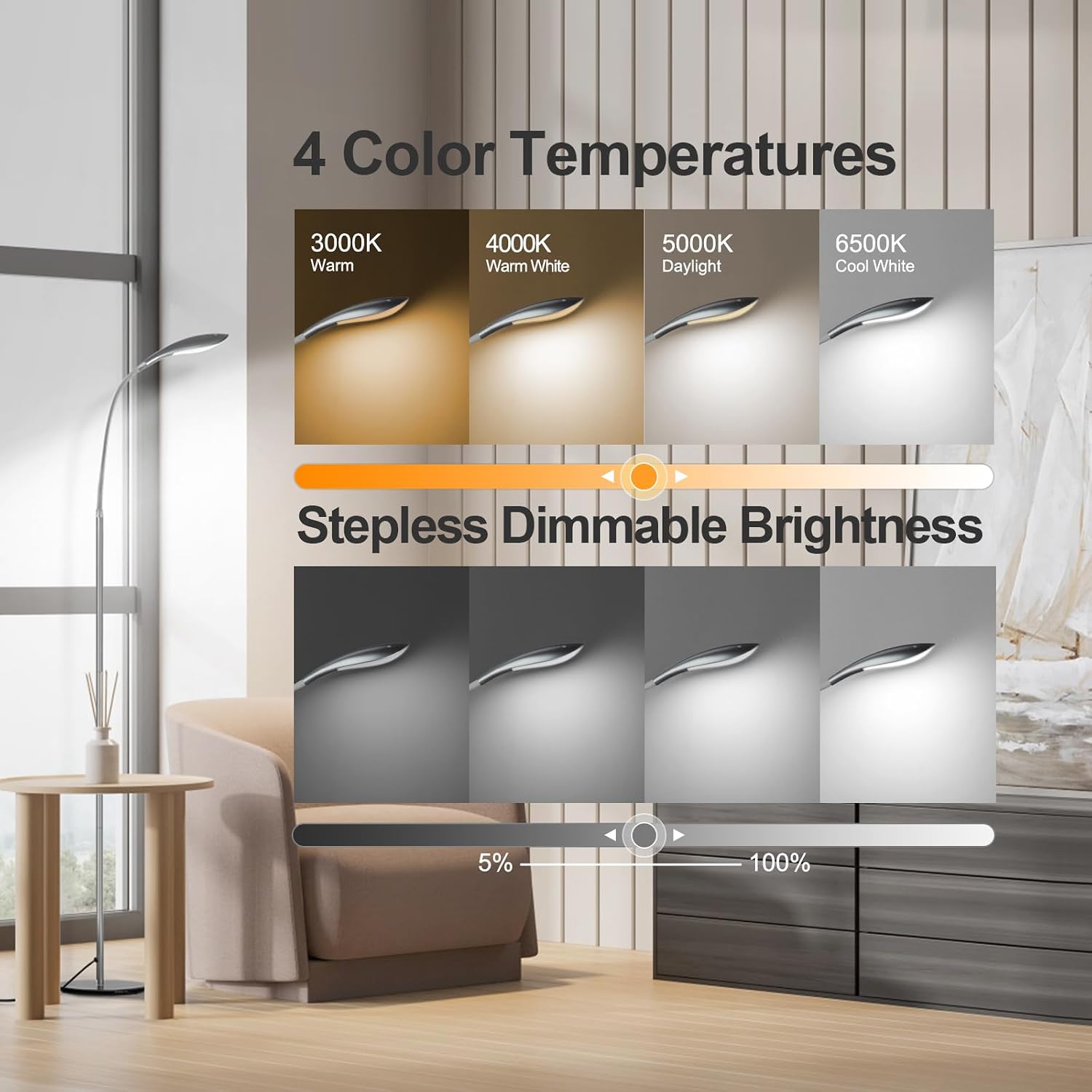

Image: OUTON LED Floor Lamp with 4 Color Temperatures and Stepless Dimmable Brightness.
5.4. Memory Function and Timer
The lamp's memory function automatically saves your last used brightness and color temperature settings. The 1-hour timer provides convenience for timed lighting needs.
Image: OUTON LED Floor Lamp 1-Hour Timer and Memory Function.
5.5. Flexible Gooseneck
The flexible gooseneck allows you to easily adjust the direction of the light to suit your needs, providing targeted illumination for various activities.
Image: OUTON LED Floor Lamp Gooseneck Flexibility and Stable Base Comparison.
6. Maintenance
- Cleaning: Disconnect the power before cleaning. Wipe the lamp with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- LED Lifespan: The integrated LED lights have a long lifespan of over 50,000 hours and are not user-replaceable.
- Storage: If storing the lamp for an extended period, disassemble it and store it in its original packaging in a dry, cool place.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | No power connection. | Ensure the power adapter is securely plugged into the lamp and a working wall outlet. |
| Remote control not working. | Remote battery is low or depleted. Obstruction between remote and lamp. | Replace the remote control battery. Ensure a clear line of sight between the remote and the lamp's receiver. |
| Light flickers or is unstable. | Loose connection. Power supply issue. | Check all lamp section connections and power adapter. Try plugging into a different outlet. |
| Gooseneck does not hold position. | Not applicable, the gooseneck is designed to be sturdy. | Ensure the gooseneck is properly adjusted. If issues persist, contact customer support. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | OUTON |
| Lamp Type | Floor Lamp |
| Light Source Type | LED |
| Wattage | 12 watts |
| Brightness | 1080 Lumens |
| Color Temperature | 4 settings (Warm, Warm White, Cool White, Daylight) |
| Dimming | Stepless (5% - 100%) |
| Control Method | Remote, Touch Control |
| Special Features | 1 Hour Timer, Memory Function, Flexible Gooseneck |
| Material | Metal |
| Product Dimensions | 8.7"D x 8.7"W x 65"H |
| Item Weight | 4.1 Pounds |
| Power Source | Corded Electric |
| Average Life | 50,000 Hours |
9. Official Product Videos
OUTON LED Floor Lamp with Remote to Light Up Your Room
Video: This video demonstrates the OUTON LED Floor Lamp in a living room setting, showcasing its design, flexible gooseneck, and the use of the remote control to adjust light settings.
Outon Dimmable LED Floor Lamp with Remote
Video: This video highlights the key features of the Outon Dimmable LED Floor Lamp, including its large lighting area, 360-degree rotatable flexible gooseneck, touch controls for on/off and color/brightness adjustment, and remote control functionality with 4 color temperatures and stepless dimming. It also shows the sturdy metal base.
10. Warranty and Support
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official OUTON website. Keep your purchase receipt as proof of purchase.
