DELTA 52487-SS-PR

DELTA FAUCET 52487-SS-PR Universal Showerhead Instruction Manual

This manual provides detailed instructions for the installation, operation, and maintenance of your DELTA FAUCET 52487-SS-PR Universal Showerhead with Lumicoat Stainless finish.

1. Introduction

The DELTA FAUCET 52487-SS-PR Universal Showerhead is designed to enhance your showering experience with innovative features. It incorporates H2Okinetic Technology, which sculpts water into a unique wave pattern, providing the sensation of more water and increased pressure. The UltraSoak Spray mimics dense natural rainfall for a saturating shower, while the Lumicoat Finishes ensure easy cleaning and resistance to mineral buildup and hard water stains.

DELTA FAUCET 52487-SS-PR Universal Showerhead in Lumicoat Stainless finish
Image 1: The DELTA FAUCET 52487-SS-PR Universal Showerhead, showcasing its Lumicoat Stainless finish and design.

2. Setup and Installation

Installing your new DELTA showerhead is a straightforward process that typically does not require special tools. You will need standard plumber's tape for a secure, leak-free connection. Ensure the water supply is turned off before beginning installation.

Installation Steps:

  1. Remove your existing showerhead by turning it counter-clockwise.
  2. Clean any debris from the shower arm threads.
  3. Wrap plumber's tape clockwise around the threads of the shower arm.
  4. Thread the new DELTA showerhead onto the shower arm by turning it clockwise until hand-tight.
  5. Use a wrench to tighten an additional quarter turn, being careful not to overtighten.
  6. Turn on the water supply and check for leaks.

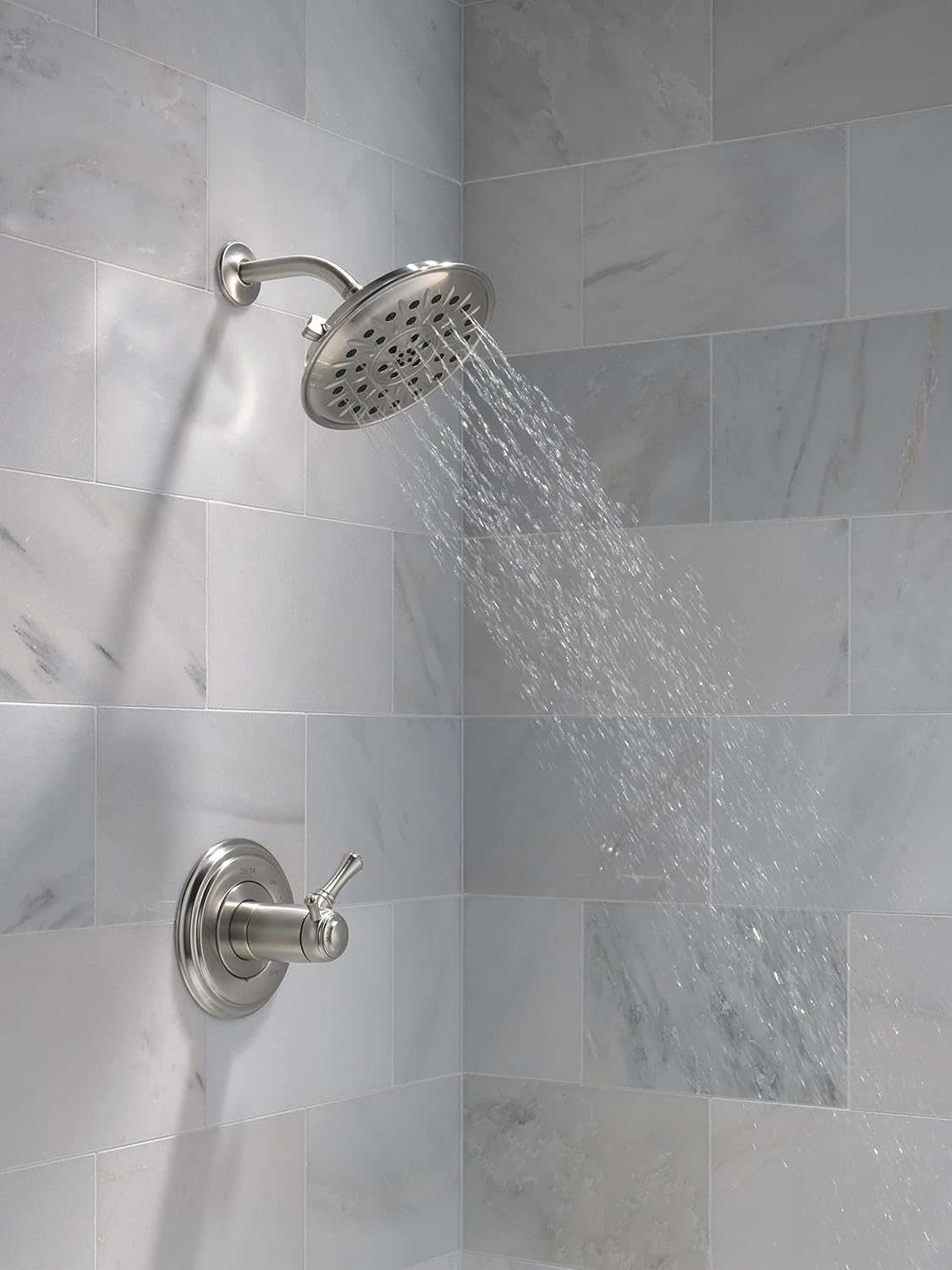

DELTA showerhead installed in a shower with water flowing
Image 2: The DELTA showerhead installed and operating, demonstrating water flow.

3. Operating Instructions

Your DELTA showerhead features 7 distinct spray settings, allowing you to customize your showering experience. These settings are easily adjustable by rotating the dial on the showerhead face.

Key Spray Settings:

  • H2Okinetic PowerDrench Spray: Creates powerful water patterns for an energizing experience, designed to provide more coverage and intensity.
  • H2Okinetic UltraSoak Spray: Mimics the sensation of dense natural rainfall, offering an intensely saturating and soothing shower.
  • Additional settings provide variations in spray intensity and coverage to suit individual preferences.
Woman showering under a DELTA H2Okinetic showerhead, illustrating 3X more coverage
Image 3: Visual representation of H2Okinetic Technology providing 3X more coverage than a standard showerhead.
Diagram showing how H2Okinetic showers provide more coverage, intensity, and warmth compared to standard showers
Image 4: Comparison illustrating the enhanced coverage, intensity, and warmth delivered by H2Okinetic showers.

4. Maintenance

To maintain the appearance and performance of your DELTA showerhead, regular cleaning is recommended. The Lumicoat Finishes are designed for easy maintenance.

Cleaning Instructions:

  • The Lumicoat Finishes allow for easy wiping clean and are guaranteed to resist mineral buildup and hard water stains on the product’s most commonly touched areas.
  • For general cleaning, use a soft cloth and mild soap and water. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
  • Periodically inspect the spray nozzles for any mineral deposits. The Touch-Clean nozzles can often be cleared by gently rubbing them with your finger.
Comparison of a showerhead with Lumicoat Technology showing water beading off, versus one without Lumicoat showing water spots
Image 5: Demonstration of Lumicoat Finishes repelling liquids and resisting water spots, compared to a non-Lumicoat surface.

5. Troubleshooting

If you encounter any issues with your DELTA showerhead, consider the following common troubleshooting steps:

  • Low Water Pressure: Check if the showerhead nozzles are clogged with mineral deposits. Clean them as described in the Maintenance section. Ensure your home's main water supply valve is fully open.
  • Leaking: Verify that the showerhead is securely tightened to the shower arm and that plumber's tape was applied correctly. If leaking persists, the washer inside the connection may need replacement.
  • Difficulty Changing Spray Settings: Ensure the spray selector dial is free of debris. Gently rotate the dial to cycle through settings.

For persistent issues, please refer to the Warranty and Support section for further assistance.

6. Specifications

FeatureDetail
BrandDELTA
Model Number52487-SS-PR
StyleWith Lumicoat
ShapeRound
MaterialPlastic
Finish TypeStainless
Installation TypeWall Mounted
ColorStainless
Product Dimensions3.44"L x 8.25"W
Number of Settings7
Number of Jets1
EfficiencyWaterSense certified (efficient)
Item Weight1.66 pounds
UPC195205036814
Diagram showing the dimensions of the DELTA showerhead, with a width of 8.25 inches and depth of 3.44 inches
Image 6: Detailed dimensions of the DELTA showerhead, indicating a width of 8.25 inches and depth of 3.44 inches.

7. Warranty and Support

Your DELTA FAUCET 52487-SS-PR Universal Showerhead is backed by a Lifetime Faucet and Finish Lifetime Limited Warranty. This warranty covers defects in material and manufacturing for as long as the original consumer purchaser owns the home in which the product was first installed.

For detailed warranty information, product registration, or to contact customer support, please visit the official DELTA store or contact their customer service department.

Official DELTA Store: Visit the DELTA Store on Amazon

Icon representing a Lifetime Limited Warranty
Image 7: Symbol indicating the product is covered by a Lifetime Limited Warranty.
