Crony AZ-4009 Auto Islamic Azan Clock User Manual

Introduction

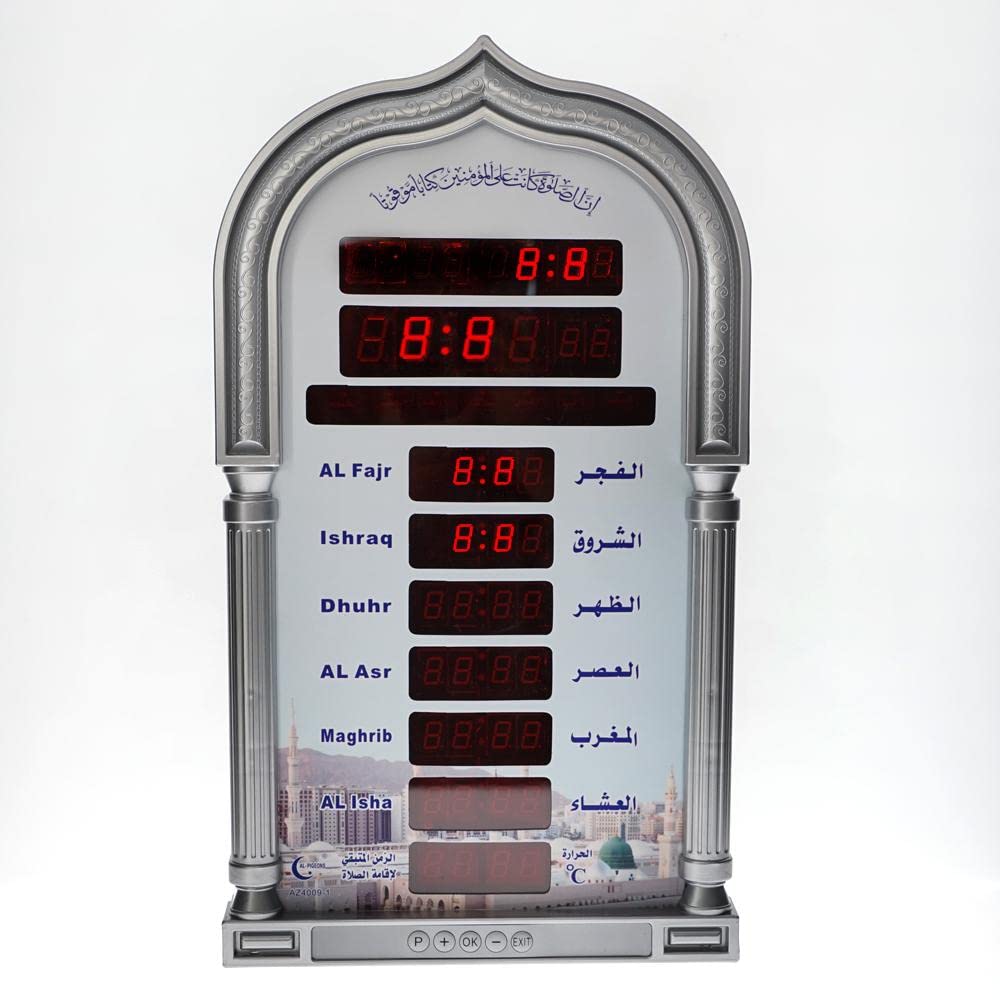

The Crony AZ-4009 Auto Islamic Azan Clock is designed to display current time, prayer times, and Hijri date. It features automatic calculation of prayer times for various cities, a remote control for easy adjustments, and a clear digital display. This manual provides detailed instructions for setting up and operating your Azan clock.

Main Features

• Automatic calculation of Hijri date with adjustment capability.
• Display of Hijri month names and days of the week.
• Two different time modes: 12/24 hours (optional).
• Automatic and manual switching of Daylight Saving Time.
• Display of the five prayer times and the sunrise time (Ishraq).
• Audible and visible alerts at each prayer and Iqama time.
• Iqama setting in two modes: Relative & Fixed.
• Display of Iqama time (remaining time to Iqama) with adjustable settings for each prayer.
• Temperature display (range between 0 ~ 40°C).
• Easy control via remote control and local keypad.
• Power save mode (from Isha'a to Fajr).
• Enable/Disable key tones.
• Connects with PC via USB port to upload prayer times for any country or city (optional feature).

Image: A close-up of the product packaging highlighting the main features of the Crony AZ-4009 Azan Clock, including automatic Hijri date, prayer times, and remote control.

Package Contents

Please check the box for the following items:

• Crony AZ-4009 Auto Islamic Azan Clock Unit
• Remote Control
• Power Adapter
• User Manual (this document)

Image: The Crony AZ-4009 Azan Clock displayed with its included accessories: a remote control and a power adapter.

Setup

1. Power Connection

1. Connect the power adapter to the DC input port located at the back of the clock.
2. Plug the power adapter into a suitable electrical outlet (220-240V, 50/60Hz).
3. The clock will power on and display default settings.

Image: The rear view of the Crony AZ-4009 Azan Clock, showing the power input port and product label with electrical specifications.

2. Initial Settings (Time, Date, City)

Upon first power-on or after a power interruption, you may need to set the current time, date, and your location (city) for accurate prayer time calculations. Use the provided remote control for easier navigation.

• Press the SET button on the remote control to enter the settings menu.
• Use the UP/DOWN arrows to navigate through options like Time, Date, City, Prayer Calculation Method.
• Use the LEFT/RIGHT arrows or numerical keys to adjust values.
• Press OK to confirm selections and move to the next setting.
• Refer to the remote control diagram for button functions.

Image: The Crony AZ-4009 Azan Clock with its remote control and power adapter, illustrating the components used for setup and operation.

Operating Instructions

Prayer Time Display

The clock automatically displays the current time, date, and the five daily prayer times (Fajr, Dhuhr, Asr, Maghrib, Isha) along with Ishraq (sunrise). The current prayer time will typically be highlighted or indicated.

Adjusting Hijri Date

The clock automatically calculates the Hijri date. If an adjustment is needed due to local moon sighting, use the remote control:

1. Press SET on the remote.
2. Navigate to the Hijri Date setting.
3. Use UP/DOWN or numerical keys to adjust the date.
4. Press OK to save.

Daylight Saving Time (DST)

The clock supports automatic and manual switching for Daylight Saving Time. Check your local DST schedule and adjust the setting in the menu if necessary.

1. Press SET on the remote.
2. Navigate to the DST setting.
3. Select Auto or Manual and adjust accordingly.
4. Press OK to save.

Iqama Settings

You can set the Iqama time (remaining time to Iqama) for each prayer individually. The clock offers Relative and Fixed modes.

• Relative Mode: Iqama time is set relative to the Azan time (e.g., 15 minutes after Azan).
• Fixed Mode: Iqama time is set to a specific time.

To adjust:

1. Press SET on the remote.
2. Navigate to the Iqama settings.
3. Select the prayer you wish to adjust.
4. Choose between Relative/Fixed mode and set the desired time/duration.
5. Press OK to save.

Power Save Mode

The clock features a power save mode that can be activated from Isha'a to Fajr to conserve energy. This mode can be enabled or disabled in the settings menu.

1. Press SET on the remote.
2. Navigate to the Power Save Mode setting.
3. Toggle the setting On or Off.
4. Press OK to save.

Maintenance

• Clean the clock's display and casing with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Keep the clock away from direct sunlight, extreme temperatures, and high humidity.
• Ensure the power adapter cable is not damaged or kinked.
• If using batteries for the remote control, replace them when the remote's range decreases or it becomes unresponsive.

Troubleshooting

Specifications

• Brand: CRONY
• Model: AZ-4009
• Color: Grey
• Material: PC
• Display Type: Digital
• Special Features: Alarm, Daylight Saving, Auto Azan
• Power Source: Corded Electric (220-240V, 50/60Hz)
• Item Weight: 1.13 Kilograms
• Package Dimensions: 43.9 x 25.5 x 6 cm
• Indoor/Outdoor Use: Indoor

Warranty and Support

The Crony AZ-4009 Auto Islamic Azan Clock comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use.

For technical support, warranty claims, or further assistance, please contact your retailer or visit the official CRONY website. Keep your purchase receipt as proof of purchase for warranty services.

Image: The retail packaging of the Crony AZ-4009 Azan Clock, indicating a 1-year warranty and other product details.
