1. Product Overview
The Haier I-Pro Series 5 HWD80-B14959U1 is a versatile freestanding front-load washer-dryer designed to provide professional-quality laundry care in your home. It combines generous washing and drying capacities with advanced technologies for optimal performance and hygiene.
Key features include the innovative Direct Motion motor for quiet and efficient operation, I-Refresh micro-steam technology for garment care, and connectivity with the hOn app for enhanced control and functions like Washing-Lens.
Overview of the Haier I-Pro Series 5 highlighting key features such as Class A energy efficiency, Direct Motion Motor, ABT (Antibacterial Treatment), Drum Light, I-Refresh function, Wi-Fi connectivity (hOn app), and Smart Dual Spray.
2. Installation and Setup
Before operating your new Haier washer-dryer, ensure proper installation to guarantee safety and optimal performance. This appliance requires a stable, level surface and appropriate electrical and water connections.
2.1 Unpacking
Carefully remove all packaging materials, including the transport bolts located at the rear of the machine. Retain packaging for future transport if needed.
2.2 Positioning
Place the appliance on a firm, flat floor. Ensure there is adequate space around the machine for ventilation and access. Adjust the leveling feet to ensure the machine is perfectly stable and balanced.
2.3 Connections
- Water Supply: Connect the inlet hose to a cold water tap with a 3/4" thread. Ensure connections are tight to prevent leaks.
- Drainage: Securely place the drain hose into a standpipe or connect it to a sink trap, ensuring it is not kinked or obstructed.
- Electrical: Plug the power cord into a grounded electrical outlet. Ensure the voltage and power rating match your household supply (230 Volts, 2000 Watts).
2.4 Dimensions
The compact design of the I-Pro Series 5 allows for flexible placement. Refer to the diagram below for detailed dimensions.

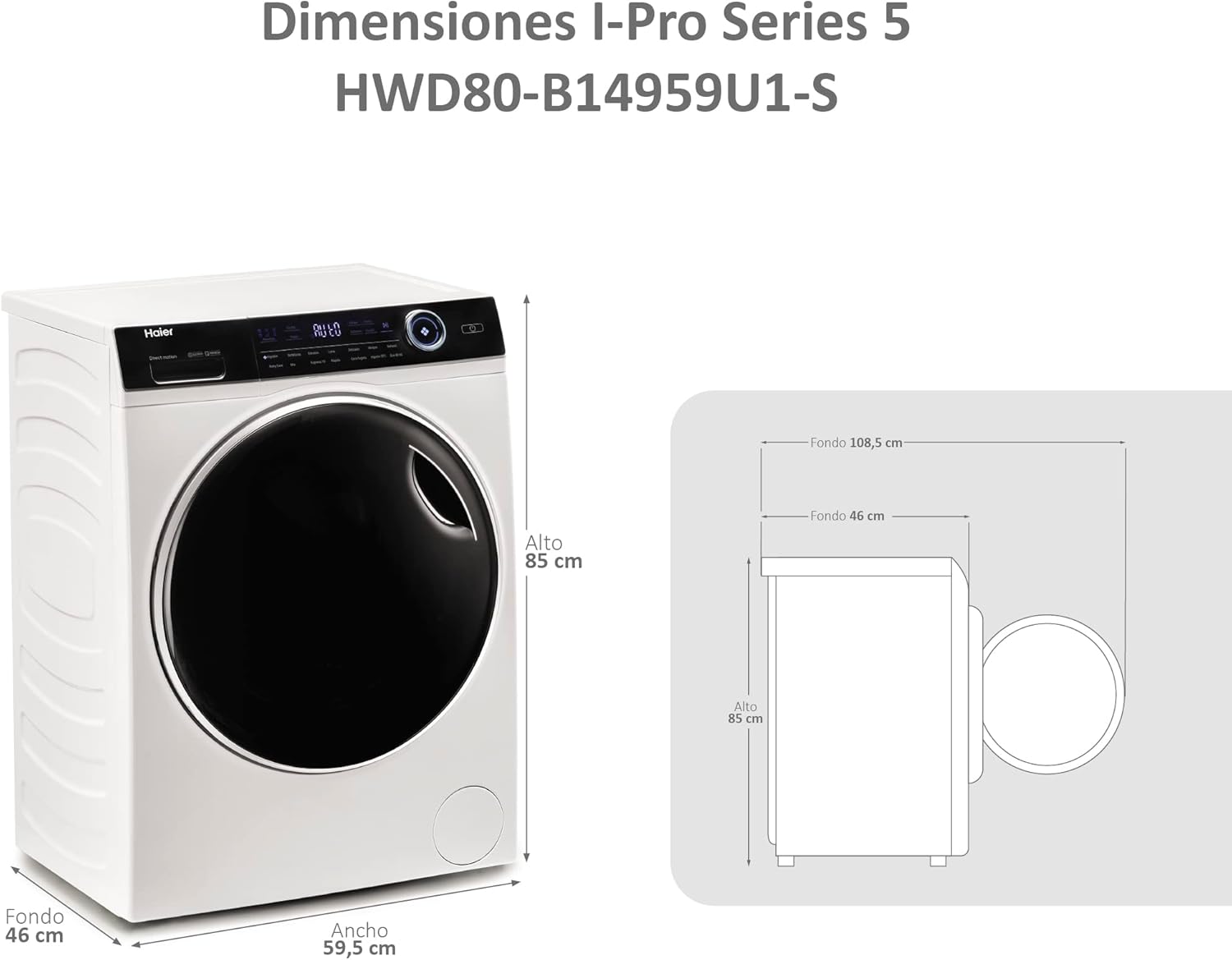

Dimensional drawing of the Haier I-Pro Series 5 HWD80-B14959U1, showing a depth of 46 cm, width of 59.5 cm, and height of 85 cm. The diagram also indicates a total depth of 108.5 cm with the door fully open.
Product Dimensions (L x W x H): 55 x 60 x 85 cm; Weight: 75 kg.
3. Operating Instructions
Your Haier I-Pro Series 5 washer-dryer offers a variety of programs and features to cater to different fabric types and laundry needs.
3.1 Control Panel Overview
The intuitive control panel allows you to select programs, adjust settings, and monitor the wash/dry cycle. Refer to the main product image for a visual guide to the control panel.
3.2 Loading Laundry
Open the large drum door and load your laundry. The appliance has a washing capacity of 8 kg and a drying capacity of 5 kg. Do not overload the machine to ensure optimal cleaning and drying results.
Image showing the large 36 cm drum opening of the Haier I-Pro Series 5, designed for easy loading and unloading of laundry. The drum features an interior LED light for visibility.
3.3 Program Selection
Turn the program selector dial to choose the desired wash or wash-dry program. Available programs are designed for various fabric types and soil levels.
3.4 Special Functions
- Direct Motion Motor: This innovative motor is directly connected to the drum, reducing noise and vibrations while enhancing durability and efficiency.
- I-Refresh Technology: Utilizes micro-steam to refresh clothes, remove odors, fine dust, and allergens, and reduce wrinkles without water or detergent contact. Ideal for delicate items or quick refreshes.
- hOn App Connectivity: Connect your washer-dryer to the hOn app via Wi-Fi for remote control, access to additional programs, and features like Washing-Lens, which helps identify fabric types and suggests optimal wash cycles.
Visual representation of the I-Refresh Steam Technology, illustrating how steam eliminates odors, reduces wrinkles, and disinfects fibers by targeting bacteria and allergens in garments.
An image depicting a hand holding a smartphone displaying the hOn app interface, demonstrating the connected experience for controlling the washer-dryer remotely and utilizing features like Washing-Lens.
4. Maintenance and Care
Regular maintenance ensures the longevity and hygienic operation of your Haier washer-dryer.
4.1 Cleaning the Appliance
- Exterior: Wipe the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners.
- Detergent Drawer: Periodically remove and clean the detergent drawer to prevent residue buildup.
- Door Seal: After each wash, wipe the door seal to remove any lint or moisture, preventing mold growth.
- Smart Dual Spray: This automatic cleaning system activates at the end of each cycle, spraying water to clean the door seal and glass, ensuring a more hygienic wash.
- ABT (Antibacterial Treatment): Haier's exclusive antibacterial material protects vulnerable areas like the detergent drawer and door seal from mold and bacteria formation, contributing to a 99% more hygienic wash cycle.
An image illustrating the Smart Dual Spray Technology, which ensures a more hygienic wash and prolongs the washer-dryer's durability by automatically cleaning the machine at the end of each cycle.
4.2 Filter Cleaning
Regularly check and clean the drain pump filter to prevent blockages and ensure efficient drainage. Refer to the full user manual for detailed instructions on accessing and cleaning the filter.
5. Troubleshooting
This section provides solutions to common issues you might encounter with your washer-dryer. For more complex problems, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged, door not closed properly, program not selected. | Check power connection, ensure door is securely latched, select a program and press start. |
| Excessive vibration/noise | Transport bolts not removed, machine not level, uneven load. | Remove transport bolts, adjust leveling feet, redistribute laundry inside the drum. |
| Water not draining | Drain hose kinked/blocked, drain pump filter clogged. | Check drain hose for kinks, clean the drain pump filter. |
| Clothes not drying properly | Overloaded, wrong drying program, lint filter clogged. | Reduce load size, select appropriate drying program, clean the lint filter. |
6. Technical Specifications
| Specification | Value |
|---|---|
| Brand | Haier |
| Model Number | HWD80-B14959U1 (31019000) |
| Type | Freestanding Washer-Dryer |
| Washing Capacity | 8 Kilograms |
| Drying Capacity | 5 Kilograms |
| Spin Speed | 1400 RPM |
| Product Dimensions (L x W x H) | 55 x 60 x 85 cm |
| Weight | 75 Kilograms |
| Voltage | 230 Volts |
| Power | 2000 Watts |
| Noise Level | 72 dB |
| International Article Code (EAN/UPC) | 06921081593547 |
7. Warranty and Support
For warranty information, please refer to the warranty card included with your appliance or visit the official Haier website for your region. Keep your purchase receipt as proof of purchase.
For technical support, spare parts, or service requests, please contact Haier customer service. Contact details can typically be found on the Haier website or in the documentation provided with your product.
When contacting support, please have your model number (HWD80-B14959U1) and serial number (if applicable) ready.
