ABCCANOPY 8x8 Outdoor Gazebo with Mosquito Netting

Introduction

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your ABCCANOPY 8x8 Outdoor Gazebo. Designed for outdoor use, this gazebo offers shade and protection from insects, enhancing your lawn, garden, backyard, or deck area. Please read all instructions carefully before assembly and use to ensure safe and proper operation.

Safety Information

Important Safety Warnings:

• Always secure the gazebo to a stable foundation using the provided ground stakes and additional weights during strong windy conditions. Failure to do so may result in property damage or personal injury.
• Do not use the gazebo during severe weather conditions such as heavy winds, storms, or heavy snowfall. Disassemble and store the gazebo in such conditions.
• Keep all flame and heat sources away from the gazebo fabric. The fabric is not fireproof.
• Ensure all connections are tight and secure before and during use. Regularly inspect the frame and fabric for any signs of wear or damage.
• Keep children and pets away from the assembly area during setup.

Parts List

Before beginning assembly, ensure all parts are present and undamaged. Refer to the packing list included with your product for specific component identification. Typical components include:

• Main Frame Poles (Legs, Roof Beams, Connectors)
• Canopy Fabric (Main Roof, Vented Top)
• Mosquito Netting Panels with Zippers
• Pole Coverings (Curtains)
• Ground Stakes and Ropes
• Assembly Hardware (Bolts, Screws, Wrenches)

Setup Instructions

Assembly typically requires two or more adults. Follow these general steps:

1. Unpack and Identify Parts: Lay out all components on a clean, flat surface. Verify all parts against the packing list.
2. Assemble the Base Frame: Connect the base poles to form the square footprint of the gazebo. Ensure all locking mechanisms click into place.
3. Attach Upright Poles: Securely connect the upright leg poles to the base frame.
4. Construct the Roof Frame: Assemble the roof beams and connectors according to the diagram. The dome top design features a triangular structure for enhanced stability.
5. Install Canopy Fabric: Carefully drape the main canopy fabric over the roof frame. Ensure the vented top is correctly positioned for air circulation. The Rip-Lock material is designed for durability.
6. Attach Mosquito Netting and Pole Coverings: Hang the mosquito netting panels and pole coverings (curtains) from the designated hooks or rings on the frame. The netting features zippers for easy access and privacy.
7. Secure the Gazebo: Use the provided ground stakes and ropes to anchor the gazebo firmly to the ground. For added stability, consider using additional weights or bolting the legs to a deck.

Image: Illustration of the gazebo frame assembly process.

Image: Diagram showing the dimensions and various sizes of the gazebo.

Operating Instructions

Your ABCCANOPY gazebo is designed for ease of use and comfort.

• Mosquito Netting: The netting walls feature zippers, allowing you to fully enclose the gazebo to keep insects out or tie them back for an open feel.
• Pole Coverings: The included pole coverings provide additional shade and privacy, and can be tied back when not in use. Note that these are coverings for the poles, not full curtain panels.
• Vented Roof: The double-tiered vented roof is designed to reduce wind stress and improve air circulation, keeping the interior cooler.
• Center Hook: A hook is located at the center of the roof frame, suitable for hanging lightweight items such as a small lantern or decorative lights.

Image: The gazebo with its mosquito netting and pole coverings in use, providing privacy and insect protection.

Maintenance

Proper maintenance will extend the life of your gazebo.

• Cleaning Fabric: Clean the canopy fabric and netting with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as this can damage the PU coating and Rip-Lock material. Allow to air dry completely before storage.
• Frame Care: Regularly inspect the alloy steel frame for any signs of rust or damage. Clean any dirt or debris from the frame. If rust appears, treat it promptly to prevent further corrosion.
• Seasonal Storage: For prolonged periods of non-use or during harsh weather seasons, it is recommended to disassemble the gazebo and store it in a dry, protected area. Ensure all fabric components are clean and dry before storage to prevent mold and mildew.
• Anchoring: Periodically check the ground stakes and ropes to ensure they remain securely anchored. Re-tighten or re-position as necessary.

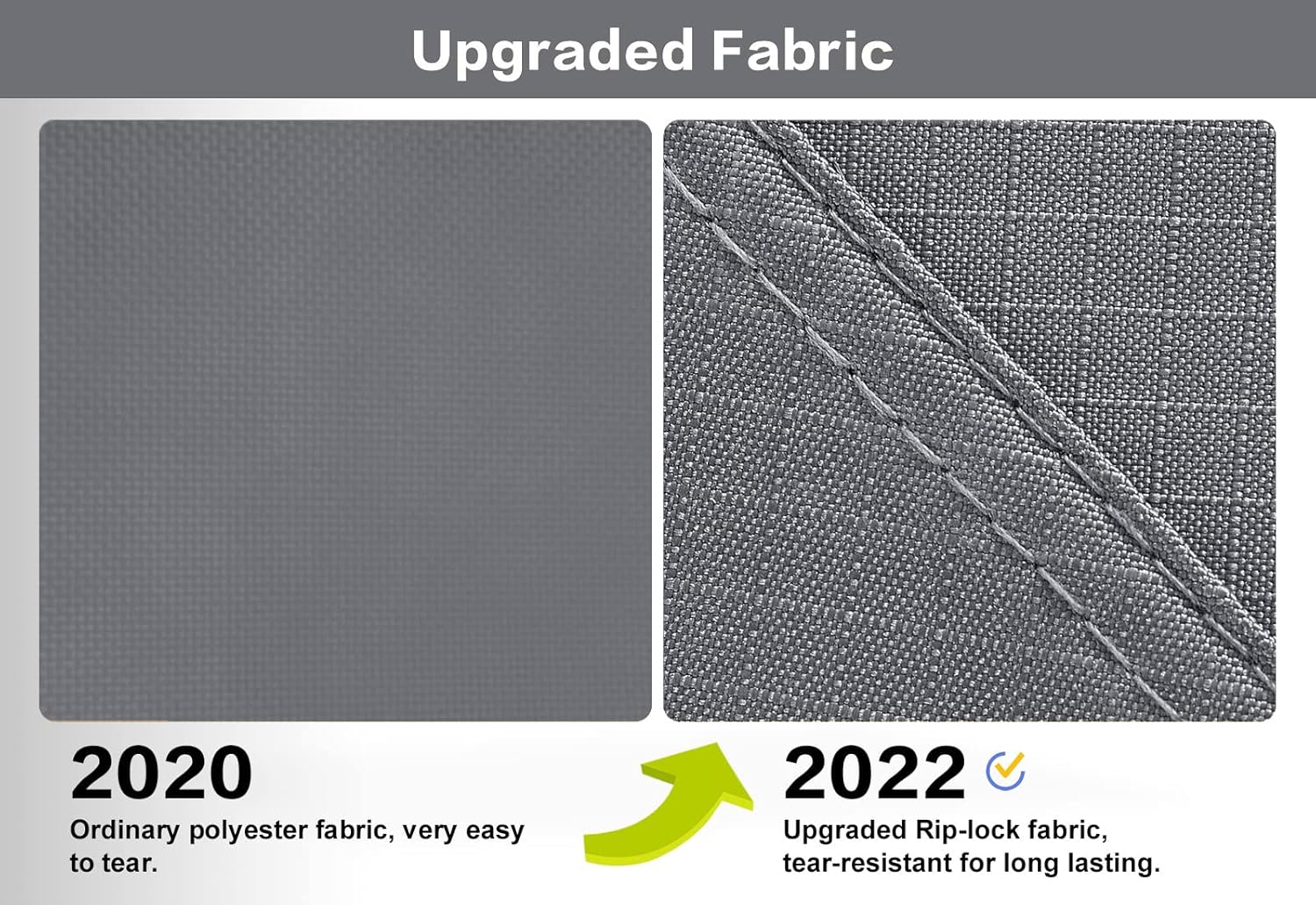

Image: Detail of the Rip-Lock fabric, highlighting its tear-resistant weave and PU coating.

Troubleshooting

If you encounter issues with your gazebo, refer to the following common problems and solutions:

• Gazebo is unstable: Ensure all frame connections are fully engaged and tightened. Verify that ground stakes are firmly in place and ropes are taut. Add additional weight bags or secure to a permanent structure if needed.
• Water leakage: Check that the canopy fabric is properly stretched and secured, allowing water to run off. Ensure all stitching lines are sealed. Apply a waterproof sealant if necessary.
• Mosquito netting not closing properly: Inspect zippers for damage or obstructions. Ensure the netting is correctly attached to the frame and not twisted.
• Difficulty with assembly: Double-check the instruction manual diagrams. Ensure you are using the correct parts for each step. Sometimes, loosening all connections slightly before final tightening can help align parts.

Specifications

Warranty and Support

For warranty information or customer support, please refer to the documentation included with your purchase or contact ABCCANOPY directly. You can typically find contact information on the manufacturer's website or through your retailer. Keep your purchase receipt for warranty claims.
