IKT Portable Ice Maker User Manual

Introduction

Thank you for choosing the IKT Portable Ice Maker. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new ice machine. Please read it thoroughly before use and retain it for future reference.

This compact and efficient ice maker is designed to produce 9 ice cubes in approximately 6-8 minutes, with a daily capacity of up to 26.5 lbs (12 kg) of ice. It features a user-friendly one-click operation and a self-cleaning function, making it suitable for various settings including home, kitchen, office, and bar environments.

Image: Graphic emphasizing the importance of using healthy drinking water for ice production.

Safety Instructions

• Ensure the appliance is placed on a stable, level surface away from direct sunlight and heat sources.
• Do not immerse the appliance, power cord, or plug in water or other liquids.
• Always unplug the ice maker before cleaning or when not in use.
• Keep children away from the appliance during operation.
• Use only clean, potable water in the reservoir. Do not use milk, juice, honey, sugar beverages, or other liquids, as this can damage the machine.
• Do not operate the appliance with a damaged cord or plug.
• Ensure proper ventilation around the unit; do not block air vents.

Setup

1. Unpacking: Carefully remove the ice maker from its packaging. Inspect for any damage.
2. Placement: Place the unit on a flat, stable surface. Allow at least 4 inches (10 cm) of space around the unit for proper ventilation.
3. Initial Cleaning: Before first use, clean the interior of the ice maker. Refer to the "Maintenance" section for detailed cleaning instructions.
4. Add Water: Open the lid and pour clean, potable water into the water reservoir up to the "MAX" fill line. Do not overfill.
5. Power Connection: Plug the power cord into a grounded electrical outlet (AC 110V). The power indicator light will blink.

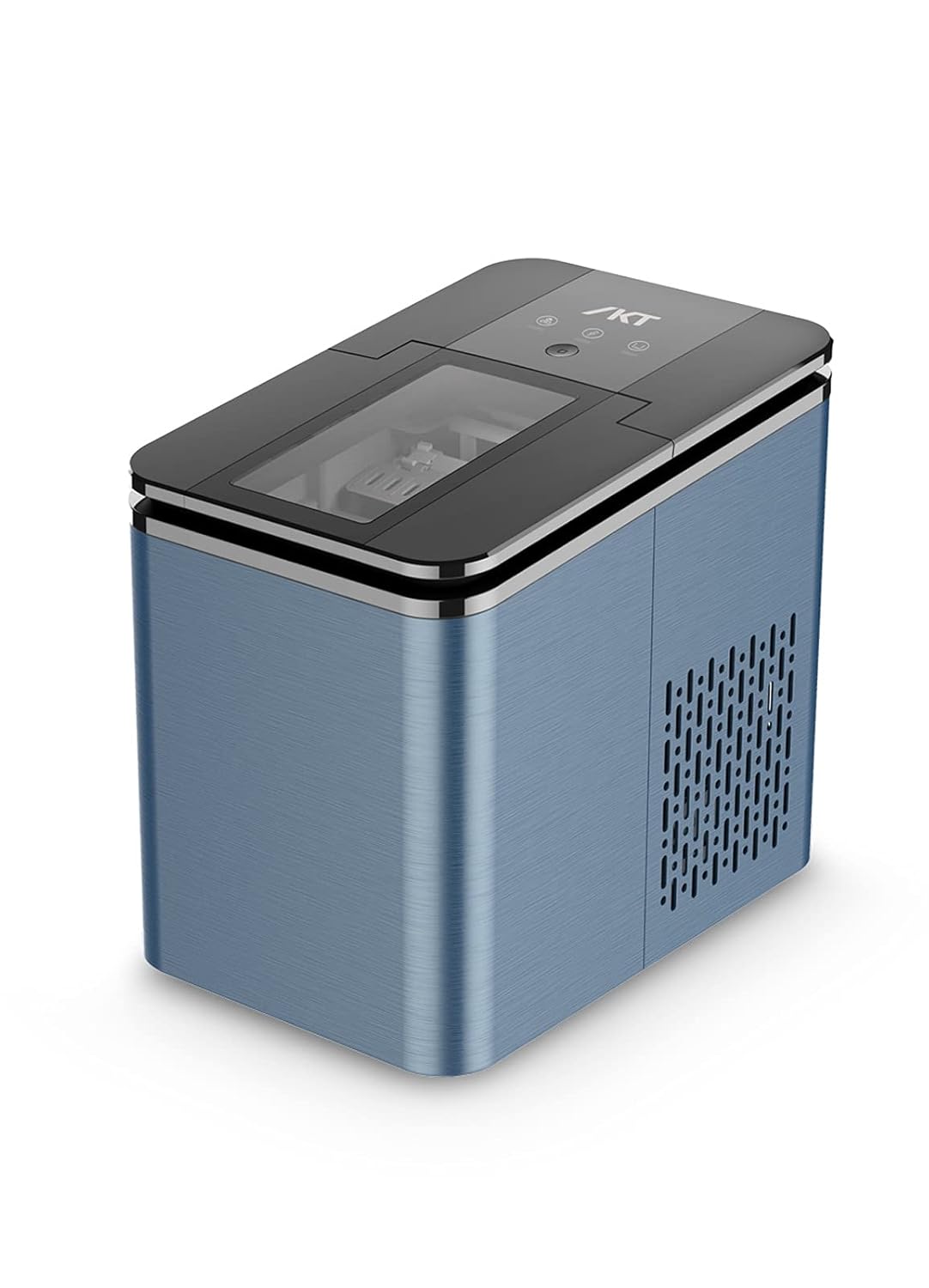

Image: The IKT Portable Ice Maker, showcasing its compact design and blue finish.

Image: Visual guide demonstrating the three simple steps to operate the ice maker: adding water, pressing the power button, and collecting ice.

Video: A demonstration of the IKT Portable Ice Maker's quick ice production, showing the process from adding water to ice collection.

Operating Instructions

1. Start Ice Production: After adding water and plugging in the unit, press the power button once. The ice-making indicator light will illuminate.
2. Ice Making Cycle: The first batch of 9 ice cubes will be ready in approximately 6-8 minutes. Subsequent cycles may be faster as the internal temperature stabilizes.
3. Ice Collection: Once ice cubes are formed, they will be automatically released into the ice basket. Use the provided ice scoop to retrieve the ice.
4. Automatic Stop: The ice maker will automatically stop producing ice when the ice basket is full or when the water level in the reservoir is too low. The corresponding indicator light will illuminate.
5. Continuous Operation: To continue making ice, remove ice from the basket and/or refill the water reservoir if needed. The machine will resume operation automatically.
6. Power Off: Press the power button again to turn off the ice maker.

Image: Infographic highlighting the ice maker's efficiency: 6 minutes for ice, 9 cubes per cycle, and 27 lbs daily capacity.

Video: A product showcase demonstrating the IKT ice maker's operation, including the ice-making process and ice collection.

Maintenance

• Self-Cleaning Function: To activate the self-cleaning mode, plug in the ice maker and press the power button for 3 seconds. The machine will initiate a cleaning cycle. You can let the process complete or press the button again to stop it.
• Draining Water: Regularly drain any remaining water from the reservoir using the drain plug located at the bottom of the unit. This helps prevent mineral buildup and ensures fresh ice.
• Interior Cleaning: For thorough cleaning, wipe the interior with a soft cloth and a mild detergent. Rinse thoroughly with clean water.
• Exterior Cleaning: Clean the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Air Vents: Keep the air vents on the sides and back of the unit clear of dust and debris to maintain optimal performance.

Image: The ice maker with water being poured, illustrating the ease of cleaning and the self-cleaning feature.

Image: Graphic representing the automatic self-cleaning function of the ice maker.

Troubleshooting

If you encounter issues with your IKT Portable Ice Maker, please refer to the following common problems and solutions:

• No Ice Production:
  • Ensure the unit is properly plugged in and the power button is pressed.
  • Check if the water reservoir is filled to the "MAX" line.
  • Verify that the ice basket is not full, triggering the automatic stop.
  • Ensure the ambient temperature is within the recommended operating range.
• Slow Ice Production:
  • Use chilled water instead of room temperature water for faster initial ice production.
  • Ensure the unit has adequate ventilation and is not placed near heat sources.
  • Clean the condenser coils if they are dusty, as this can affect cooling efficiency.
• Ice Cubes are Small or Melt Quickly:
  • The ice basket is not refrigerated; ice will melt if left in the basket for extended periods. Transfer ice to a freezer for storage.
  • Ensure the water used is cold.
• Unusual Noises:
  • Some operational noises are normal, such as the compressor running or ice dropping.
  • If loud or persistent unusual noises occur, ensure the unit is on a stable surface and not vibrating against other objects.
• Self-Cleaning Not Activating:
  • Ensure the power button is pressed and held for at least 3 seconds to initiate the self-cleaning cycle.

If these steps do not resolve the issue, please contact IKT customer support for assistance.

Specifications

Image: Graphic indicating the ice maker's silent operation, typically below 40dB.

Image: Diagram illustrating the external insulation feature designed for heat preservation.

Warranty and Support

IKT stands behind the quality of its portable ice making machine. If you have any questions or encounter issues during use, our dedicated after-sale service team and technical team are available to respond within a few hours.

For support or warranty inquiries, please refer to the contact information provided with your product packaging or visit the official IKT store on Amazon: IKT Store.
