Drive Medical Full Electric Lightweight Homecare Bariatric Bed User Manual

1. Introduction

This manual provides essential information for the safe and effective use of your Drive Medical Full Electric Lightweight Homecare Bariatric Bed. This bed is designed to offer robust support and ease of use for homecare patients requiring bariatric support. Please read all instructions carefully before assembly and operation.

Key Features:

• Effortless Bed Delivery: Lightweight frame simplifies transportation and setup.
• Ample Patient Space: Available in various widths (42", 48", 54") to enhance comfort.
• Electric Bariatric Bed: Dual motors enable independent adjustment of head and frame positions.
• Easy Setup: Ultra-lightweight frame requires no links or tools for assembly.
• Durable Support: Steel frame slat deck provides no-sag mattress support.
• Adjustable Bed Height: Features hi-lo motors for height adjustment, complemented by scratch-resistant wood grain panels.
• Quiet, Efficient Motor: UL approved, self-contained motor for reliable operation.
• Minimize Service Calls: Large, glow-in-the-dark hand pendant with LED indicators for user convenience.
• Backup Power Option: Battery backup accessory (model #15302LWB) available for separate purchase.

2. Safety Information

WARNING: To prevent tip-over, ensure the bed is fully assembled and stable before use. Do not exceed the weight capacity of 1000 lbs (for model 15303LW, or 600 lbs for 15300LW, 750 lbs for 15302LW) to include occupant and any accessories. Be cautious around electrical components. Regularly inspect and maintain the bed to ensure safe operation. Keep the bed away from heat sources and do not expose it to excessive moisture.

Always ensure all casters are locked when the bed is stationary to prevent unintended movement. Keep children and pets away from moving parts of the bed.

3. Setup and Assembly

The Drive Medical Lightweight Bariatric Bed is designed for straightforward, tool-free assembly. Follow these general steps for initial setup:

1. Unpack all components and verify against the packing list.
2. Position the bed frame in the desired location. Ensure adequate space around the bed for operation and access.
3. Attach the headboard and footboard securely. These typically slide into place or attach with simple locking mechanisms.
4. Connect the electrical components, including the hand pendant and power cord, to the appropriate ports on the bed frame.
5. Plug the bed into a grounded electrical outlet.
6. Test all functions using the hand pendant to ensure proper operation of head, foot, and height adjustments.
7. Ensure all casters are locked once the bed is in its final position.

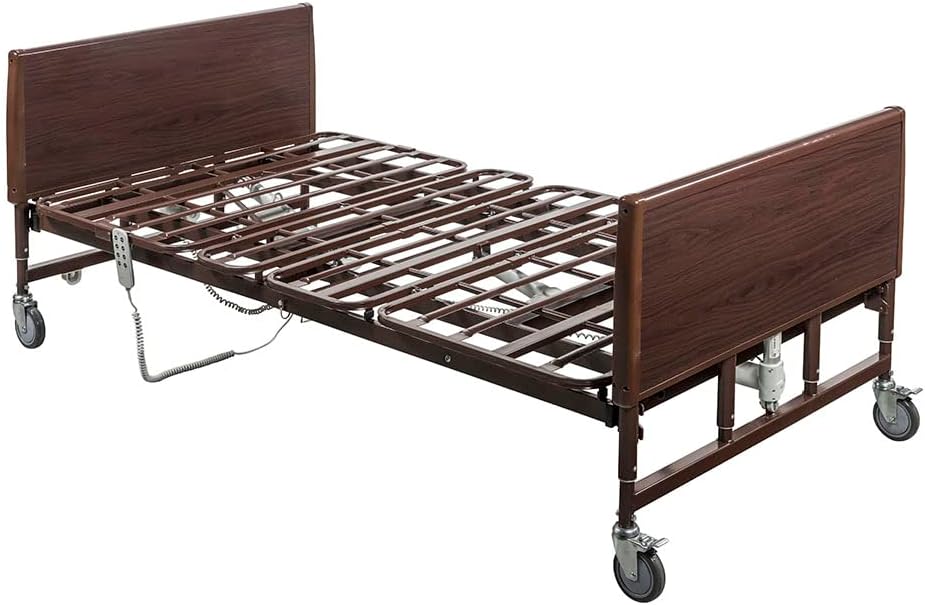

An image showing the fully assembled Drive Medical Full Electric Lightweight Homecare Bariatric Bed. It features a brown metal frame, a slatted mattress support, and dark wood-grain head and footboards. A wired hand pendant is visible, connected to the bed frame, and the bed is equipped with casters for mobility.

4. Operating Instructions

The bed's functions are controlled via the wired hand pendant. The pendant features large, easy-to-use buttons that illuminate in the dark for visibility.

Hand Pendant Functions:

• Head Up/Down: Adjusts the head section of the bed.
• Foot Up/Down: Adjusts the foot section of the bed.
• Hi/Lo (Bed Height) Up/Down: Adjusts the overall height of the bed frame.

Press and hold the desired button to activate the movement. Release the button to stop. Always ensure the patient is safely positioned and clear of moving parts before making adjustments.

5. Maintenance and Care

Regular maintenance ensures the longevity and safe operation of your bed.

• Cleaning: Wipe surfaces with a damp cloth for general cleaning. For disinfection, use a mild, non-abrasive cleaner. Follow with a wipe with a dry cloth to prevent moisture buildup.
• Inspection: Periodically inspect all electrical cords for damage. Check all fasteners and connections to ensure they are secure.
• Motor Care: The motors are self-contained and generally maintenance-free. If any unusual noises or malfunctions occur, contact customer support.
• Casters: Ensure casters roll freely and locks engage properly. Clean any debris from the wheels.

6. Troubleshooting

If you encounter issues with your bed, refer to the following common troubleshooting steps:

• Bed Not Responding: Ensure the power cord is securely plugged into a functional outlet and the bed. Check for any tripped circuit breakers.
• Motor Noise: A slight hum during operation is normal. Excessive or unusual noise may indicate an issue; discontinue use and contact support.
• Intermittent Operation: Check all cable connections, especially the hand pendant cable, for secure fit.
• Weight Capacity: Ensure the total weight on the bed (patient + accessories) does not exceed the specified maximum weight recommendation for your model (e.g., 750 lbs for 15302LW).

For issues not resolved by these steps, please contact Drive Medical customer support.

7. Specifications

8. Warranty and Support

For information regarding product warranty, please refer to the documentation included with your purchase or visit the official Drive Medical website. For technical support, replacement parts, or service inquiries, please contact Drive Medical customer service.

You can find more information and contact details by visiting the Drive Medical Store on Amazon.
