Hisense 8000-BTU Portable Air Conditioner User Manual

Introduction

Welcome to the user manual for your new Hisense AP0822CW1W 8000-BTU Portable Air Conditioner. This appliance is designed to provide efficient cooling, dehumidification, and air circulation for medium-sized rooms up to 350 sq. ft. Its versatile 3-in-1 operation, convenient remote control, and smart app connectivity ensure optimal comfort and ease of use.

Key features of your Hisense Portable Air Conditioner include:

• 3 Modes (cooling, fan, dehumidifier) for versatile comfort
• Drain-free design – no need to manually remove water
• Quiet operation for a relaxing environment
• Remote control for easy, convenient operation
• ConnectLife app allows easy control from anywhere

Figure 1: Front view of the Hisense Portable Air Conditioner.

Safety Information

Always read and follow all safety instructions before using this appliance to prevent injury or damage. Ensure the unit is placed on a stable, level surface and that the power cord is not pinched or damaged. Use a dedicated electrical outlet as specified in the product specifications. Do not block air inlets or outlets. Keep children and pets away from the unit during operation.

Setup & Installation

Your portable air conditioner comes with a snap-assembly window kit designed for windows 18" to 50" wide. The convenient drain-free design means condensed water will evaporate outside through the air exhaust hose, eliminating the need for manual drainage.

Components for Setup:

• Portable Air Conditioner Unit
• Remote Control
• Flexible Condenser Air Hose
• Window/Product Exhaust Adapters (2)
• Window Slider Kit (with extender pieces for larger windows)

Installation Steps:

1. Assemble the window slider kit to fit your window opening (horizontal or vertical). Use extender pieces if necessary.
2. Attach the exhaust adapters to both ends of the flexible condenser air hose.
3. Connect one end of the hose to the exhaust port on the back of the air conditioner unit.
4. Insert the other end of the hose into the opening of the assembled window slider kit.
5. Secure the window kit in your window opening, ensuring a tight seal to prevent air leakage.
6. Plug the unit into a dedicated 115-Volt, 60Hz electrical outlet. The power cord features a circuit breaker for safety.

Operating Instructions

Your Hisense Portable Air Conditioner offers multiple modes and settings for personalized comfort. The control panel on top of the unit provides easy access to all functions, and a remote control is included for convenient operation from a distance. The unit also supports the ConnectLife smart app for control via Wi-Fi.

Control Panel Overview:

• Power Button: Turns the unit on or off.
• Mode Button: Cycles through available modes: COOL, DRY (dehumidifier), FAN, HEAT.
• Temperature Display: Shows the set temperature in Celsius or Fahrenheit.
• +/- Buttons: Adjust the desired temperature.
• Fan Speed: Selects fan speed: HIGH, MED, LOW.
• Timer: Sets an automatic on/off time (controlled via remote).
• Sleep Mode: Activates quiet operation for sleeping (controlled via remote).
• Wi-Fi Indicator: Shows Wi-Fi connectivity status.

Figure 2: Illustration of the 3-in-1 operation modes.

Remote Control:

The included remote control allows you to power on/off, change modes, adjust temperature, set fan speed, and activate timer or sleep functions without directly interacting with the unit. Ensure AAA batteries are installed (not included).

Figure 3: Remote control for the Hisense Portable Air Conditioner.

ConnectLife App:

For enhanced control, download the ConnectLife smart app. This app allows you to change settings and monitor your portable air conditioner from anywhere, and it is compatible with Hey Google and Alexa.

Maintenance

Regular maintenance ensures optimal performance and longevity of your air conditioner.

Filter Cleaning:

The unit features a removable and washable PP filter located at the back of the unit. It is recommended to clean the filter regularly, especially during periods of frequent use, to maintain air quality and cooling efficiency.

1. Turn off and unplug the air conditioner before cleaning.
2. Locate the filter area on the back of the unit.
3. Gently open the filter cover and remove the filter.
4. Wash the filter under running water (e.g., in a sink) to remove dust and debris.
5. Allow the filter to air dry completely before reinserting it into the unit.
6. Close the filter cover securely.

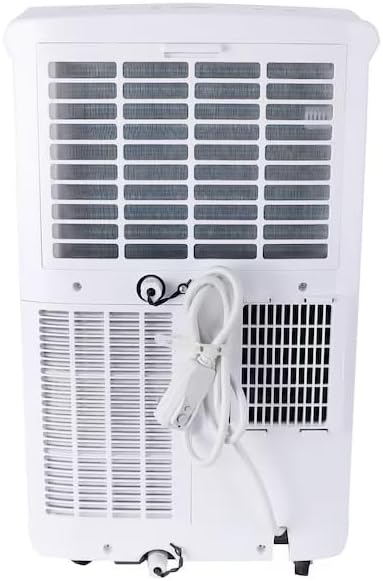

Figure 4: Back view of the unit with filter access.

Drainage:

This unit features a convenient drain-free design, meaning condensed moisture is typically evaporated and expelled through the exhaust hose. Therefore, manual drainage is generally not required under normal operating conditions.

Troubleshooting

If you encounter issues with your air conditioner, refer to the following common problems and solutions:

• Unit does not turn on: Check if the power cord is securely plugged into a dedicated outlet. Ensure the circuit breaker on the power cord has not tripped.
• Unit is not cooling effectively: Verify that the room size is within the recommended 350 sq. ft. range. Check if the air filter is clean. Ensure windows and doors are closed and the exhaust hose is properly installed and sealed.
• Excessive noise: Ensure the unit is placed on a flat, stable surface. Check for any obstructions in the air inlets or outlets.
• Water leakage: Although designed to be drain-free, ensure the unit is level. If leakage persists, contact customer support.

Specifications

Warranty & Support

Your Hisense Portable Air Conditioner is backed by a 2-year warranty on both parts and labor, providing peace of mind for your investment.

For any questions, troubleshooting assistance beyond this manual, or warranty claims, please contact Hisense Customer Support. Refer to the product packaging or the official Hisense website for the most current contact information.
