1. Introduction
Thank you for choosing the Itaar 43-inch Lift Top Coffee Table. This manual provides detailed instructions for the assembly, operation, and maintenance of your new multi-functional coffee table. Designed for versatility, this rustic brown table features a lift-top mechanism, hidden storage compartments, and an open shelf, making it suitable for various uses in your living room, dining area, or reception room.
Figure 1: Itaar 43-inch Lift Top Coffee Table in a living room.
2. Safety Information
- Read All Instructions: Before assembly and use, carefully read and understand all instructions provided in this manual.
- Assembly: Assemble the table on a soft, clean surface to prevent scratches. Ensure all parts are correctly aligned and securely fastened. Do not overtighten screws.
- Weight Capacity: Do not exceed the maximum load capacities: total 110 lbs; tabletop (when extended) 50 lbs; hidden storage 50 lbs; bottom shelf 40 lbs. Overloading can cause damage or injury.
- Stability: Ensure the table is placed on a flat, stable surface. Adjustable foot pads help maintain stability, even on uneven floors or carpets.
- Lift Mechanism: Operate the lift-top mechanism smoothly and carefully. Keep hands and fingers clear of moving parts to prevent pinching. The table features safety valves to ensure stable support when the top is lifted.
- Children and Pets: Keep children and pets away from the table during assembly and when operating the lift-top mechanism.
- Maintenance: Regularly check all fasteners to ensure they remain tight. Do not use harsh chemicals for cleaning; wipe with a dry cloth.
3. Product Features
The Itaar Lift Top Coffee Table is designed for enhanced functionality and durability. Key features include:
- 3-in-1 Lift Design: The unique lift-top design allows for multiple configurations: a regular coffee table, a workstation for two, or a dining/gaming table for up to 8 people when fully unfolded.
- Quality Upgrade: Features a sturdy metal lifting arm and two safety valves for stable support, capable of holding up to 166 lbs when fully extended.
- Powerful Storage: Includes a hidden compartment divided into three sections for organized storage of blankets, snacks, and electronics, plus an open lower shelf for magazines, laptops, and other items.
- Durable Construction: Made from P2 Engineered Wood and a robust metal mechanism, ensuring longevity and stability.
Figure 2: Versatile 3-in-1 lift design.

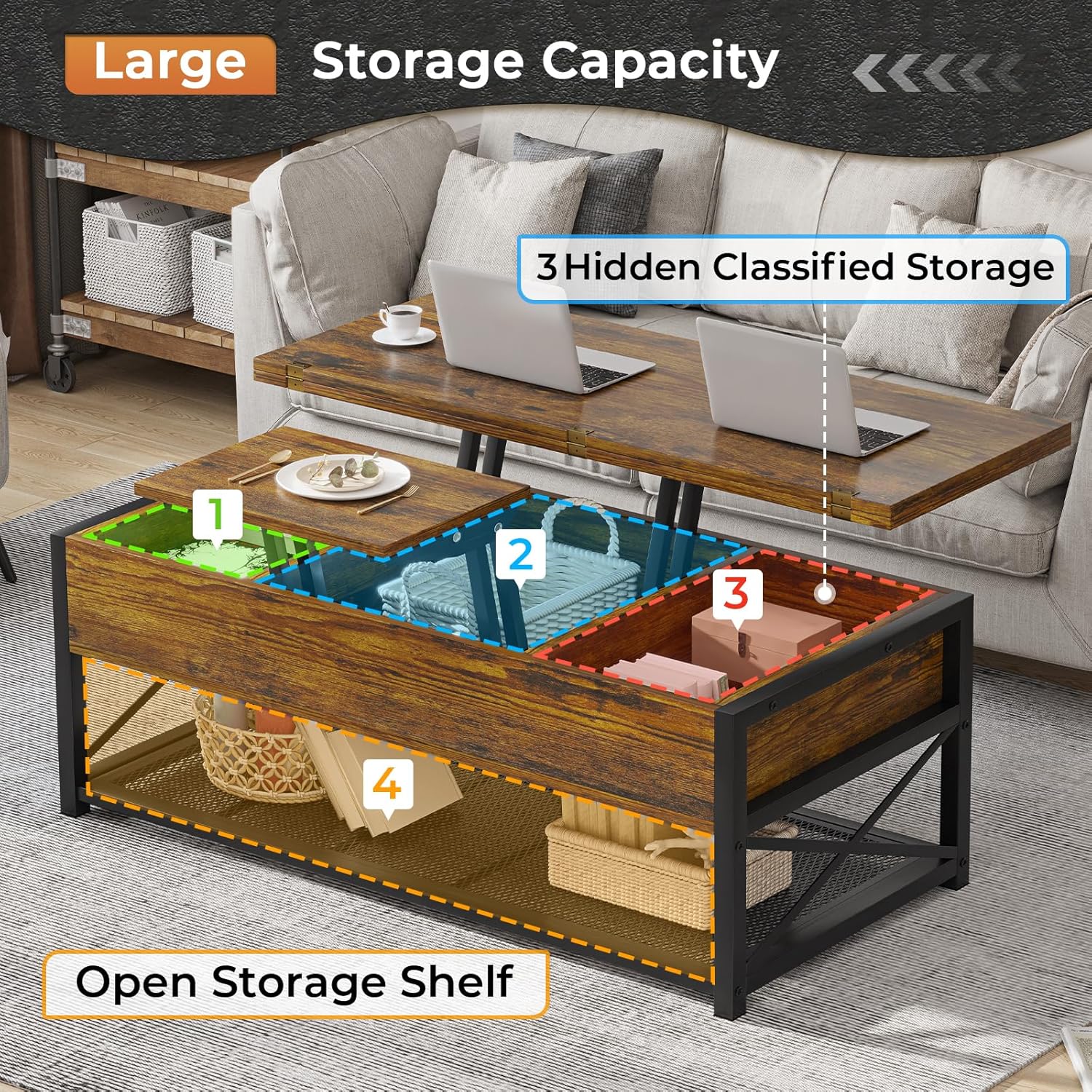

Figure 3: Large storage capacity with classified compartments.
Figure 4: Enhanced load-bearing lift mechanism.
4. Setup (Assembly Instructions)
Please follow these steps carefully for proper assembly. It is recommended to have two people for assembly.
- Unpack and Identify Parts: Lay out all components and hardware on a soft, clean surface. Refer to the parts list (Figure 5) to ensure all pieces are present.
- Assemble Side Panels: Attach accessories A (cam locks) and B (cam bolts) to the designated holes on panels 5, 6, 7, 8, and 9.
- Connect Base Sections: Connect panels 2 and 5, and panels 2 and 4, using the cam locks and bolts. Ensure a secure fit. Repeat for the other side with panels 6 and 7.
- Install Bottom Shelf: Insert the assembled side panels into the main base (panel 3) and secure them using accessories D (screws).
- Attach Lift Mechanism: Carefully note the direction of accessories E (lift mechanisms). Attach them to the underside of the tabletop (panel 1) and the inside of the main base using accessories C (screws). Ensure both mechanisms are aligned and securely fastened.
- Final Assembly: Gently lower the tabletop onto the assembled base, aligning the lift mechanisms. Secure any remaining connections.
- Cover Connectors: Use accessories G (stickers) to cover any visible screw holes for a clean finish.
Figure 5: All parts and accessories.
Video 1: Assembly demonstration for a similar lift-top coffee table. This video illustrates the general steps for connecting panels and installing the lift mechanism.
5. Operating Instructions
The Itaar Lift Top Coffee Table offers flexible usage options:
- Regular Coffee Table Mode: When the tabletop is fully closed, the table functions as a standard coffee table. The hidden compartments are accessible by lifting the top.
- Lift-Top Workstation/Dining Mode:
- To lift the tabletop, grasp the edge firmly and gently pull upwards. The spring-loaded mechanism will assist in lifting.
- The tabletop can be partially lifted to create a comfortable workstation for one or two people.
- For a larger dining or gaming surface, continue lifting until the tabletop is fully extended and locked into place. The safety valves ensure stability.
- To lower, gently push the tabletop down. The smooth descent mechanism will guide it back into the closed position.
- Accessing Storage:
- The hidden compartment beneath the lift-top is divided into three sections for organized storage.
- The open lower shelf provides easy access for frequently used items.
Figure 6: Smooth and stable lift-top operation.
Video 2: Demonstration of the lift-top mechanism and hidden storage compartments.
6. Maintenance
- Cleaning: Wipe the table surfaces with a dry, soft cloth. Avoid using abrasive cleaners, harsh chemicals, or excessive moisture, as these can damage the finish.
- Hardware Check: Periodically inspect all screws and fasteners to ensure they are tight. Retighten if necessary to maintain stability and safety.
- Mechanism Care: The lift mechanism is designed for durability. If it becomes stiff, a small amount of silicone-based lubricant can be applied to the moving joints (avoiding wood surfaces), but this should rarely be necessary.
- Avoid Direct Sunlight/Heat: Prolonged exposure to direct sunlight or extreme heat can cause fading or warping of the wood.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Tabletop is wobbly or unstable. | Loose fasteners; uneven floor. | Check and tighten all screws. Adjust foot pads to level the table. |
| Lift mechanism is stiff or difficult to operate. | Mechanism needs lubrication; obstruction. | Ensure no items are obstructing the mechanism. Apply a small amount of silicone lubricant to moving joints if needed. |
| Parts missing or damaged upon arrival. | Shipping damage or packing error. | Contact customer support immediately for free replacement parts. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | DJ502537_1 |
| Brand | Itaar |
| Color | Rustic Brown |
| Material | P2 Engineered Wood, Metal Mechanism |
| Overall Dimensions (Tabletop Down) | 43.3" L x 41.7" W x 27.2" H (104.14 x 109.22 x 68.58 cm) |
| Hidden Storage Inner Size | 39.4" L x 18.1" W x 5.9" D |
| Distance between Storage and Shelf | 9.8" |
| Max. Load Capacity (Total) | 110 lbs |
| Max. Load Capacity (Extended Tabletop) | 50 lbs |
| Max. Load Capacity (Hidden Storage) | 50 lbs |
| Max. Load Capacity (Bottom Shelf) | 40 lbs |
| Item Weight | 37.6 kg (82.9 lbs) |
| Recommended Uses | Dining, Working, Studying, Gaming, Storing Sundries |

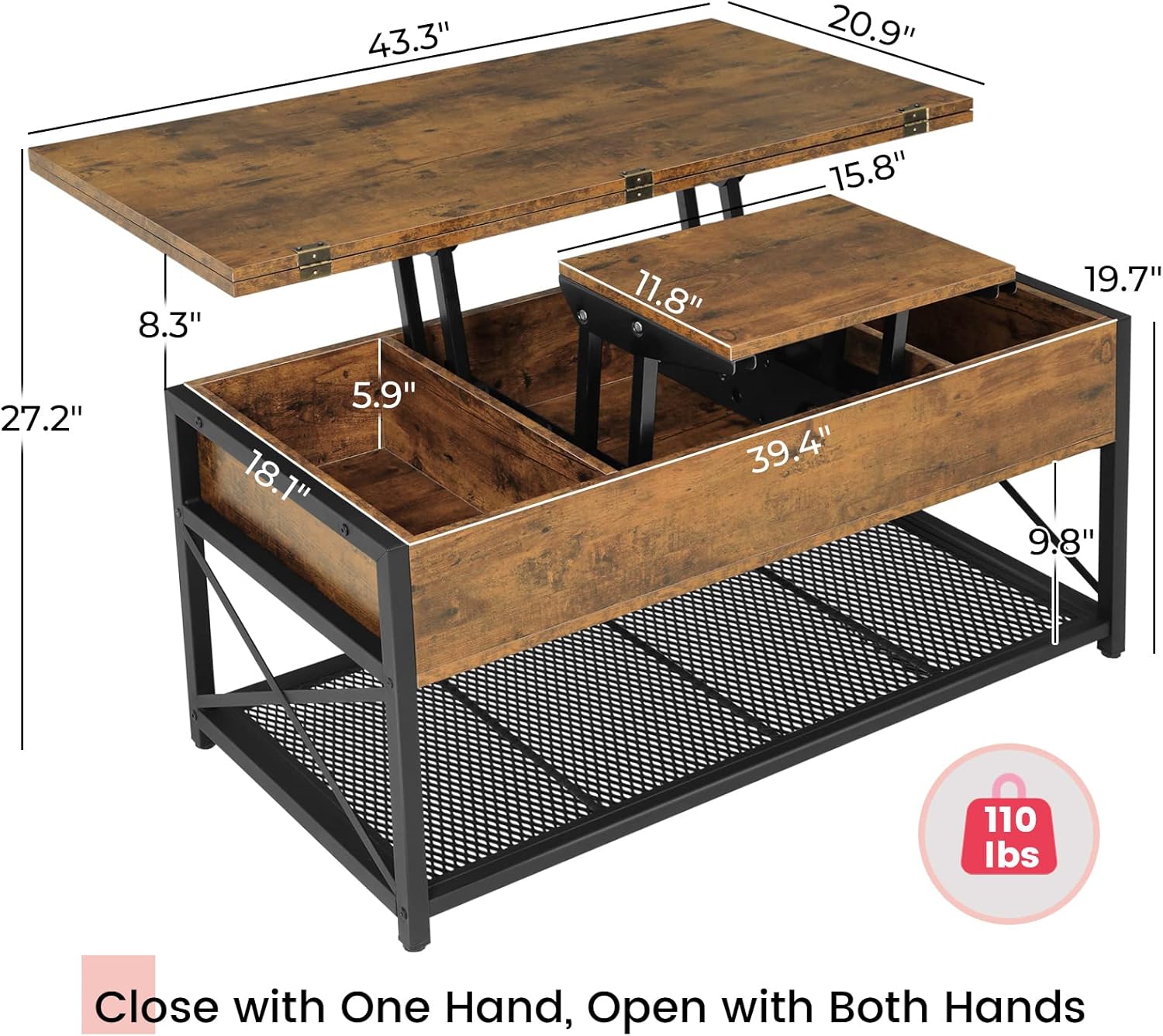

Figure 7: Detailed product dimensions.
9. Warranty and Support
Itaar is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.
If you encounter any issues, have questions about assembly, or require replacement parts, please contact Itaar customer support. Our team is ready to assist you.
Customer Support: Refer to the contact information provided with your purchase or on the official Itaar website.
