Yes4All Adjustable Foldable Weight Bench ZX66 User Manual

1. Introduction

Thank you for choosing the Yes4All Adjustable Foldable Weight Bench. This manual provides essential information for the safe and effective use of your new fitness equipment. Please read this manual thoroughly before assembly and use, and retain it for future reference. This bench is designed for various strength training exercises, offering multiple adjustable positions and a convenient foldable design for home gym use.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in serious injury or property damage.

• Consult a physician before starting any exercise program.
• Keep children and pets away from the equipment during use.
• Place the bench on a flat, stable surface. Ensure adequate space around the bench for safe operation.
• Inspect the bench for loose or damaged parts before each use. Do not use if any components are compromised.
• Ensure all adjustment pins and bolts are securely fastened before beginning any exercise.
• Do not exceed the maximum weight capacity of 400 lbs (181 kg). This includes user weight plus any weights being lifted.
• Use proper lifting techniques and always use a spotter when lifting heavy weights.
• Wear appropriate athletic footwear and clothing.
• Stop exercising immediately if you feel pain, dizziness, or nausea.

3. Package Contents

Verify that all components are present before beginning assembly:

• 1 x Yes4All Adjustable Weight Bench (main frame and padded sections)
• 1 x Set of Assembly Tools (wrenches, Allen keys)
• 1 x Assembly Manual (this document)
• Necessary hardware (bolts, washers, nuts, pins)

4. Assembly Instructions

The Yes4All Adjustable Foldable Weight Bench comes partially pre-assembled for quick setup. Follow these steps to prepare your bench for use:

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Check against the package contents list.
2. Unfold the Bench: The bench is designed to fold for storage. To unfold, gently extend the main frame until it locks into place. You may need to insert securing pins to fix the frame.
3. Attach Leg/Foot Anchors: If not already attached, secure the padded leg/foot anchors to the designated frame section using the provided hardware. Ensure they are firmly tightened.
4. Final Inspection: Once assembled, double-check all bolts, nuts, and pins to ensure they are securely fastened. Test the stability of the bench before use.

Image: The bench in its folded configuration, showing the securing pins used for setup and storage.

5. Operating the Bench

5.1 Adjusting Backrest and Seat Positions

The Yes4All Adjustable Weight Bench offers 7 backrest positions, allowing for incline, decline, and flat exercises. To adjust the backrest:

1. Locate the adjustment mechanism at the rear of the backrest support.
2. Lift the backrest slightly and pull out the adjustment pin or lever.
3. Move the backrest to your desired angle. The bench supports angles from -10 degrees (decline) to 65 degrees (incline).
4. Ensure the adjustment pin or lever fully re-engages into one of the 7 bracket positions. Wiggle the backrest to confirm it is securely locked before use.

Image: Visual representation of the various backrest angles available on the bench.

Image: Diagram highlighting the 7 distinct backrest positions for precise angle selection.

5.2 Folding for Storage

The foldable design allows for convenient storage, reducing its size by almost 50%.

1. Ensure the backrest is in its lowest (flat) position.
2. Locate the folding mechanism, typically pins or levers, that secure the main frame in its unfolded position.
3. Disengage the locking mechanism and carefully fold the bench inward.
4. Once folded, ensure any securing pins are re-engaged to keep the bench in its compact state.

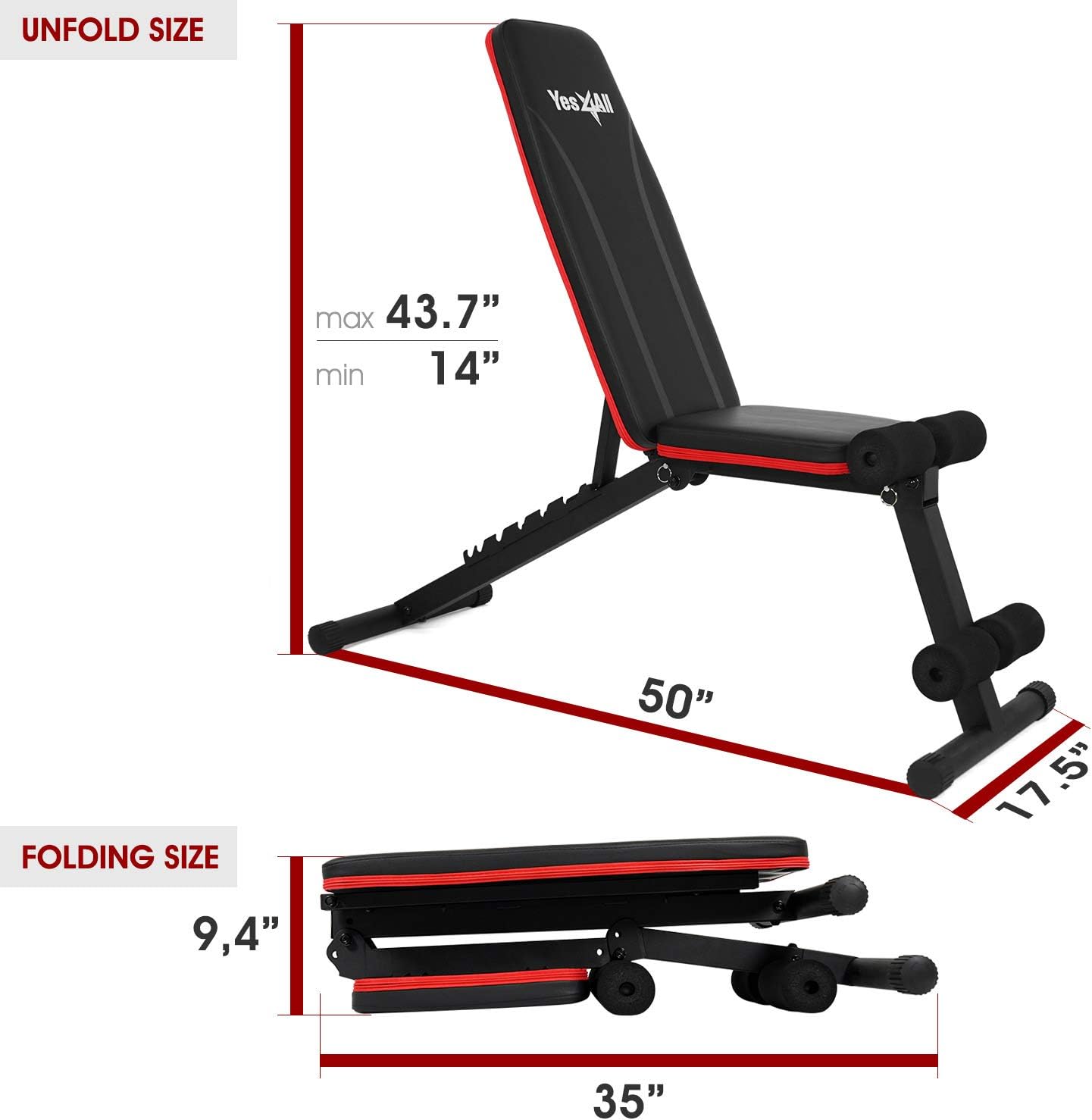

Image: Comparison of the bench's dimensions when unfolded (50" L x 17.5" W x 14-43.7" H) and folded (35" L x 9.4" H).

5.3 Key Features and Construction

• Sturdy Steel Frame: Constructed from heavy-gauge alloy steel with a black powder coating for durability and corrosion resistance.
• Comfortable Padding: Features thick, high-density foam padding covered with waterproof PU leather to prevent sweat accumulation and enhance comfort during workouts.
• Non-Slip Base: Equipped with anti-slip plastic bases to prevent movement and protect your flooring.
• Padded Leg/Foot Anchors: Designed for comfort and safety during decline exercises and sit-ups.

Image: Detailed view of the bench's construction, emphasizing the robust steel frame and ergonomic features.

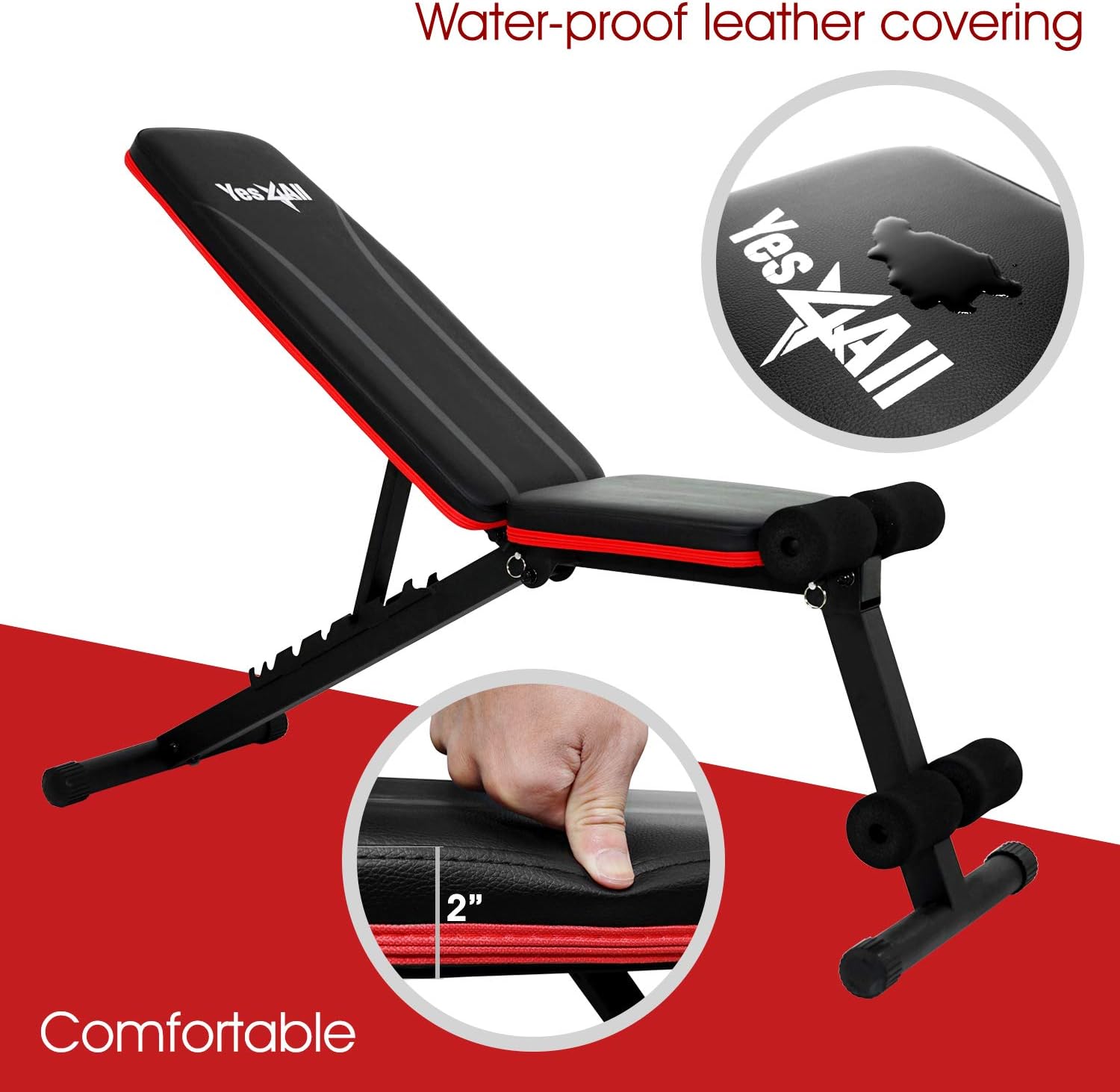

Image: Close-up of the bench's waterproof PU leather and 2-inch thick foam padding for user comfort.

5.4 Exercise Examples

The adjustable nature of this bench allows for a wide range of exercises targeting various muscle groups:

• Flat Bench: Bench press, dumbbell flyes, triceps extensions.
• Incline Bench: Incline dumbbell press, incline flyes, seated overhead press.
• Decline Bench: Decline sit-ups, decline dumbbell press.
• Utility Bench: Dumbbell rows, step-ups, hyperextensions (using leg anchors).

Dumbbell Row

Incline Dumbbell Press

Flat Bench Press

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your weight bench.

• Cleaning: Wipe down the padded surfaces with a damp cloth after each use to remove sweat and dirt. Use a mild soap solution for deeper cleaning, then wipe dry. Avoid abrasive cleaners.
• Inspection: Periodically check all bolts, nuts, and adjustment pins for tightness. Tighten any loose fasteners. Inspect the frame for any signs of damage, cracks, or rust.
• Storage: When not in use, fold the bench and store it in a dry, cool place away from direct sunlight and extreme temperatures.

7. Troubleshooting

If you encounter any issues with your Yes4All Adjustable Foldable Weight Bench, refer to the following common problems and solutions:

• Bench feels unstable:
  • Ensure all assembly bolts are tightened securely.
  • Verify the bench is placed on a flat, level surface.
  • Check that the adjustment pins for the backrest and frame are fully engaged.
• Difficulty adjusting backrest:
  • Ensure the adjustment pin/lever is fully pulled out before attempting to change the angle.
  • Check for any obstructions in the adjustment mechanism.
• Bench does not fold correctly:
  • Ensure the backrest is in the flat position.
  • Verify that all locking pins for the unfolded position are disengaged.

If the issue persists, please contact customer support.

8. Specifications

9. Warranty Information

Yes4All products are manufactured to high-quality standards. This product comes with a limited warranty. Please refer to the warranty card included with your purchase or visit the official Yes4All website for detailed warranty terms and conditions. Keep your proof of purchase for warranty claims.

10. Customer Support

If you have any questions, require assistance with assembly, or need troubleshooting support that is not covered in this manual, please contact Yes4All customer service or the retailer from whom you purchased the product. Please have your model number (ZX66) and proof of purchase ready when contacting support.
