Livpure Bolt Copper UV+UF Water Purifier User Manual

1. Introduction

Thank you for choosing the Livpure Bolt Copper UV+UF Water Purifier. This appliance is designed to provide safe and clean drinking water for your home, utilizing advanced multi-stage purification technology. This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your water purifier.

Key Features:

• Multi-Stage Purification: Incorporates Sediment Filter, Carbon Block Filter, UV Disinfection Column, Ultrafiltration, and Copper enrichment for comprehensive water treatment.
• UV+UF Technology: Effectively removes bacteria, viruses, and suspended impurities while retaining essential minerals.
• Copper Infusion: Enriches water with beneficial copper, known for its immune-boosting and health-promoting properties.
• 7 Liters Storage Capacity: Ensures a continuous supply of purified water.
• LED Indicators: Provides operational status at a glance.
• Spill-Proof Tap: Designed for convenient and mess-free water dispensing.

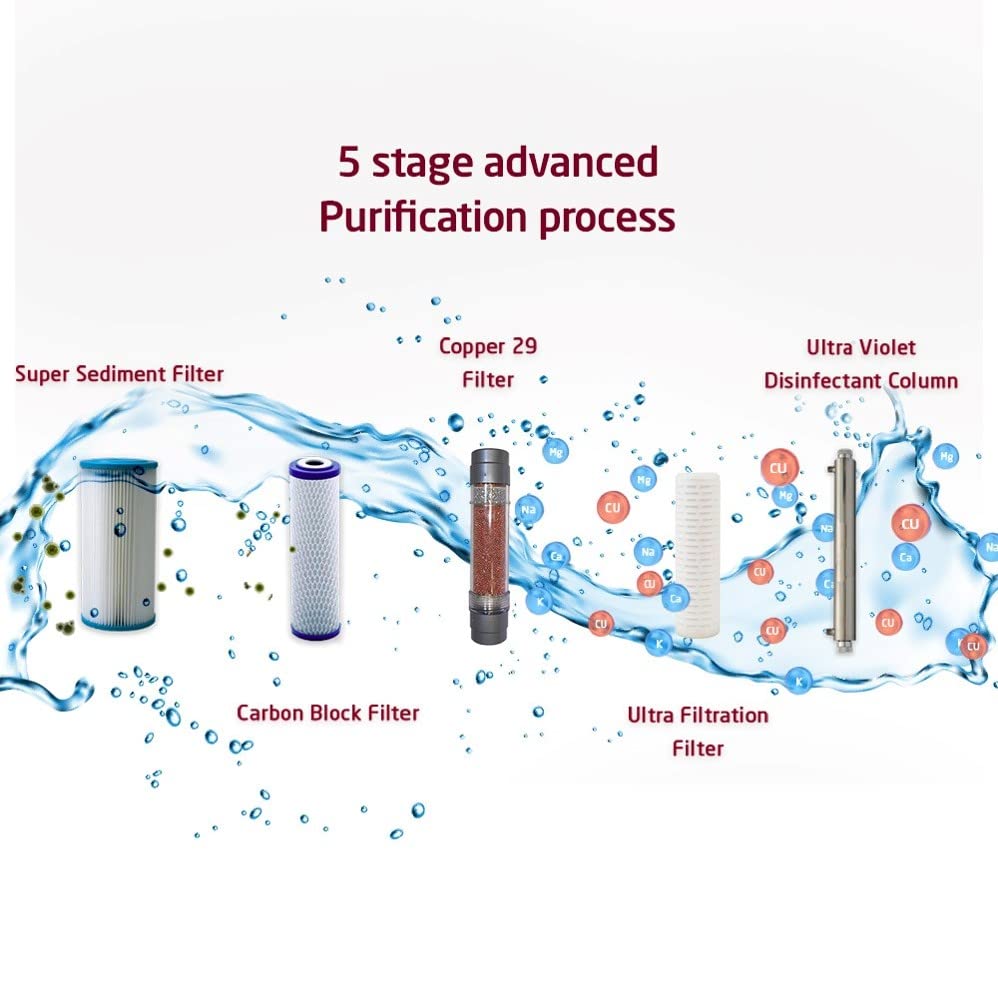

Image: Illustration of the 5-stage advanced purification process, showing Super Sediment Filter, Carbon Block Filter, Copper 29 Filter, Ultra Filtration Filter, and Ultra Violet Disinfectant Column.

Image: Graphic detailing the benefits of copper in drinking water, including increased immunity, improved heart health, and slowed aging.

Image: A woman drinking water, overlaid with a graphic illustrating the advanced UV filter disinfecting water from bacteria and viruses.

2. Important Safety Instructions

Please read all safety instructions carefully before installing or operating the water purifier. Failure to follow these instructions may result in injury or damage to the product.

• Ensure the power supply matches the specifications indicated on the product label.
• Do not operate the purifier with a damaged power cord or plug.
• Keep the appliance away from direct sunlight, heat sources, and flammable materials.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• This purifier is designed for municipal water sources only. Do not use with borewell or tanker water.
• Children should be supervised to ensure they do not play with the appliance.
• Only use genuine Livpure replacement parts and filters.
• Disconnect the power supply before performing any maintenance or cleaning.

3. Package Contents

Upon unpacking, please ensure all the following items are present and undamaged:

• Livpure Bolt Copper UV+UF Water Purifier Unit
• Installation Kit (mounting screws, wall plugs, inlet pipe, outlet pipe)
• User Manual (this document)
• Warranty Card

4. Setup and Installation

The Livpure Bolt Copper UV+UF Water Purifier is designed for wall-mounted installation. It is recommended to have the installation performed by a qualified service technician to ensure proper setup and optimal performance.

Installation Steps:

1. Site Selection: Choose a clean, dry, and well-ventilated location near a municipal water supply and an electrical outlet. Ensure sufficient space around the unit for maintenance.
2. Mounting: Using the provided mounting template (if included) and hardware, securely mount the purifier on a sturdy wall.
3. Water Connection: Connect the inlet pipe from the municipal water supply to the purifier's inlet port. Ensure all connections are tight to prevent leaks.
4. Drain Connection: Connect the drain pipe to the purifier's drain outlet and route it to a suitable drainage point.
5. Power Connection: Plug the power cord into a grounded electrical outlet.
6. Initial Flush: Before first use, open the water supply valve and allow the purifier to fill and flush for approximately 10-15 minutes. Dispense and discard the first few liters of purified water to remove any manufacturing residues.

Image: Front view of the Livpure Bolt Copper UV+UF Water Purifier, showcasing its dark blue casing and dispensing tap.

Image: Side view of the Livpure Bolt Copper UV+UF Water Purifier, highlighting its compact design.

5. Operating Instructions

Operating your Livpure Bolt Copper UV+UF Water Purifier is straightforward.

Basic Operation:

1. Power On: Ensure the purifier is plugged in and the main power switch (if present) is turned on. The LED indicators will illuminate, showing the operational status.
2. Water Dispensing: Place a clean container under the spill-proof tap. Turn the tap handle to dispense purified water. Close the tap after use.
3. Automatic Filling: The purifier will automatically refill its 7-liter storage tank as water is consumed.

LED Indicators:

The front panel features LED indicators to provide information about the purifier's status:

• Power Indicator: Illuminates when the unit is powered on.
• Purification/Tank Full Indicator: Shows when purification is in progress or when the storage tank is full.
• Service/Filter Change Indicator: Alerts you when maintenance is due or filters need replacement. Refer to the troubleshooting section for specific actions.

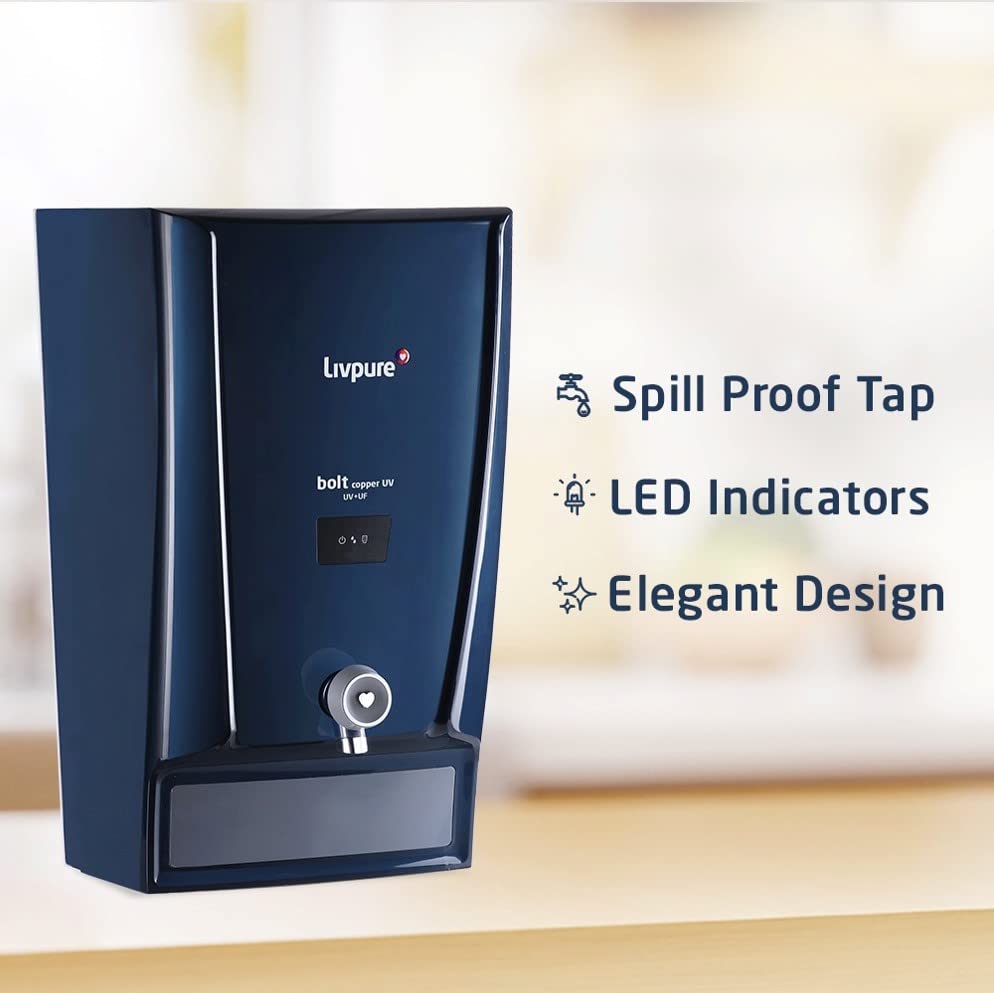

Image: The Livpure Bolt Water Purifier highlighting its features: Spill Proof Tap, LED Indicators, and Elegant Design.

6. Maintenance

Regular maintenance ensures the longevity and efficiency of your water purifier. Always disconnect the power supply before performing any maintenance.

Filter Replacement:

The purification system relies on multiple filters that require periodic replacement. The frequency depends on water quality and usage, but generally:

• Sediment Filter & Carbon Block Filter: Typically every 6-12 months.
• UV Lamp & UF Membrane: Typically every 12 months or as indicated by the service light.
• Copper Filter: Typically every 12 months.

It is highly recommended to contact authorized Livpure service personnel for filter replacement to ensure proper installation and use of genuine parts.

Cleaning:

• Exterior: Wipe the exterior of the purifier with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage Tank: The internal storage tank should be cleaned periodically by a service technician during routine maintenance.

7. Troubleshooting

If you encounter any issues with your water purifier, refer to the table below for common problems and their solutions. If the problem persists, contact customer support.

8. Specifications

Detailed technical specifications for the Livpure Bolt Copper UV+UF Water Purifier.

Image: Diagram showing the dimensions of the Livpure Bolt Copper UV+UF Water Purifier: 29.5cm (length), 27.5cm (width), and 50.5cm (height).

9. Warranty and Support

Warranty Information:

This Livpure Bolt Copper UV+UF Water Purifier comes with a 1-year manufacturer's warranty from the date of purchase. The warranty covers manufacturing defects and faulty components under normal use conditions. Please retain your purchase receipt and warranty card for future reference.

The warranty does not cover:

• Damage due to improper installation or unauthorized repairs.
• Damage caused by misuse, neglect, or accidents.
• Consumable parts like filters, which are subject to normal wear and tear.

Customer Support:

For any queries, service requests, or technical assistance, please contact Livpure customer support:

Manufacturer: Livpure Pvt. Ltd.
Address: Plot-39, sector-4, IMT Manesar, Gurgaon-122050

Please refer to the contact details provided on your warranty card or the official Livpure website for the most current contact information (phone numbers, email, etc.).
