ARNO Airfry Ultra UFRV (Model 7211004634)

ARNO Airfry Ultra Oil-Free Fryer

Model: UFRV (7211004634)

Instruction Manual

1. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions carefully before operating the ARNO Airfry Ultra.

  • Voltage Check: Ensure your household voltage matches the appliance's specified voltage (220V).
  • Power Cord: Do not let the power cord hang over the edge of a table or counter, or touch hot surfaces.
  • Water and Liquids: Do not immerse the appliance, cord, or plug in water or other liquids.
  • Children: Close supervision is necessary when any appliance is used by or near children.
  • Hot Surfaces: Do not touch hot surfaces. Use handles or knobs. Hot air is released through the air outlet openings during operation. Keep your hands and face at a safe distance from the steam and from the air outlet openings.
  • Ventilation: Do not block any ventilation openings. Place the appliance against a wall with at least 10 cm (4 inches) free space on the back and sides, and 10 cm (4 inches) free space above the appliance.
  • Maintenance: Do not attempt to repair the appliance yourself. Contact authorized service personnel for examination, repair, or adjustment.
  • Unplug: Always unplug the appliance from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.

2. Product Overview

The ARNO Airfry Ultra is an oil-free fryer designed for healthier cooking with rapid hot air circulation technology. It features a 4.5-liter capacity and a powerful 1620W heating element.

ARNO Airfry Ultra Oil-Free Fryer, front view

Image 2.1: Front view of the ARNO Airfry Ultra Oil-Free Fryer. The appliance is red with black accents, featuring a control dial on the front panel and a handle for the cooking basket.

Key Features:

  • Rapid Hot Air System: Utilizes hot air circulation for crispy results without oil.
  • Large Capacity: 4.5 Liters (4.2L usable) cooking basket, suitable for family meals.
  • Powerful Performance: 1620 Watts for fast cooking.
  • Adjustable Temperature: Up to 200°C (392°F).
  • Integrated Timer: Up to 60 minutes with automatic shut-off.
  • Removable Basket: Features a premium Tefal non-stick coating and is dishwasher safe for easy cleaning.
ARNO Airfry Ultra features: Rapid Air Technology, No Oil, up to 200C, 4.2L capacity, easy clean basket

Image 2.2: Visual representation of the ARNO Airfry Ultra's core features, highlighting its rapid air technology, oil-free cooking, adjustable temperature up to 200°C, 4.2L capacity, and innovative easy-to-clean basket.

3. Setup

3.1 Unpacking

  1. Remove all packaging materials from the appliance.
  2. Check that all parts are present and in good condition.
  3. Remove any stickers or labels from the appliance.

3.2 Initial Cleaning

  1. Wipe the exterior of the appliance with a damp cloth.
  2. Clean the cooking basket and the removable grill plate with hot water, dish soap, and a non-abrasive sponge. These parts are dishwasher safe.
  3. Dry all parts thoroughly before use.

3.3 Placement

  • Place the appliance on a stable, horizontal, and heat-resistant surface.
  • Ensure there is at least 10 cm (4 inches) of free space around the back and sides, and above the appliance for proper ventilation.
  • Do not place the appliance near flammable materials or heat sources.

4. Operating Instructions

4.1 Preparing for Cooking

  1. Pull the basket out of the appliance using the handle.
  2. Place the food into the basket. Do not exceed the MAX fill line.
  3. Slide the basket back into the appliance until it clicks into place.

4.2 Setting Temperature and Time

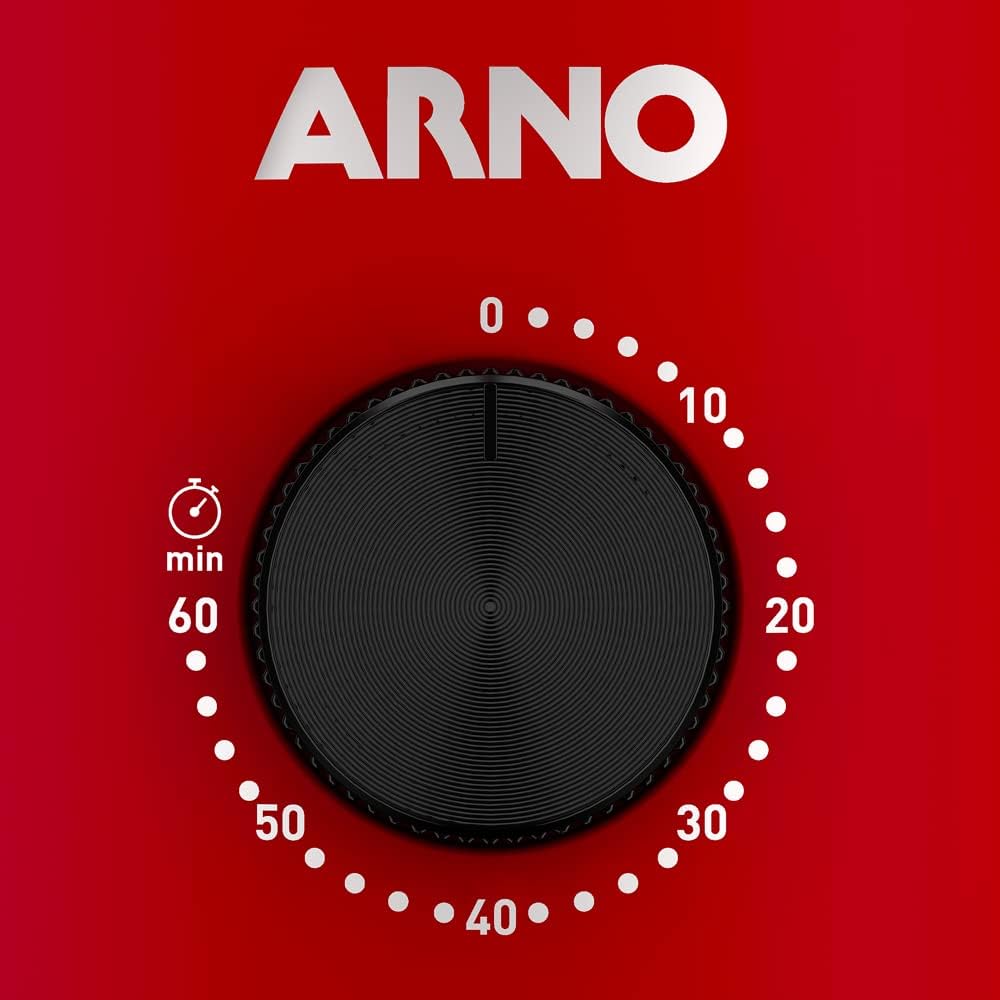

Close-up of the ARNO Airfry Ultra timer dial

Image 4.1: Close-up view of the ARNO Airfry Ultra's control panel, showing the timer dial with markings from 0 to 60 minutes.

  • Temperature Control: Use the temperature dial (usually located on the top or front panel) to set the desired cooking temperature, up to 200°C.
  • Timer Control: Use the timer dial to set the desired cooking time, up to 60 minutes. The appliance will automatically turn off when the timer reaches zero.

4.3 Cooking Process

  1. Plug the appliance into a grounded 220V power outlet.
  2. Set the desired temperature and cooking time. The appliance will start heating immediately.
  3. For even cooking, some foods may require shaking the basket halfway through the cooking time. To do this, pull out the basket, shake it gently, and then slide it back in. The appliance will resume cooking.
  4. When the timer reaches zero, a bell will sound, and the appliance will turn off.
  5. Carefully pull out the basket and transfer the cooked food to a plate. Use heat-resistant tongs.

4.4 Preheating

For best results, preheating the air fryer for 3-5 minutes at the desired temperature before adding food is recommended. Simply set the temperature and timer for 3-5 minutes without food in the basket.

5. Cleaning and Maintenance

5.1 Daily Cleaning

  1. Always unplug the appliance and allow it to cool completely before cleaning.
  2. Wipe the exterior of the appliance with a damp cloth. Do not use abrasive cleaners.
  3. Remove the cooking basket and grill plate. Wash them with hot water, dish soap, and a non-abrasive sponge. They are also dishwasher safe.
  4. Clean the interior of the appliance with a damp cloth. If necessary, use a soft brush to remove food residues from the heating element.
  5. Ensure all parts are completely dry before storing or reusing the appliance.

5.2 Storage

  • Store the appliance in a cool, dry place.
  • Ensure the appliance is clean and dry before storage.
  • Do not wrap the power cord tightly around the appliance.

6. Troubleshooting

Problem Possible Cause Solution
Appliance does not turn on. Not plugged in; Timer not set; Power outlet malfunction. Ensure the plug is securely in the outlet; Set the timer to the desired cooking time; Test the outlet with another appliance.
Food is not cooked evenly. Basket overloaded; Food not shaken. Do not overload the basket; Shake the basket halfway through cooking.
White smoke comes from the appliance. Grease residue from previous use; Fatty food being cooked. Clean the basket and grill plate thoroughly; This is normal for fatty foods, ensure proper ventilation.
Food is not crispy. Temperature too low; Cooking time too short; Too much moisture in food. Increase temperature or cooking time; Pat food dry before cooking.

7. Specifications

  • Model Name: Airfry Ultra
  • Item Model Number: 7211004634
  • Brand: ARNO
  • Capacity: 4.5 Liters (4.2L usable)
  • Voltage: 220 Volts
  • Output Wattage: 1620 Watts
  • Control Method: Dial (Timer and Temperature)
  • Special Feature: Programmable Timer
  • Material: Plastic (exterior), Tefal Nonstick Coating (basket)
  • Product Dimensions: 13.07 x 13.07 x 14.17 inches
  • Item Weight: 11 pounds (approx. 5 kg)
  • Dishwasher Safe: Yes (Removable basket)

8. Warranty and Support

For warranty information, service, or technical support, please refer to the warranty card included with your purchase or contact ARNO customer service directly. Keep your proof of purchase for any warranty claims.

Please check the official ARNO website or your regional distributor for contact details and specific warranty terms applicable to your location.
