OSAKI iPLAYr Side-Firing Sound Table Top Home Audio System

1. Introduction

Thank you for choosing the OSAKI iPLAYr Side-Firing Sound Table Top Home Audio System. This device is designed to provide continuous background music for homes and offices, featuring Bluetooth connectivity, FM radio, and a unique side-firing sound experience. Please read this manual carefully before using the product to ensure proper operation and to maximize your listening enjoyment.

2. Safety Information

• Power Source: Use only the provided power adapter. Ensure the voltage matches the requirements specified on the adapter.
• Placement: Place the unit on a stable, flat surface. Avoid placing it in direct sunlight, near heat sources, or in areas with high humidity or dust. Ensure adequate ventilation around the unit.
• Water and Moisture: Do not expose the unit to rain, moisture, or dripping/splashing liquids. Do not place objects filled with liquids, such as vases, on the unit.
• Cleaning: Disconnect the power before cleaning. Use a soft, dry cloth. Do not use liquid cleaners or aerosol sprays.
• Servicing: Do not attempt to service the unit yourself. Refer all servicing to qualified service personnel.
• Children: Keep the unit and its accessories out of reach of children.

3. Package Contents

Please check that all items listed below are included in your package:

• OSAKI iPLAYr Main Unit
• Power Adapter
• Remote Control
• Bluetooth Adaptor (if included as a separate accessory)

Image 3.1: Included Bluetooth Adaptor, if provided as a separate component.

4. Product Features

The OSAKI iPLAYr is equipped with several features designed to enhance your audio experience:

• Side-Firing Sound Technology: This unique design projects sound sideways, allowing it to reflect off walls and surfaces, creating a natural, immersive sound field similar to how sound is perceived in a live environment.
• Bluetooth Connectivity: Wirelessly connect your smartphone or other Bluetooth-enabled devices for audio streaming.
• Integrated FM Radio: Enjoy your favorite radio stations directly from the unit.
• Auxiliary Input: Connect non-Bluetooth devices via a standard 3.5mm audio cable.
• Remote Control: Conveniently manage playback, volume, and modes from a distance.
• 10 Watts Audio Output: Delivers clear and consistent sound for continuous background music.

Image 4.1: Diagram illustrating how side-firing sound reflects off surfaces to create a natural sound experience.

Image 4.2: The OSAKI iPLAYr unit with a smartphone docked, highlighting its side-firing speaker design.

Image 4.3: Top-front view of the OSAKI iPLAYr, displaying the integrated control buttons for power, playback, and volume.

5. Setup Instructions

5.1 Unpacking and Placement

1. Carefully remove the OSAKI iPLAYr unit and all accessories from the packaging.
2. Place the unit on a stable, flat surface, such as a table or bedside cabinet. For optimal side-firing sound, ensure there are clear surfaces (like walls) nearby for sound reflection.

5.2 Connecting Power

1. Locate the DC 12V IN port on the back of the unit.
2. Connect the provided power adapter to this port.
3. Plug the power adapter into a standard electrical outlet.

Image 5.1: Close-up view of the AC adapter connection port on the rear panel of the OSAKI iPLAYr.

5.3 Connecting Audio Sources

The back panel of the OSAKI iPLAYr features various input ports:

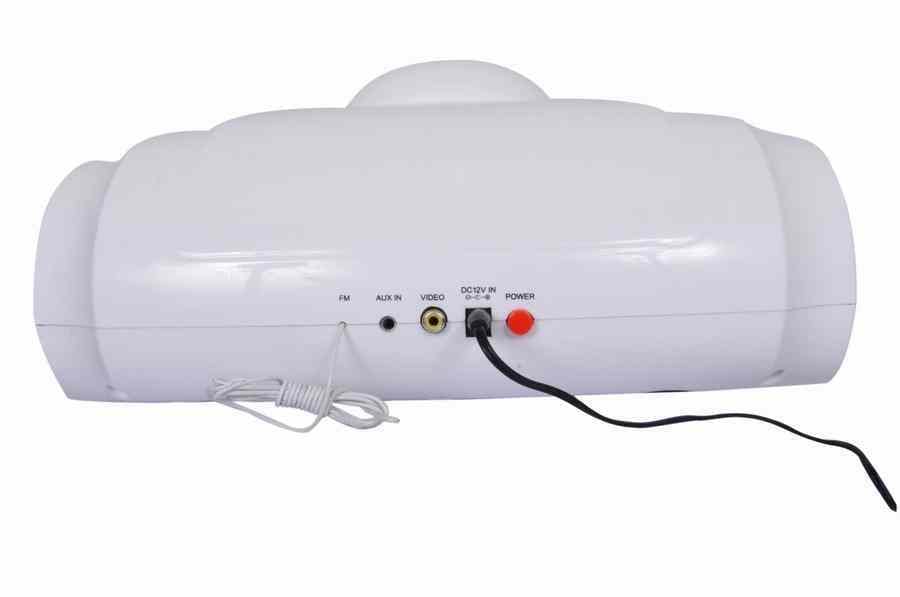

Image 5.2: Rear panel connections including FM antenna, Aux In, Video Out, DC 12V In, and Power button.

• Auxiliary Input: Connect external audio devices (e.g., MP3 players, computers) using a 3.5mm audio cable to the 'AUX IN' port.
• FM Antenna: Connect the provided FM antenna (if applicable) to the 'FM' port for improved radio reception.
• Video Output: The 'VIDEO' port allows connection to a display for video playback from a docked device (if supported by the docked device and cable).

6. Operating Instructions

6.1 Power On/Off

Press the Power button on the unit or the remote control to turn the device on or off.

6.2 Mode Selection

Press the Mode button on the unit or remote to cycle through available input sources: Bluetooth, AUX, and FM Radio.

6.3 Bluetooth Pairing

1. Switch the unit to Bluetooth mode. The Bluetooth indicator light will flash, indicating it is ready for pairing.
2. On your smartphone or Bluetooth-enabled device, search for available Bluetooth devices.
3. Select "OSAKI iPLAYr" from the list. Once connected, the indicator light will become solid.
4. You can now stream audio wirelessly from your device.

6.4 FM Radio Operation

1. Switch the unit to FM Radio mode.
2. Use the Previous/Next Track buttons on the unit or remote to scan for radio stations.
3. For better reception, adjust the position of the FM antenna.

6.5 Volume Control

Adjust the volume using the Volume Up (+) and Volume Down (-) buttons on the unit or the remote control.

6.6 Using as a Home Cinema System

The side-firing sound design of the OSAKI iPLAYr can enhance your home cinema experience. Place the unit in front of your television or display, ensuring its side speakers are not obstructed. Connect your TV's audio output to the iPLAYr's AUX IN port. The reflected sound will create a wider soundstage, making movies and shows more immersive.

Image 6.1: The OSAKI iPLAYr positioned below a television, demonstrating its use as a compact home cinema audio solution.

Image 6.2: A user enjoying music from the OSAKI iPLAYr, illustrating its suitability for continuous background music.

7. Maintenance

7.1 Cleaning

To clean the unit, first disconnect it from the power source. Use a soft, dry, lint-free cloth to wipe the exterior surfaces. Do not use abrasive cleaners, waxes, or solvents as they may damage the finish.

7.2 Storage

If storing the unit for an extended period, disconnect it from power and store it in a cool, dry place, away from direct sunlight and extreme temperatures.

8. Troubleshooting

9. Specifications

10. Warranty and Support

OSAKI mini Audio products are designed for reliability. In the event that your product requires service, please note the following:

• Customers should send the product to the centralized service center located in Mumbai or to the nearest available associate service center.
• After repair, the product will be sent back to the customer.

For further assistance or to locate a service center, please refer to the official OSAKI mini Audio website or contact customer support.

You can also visit the OSAKI Store on Amazon for more information.
