Introduction
Thank you for choosing the Roadstar RS-870BR Bioimpedance Smart Scale. This advanced scale is designed to help you monitor your health and fitness progress by measuring up to 12 key body indices. With Bluetooth connectivity and the intuitive FitGo app, you can easily track your data, set goals, and integrate with popular health platforms like Apple Health, Fitbit, and Google Fit. This manual provides essential information for safe and effective use of your new smart scale.
Important Safety Information
- Do not use this device for medical diagnosis or treatment. Consult a healthcare professional for any health concerns.
- Place the scale on a hard, flat surface. Using it on soft surfaces like carpets may affect accuracy.
- Keep the scale dry. Avoid contact with water or other liquids.
- The maximum weight capacity is 180 kg (397 lb). Do not exceed this limit.
- Do not jump on the scale or use it for purposes other than weighing.
- Individuals with pacemakers or other implanted medical devices should not use this scale due to the bioelectrical impedance analysis (BIA) technology.
- Pregnant women should consult their doctor before using this scale.
Package Contents
Please check the box for the following items:
- 1x Roadstar RS-870BR Bioimpedance Smart Scale
- 1x USB Charging Cable (usually included, though not explicitly listed in components)
- User Manual (this document)
Setup Guide
1. Unpacking and Placement
Carefully remove the scale from its packaging. Place the scale on a hard, flat, and stable surface. Avoid soft surfaces like carpets or rugs, as this can affect measurement accuracy. Ensure the scale is level.
Image: The Roadstar RS-870BR Bioimpedance Smart Scale, black with four silver electrodes, displayed on a flat surface.
2. Charging the Scale
The RS-870BR scale features an internal battery and charges via USB. Before first use, or if the display shows a low battery indicator, connect the scale to a USB power source using the provided cable. The display will indicate charging status.
3. App Installation and Pairing
To unlock the full potential of your smart scale, download the FitGo app on your smartphone or tablet. The app is compatible with Android (4.3 and above) and iOS (7.0 and above) devices.
- Search for "FitGo" in the Apple App Store or Google Play Store and install the app.
- Ensure Bluetooth is enabled on your smartphone.
- Open the FitGo app and follow the on-screen instructions to create your user profile.
- Step onto the scale to activate it. The app should automatically detect and pair with your RS-870BR scale. If not, follow the app's instructions to manually add a device.

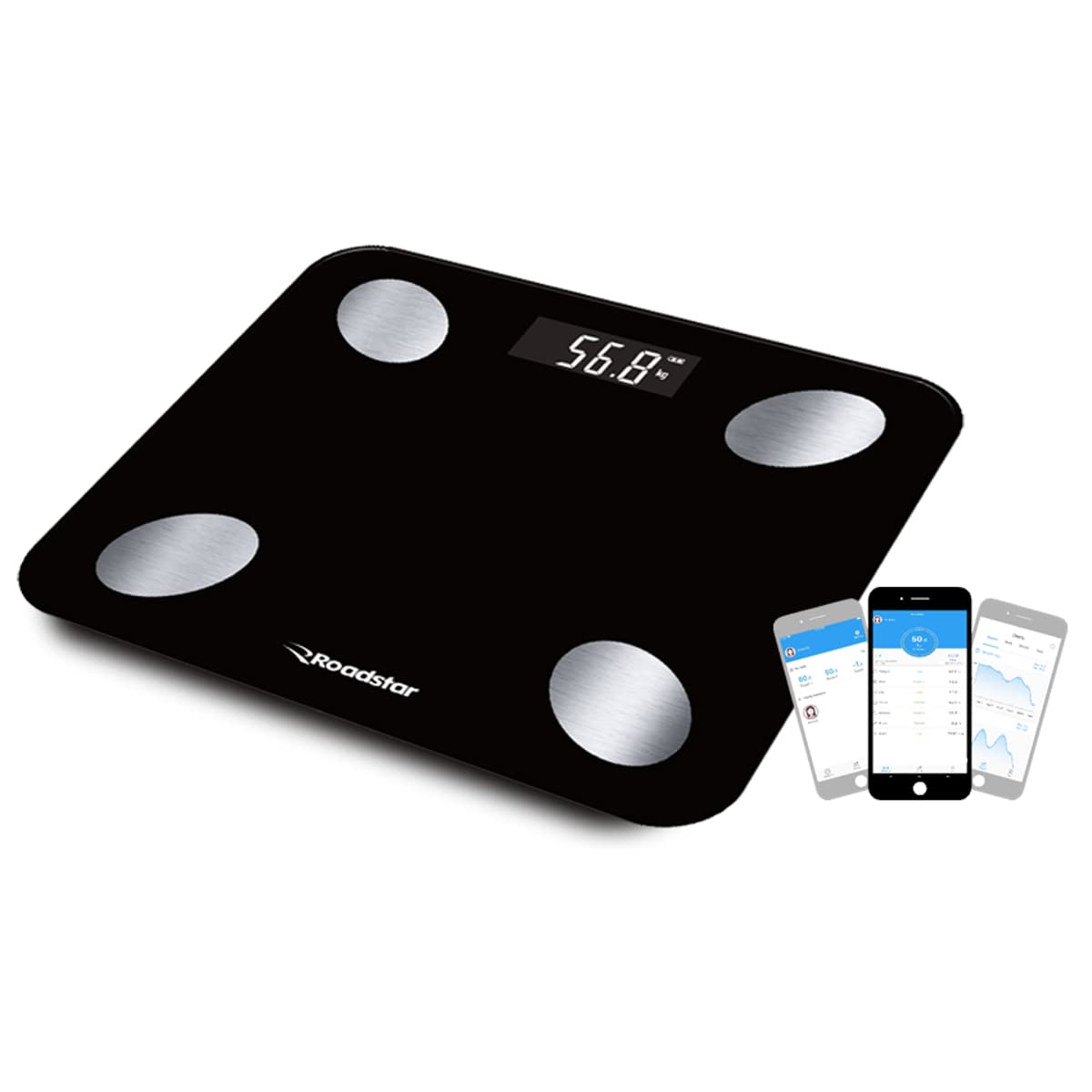

Image: The Roadstar RS-870BR scale shown alongside a smartphone displaying the FitGo application, illustrating the connectivity.
Video: This video provides additional information about the Bioimpedance Scale, demonstrating its features and how it works with the app. It shows the scale in use and the data displayed on a smartphone.
Operating Instructions
1. Taking a Measurement
For accurate bioimpedance measurements, it is crucial to follow these steps:
- Ensure your feet are clean and dry.
- Step onto the scale barefoot, placing your feet directly on the four silver electrodes. Stand still and balanced.
- The scale will display your weight first, then transmit all 12 body indices to the FitGo app.
- View your detailed results in the FitGo app.
Image: A person's feet are shown correctly positioned on the four silver electrodes of the Roadstar RS-870BR scale for an accurate measurement.
2. Understanding Body Indices
The Roadstar RS-870BR scale measures 12 different body indices using Bioelectrical Impedance Analysis (BIA). This technology sends a small, safe electrical current through your body to estimate body composition. The indices include:
- Weight: Your total body weight.
- BMI (Body Mass Index): A measure of body fat based on height and weight.
- Body Fat: Percentage of total body weight that is fat.
- Muscle Mass: The total weight of muscle in your body.
- Water Content: Percentage of total body weight that is water.
- Protein Rate: The percentage of protein in your body.
- Visceral Fat: Fat stored around the organs in your abdomen.
- Basal Metabolism: The number of calories your body needs to perform basic, life-sustaining functions.
- Bone Mass: The total weight of bone in your body.
- Body Age: An estimation of your body's physiological age based on your body composition.
- Ideal Weight: A calculated healthy weight range for your profile.
- Body Type: Categorization of your physique based on muscle and fat distribution.
Image: An infographic illustrating the 12 body indices measured by the scale, including weight, BMI, body fat, muscle mass, and more, along with an indication of memory for up to 8 users.
3. Using the FitGo App
The FitGo app is your central hub for all your health data. It allows you to:
- View detailed reports and historical data for each body index.
- Track your progress over days, weeks, months, and years.
- Create up to 8 user profiles, making it suitable for the whole family.
- Synchronize your data with Apple Health, Fitbit, and Google Fit for a comprehensive health overview.
Care and Maintenance
- Cleaning: Wipe the scale surface with a soft, damp cloth. Do not use abrasive cleaners or immerse the scale in water.
- Storage: Store the scale in a cool, dry place. Avoid extreme temperatures and direct sunlight.
- Battery: Recharge the scale when the low battery indicator appears to ensure continuous operation.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Scale does not turn on. | Low battery. | Charge the scale using the USB cable. |
| Inaccurate readings. | Scale on soft surface; feet not properly placed; scale not calibrated. | Place on hard, flat surface. Ensure bare feet are on electrodes. Step on and off quickly to calibrate to zero before weighing. |
| App not connecting to scale. | Bluetooth off; app not open; scale not active. | Ensure Bluetooth is on. Open FitGo app. Step on scale to activate. Try restarting both app and scale. |
| "Lo" displayed. | Low battery. | Recharge the scale. |
| "Err" displayed. | Overload or measurement error. | Ensure weight is within 180 kg limit. Step off and on again. |
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Roadstar |
| Model | RS-870BR |
| Color | Black |
| Maximum Capacity | 180 kg / 397 lb / 28st: 5lb |
| Divisions | 0.1 kg / 0.2 lb / 1 lb |
| Units | kg / lb / st: lb |
| Display Type | LCD |
| Platform Material | High-Resistance Tempered Glass |
| Body Indices Measured | Weight, BMI, Body Fat, Muscle Mass, Water Content, Protein Rate, Visceral Fat, Basal Metabolism, Bone Mass, Body Age, Ideal Weight, Body Type (12 total) |
| User Memory | Up to 8 users |
| Power Supply | Internal Battery, USB Charging |
| Connectivity | Bluetooth |
| Software Compatibility | FitGo App (Android 4.3+, iOS 7.0+), Apple Health, Fitbit, Google Fit |
| Item Weight | 1420 Grams |
Warranty and Support
Your Roadstar RS-870BR Bioimpedance Smart Scale comes with a 3-month manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use.
For technical support, warranty claims, or any questions regarding your product, please refer to the contact information provided by your retailer or the official Roadstar website. Please have your purchase receipt and product model number (RS-870BR) ready when contacting support.
