Chuancheng ZR780000 HEPA Filter Set Instruction Manual

Introduction

This instruction manual provides essential information for the proper installation, maintenance, and care of your Chuancheng ZR780000 HEPA Filter Set. This set is designed to be compatible with various Rowenta COMPACT POWER XXL vacuum cleaner models, ensuring optimal performance and air filtration.

Safety Information

• Always unplug your vacuum cleaner from the power outlet before attempting any maintenance or filter replacement.
• Ensure the vacuum cleaner is completely cool before handling internal components.
• Keep filters away from open flames or excessive heat.
• Do not use damaged filters. Replace them immediately if any damage is observed.
• Dispose of old filters responsibly according to local regulations.

Package Contents

Your Chuancheng ZR780000 HEPA Filter Set includes the following components:

• 2 x Round HEPA Filters
• 2 x Rectangular HEPA Filters

Figure 1: Overview of the filter set components and their approximate dimensions.

Installation Guide

Follow these steps to replace the filters in your Rowenta COMPACT POWER XXL vacuum cleaner. Refer to your vacuum cleaner's original manual for specific compartment locations if needed.

Replacing the Round HEPA Filter

1. Locate the Filter Compartment: The round HEPA filter is typically located in the dust container or a dedicated filter housing. Consult your vacuum cleaner's manual to identify its exact position.
2. Remove the Old Filter: Carefully twist or pull the old round filter to remove it from its housing. Note its orientation for correct installation of the new filter.


   Figure 2: Top view of the round HEPA filter.

3. Insert the New Round Filter: Place the new Chuancheng round HEPA filter into the compartment, ensuring it fits snugly and is correctly oriented. Apply gentle pressure until it clicks into place or is securely seated.


   Figure 3: Bottom view of the round HEPA filter, showing the pleated filtration surface.

Replacing the Rectangular HEPA Filter

1. Access the Filter Compartment: The rectangular HEPA filter is typically found in a separate compartment, often near the motor or exhaust. Open the designated cover or panel to access it.
2. Remove the Old Filter: Gently pull out the old rectangular filter. It may have a small tab or handle for easier removal.

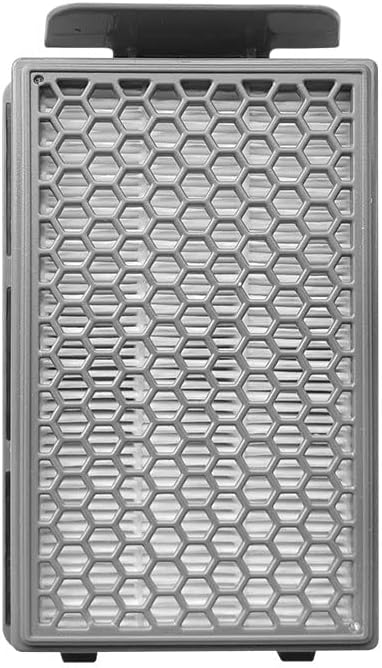

   Figure 4: Top view of the rectangular HEPA filter, featuring a protective honeycomb grid.

3. Insert the New Rectangular Filter: Slide the new Chuancheng rectangular HEPA filter into the compartment. Ensure the filter is inserted with the correct side facing outwards or inwards as per your vacuum's design. It should fit securely without forcing.


   Figure 5: Bottom view of the rectangular HEPA filter, displaying the pleated filtration surface.

4. Close the Compartment: Securely close any covers or panels that were opened to access the filter.

After replacing both filters, you can plug in your vacuum cleaner and resume normal operation.

Maintenance

Regular maintenance of your HEPA filters is crucial for maintaining optimal vacuum cleaner performance and air quality.

• Cleaning Frequency: It is recommended to clean the reusable filters every 2-4 weeks, depending on usage and the amount of debris collected.
• Cleaning Procedure:
  1. Remove the filters from the vacuum cleaner as described in the "Installation Guide."
  2. Gently tap the filters over a waste bin to dislodge loose dust and debris.
  3. For a more thorough cleaning, rinse the filters under cool, running water until the water runs clear. Do not use hot water or detergents.
  4. Allow the filters to air dry completely for at least 24 hours before re-installing them. Ensure they are absolutely dry to prevent mold growth and damage to the vacuum cleaner. Do not use a dryer or other heating devices.
• Replacement Frequency: Even with regular cleaning, filters wear out over time. For optimal performance, it is recommended to replace your HEPA filters every 3-6 months, or sooner if you notice a decrease in suction power or increased motor noise.

Troubleshooting

If you encounter issues after installing or cleaning your filters, consider the following:

• Reduced Suction Power:
  • Check if filters are clogged. Clean or replace them if necessary.
  • Ensure filters are installed correctly and securely.
  • Verify that the dust container is not full and other parts of the vacuum (hoses, nozzles) are clear of blockages.
• Unusual Odor from Vacuum:
  • Filters may not have been completely dry before re-installation, leading to mold or mildew. Replace filters immediately.
  • Old, heavily soiled filters can retain odors. Replace them.
• Filter Does Not Fit:
  • Double-check the model numbers of your vacuum cleaner against the compatible models listed in this manual.
  • Ensure you are attempting to install the correct filter (round for round compartment, rectangular for rectangular compartment).

Specifications

Figure 6: Detailed dimensions of the Chuancheng ZR780000 HEPA filters.

Warranty and Support

For any questions regarding product warranty, technical support, or replacement parts, please contact Chuancheng customer service through the retailer where the product was purchased or refer to the official Chuancheng brand store on Amazon.

Chuancheng Brand Store: Visit Store
