CUSIMAX 1800W Ceramic Electric Double Burner (Model ES-3202C) Instruction Manual

1. Introduction

Thank you for purchasing the CUSIMAX 1800W Ceramic Electric Double Burner. This appliance is designed for convenient and efficient cooking in various settings. Please read this manual thoroughly before use to ensure safe operation and optimal performance.

2. Important Safety Instructions

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical hazards, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for assistance.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• The heating light may cycle on and off during operation, which is normal.
• It is normal for the machine to get hot because it has higher calorific value when it works.
• The appliance features an automatic safety shutdown function for overheating protection.

3. Product Features

• Fast Heating: Powered by 120V and 900 watts (left panel) + 900 watts (right panel), totaling 1800W. Heats up quickly and evenly.
• Universal Cookware Compatibility: Suitable for all types of cookware, including glass and aluminum. Accommodates pots and pans up to 7.1 inches.
• Portable & Convenient: Ideal for home kitchens, offices, RVs, basements, back gardens, or caravans. No stovetop required.
• Safety & Durability: No electromagnetic radiation, low noise. Features automatic safety shutdown for overheating protection. Temperature is regulated by a thermostat.
• Easy to Clean: Durable ceramic cooktop and stainless steel body designed for frequent use and easy cleaning.

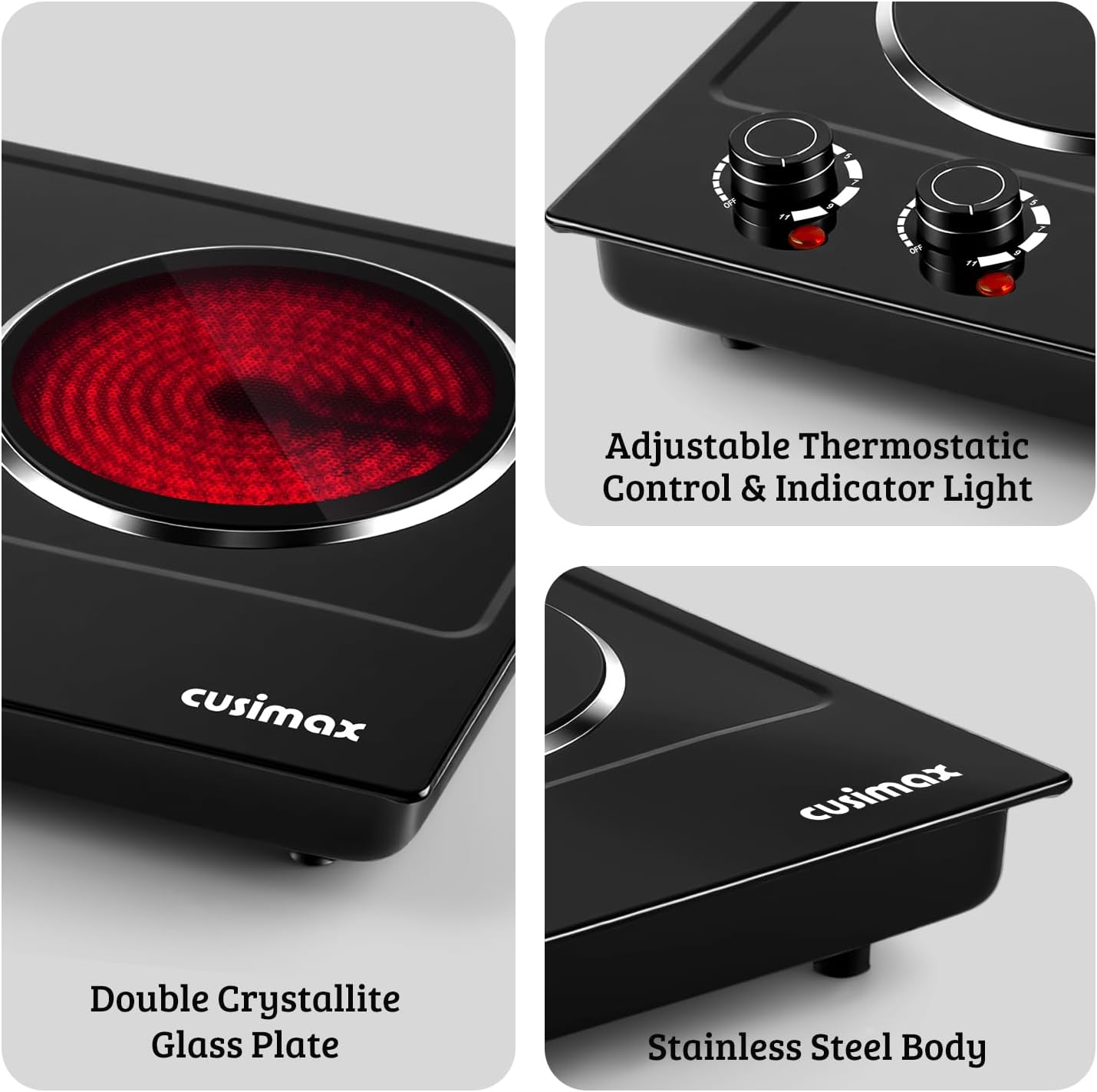

Image: CUSIMAX Double Burner with glowing red heating elements, showcasing its sleek design and dual heating zones.

Image: Close-up view of the CUSIMAX Double Burner's adjustable thermostatic control knobs and indicator lights.

4. Setup and First Use

1. Unpacking: Carefully remove the appliance from its packaging. Retain packaging for future storage or transport.
2. Placement: Place the double burner on a flat, stable, heat-resistant surface. Ensure there is adequate ventilation around the unit.
3. Power Connection: Plug the appliance into a standard 120V electrical outlet.
4. Initial Burn-in (Important): Before first use, it is recommended to turn the appliance on to its highest setting (level 11) for 3-5 minutes in a well-ventilated area. This procedure helps to condition the protective coating on the heating elements and allows any manufacturing residues to evaporate. It is normal for some smoke or odor to be present during this initial process; there is no need for concern.

5. Operating Instructions

1. Place Cookware: Position your desired pot or pan on the heating element.
2. Adjust Temperature: Turn the corresponding control knob (left for left burner, right for right burner) to your desired heat setting (1-11). The indicator light will illuminate when the burner is active.
3. Cooking: The infrared heating technology ensures quick and even heat distribution for various cooking tasks, including boiling water, simmering sauces, frying, and stewing.
4. Monitoring: The indicator light will cycle on and off as the thermostat regulates the temperature to maintain your selected heat level.
5. Finish Cooking: Once cooking is complete, turn the control knob to the "OFF" position. The indicator light will turn off.

Image: The CUSIMAX Double Burner demonstrating its versatility for various cooking methods such as stir-frying, slow stewing, and deep frying.

6. Cookware Compatibility

The CUSIMAX ceramic infrared cooktop is designed to be compatible with all types of flat-bottomed cookware. This includes:

• Stainless Steel Pots and Pans
• Cast Iron Cookware
• Ceramic Pots
• Aluminum Pots and Pans
• Glass Pots (heat-resistant)
• Frying Pans and Woks

Pots and pans ranging up to 7.1 inches in diameter are suitable for efficient heating with minimal heat loss.

Image: Visual guide illustrating the wide range of cookware types that can be used with the CUSIMAX Double Burner, including ceramic, stainless steel, aluminum, glass, frying pans, steak plates, woks, and teapots.

7. Cleaning and Maintenance

1. Cool Down: Always ensure the appliance is completely cool before cleaning.
2. Unplug: Disconnect the power cord from the outlet.
3. Wipe Surfaces: Use a clean, damp cloth to wipe the ceramic cooktop and stainless steel body. For stubborn stains, a mild detergent can be used.
4. Avoid Abrasives: Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the surface.
5. Drying: Dry all surfaces thoroughly before storing or next use.
6. Storage: Store the appliance in a dry place. Its compact design allows for easy storage without taking up much space.

8. Troubleshooting

9. Specifications

• Model Number: ES-3202C
• Brand: CUSIMAX
• Color: Black
• Material: Ceramic Glass
• Heating Elements: 2
• Burner Type: Infrared
• Wattage: 1800 watts (900W per burner)
• Voltage: 120 Volts
• Controls Type: Knob
• Product Dimensions: 20.87"D x 14.57"W x 4.13"H
• Item Weight: 3.64 Kilograms
• Recommended Uses: Indoor
• Certifications: ETL certified

10. Warranty and Support

CUSIMAX offers an 18-month warranty for this product. Additionally, a 30-day hassle-free return policy is available. All CUSIMAX products have passed ETL certification and comply with safety standards.

For any issues or questions regarding your product, please contact CUSIMAX customer service for resolution or replacement.
