ROTTOGOON Floor Lamp with Remote Control and Foot Switch (Model: floorlamp0133) - Instruction Manual

Introduction

This manual provides detailed instructions for the ROTTOGOON Floor Lamp, Model floorlamp0133. This LED floor lamp is designed to provide versatile lighting with adjustable brightness and color temperature, controlled via a remote or foot switch. Please read this manual thoroughly before assembly and operation to ensure proper use and longevity of your product.

1. Setup and Assembly

The ROTTOGOON Floor Lamp is designed for straightforward assembly. Follow these steps to set up your lamp:

1. Unpack Components: Carefully remove all parts from the packaging. Verify that all components listed in the package contents are present.
2. Assemble the Lamp Pole: Connect the pole sections by screwing them clockwise until secure. Ensure all connections are tight to maintain stability.
3. Attach the Base: Secure the heaviest base component to the bottom of the assembled pole. This heavy base ensures the lamp's stability.
4. Assemble the Lampshade: The lampshade requires minor assembly. Follow the specific instructions provided with the lampshade to ensure it is correctly formed and attached. Ensure the ring that attaches to the fixture is inside the shade, not above it, for proper appearance and function.
5. Install the LED Bulb: Screw the included 9W LED bulb into the E26 base socket. Do not overtighten.
6. Position the Lamp: Place the lamp in your desired location. Ensure the power cord is accessible for connection to a standard AC 110V-120V outlet.

Figure 1: Assembly Diagram. This image illustrates the sequential steps for assembling the lamp pole, base, and lampshade.

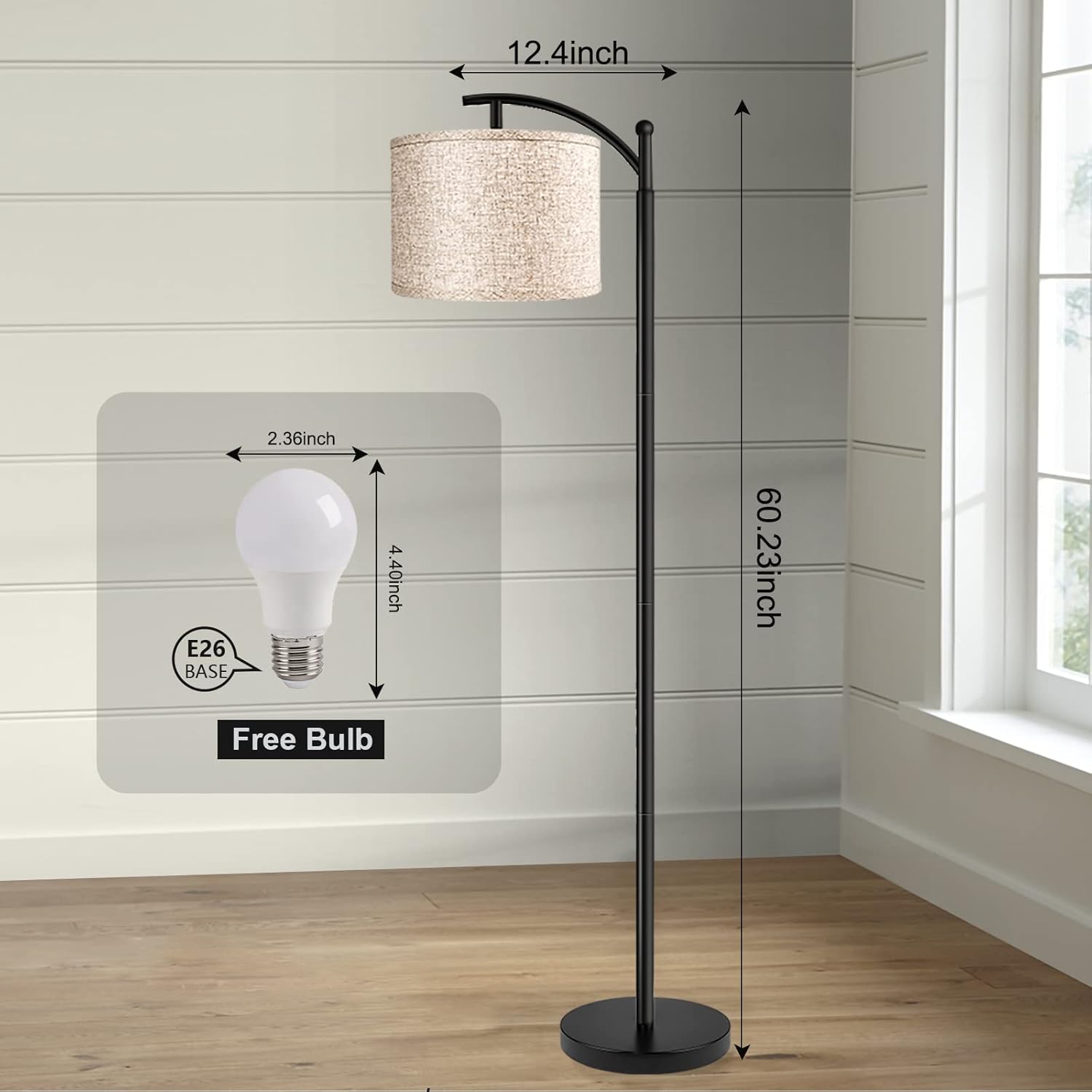

Figure 2: Product Dimensions. This image provides key measurements for the lamp and its included E26 bulb.

2. Operating Instructions

Your ROTTOGOON Floor Lamp offers multiple ways to control its lighting features:

2.1. Remote Control Operation

The included remote control provides full access to all lamp functions. The remote features a magnetic attachment design, allowing it to be conveniently stored on the lamp pole.

• Power On/Off: Press the Power button to turn the lamp on or off.
• Brightness Adjustment: Use the Brightness Up (+) and Brightness Down (-) buttons to adjust the light intensity from 5% to 100%.
• Color Temperature Adjustment: Use the Color Temperature (K) buttons to cycle through the four available color temperature modes (3000K, 4000K, 5000K, 6000K).
• Preset Modes: Select from four optimized preset lighting modes:
  • Sleeping Mode: For low, warm light.
  • Nursery Mode: Gentle light suitable for nurseries.
  • Reading Mode: Brighter, neutral light for reading.
  • Working Mode: Bright, cool light for tasks.
• Timer Function: Activate the 1-hour timer button for automatic shut-off after one hour.

Figure 3: Remote Control and Color Temperatures. This image displays the lamp, remote, and visual representation of color temperature options.

Figure 4: Magnetic Remote Attachment. The remote control can be conveniently stored on the lamp pole.

Figure 5: Preset Lighting Modes. This image illustrates the various lighting modes available via the remote control.

2.2. Foot Switch Operation

The lamp also features a convenient foot switch for basic on/off functionality. Press the foot switch to toggle the lamp's power. Note that when the lamp is turned off via the foot switch, it will reset to a default brightness and color temperature setting upon being turned back on. To retain specific settings, always use the power button on the remote control to turn the lamp on and off.

2.3. Adjustable Lamp Holder

The lamp holder can be rotated up to 180 degrees. This allows you to direct the light to your preferred angle, optimizing illumination for various activities such as reading or working.

Figure 6: 180° Adjustable Lamp Holder. This image shows the flexibility of the lamp head to direct light.

3. Maintenance

Regular maintenance ensures the longevity and optimal performance of your ROTTOGOON Floor Lamp.

• Cleaning: Disconnect the lamp from the power outlet before cleaning. Use a soft, dry cloth to wipe down the lamp pole and base. For the lampshade, a soft brush or lint roller can be used to remove dust. Avoid using abrasive cleaners or solvents, as these can damage the finish.
• Bulb Replacement: The lamp includes a long-lasting LED bulb. If replacement is ever needed, ensure the lamp is unplugged. Use an E26 base LED bulb with a maximum wattage of 9W. Refer to the original bulb specifications for compatible replacements.
• Remote Control Batteries: If the remote control becomes unresponsive, replace its batteries. Refer to the remote control's battery compartment for the correct battery type and installation instructions.

Figure 7: Included Smart Bulb. The lamp comes with an E26 base LED bulb.

4. Troubleshooting

If you encounter issues with your ROTTOGOON Floor Lamp, refer to the following common problems and solutions:

5. Product Specifications

6. Warranty and Support

Specific warranty details for the ROTTOGOON Floor Lamp (Model: floorlamp0133) are not provided in this manual. For information regarding warranty coverage, claims, or technical support, please contact ROTTOGOON customer service directly.

You may visit the official ROTTOGOON store for additional product information and contact options: ROTTOGOON Store on Amazon.
