Philips 7000 Series STH7030/10 Portable Garment Steamer User Manual

1. Introduction

Thank you for choosing the Philips 7000 Series STH7030/10 Portable Garment Steamer. This manual provides essential information for the safe and effective use of your new appliance. Please read it thoroughly before first use and keep it for future reference.

2. Important Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.

• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before you connect it.
• Do not immerse the appliance in water or any other liquid.
• Keep the appliance and its cord out of reach of children.
• Do not leave the appliance unattended when it is connected to the mains.
• Always unplug the appliance before filling or emptying the water tank.
• Use only distilled or demineralized water.
• The steam is hot. Do not direct steam at people or pets.

3. Product Overview

Familiarize yourself with the components of your Philips Garment Steamer.

Figure 1: Front view of the Philips 7000 Series STH7030/10 Portable Garment Steamer. It features a white body with a gold-colored steam plate at the top, a power button, and a removable water tank at the bottom.

• Steam Plate (Gold-colored with steam vents)
• Power Button
• Steam Trigger Button
• Water Tank Release Latch
• Removable Water Tank
• Power Cord
• Max/Eco Mode Indicator (on back)

Figure 2: Back view of the steamer, showing the 'MAX' and 'ECO' mode indicators and the power cord connection point.

4. Setup and First Use

1. Unpack the appliance: Remove all packaging materials and check for any damage.
2. Fill the water tank:
   • Press the water tank release latch and pull out the water tank.
   • Open the filling cap and fill the tank with distilled or demineralized water up to the MAX level.
   • Close the filling cap securely and reinsert the water tank into the appliance until it clicks into place.
3. Connect to power: Plug the power cord into a suitable electrical outlet.
4. Pre-heating: The appliance will begin to heat up. The indicator light will stop blinking when it is ready for use (approximately 30 seconds).

5. Operating Instructions

5.1 Steaming Garments

1. Hang the garment on a hanger.
2. Hold the steamer upright, ensuring the steam plate is facing away from you.
3. Press and hold the steam trigger button to release steam.
4. Gently press the steam plate against the fabric and move the steamer up and down over the garment.
5. For stubborn creases, stretch the fabric taut with your free hand while steaming.

Figure 3: A user demonstrating the steaming process on a garment, holding the steamer vertically and moving it along the fabric.

5.2 Using Different Steam Modes (if applicable)

The Philips 7000 Series STH7030/10 may feature different steam modes for various fabric types. Refer to the indicators on the back of the appliance.

• MAX Mode: Provides maximum steam output for heavy fabrics like denim or linen.
• ECO Mode: Provides a lower steam output, suitable for delicate fabrics like silk or synthetics, and for energy saving.

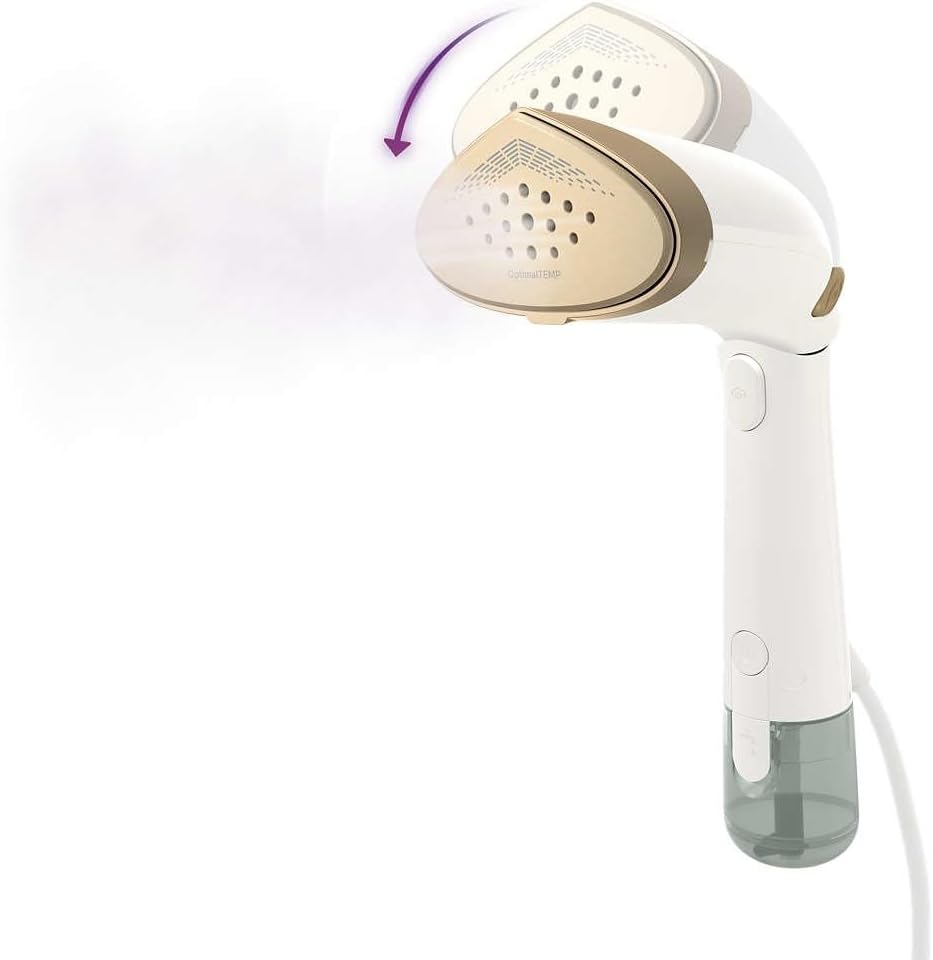

Figure 4: Close-up of the steamer head, showing steam being emitted from the vents, illustrating the steaming action.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the lifespan of your steamer.

1. Empty the water tank: After each use, unplug the appliance and allow it to cool down. Remove the water tank and empty any remaining water.
2. Clean the exterior: Wipe the exterior of the appliance with a soft, damp cloth. Do not use abrasive cleaners or solvents.
3. Descaling (if necessary): If you notice reduced steam output or white residue, descaling may be required. Consult the Philips support website for specific descaling instructions for your model.
4. Storage: Store the appliance in a dry, safe place, away from direct sunlight and moisture.

7. Troubleshooting

If you encounter issues with your steamer, refer to the table below for common problems and solutions.

8. Specifications

9. Warranty and Support

For warranty information, product registration, or technical support, please visit the official Philips support website or contact their customer service. Keep your proof of purchase for warranty claims.

Philips Official Website: www.philips.com
