Introduction
This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your WANATOP Diesel Injector. Please read this manual thoroughly before use to ensure safe and efficient performance. This injector is designed for use with Caterpillar C9 Engines.
Product Overview
The WANATOP Diesel Injector is a high-quality fuel injection component designed for optimal performance in Caterpillar C9 Engines. It is constructed from durable metal and features threaded inlet and SAE outlet connection types.
Figure 1: Full view of the WANATOP Diesel Injector (Model 387-9434). This image displays the complete assembly of the fuel injector, highlighting its metallic construction and overall design.
Key Features:
- High-quality construction for durability and reliability.
- Designed for precise fuel delivery in Caterpillar C9 Engines.
- Direct replacement for OE part numbers 3879434, 387-9434, 3879432, 387-9432, 3879433, 387-9433.

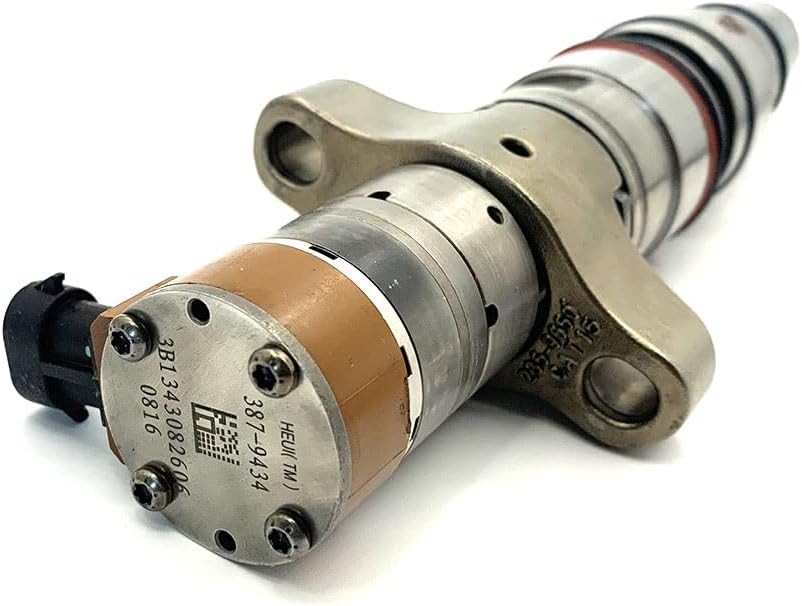

Figure 2: Close-up view of the electrical connector and control unit on the WANATOP Diesel Injector. This component is crucial for the electronic control of fuel injection.
Safety Information
Always observe the following safety precautions when handling, installing, or maintaining the diesel injector:
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Ensure the engine is turned off and cooled down before beginning any work.
- Relieve fuel system pressure before disconnecting any fuel lines.
- Handle fuel injectors with care to prevent damage to precision components.
- Dispose of old parts and fluids according to local environmental regulations.
- If you are unsure about any installation or maintenance procedure, consult a qualified mechanic.
Setup and Installation
Proper installation is critical for the performance and longevity of the diesel injector. The following steps provide a general guide. Refer to your Caterpillar C9 Engine service manual for specific torque specifications and detailed procedures.
- Preparation: Ensure the engine is clean around the injector area to prevent contaminants from entering the fuel system. Gather all necessary tools and replacement parts, including new seals and O-rings.
- Remove Old Injector: Disconnect the electrical connector and fuel lines from the old injector. Carefully remove the old injector from its housing.
- Inspect and Clean: Inspect the injector bore for any debris or damage. Clean the bore thoroughly to ensure a proper seal for the new injector.
- Install New Injector: Lubricate new O-rings and seals with clean engine oil or diesel fuel. Carefully insert the new WANATOP injector into the bore, ensuring it seats correctly.
- Secure Injector: Install any retaining clips or bolts and tighten them to the manufacturer's specified torque.
- Reconnect: Reconnect fuel lines and the electrical connector. Ensure all connections are secure and free from leaks.
- Bleed Air: Follow engine manufacturer's procedures to bleed air from the fuel system.
- Test: Start the engine and check for proper operation and any fuel leaks.
Figure 3: The WANATOP Diesel Injector as supplied in its protective packaging, alongside essential documentation. Always refer to any included documentation for specific installation details.
Operating Instructions
Once properly installed, the diesel injector operates as an integral part of the engine's fuel system. Its function is electronically controlled by the engine's Electronic Control Unit (ECU) to deliver precise amounts of fuel into the combustion chamber at the correct time and pressure.
- Ensure the fuel system is filled with clean, appropriate diesel fuel.
- The injector's operation is automatic and managed by the engine's control system. No manual adjustments are typically required during normal operation.
- Monitor engine performance for any unusual noises, smoke, or power loss, which could indicate an issue with the fuel injection system.
Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your diesel injector and engine.
- Fuel Quality: Always use high-quality, clean diesel fuel. Contaminated fuel is a primary cause of injector failure.
- Fuel Filters: Replace fuel filters regularly according to your engine manufacturer's recommendations. This prevents particles from reaching and damaging the injector.
- Leak Checks: Periodically inspect fuel lines and injector connections for any signs of leaks.
- Injector Cleaning: While not typically a user-serviceable item, professional injector cleaning may be recommended as part of a comprehensive engine service schedule.
Troubleshooting
If you experience issues with your engine that you suspect are related to the fuel injector, consider the following common problems and potential solutions. For complex issues, professional diagnosis is recommended.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine Misfire or Rough Idling | Clogged or faulty injector, air in fuel system, electrical connection issue. | Check fuel filter, inspect electrical connections, bleed fuel system, or consult a professional for injector testing. |
| Excessive Smoke (Black/White) | Improper fuel atomization, incorrect fuel delivery, worn injector. | Verify fuel quality, check for engine diagnostic codes, professional injector inspection. |
| Reduced Engine Power | Insufficient fuel delivery, restricted injector nozzle. | Replace fuel filter, check fuel pressure, professional injector service. |
| Fuel Leakage | Loose connections, damaged seals/O-rings, cracked injector body. | Tighten connections, replace seals/O-rings, replace injector if body is damaged. |
Specifications
Technical details for the WANATOP Diesel Injector:
- Brand: WANATOP
- Model Numbers: 387-9434, 387-9432, 387-9433
- Material: Metal
- Inlet Connection Type: Threaded
- Outlet Connection Type: SAE
- Number of Ports: 2
- Item Weight: Approximately 4.4 pounds (2 kg)
- Package Dimensions: Approximately 14.68 x 5.79 x 5.28 inches
- UPC: 718519431122
- Compatibility: Caterpillar C9 Engines
Product Video
Watch this video for a detailed visual inspection of the WANATOP Diesel Injector, showcasing its design and features.
Video: A 30-second video demonstrating various angles and details of the WANATOP Diesel Injector, providing a comprehensive visual overview of the product.
Warranty and Support
For warranty information or technical support regarding your WANATOP Diesel Injector, please contact the seller or refer to the documentation included with your purchase. Ensure you have your product model number and purchase details available when seeking support.
You can visit the official WANATOP store for more information: WANATOP Store
