Cuifati USB Portable Mouse Keyboard PC Laptop Remote Control User Manual

Introduction

Thank you for choosing the Cuifati USB Portable Mouse Keyboard PC Laptop Remote Control. This device is designed to provide convenient and flexible control over your computer's media functions, acting as both a mouse and a keyboard. With its plug-and-play functionality and portable design, it enhances your multimedia experience from a distance.

Product Overview

The Cuifati Remote Control combines the functionality of a mouse and a keyboard into a single, ergonomic device. It features dedicated buttons for media playback, navigation, and customizable shortcuts, along with a central mouse control area.

Figure 1: Front view of the Cuifati USB Portable Remote Control, showcasing its ergonomic design and button layout.

Cuifati Remote Control and USB Infrared Receiver

Figure 2: The Cuifati Remote Control alongside its USB Infrared Receiver, which is required for wireless communication with your computer.

Setup

Install Batteries: Open the battery compartment on the back of the remote control. Insert two (2) AAA batteries, ensuring correct polarity (+/-). Close the compartment securely.
Figure 3: Rear view of the remote control with the battery cover removed, showing the battery compartment.
Connect USB Infrared Receiver: Plug the USB Infrared Receiver into an available USB port on your PC or laptop.
Figure 4: The USB Infrared Receiver, which plugs into your computer to enable communication with the remote.
Automatic Driver Installation: The device is plug-and-play. Your operating system (WINME, WINXP, MCE, Vista, etc.) will automatically detect and install the necessary drivers. No manual driver installation is required.
Ready for Use: Once the drivers are installed, the remote control is ready for immediate use.

Operating Instructions

The Cuifati remote offers versatile control for your PC's multimedia functions. It operates within a range of up to 10 meters.

Remote control with 10m transmission distance indicated

Figure 5: The remote control demonstrating its effective transmission distance of 10 meters, allowing flexible use.

Mouse Functionality

The central "Mouse" button and directional pad allow for cursor movement.
The remote utilizes 360° space motion recognition for accurate and flexible cursor control.
Use the "L" (Left Click) and "R" (Right Click) buttons for mouse clicks.

Close-up of the mouse and multimedia control section of the remote

Figure 6: Detailed view of the upper section of the remote, highlighting the "Mouse" button, directional controls, and left/right click buttons.

Keyboard and Media Control

Multimedia Buttons: Dedicated buttons for Play/Pause, Stop, Previous Track, Next Track, Volume Up/Down, and Mute are available for controlling media playback.
Navigation: Buttons like "Full Screen", "My PC", "Backspace", "Page Up", and "Page Down" assist in navigating your computer's interface.
Alphanumeric Input: The lower section of the remote features buttons with alphanumeric characters (e.g., "1-?", "2abc", "3def") for basic text input.
Special Keys: "Tab", "Enter", "Esc", "Numlock", and "Desktop" buttons provide common keyboard functionalities.

Close-up of the keyboard-like buttons on the lower part of the remote

Figure 7: Close-up of the lower section of the remote, showing the alphanumeric and special function buttons for keyboard input.

Customized Program Shortcuts

The remote features 4 customized program shortcuts (labeled A, B, C, D, or with icons like Power, E-mail, WWW, Close).
Each shortcut key can be configured to launch up to three programs.
This allows for quick access to frequently used applications or functions with a single press.

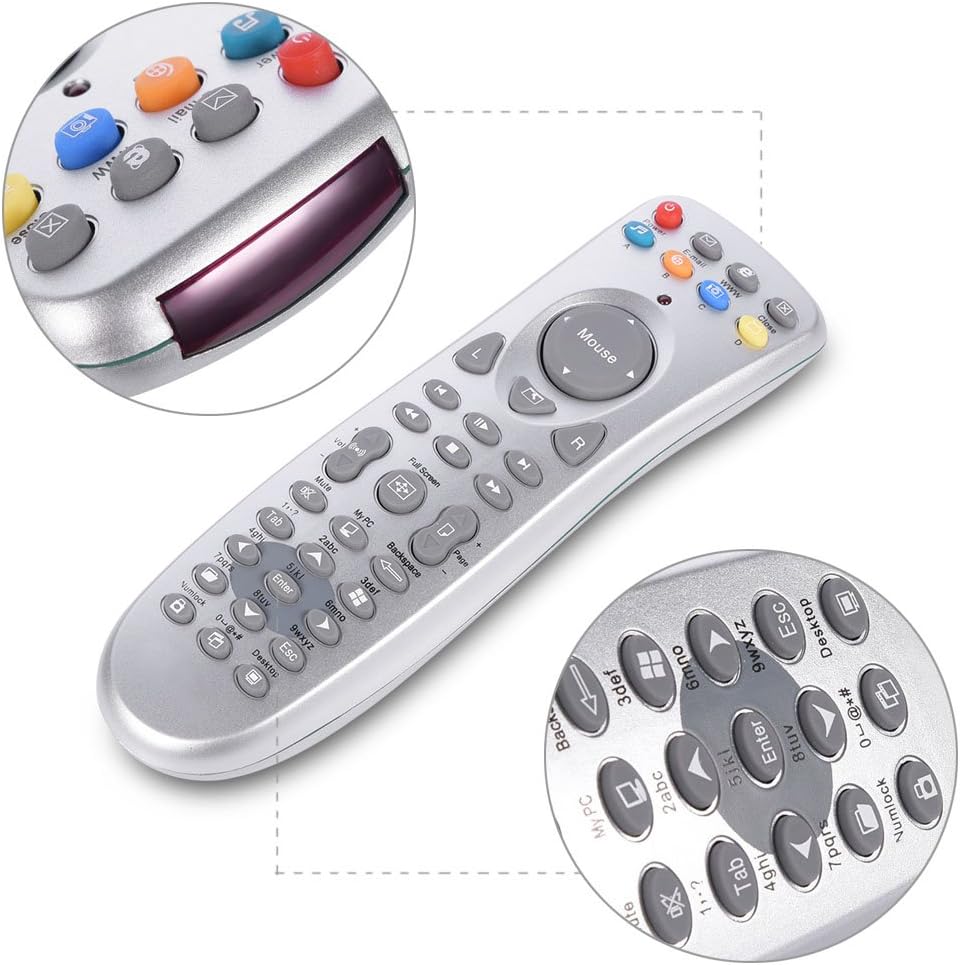

Close-up of the top section of the remote showing customizable shortcut buttons

Figure 8: Detailed view of the top part of the remote, highlighting the customizable shortcut buttons and the infrared emitter.

Compatibility

The remote is compatible with various Windows operating systems, including WINME, WINXP, MCE, and Vista. It supports most popular playback software such as WinDvd, RealPlayer, Winamp, MediaPlayer, PowerDvd, IE, and Word.

Maintenance

Cleaning: Use a soft, dry cloth to clean the remote control. Do not use liquid cleaners or abrasive materials.
Battery Replacement: Replace batteries when the remote's performance degrades or it stops responding. Always use new AAA batteries.
Storage: Store the remote in a cool, dry place away from direct sunlight and extreme temperatures.
Handling: Avoid dropping the remote or exposing it to excessive force, as this may damage internal components.

Troubleshooting

Problem	Possible Cause	Solution
Remote not responding.	Low or dead batteries. USB receiver not properly connected. Out of range. Obstruction between remote and receiver.	Replace batteries with new AAA batteries. Ensure USB receiver is firmly plugged into a working USB port. Move closer to the USB receiver (within 10 meters). Remove any objects blocking the line of sight between the remote and receiver.
Cursor movement is erratic or unresponsive.	Interference. Low battery.	Ensure no other infrared devices are causing interference. Replace batteries.
Custom shortcuts not working.	Programs not correctly assigned. Software compatibility issues.	Refer to your computer's operating system or specific software settings for assigning keyboard shortcuts. Ensure the software you are trying to control is compatible with the remote's functions.

Specifications

Model Number	Cuifati4mt3r5uke67610
Material	Plastic
Battery Type	2 x AAA (Not Included)
Interface	USB
Transmission Distance	Up to 10 meters
Item Weight	4.7 ounces (approx. 135g)
Package Dimensions	7.87 x 3.15 x 1.57 inches
Compatible Operating Systems	WINME, WINXP, MCE, Vista, and similar Windows versions
Compatible Devices	PC, Laptop

Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact the manufacturer directly. Specific warranty terms may vary by region and retailer.
