Introduction and Overview
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Ryobi ONE+ 18V Cordless Oscillating Multi-Tool, model PCL430B. This tool is designed for a variety of tasks including cutting, sanding, and scraping across different materials. Please read this manual thoroughly before first use and keep it for future reference.
Image: The Ryobi ONE+ 18V Cordless Oscillating Multi-Tool, shown without battery or accessories.
Note: This product is sold as a tool only. Battery and charger are sold separately.
Safety Information
Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when using power tools. Keep this manual for future reference.
- Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Electrical Safety: Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Personal Safety: Always wear eye protection. Use hearing protection when operating the tool for extended periods. Dress properly; avoid loose clothing or jewelry. Secure long hair.
- Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
- Battery Tool Use and Care: Recharge only with the charger specified by the manufacturer. Use power tools only with specifically designated battery packs.
What's in the Box
Your Ryobi ONE+ 18V Cordless Oscillating Multi-Tool package includes:
- Ryobi PCL430B 18V Multi-Tool (Tool Only)
- Instruction Manual
Please note that this tool is shipped in bulk packaging and does not include retail packaging. Batteries, chargers, and oscillating multi-tool accessories (blades, sanding pads, etc.) are sold separately.
Image: A graphic indicating that the battery and charger are sold separately.
Setup
1. Battery Installation
- Ensure the tool is turned off.
- Align the ribs on the battery pack with the grooves in the tool's battery port.
- Slide the battery pack into the tool until it clicks securely into place.
- To remove, press the battery release latch and slide the battery pack out.
Image: Side view of the Ryobi Multi-Tool, showing the battery attachment area at the base.
2. Accessory Attachment
The Ryobi PCL430B features a tool-free accessory change system for quick and easy blade or pad swaps.
- Ensure the tool is turned off and the battery pack is removed.
- Locate the accessory release lever/mechanism on the tool head.
- Open the lever or loosen the clamping screw (depending on the specific mechanism) to release the accessory holder.
- Align the desired accessory (e.g., cutting blade, sanding pad) with the accessory holder. Ensure it sits flush and is correctly oriented for your task.
- Close the lever or tighten the clamping screw firmly to secure the accessory. Verify that the accessory is locked in place and does not wobble.
Image: The Ryobi Multi-Tool with a cutting blade attached, demonstrating the accessory mounting point.
Operating Instructions
1. Powering On/Off
- To turn the tool ON, depress the trigger switch.
- To turn the tool OFF, release the trigger switch.
- For continuous operation, engage the lock-on button while the trigger is depressed. To disengage, depress the trigger again.
2. Variable Speed Control
The tool features a variable speed dial, allowing you to adjust the oscillation rate up to 20,000 OPM (Oscillations Per Minute). This provides precision control for delicate tasks and aggressive power for demanding applications.
- Rotate the speed dial to select the desired oscillation rate. Lower settings are suitable for softer materials or precision work. Higher settings are for harder materials or faster material removal.
- Always test on a scrap piece of material to determine the optimal speed setting for your specific task and accessory.

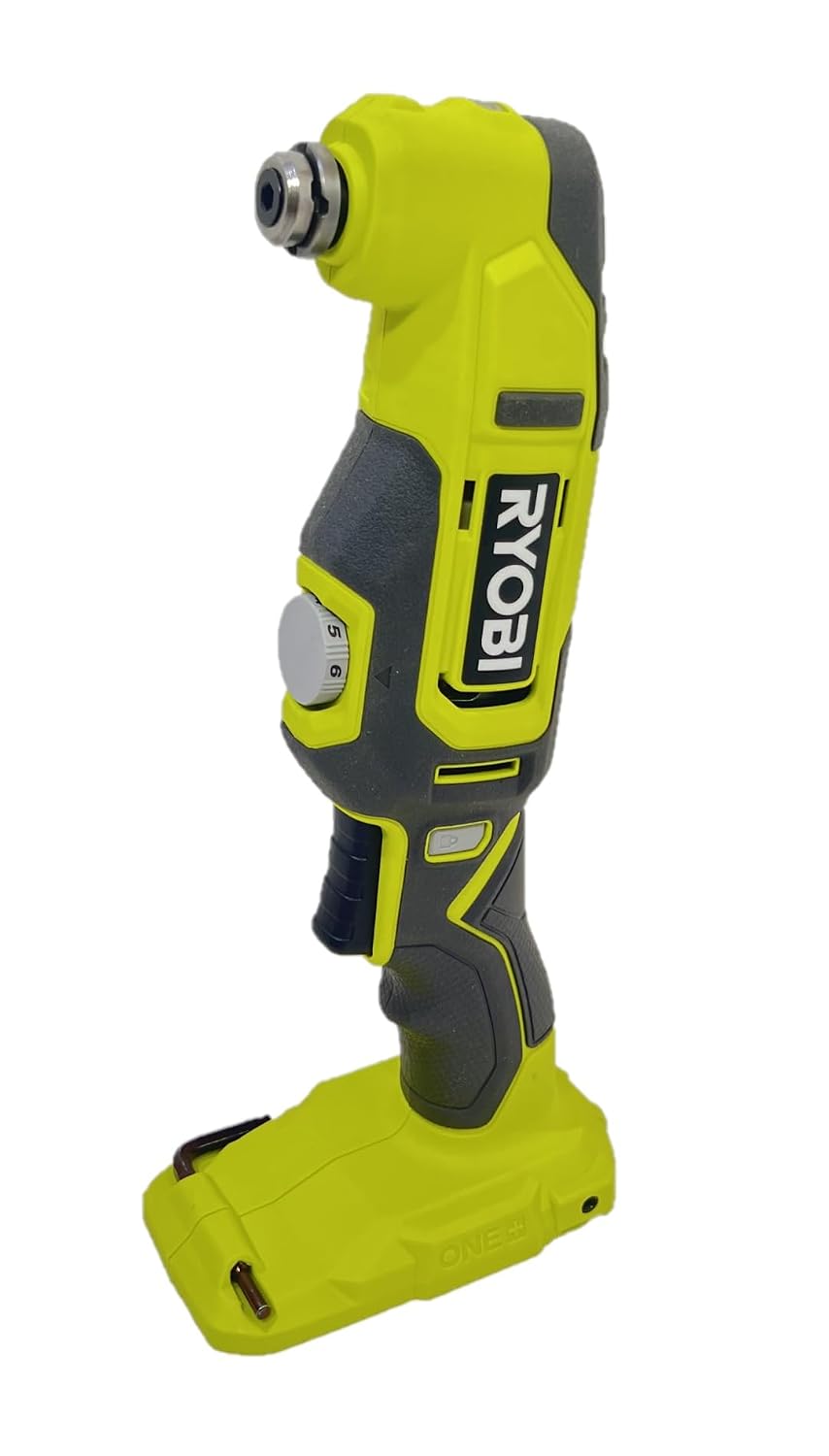

Image: Side view of the Ryobi Multi-Tool highlighting the variable speed dial.
3. Applications
The oscillating multi-tool is highly versatile. Common applications include:
- Cutting: Use appropriate blades for wood, metal, plastic, or drywall. Ideal for flush cuts, plunge cuts, and intricate shapes.
- Sanding: Attach a sanding pad and sandpaper for detail sanding, surface preparation, or removing small amounts of material in tight spaces.
- Scraping: Use a scraping blade to remove old caulk, paint, adhesive, or flooring.
- Grout Removal: Specialized grout removal blades can be used for tile repair.
Always ensure the accessory is suitable for the material and task. Apply light, consistent pressure and let the tool do the work. Avoid excessive force, which can damage the tool or accessory.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your tool.
- Cleaning: Keep the tool's air vents clear and free of debris. Use a clean, dry cloth to wipe down the exterior. Do not use harsh chemicals or abrasive cleaners.
- Accessory Inspection: Before each use, inspect accessories for wear, damage, or dullness. Replace worn or damaged accessories immediately.
- Blade Retention Mechanism: Periodically check the accessory retention mechanism for proper function and tightness. Ensure it securely holds accessories.
- Storage: Store the tool in a dry, secure location out of reach of children. Remove the battery pack before storing.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not start. | Battery not installed correctly or discharged. | Ensure battery is fully charged and properly seated. |
| Accessory wobbles or falls off. | Accessory not properly secured or retention mechanism is worn. | Re-secure accessory firmly. If problem persists, inspect the retention mechanism for damage and consider professional service. |
| Reduced cutting/sanding performance. | Dull or incorrect accessory. Incorrect speed setting. | Replace accessory. Ensure correct accessory for material. Adjust speed dial. |
| Excessive vibration. | Damaged accessory or internal issue. | Check accessory for damage. If vibration persists with a new accessory, seek professional service. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | PCL430B |
| Brand | RYOBI |
| Voltage | 18V |
| Power Source | Battery Powered (Battery Sold Separately) |
| Maximum Rotational Speed | 20,000 OPM (Oscillations Per Minute) |
| Item Weight | 1.5 pounds |
| Item Dimensions (LxWxH) | 12 x 3 x 6 inches |
| Special Features | Lowest Vibration In Its Class, Ergonomic Design, Lock-on Button, Variable Speed Dial |
Warranty and Support
This Ryobi PCL430B Multi-Tool comes with a 30 Day Limited Warranty from the manufacturer. Please retain your proof of purchase for warranty claims.
For technical assistance, replacement parts, or warranty service, please contact Ryobi customer support. Refer to the official Ryobi website or product packaging for the most current contact information.
Online Resources: For additional information, tutorials, and accessory guides, visit the official Ryobi website.
