1. Introduction
Thank you for choosing the IKEA EKET Cabinet. This manual provides essential information to ensure the correct assembly, safe operation, and proper maintenance of your new storage unit. Please read these instructions carefully before beginning assembly and retain them for future reference.
Figure 1: The IKEA EKET Cabinet, a versatile white cube for various storage needs.
2. Product Features
- Versatile Storage: A simple, compact unit designed to maximize storage in limited spaces.
- Expandable Design: Multiple EKET units can be combined to create larger, customized storage solutions as your needs evolve.
- Flexible Placement: Can be used as a floor-standing unit or mounted on a wall to free up floor space.
- Easy Assembly: Features a quick and straightforward assembly process using wedge dowels that fit into pre-drilled holes.
Figure 2: Example of multiple EKET cabinets used in a living room setting, demonstrating their modularity.
3. Safety Information
- Wall Mounting: If you intend to mount the EKET cabinet on a wall, the IKEA EKET suspension rail (sold separately) is required. The maximum load capacity for wall-mounted units varies depending on the wall material and proper installation. Always ensure the wall can support the weight of the cabinet and its contents.
- Floor Standing: If using the EKET cabinet as a floor-standing unit, legs (sold separately) are recommended for stability and to elevate the unit.
- Overloading: Do not exceed the maximum load capacity of 7 kg per shelf. Overloading can compromise the stability and integrity of the unit.
4. Setup and Assembly
Assembly of the EKET cabinet is required and designed to be quick and simple.
Assembly Steps:
- Unpack all components and verify against the parts list (refer to the separate assembly guide included with your product for a detailed list).
- Connect the cabinet panels using the provided wedge dowels. These dowels are designed to fit securely into the pre-drilled holes.
- Ensure all connections are firm and stable before proceeding.
- If wall-mounting, attach the EKET suspension rail (sold separately) to the wall according to its instructions, then hang the cabinet.
- If floor-standing, attach the appropriate legs (sold separately) to the base of the cabinet.

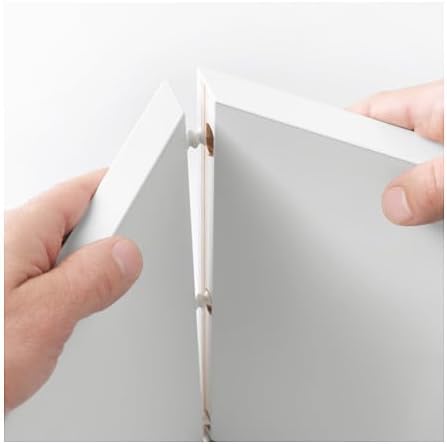

Figure 3: Illustration of the dowel pin connection method for easy assembly.
5. Operating Instructions
The IKEA EKET cabinet is designed for general storage. Place items evenly within the unit to maintain balance and stability. Avoid placing heavy items on the very top edge of the cabinet, especially if it is not secured to a wall.
Figure 4: An EKET cabinet used as a wall-mounted shelf for books and small decorations.
6. Maintenance and Care
To keep your EKET cabinet in optimal condition, follow these care instructions:
- Wipe the surfaces clean with a cloth dampened in a mild detergent solution.
- Immediately wipe dry with a clean, dry cloth to prevent moisture damage.
- Avoid using abrasive cleaners, strong chemicals, or rough scrubbing pads, as these can damage the finish.
7. Troubleshooting
No specific troubleshooting steps are provided for this product. If you encounter issues during assembly or use, please re-check all connections and ensure the unit is assembled according to the instructions. For persistent problems, contact IKEA customer support.
8. Specifications
| Attribute | Detail |
|---|---|
| Model Number | 603.346.04 |
| Color | White |
| Dimensions (Width x Depth x Height) | 35 cm x 35 cm x 35 cm (13 3/4" x 13 3/4" x 13 3/4") |
| Max Load per Shelf | 7 kg |
| Product Weight | Approximately 4.10 kg |
| Materials (Frame) | Plywood, Particleboard, Paper, Fiberboard, Foil, ABS plastic |
| Materials (Back Panel) | Fiberboard, Foil |
| Assembly Required | Yes |
| Mounting Type | Wall Mount (with separate rail) or Floor Standing (with separate legs) |
Figure 5: Detailed dimensions of the EKET cabinet.
9. Warranty and Support
Specific warranty information is typically provided with your purchase receipt or on the IKEA official website. For customer support, spare parts, or further assistance, please visit your local IKEA store or the official IKEA website for contact details relevant to your region.
