Instant Vortex Plus VersaZone Hot Air Fryer Instruction Manual

1. Introduction

The Instant Vortex Plus VersaZone Hot Air Fryer is a versatile kitchen appliance designed for healthy and efficient cooking. It features an 8.5-liter capacity with a unique 2-in-1 tray, allowing you to cook an entire family meal in one large zone or divide it into two 4.2-liter zones for separate dishes. This appliance offers 8 smart programs including air frying, baking, roasting, grilling, dehydrating, and reheating, along with intelligent SyncCook and SyncFinish functions. Its EvenCrisp™ technology ensures crispy, tender results with up to 95% less oil compared to deep frying, and it can save up to 80% on energy consumption compared to a traditional electric oven.

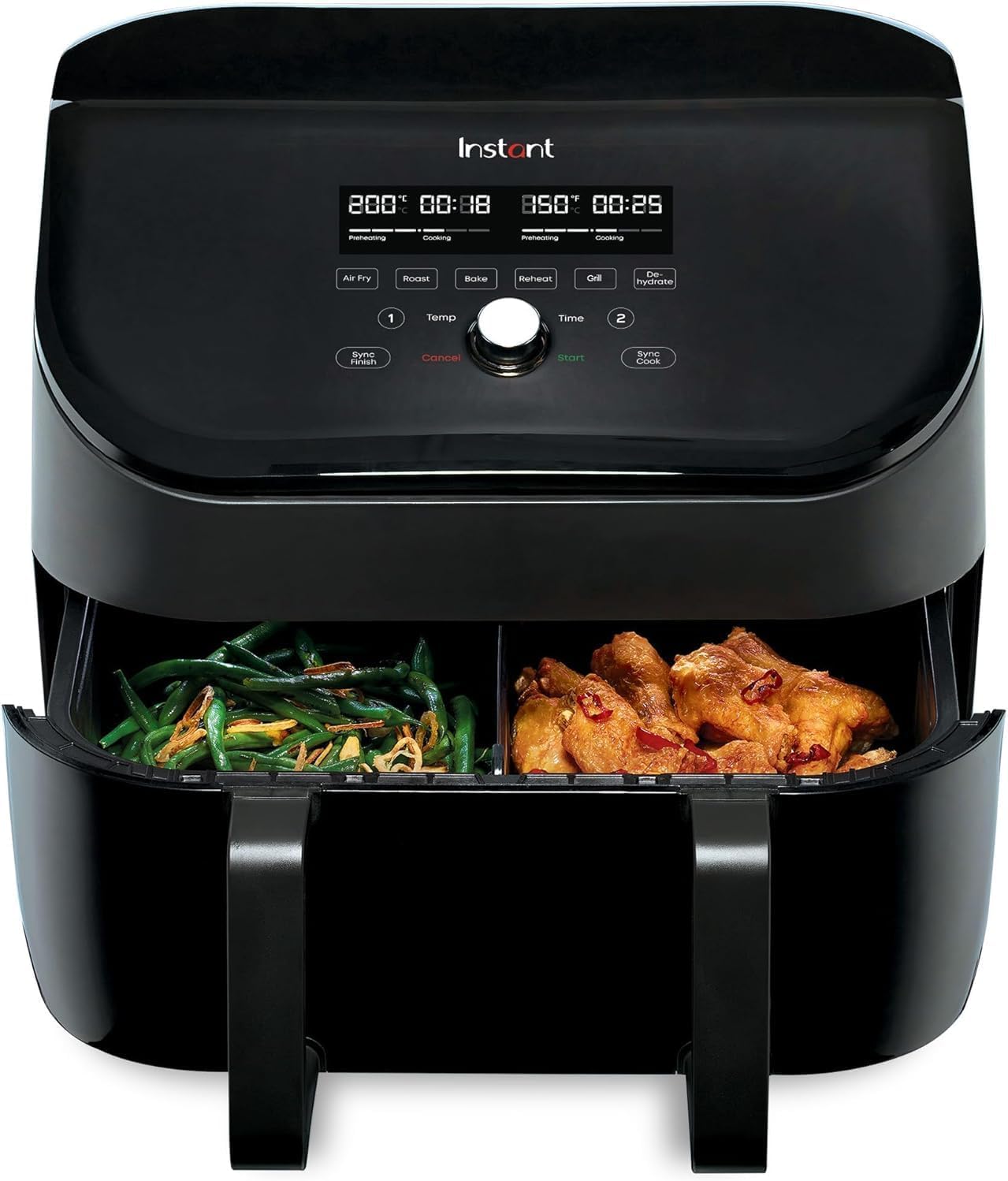

Figure 1.1: The Instant Vortex Plus VersaZone Hot Air Fryer, showcasing its digital control panel and the divided cooking baskets.

2. Important Safety Information

Please read all instructions before operating the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always place the appliance on a stable, heat-resistant surface, away from walls and other appliances.
• Do not immerse the appliance housing, cord, or plug in water or other liquids.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
• Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Close supervision is necessary when any appliance is used by or near children.
• Do not let the power cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not use accessories not recommended by the manufacturer.
• Always unplug the appliance from the outlet when not in use and before cleaning. Allow it to cool before putting on or taking off parts.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Do not place the appliance on or near a hot gas or electric burner, or in a heated oven.
• This appliance is for household use only. Do not use outdoors.
• Do not block any ventilation openings.
• The surfaces may become hot during use. Do not touch hot surfaces directly. Use handles or knobs.

3. Components and Key Features

3.1 Main Components

• Main Unit: Houses the heating element, fan, and control panel.
• Cooking Basket: The primary 8.5-liter cooking chamber.
• Removable Divider: Allows the 8.5-liter basket to be split into two 4.2-liter zones.
• Cooking Tray/Grill Plate: Non-stick plate that sits at the bottom of the basket(s).
• Digital Touchscreen Control Panel: For selecting programs, adjusting settings, and monitoring cooking progress.

3.2 Key Technologies and Functions

Figure 3.1: Overview of key benefits: reduced oil, faster cooking, and large capacity.

• VersaZone Technology: This innovative feature allows you to use the full 8.5-liter capacity for large items like a whole chicken or a pizza, or insert the removable divider to create two independent 4.2-liter cooking zones. This is ideal for cooking different foods simultaneously without flavor transfer.


Figure 3.2: The removable divider transforms the large basket into two separate cooking zones.



Figure 3.3: VersaZone Technology allows for flexible cooking configurations.

• EvenCrisp™ Technology: Utilizes a powerful fan and heating element to circulate super-heated air around your food, ensuring a crispy, golden finish with significantly less oil than traditional frying methods.
• 8 Smart Programs:
  • Air Fry: For crispy foods like fries, chicken wings, and vegetables.
  • Roast: Ideal for meats, potatoes, and root vegetables.
  • Bake: Perfect for cakes, pastries, and bread.
  • Grill: For searing meats and vegetables.
  • Dehydrate: To make dried fruits, jerky, and vegetable chips.
  • Reheat: To warm up leftovers while maintaining texture.
  • SyncCook: Automatically matches the settings (time and temperature) across both cooking zones when the divider is in use, ensuring both sides cook identically.
  • SyncFinish: Allows you to set different cooking programs and times for each zone, but ensures both zones finish cooking simultaneously, so your entire meal is ready at once.


Figure 3.4: The 6 primary cooking functions of the appliance.



Figure 3.5: SyncFinish function ensures different foods finish cooking at the same time.

4. Setup and First Use

4.1 Unpacking

1. Remove all packaging materials from inside and outside the air fryer.
2. Ensure all components are present: main unit, cooking basket, removable divider, and cooking tray.
3. Inspect the appliance for any damage. Do not use if damaged.

4.2 Initial Cleaning

1. Wash the cooking basket, removable divider, and cooking tray with warm, soapy water. Rinse thoroughly and dry completely. These parts are also dishwasher safe.
2. Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.

4.3 Placement

• Place the air fryer on a stable, level, heat-resistant surface.
• Ensure there is at least 5 inches (13 cm) of space around the appliance for proper air circulation.
• Do not place the appliance directly under cabinets or near flammable materials.

5. Operating Instructions

5.1 Basic Operation

1. Insert the cooking tray into the cooking basket. If using two zones, insert the removable divider into the basket, then place the two cooking trays into each zone.
2. Place food into the cooking basket(s). Do not overfill.
3. Slide the cooking basket firmly into the main unit until it clicks into place.
4. Plug the power cord into a grounded electrical outlet. The display will illuminate.
5. Select your desired cooking program (e.g., Air Fry, Roast, Bake) by pressing the corresponding button on the control panel.
6. Adjust the cooking temperature using the "Temp" dial and cooking time using the "Time" dial.
7. Press the "Start" button to begin cooking.
8. The display will show the remaining cooking time. Some programs may prompt you to "Turn Food" halfway through.
9. Once cooking is complete, the appliance will beep. Carefully pull out the cooking basket using the handle.
10. Remove food using heat-resistant tongs.

5.2 Using SyncCook and SyncFinish

These functions are available when the removable divider is inserted, creating two separate cooking zones.

5.2.1 SyncCook

• Prepare both cooking zones with the same type of food and desired settings.
• Select your cooking program.
• Adjust temperature and time for Zone 1.
• Press the "SyncCook" button. The settings from Zone 1 will automatically apply to Zone 2.
• Press "Start" to begin cooking both zones simultaneously with identical settings.

5.2.2 SyncFinish

• Place different foods in each cooking zone.
• Select the cooking program for Zone 1 and set its temperature and time.
• Select the cooking program for Zone 2 and set its temperature and time.
• Press the "SyncFinish" button. The appliance will calculate the start times for each zone to ensure they finish cooking at the same moment.
• Press "Start" to begin. The appliance will automatically pause and resume zones as needed to achieve simultaneous completion.

6. Care and Maintenance

6.1 Cleaning

Clean the air fryer after every use.

1. Unplug the appliance and allow it to cool completely before cleaning.
2. The cooking basket, removable divider, and cooking tray are non-stick and dishwasher safe. For best results, wash them with warm, soapy water and a non-abrasive sponge.
3. Wipe the exterior of the main unit with a damp cloth. Do not use harsh chemical cleaners or abrasive materials.
4. To clean the heating element, gently wipe with a damp cloth after the unit has cooled. Do not use excessive water.

6.2 Storage

• Ensure the appliance is clean and dry before storing.
• Store the air fryer in a cool, dry place.
• Do not place heavy objects on top of the appliance during storage.

7. Troubleshooting

If you encounter issues, please refer to the following table before contacting customer support.

8. Product Specifications

Note: Specifications are subject to change without notice for product improvement.

9. Warranty and Customer Support

For detailed warranty information, product registration, and customer support, please visit the official Instant website or contact their customer service department.

You can find more information and support at: Instant Official Store on Amazon

Please retain your proof of purchase for warranty claims.
