1. Product Overview
This bundle provides essential maintenance components for your Kawasaki STX-15F watercraft. It includes genuine OEM KPO 10W-40 watercraft engine oil, an OEM 16097-0008 oil filter, and four OEM CR9EK spark plugs. Using genuine OEM parts ensures optimal performance and reliability for your vehicle.

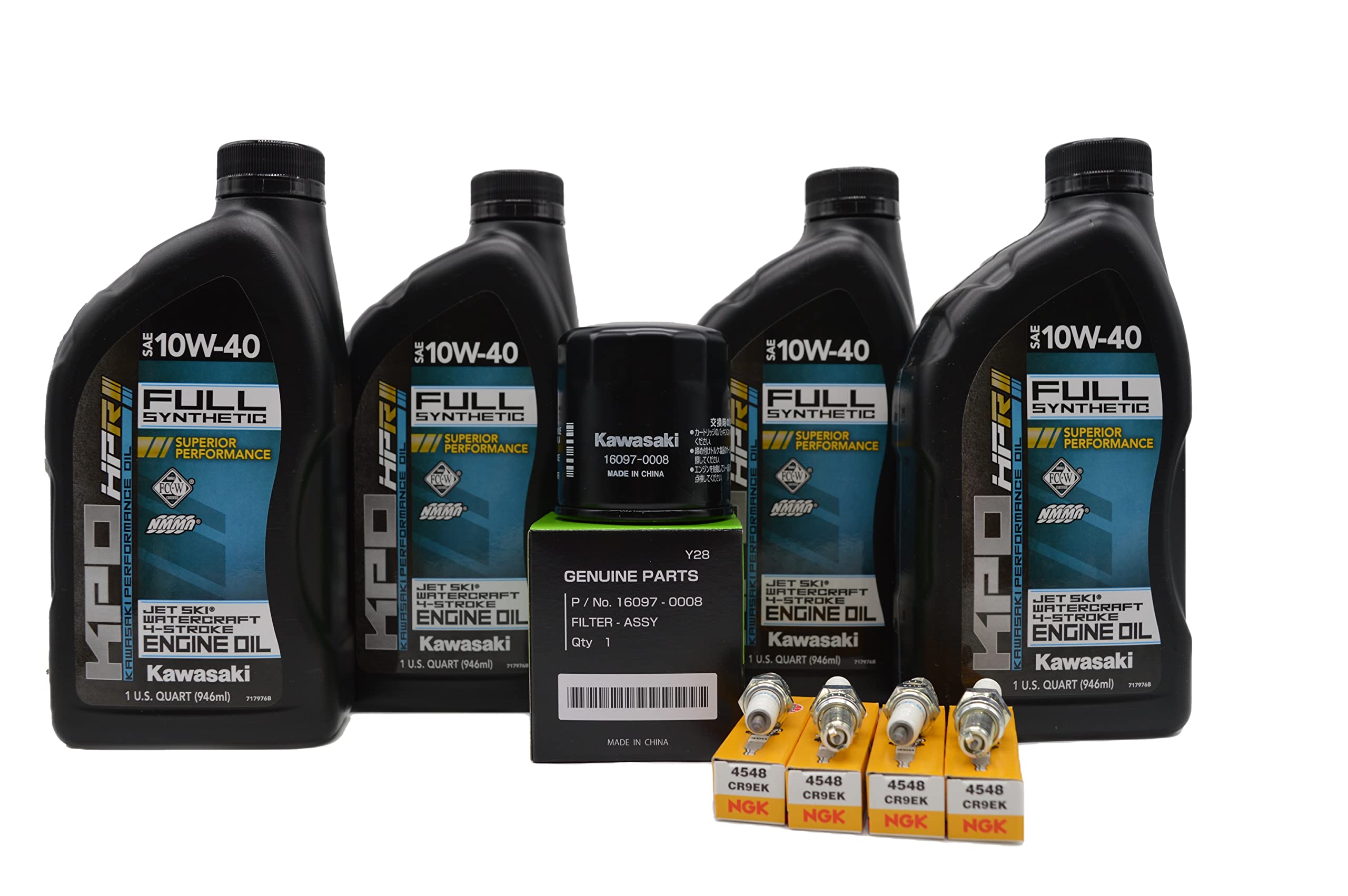

Figure 1: Contents of the Kawasaki STX-15F Oil Bundle, showing the engine oil, oil filter, and spark plugs.
2. Compatibility
This oil bundle is specifically designed for and compatible with 2004-2010 Kawasaki STX-15F Jet Ski Models. Verify your watercraft's model and year before installation to ensure proper fitment.
3. Components Included
- 4 Quarts (Qts) of Kawasaki KPO 10W-40 Watercraft Engine Oil (Part Number: K61022-500-01Q)
- 1 OEM Oil Filter (Part Number: 16097-0008)
- 4 OEM Spark Plugs (Type: CR9EK)
4. Installation Instructions
Performing regular oil and spark plug changes is crucial for the longevity and performance of your Kawasaki STX-15F. Always refer to your watercraft's official service manual for detailed, model-specific instructions and safety precautions. The following is a general guide.
4.1. Oil Change Procedure
- Preparation: Ensure the watercraft engine is warm but not hot. Place a suitable drain pan beneath the oil drain plug.
- Drain Oil: Locate and remove the oil drain plug. Allow all old oil to drain completely.
- Replace Oil Filter:
- Locate and remove the old oil filter.
- Apply a thin film of new engine oil to the rubber gasket of the new 16097-0008 oil filter.
- Install the new oil filter, tightening it according to your watercraft's service manual specifications (typically hand-tight plus a quarter to half turn).
- Reinstall Drain Plug: Clean the oil drain plug and reinstall it with a new washer if required. Tighten to the specified torque.
- Add New Oil: Remove the oil filler cap. Carefully pour the 4 quarts of Kawasaki KPO 10W-40 engine oil into the engine.
- Check Oil Level: Start the engine and let it run for a few minutes to circulate the oil. Shut off the engine, wait a few minutes, then check the oil level using the dipstick. Add more oil if necessary to reach the full mark.
- Inspect for Leaks: Check for any oil leaks around the drain plug and oil filter.
4.2. Spark Plug Replacement Procedure
- Access Spark Plugs: Locate the spark plug caps on the engine. Carefully remove the caps.
- Remove Old Plugs: Use a spark plug wrench to loosen and remove the old spark plugs. Note the condition of the old plugs as it can indicate engine health.
- Prepare New Plugs: Ensure the gap on the new CR9EK spark plugs is correctly set according to your watercraft's service manual.
- Install New Plugs: Hand-thread the new spark plugs into the cylinder head to avoid cross-threading. Once finger-tight, use the spark plug wrench to tighten them to the specified torque. Do not overtighten.
- Reattach Caps: Reconnect the spark plug caps firmly onto the new spark plugs.
5. Maintenance Tips
- Regularly check your engine oil level and condition.
- Adhere to the manufacturer's recommended service intervals for oil and spark plug changes.
- Always use genuine OEM parts to maintain the integrity and performance of your Kawasaki watercraft.
- Store your watercraft properly during off-season to prevent component degradation.
6. Specifications
| Component | Specification |
|---|---|
| Engine Oil Type | Kawasaki KPO 10W-40 Watercraft Engine Oil |
| Oil Viscosity Grade | SAE 10W-40 |
| Oil Filter Part Number | 16097-0008 |
| Spark Plug Type | CR9EK |
| Compatible Vehicle Type | Water Scooter (Kawasaki STX-15F 2004-2010) |
| Manufacturer Part Number | KAW-KPOWAT-PLUGKIT4 |
7. Troubleshooting
If you encounter issues after performing maintenance, consider the following:
- Oil Leaks: Double-check the oil drain plug and oil filter for proper tightening. Ensure gaskets are seated correctly and not damaged.
- Engine Misfire/Rough Idling: Verify spark plug caps are securely attached. Re-check spark plug gaps. Ensure spark plugs are tightened to specification.
- Low Oil Pressure Warning: Confirm the oil level is correct. If the warning persists, consult a qualified technician.
For persistent issues, it is recommended to consult a certified Kawasaki service technician.
8. Warranty and Support
This product bundle consists of genuine Kawasaki OEM parts. For specific warranty information regarding these components, please refer to the official Kawasaki warranty documentation provided with your watercraft or contact an authorized Kawasaki dealer. For technical support, please reach out to an authorized Kawasaki service center.
