Brinsea TLC-50 Eco Series II Large Bird Brooder, Pet Recovery Incubator User Manual

Introduction

The Brinsea TLC-50 Eco Series II is a versatile and efficient brooder and incubator designed for the care of newly hatched exotic chicks, newborn puppies, neonate kittens, and other small animals requiring a controlled environment. This unit provides a warm, clean, quiet, safe, and reliable haven, crucial for vulnerable young animals or those recovering from illness or injury.

It features digital temperature control, an advanced air filtration system, and enhanced humidity capabilities, all designed to promote the health and well-being of the animals housed within. The robust construction and easy-to-clean design ensure long-term reliability and hygiene.

Image: The Brinsea TLC-50 Eco Series II incubator, shown with a small fawn comfortably resting inside, demonstrating its capacity and suitability for various small animals.

Key Features

• 100-liter Capacity: Suitable for various small animals including birds, puppies, and kittens.
• Digital Temperature Control: Precise temperature management with digital display in °F or °C.
• High/Low Temperature Alarms: Alerts for temperature deviations, including a patented room temperature alarm.
• Unique Air Filtration System: Removes airborne particles to maintain a healthy environment.
• Increased Humidity Capability: Improved door fit, increased evaporating surface, and tough polycarbonate door for better humidity retention.
• Optimized Airflow: Ensures consistent heat distribution with gentle airspeeds.
• Durable Construction: Made from tough ABS plastic with a clear door and secure latch.
• Easy to Clean: Removable lower half of the cabinet and door for thorough cleaning.
• Biomaster Protection: Smooth mirror finish protected by Polygiene Biomaster for enhanced hygiene.

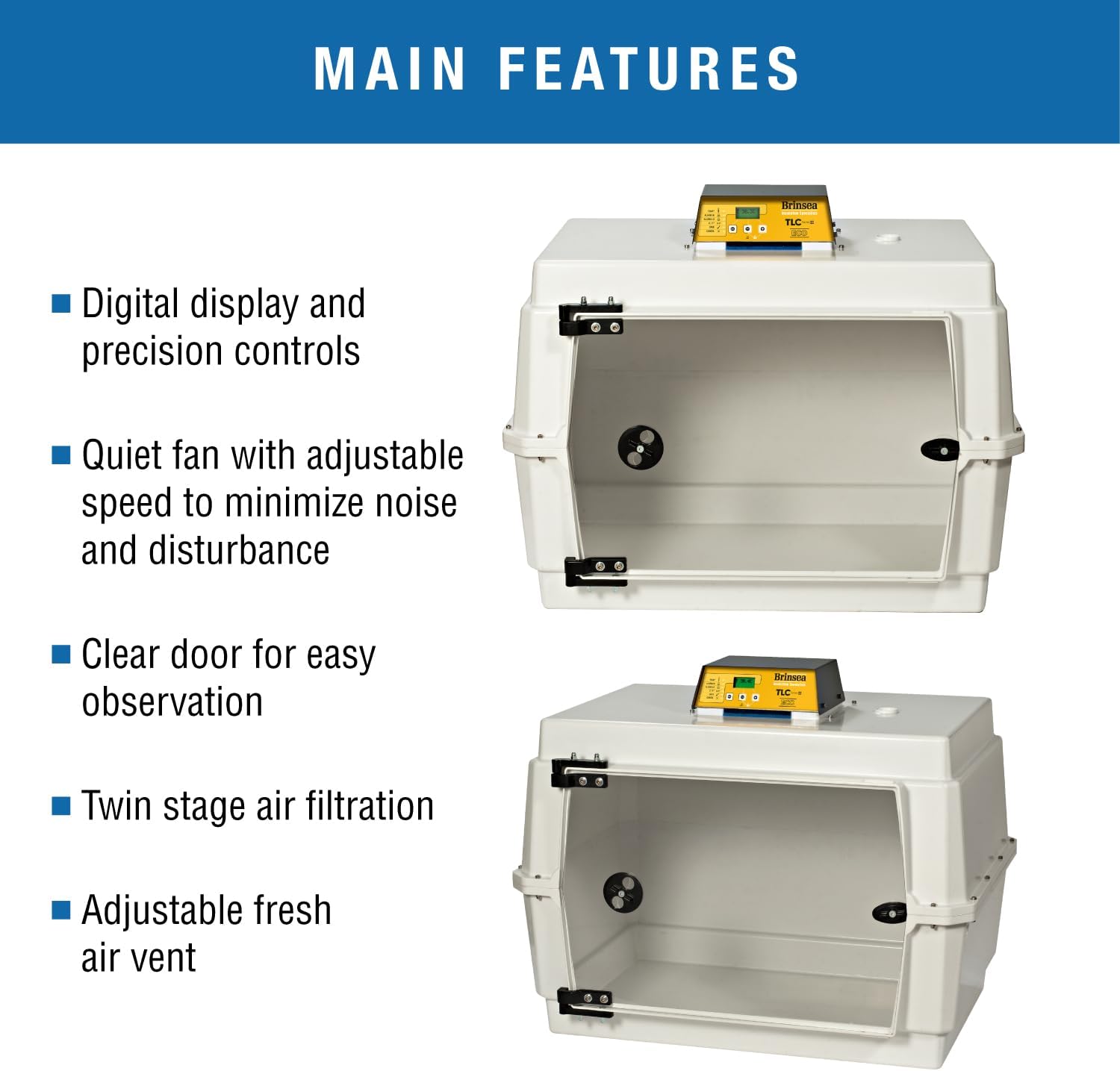

Image: An illustration highlighting the main features of the Brinsea TLC-50 Eco Series II, such as its digital display, quiet fan, clear observation door, twin-stage air filtration, and adjustable fresh air vent.

Setup

Unpacking and Initial Inspection

1. Carefully remove all components from the packaging.
2. Verify that all parts are present: 100-liter cabinet, clear door, fastener kit, and mains power cable with US plug.
3. Inspect all components for any signs of damage during transit. If any damage is found, contact customer support immediately.

Image: A visual representation of the components included with the Brinsea TLC-50 Eco Series II, comprising the main cabinet, clear door, fastener kit, and power cord.

Assembly

1. Place the main cabinet on a stable, level surface.
2. Attach the clear door to the cabinet using the provided fastener kit. Ensure the hinges are securely fastened and the latch operates smoothly.
3. Connect the mains power cable to the unit and plug it into a suitable electrical outlet.
4. Ensure the unit is placed in an area with good air circulation and away from direct sunlight or drafts.

Operating Instructions

Temperature Control

The TLC-50 Eco Series II features a digital control panel for precise temperature management.

• The display shows the current temperature in either Celsius (°C) or Fahrenheit (°F).
• Use the control buttons (OK, -, +) to adjust the desired temperature settings.
• The unit is preset to 86°F (30°C). Refer to the specific needs of the animals being housed for optimal temperature.
• High and low temperature alarms are integrated to alert users to significant temperature deviations. The new patented room temperature alarm also provides an additional layer of safety.
• Pressing the '-' and '+' buttons simultaneously can unlock the menu for advanced settings. The '-' button can also silence alarms.

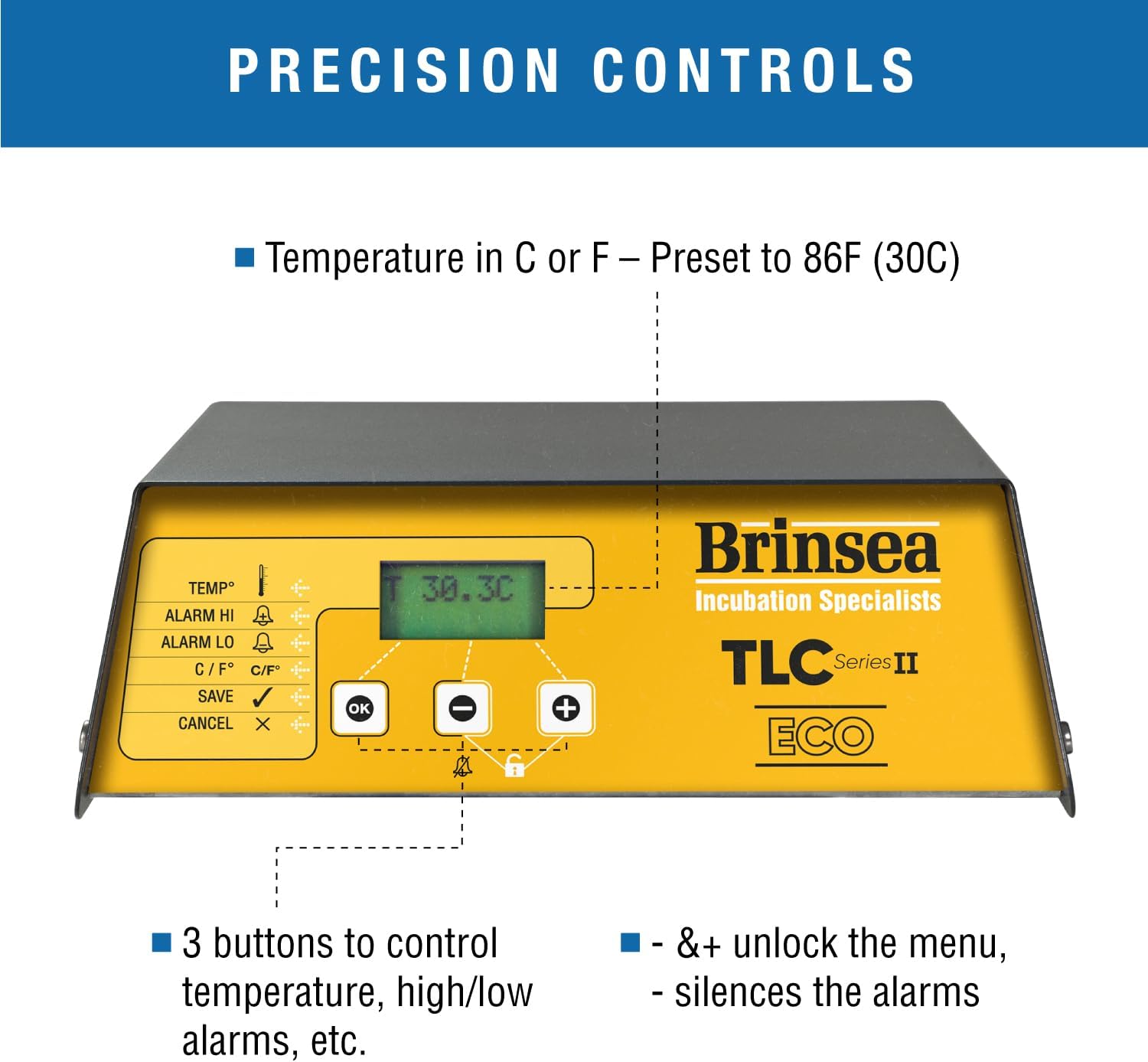

Image: A detailed view of the Brinsea TLC-50 Eco Series II control panel, illustrating the digital temperature readout and the three control buttons (OK, -, +) used for adjusting settings and managing alarms.

Humidity Management

Maintaining appropriate humidity levels is crucial for the well-being of young and recovering animals.

• The unit includes a water reservoir with an evaporating block to increase humidity.
• The water reservoir can be topped up externally, reducing the need to open the unit and disturb the animals or cause temperature fluctuations.
• Regularly check the water level in the reservoir and refill as needed.

Image: A diagram demonstrating the humidity system of the Brinsea TLC-50 Eco Series II, highlighting the water reservoir with its evaporating block and the external top-up port for easy refilling without opening the unit.

Airflow and Ventilation

The TLC-50 Eco Series II is designed with optimized airflow to ensure consistent heat distribution and a healthy environment.

• A positive pressure fan-assisted airflow system ensures even heating throughout the cabinet.
• The fan maintains gentle airspeeds to prevent dust and down from being blown around, contributing to a cleaner environment.
• An adjustable fresh air vent allows for controlled air exchange.

Image: An internal view of the Brinsea TLC-50 Eco Series II, with yellow arrows illustrating the optimized airflow pattern that ensures consistent temperature distribution throughout the unit.

Maintenance

Cleaning Procedures

Regular cleaning is essential for maintaining a hygienic environment for the animals.

• The lower half of the cabinet and the clear door are removable for easy and thorough cleaning.
• These components can be scrubbed and immersed in appropriate cleaning solutions.
• The smooth mirror finish, protected by Polygiene Biomaster, facilitates easy maintenance and contributes to a longer product life.
• Ensure all parts are completely dry before reassembling the unit.

Image: The Brinsea TLC-50 Eco Series II with its clear door and base detached, illustrating the ease of disassembly for comprehensive cleaning. The image also highlights the Biomaster protection for enhanced hygiene.

Air Filter Replacement

The unique air filtration system requires periodic filter replacement to ensure optimal performance and air quality.

• Filter replacements are available from Brinsea Products.
• Refer to the filter replacement instructions provided with the replacement filters or contact customer support for guidance.

Troubleshooting

This section provides solutions to common issues that may arise during the operation of your Brinsea TLC-50 Eco Series II.

If the issue persists after attempting these solutions, please contact Brinsea customer support for further assistance.

Specifications

• Model Name: Brinsea TLC-50 Eco Series II Large Bird Brooder Pet Incubator, Incubator for newborn puppies, kittens and other small animals
• Model Number: USHD4101C
• Capacity: 100 Liters
• Dimensions (LxWxH): 27 x 20 x 21 inches
• Item Weight: 24 Pounds
• Material: Tough ABS Plastic
• Color: Off White
• Temperature Control: Digital, with °F/°C display and high/low alarms.
• Humidity Control: Increased capability with water reservoir and external top-up.
• Air Filtration: Unique system to remove airborne particles.
• Included Components: Pet incubator, fastener kit, mains power cable (US plug).

Image: A dimensional drawing of the Brinsea TLC-50 Eco Series II, indicating its length (27 inches), width (20 inches), and height (22 inches including the control unit, 19 inches for the main cabinet).

Warranty and Support

Warranty Information

The Brinsea TLC-50 Eco Series II comes with a full 3-year manufacturer's warranty. This warranty is subject to registration within 30 days of purchase.

For detailed warranty terms and conditions, please refer to the documentation included with your product or visit the official Brinsea website.

Customer Support

For any questions, technical assistance, or warranty claims, please contact Brinsea Products customer support. Contact information can typically be found on the Brinsea website or in the product packaging.

Brinsea is committed to providing expert customer care and support, leveraging over 45 years of leading technology in incubation.

Image: An infographic promoting Brinsea's brand values, emphasizing over 45 years of leading technology, expert customer care and support, and being trusted in over 65 countries.

Important Safety Information

• Always ensure the unit is placed on a stable, level surface.
• Do not block air vents or openings.
• Keep the unit away from water sources and extreme temperatures.
• Unplug the unit before cleaning or performing any maintenance.
• Supervise animals housed within the unit regularly.
• This product is intended for indoor use only.
