Lordear 33 Double Bowl Kitchen Sink Installation and User Manual

Product Overview

The Lordear 33 Double Bowl Kitchen Sink is constructed from high-quality T304 16-gauge stainless steel, ensuring durability and resistance to stains, scratches, and rust. Its brushed surface is designed for practical use and easy maintenance. This 60/40 double bowl configuration offers versatile functionality for various kitchen tasks.

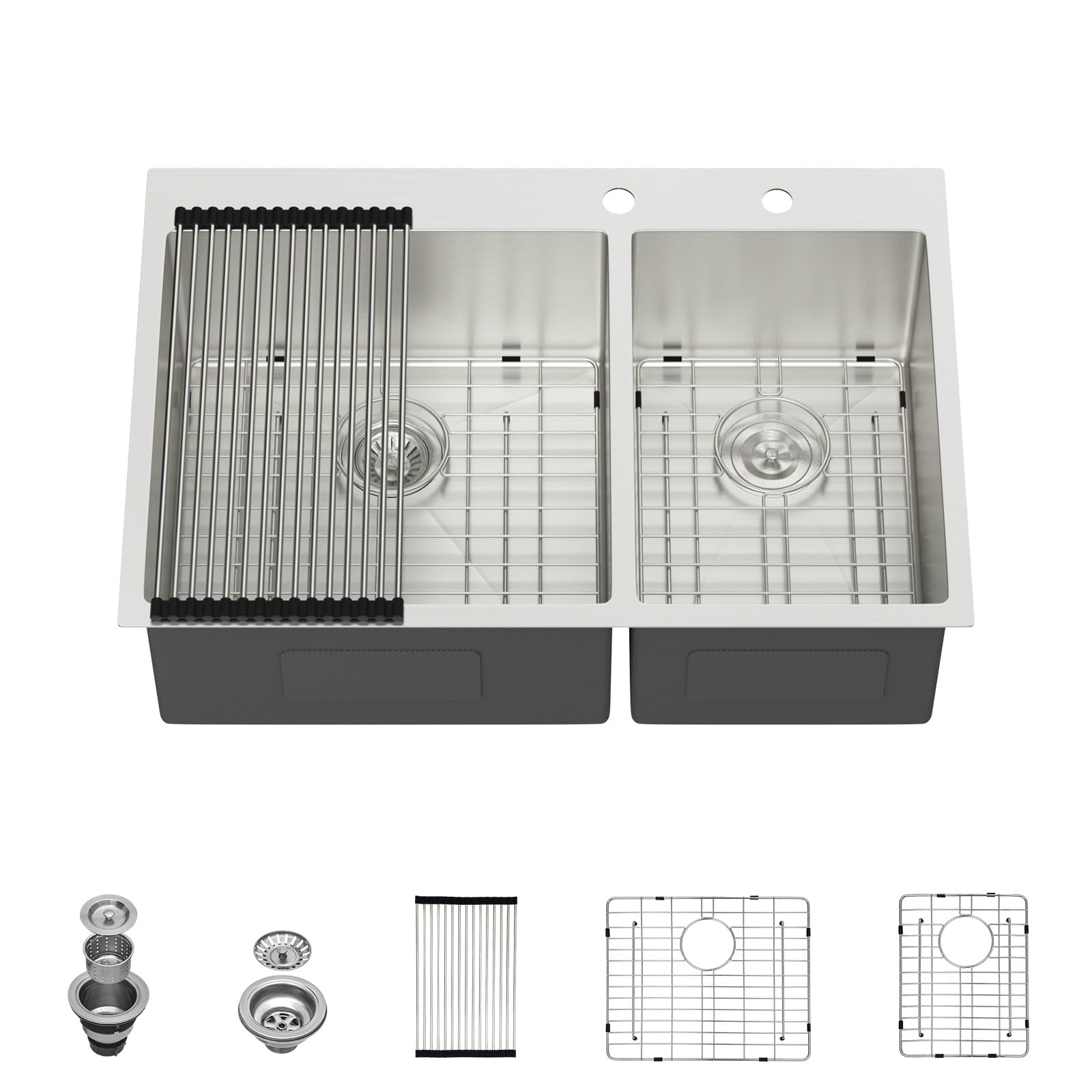

Image: Top-down view of the Lordear 33 Double Bowl Kitchen Sink, showcasing its stainless steel finish and dual basin design.

Key Features:

• 16 Gauge Stainless Steel Material: Made from T304 stainless steel for strength, durability, and resistance to corrosion.
• 60/40 Double Bowl Design: Provides separate areas for washing and rinsing, enhancing kitchen efficiency.
• Excellent Drainage: Features an X-shaped diversion water design and a slightly sloped channel to prevent water accumulation.
• R10 Round Corners: Designed for easier cleaning and to prevent dirt accumulation in corners.
• Standard Drain Opening: Equipped with a 3.5-inch drain opening compatible with most garbage disposal systems.

Setup and Installation

This section provides detailed instructions for installing your Lordear 33 Double Bowl Kitchen Sink. Ensure you have all necessary tools and components before beginning. Professional installation is recommended if you are unfamiliar with plumbing or countertop modifications.

Included Components:

• 33 double bowl drop-in kitchen sink
• 2 x 304 stainless steel dish grids
• 2 x drain assemblies
• Roll-up rack
• Clips
• Cutout template
• Installation instructions (this manual)

Installation Steps:

1. Prepare the Countertop: Use the provided cutout template to mark the opening on your countertop. Carefully cut the opening using appropriate tools. Ensure the minimum cabinet base size is 36 inches for proper fit.


Image: Illustration of using a template to mark the countertop for cutting the sink opening.

2. Place the Sink: Carefully lower the sink into the pre-cut hole in the countertop. Ensure it sits flush and is properly aligned.

Video: Step-by-step guide on how to install a Lordear drop-in kitchen sink, including placing the sink into the pre-cut hole.
3. Install Drain Assemblies: Insert the drain assemblies into the sink's drain openings. Apply plumber's putty or sealant around the drain flange before inserting it into the sink hole. From underneath, place the rubber gasket and screw on the cap to secure the drain.
4. Secure the Sink with Clips: Attach the mounting clips to the underside of the sink rim and tighten them against the countertop to secure the sink in place. Ensure even pressure around the perimeter.


Image: Close-up view of the mounting clips being installed to secure the sink to the countertop.

5. Connect Plumbing: Connect the drain pipes and P-trap to the installed drain assemblies. Ensure all connections are tight and leak-free.
6. Install Faucet and Accessories: Install your kitchen faucet and any other accessories (e.g., soap dispenser) into the pre-drilled holes on the sink deck, following their respective installation instructions.


Image: The Lordear sink with included accessories such as the dish grid, drain assembly with basket, and roll-up rack.

7. Test for Leaks: Turn on the water supply and check all connections for any leaks. Tighten as necessary.

Operating Instructions

The Lordear 33 Double Bowl Kitchen Sink is designed for ease of use in daily kitchen activities. Its 60/40 split allows for efficient multitasking, such as washing dishes in one bowl while preparing food in the other.

Daily Use:

• Utilize the larger bowl for washing pots, pans, and larger items.
• The smaller bowl is ideal for rinsing fruits and vegetables or for use with a garbage disposal.
• The included dish grids protect the bottom of the sink from scratches and allow water to drain freely.
• The roll-up rack provides additional workspace for drying dishes or preparing food.

Image: A view of the deep sink bowl, highlighting its capacity for various kitchen items.

Maintenance

Proper care and maintenance will ensure the longevity and aesthetic appeal of your Lordear stainless steel sink.

Product Care Instructions:

• Keep the sink away from decoration materials during remodeling to prevent damage.
• Use a soft towel to wipe the sink regularly.
• Avoid scratching the sink with abrasive tools or harsh chemicals.
• Clean the X-grooves and R10 corners regularly to maintain optimal drainage and prevent stain accumulation.

Image: Close-up of the sink's X-grooves for efficient drainage and the R10 round corners for easy cleaning.

Troubleshooting

This section addresses common issues you might encounter with your kitchen sink.

Common Issues and Solutions:

• Slow Drainage: Check the drain basket for food debris. If using a garbage disposal, ensure it is clear. For persistent issues, the P-trap may need cleaning.
• Leaks Around Drain: Ensure the drain assembly is properly tightened and that plumber's putty or sealant was applied correctly during installation. Re-tighten or re-seal if necessary.
• Water Stains/Spots: Stainless steel can show water spots, especially in hard water areas. Wipe the sink dry after each use with a soft cloth to prevent mineral buildup.
• Scratches: While the brushed surface is scratch-resistant, deep scratches can occur. Use the included dish grids to minimize direct contact with heavy or sharp objects.

Specifications

Detailed technical specifications for the Lordear 33 Double Bowl Kitchen Sink.

Image: Detailed diagram showing the external, internal, and cutout dimensions of the Lordear 33 Double Bowl Kitchen Sink, along with the minimum cabinet base size required.

Warranty Information

Lordear products typically come with a manufacturer's warranty covering defects in materials and workmanship. For specific warranty terms and conditions applicable to your Lordear 33 Double Bowl Kitchen Sink, please refer to the warranty card included with your purchase or visit the official Lordear website. Keep your proof of purchase for warranty claims.

Customer Support

Should you require assistance with installation, operation, maintenance, or have any questions regarding your Lordear 33 Double Bowl Kitchen Sink, please contact Lordear customer support. Contact information can typically be found on the product packaging, the official Lordear website, or through your retailer.

For inquiries or assistance, our dedicated after-sale department is available to provide prompt solutions.
