Introduction
This instruction manual provides essential information for the safe and efficient operation, installation, and maintenance of your Elica 60 cm 1500 m3/hr Filterless Autoclean Kitchen Chimney, model FLCG 600 HAC LTW MS NERO. Please read this manual thoroughly before using the appliance and retain it for future reference.
Your Elica chimney is designed to provide a smoke-free and clean cooking environment with advanced features like Filterless Technology, Heat Auto Clean, and Motion Sensor Control.
Image: Elica FLCG 600 HAC MS NERO Chimney in a modern kitchen, illustrating its sleek design and functionality.
Setup and Installation
The Elica FLCG 600 HAC LTW MS NERO chimney is a wall-mounted unit. Professional installation is highly recommended to ensure proper functioning and safety. Ensure the installation area provides adequate space and ventilation as per local building codes and safety standards.
Key Installation Considerations:
- Mounting Type: Wall Mount.
- Ventilation: This is a ducted ventilation type chimney. Ensure proper ducting is installed to expel smoke and fumes outside.
- Power Supply: The chimney operates on 240 Volts (AC). Ensure a dedicated power outlet is available.
- Dimensions: Refer to the product dimensions for precise placement. The product dimensions are 53.5D x 60W x 45H Centimeters.
Image: Diagram showing the product dimensions of the Elica chimney, including width (60 cm), depth (53.5 cm), and height (45 cm).
Operating Instructions
Your Elica chimney features both Touch Control and Motion Sensor for convenient operation.
Touch Control:
The control panel is located on the front of the chimney. Use the touch buttons to power on/off, adjust suction speed, and activate the auto-clean function. The LED lamps can also be controlled via the touch panel.
Image: A finger interacting with the touch control panel of the Elica chimney, highlighting the ease of use.
Motion Sensor Control:
The motion sensor allows for hands-free operation, ideal when your hands are occupied during cooking.
- To Turn On/Increase Speed: Wave your hand from left to right in front of the sensor.
- To Decrease Speed/Turn Off: Wave your hand from right to left in front of the sensor.

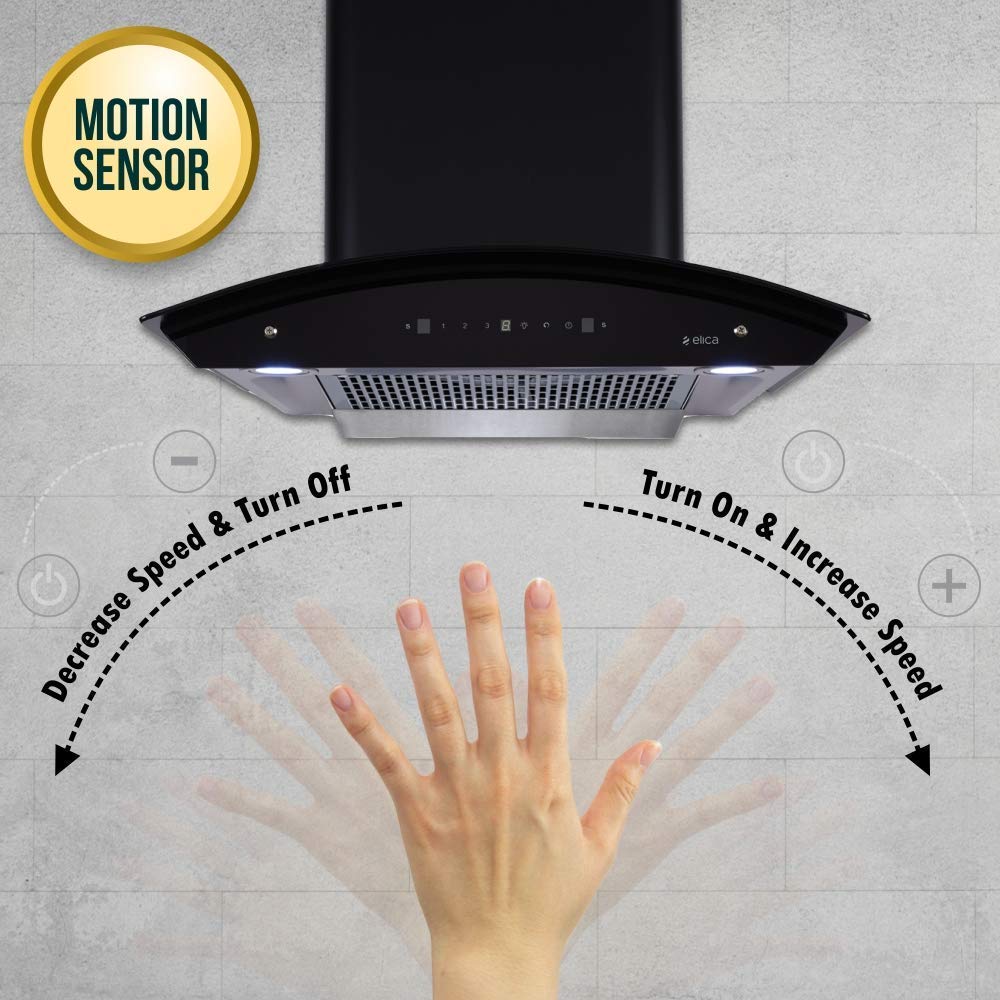

Image: A hand demonstrating the motion sensor control feature, showing how to turn on/off and adjust speed with a simple wave.
Filterless Suction:
The chimney features filterless technology, ensuring powerful suction of unhealthy smoke and oily fumes directly into the collection system. The concealed motor design contributes to durability and long life.
Image: A visual representation of the filterless suction mechanism, showing smoke and fumes being efficiently drawn into the chimney.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your Elica chimney.
Heat Auto Clean Technology:
This feature simplifies cleaning by using a heating element to melt sticky oil particles inside the chimney. The liquefied oil then collects in the removable oil collector.
- Activate the auto-clean function via the touch control panel.
- Allow the cycle to complete.
- Once the cycle is finished, carefully remove and empty the oil collector.
- Clean the oil collector with warm soapy water and reinsert it.
Image: Icon representing Heat Auto Clean Technology, indicating its function in cleaning the chimney's interior.
Oil Collector:
The built-in oil collector is designed to gather sticky oil and other residues. It is located directly below the suction area for easy access and cleaning.
Image: Icon representing the Oil Collector, emphasizing its role in collecting cooking residues.
Exterior Cleaning:
Wipe the exterior surfaces of the chimney with a soft, damp cloth and mild detergent. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
Troubleshooting
If you encounter issues with your Elica chimney, refer to the following common problems and solutions before contacting customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Chimney does not turn on | No power supply, loose connection, or tripped circuit breaker. | Check power cord, ensure it's plugged in securely. Check your home's circuit breaker. |
| Low suction power | Ducting obstruction, incorrect installation height, or motor issue. | Inspect ducting for blockages. Ensure chimney is installed at the recommended height above the cooktop. If issues persist, contact support. |
| Unusual noise during operation | Loose components, motor issue, or ducting vibration. | Check for any loose parts. Ensure ducting is securely fastened. If the noise is from the motor, contact customer support. |
| Auto-clean not effective | Oil collector full, or heating element malfunction. | Empty and clean the oil collector. If the issue continues, contact customer support. |
For problems not listed here or if solutions do not resolve the issue, please contact Elica customer support.
Specifications
| Feature | Detail |
|---|---|
| Model | FLCG 600 HAC LTW MS NERO |
| Air Flow Capacity | 1500 m3/hr (Cubic Meters Per Hour) |
| Material | Glass |
| Noise Level | 58 Decibels |
| Mounting Type | Wall Mount |
| Controls Type | Touch Control, Motion Sensor |
| Voltage | 240 Volts (AC) |
| Item Weight | 14.5 Kilograms |
| Light Source Type | LED |
| Filter Type | Filterless |
| Item Form | Curved |
| Ventilation Type | Ducted |
| Annual Energy Consumption | 219 Watts |
| Special Features | Auto Clean, Built-In Oil Collector, Motion Sensor |
| Product Dimensions (LxWxH) | 60 x 48 x 50 Centimeters (Item Dimensions) / 53.5D x 60W x 45H Centimeters (Product Dimensions) |
| Included Components | Chimney |
| Country of Origin | India |
Warranty Information
Elica provides the following warranty for your kitchen chimney:
- Motor: Lifetime (15 years) warranty.
- Comprehensive: 2 years comprehensive warranty from the Date of Purchase.
Please retain your purchase receipt for warranty claims. The warranty covers manufacturing defects under normal use conditions. For detailed terms and conditions, refer to the warranty card provided with your product or contact Elica customer support.
Customer Support
For any queries, technical assistance, or service requests regarding your Elica kitchen chimney, please contact our customer care team:
Customer Care Numbers:
18002330007
7447440983 / 7447440984 / 7447440985
Image: Elica Customer Care contact details, including phone numbers for support.
Our support team is available to assist you with installation, operation, maintenance, and troubleshooting.
