GLORHOME Twin-Over-Twin Metal Triple Bunk Bed with Trundle Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your GLORHOME Twin-Over-Twin Metal Triple Bunk Bed with Trundle. Please read all instructions carefully before assembly and use to ensure safe and proper operation. Keep this manual for future reference.

Safety Information

WARNING: Failure to follow these warnings and instructions could result in serious injury or death.

• Always follow the manufacturer's recommended mattress size and thickness.
• Ensure all connections are tight before use and periodically check to ensure they remain secure.
• The top bunk is not suitable for children under 6 years of age.
• Do not allow more than one person on the upper bunk.
• Always use the ladder for entering and exiting the upper bunk. Do not use substitute parts. Contact the manufacturer for replacement parts.
• Prohibit horseplay on or under the bed.
• Prohibit more than one person on the trundle bed at a time.
• Maximum weight capacity for the upper bed is 250 lbs, for the bottom bed is 350 lbs, and for the trundle bed is 250 lbs.
• This bunk bed can be separated into two individual twin beds. When separated, ensure all components are stable and secure.

Parts List

Before beginning assembly, ensure all parts listed below are present. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

(Note: Specific part names and quantities are typically provided in a physical manual. This section serves as a placeholder for such a list.)

• Headboards and Footboards (Upper, Lower, Trundle)
• Side Rails (Upper, Lower, Trundle)
• Support Slats (Upper, Lower, Trundle)
• Ladder
• Trundle Frame with Wheels
• Hardware (bolts, nuts, washers, Allen wrench)
• Guardrails (Upper Bunk)

Setup and Assembly Instructions

Assembly requires at least two adults. Do not use power tools for assembly as this may overtighten fasteners and damage the frame. Follow the steps in order.

Image: The GLORHOME Twin-Over-Twin Metal Triple Bunk Bed with Trundle, showcasing its design in a typical bedroom environment.

Step 1: Prepare the Area and Unpack

Clear a spacious area for assembly. Unpack all components and lay them out on a soft, clean surface to prevent scratches.

Step 2: Assemble the Lower Bed Frame

Attach the side rails to the lower headboard and footboard using the provided hardware. Hand-tighten all bolts initially.

Step 3: Assemble the Upper Bed Frame

Repeat the process for the upper bed frame, attaching side rails to the upper headboard and footboard. Ensure guardrails are correctly oriented.

Step 4: Connect Upper and Lower Frames

Carefully lift the upper bed frame and align it with the posts of the lower bed frame. Secure them together using the designated connectors and hardware. This step requires two people.

Step 5: Attach the Ladder

Securely attach the ladder to the designated hooks or mounting points on the bunk bed frame.

Step 6: Assemble the Trundle Bed

Assemble the trundle frame, attaching the side rails to the headboard and footboard. Install the wheels onto the trundle frame. Ensure two wheels are locking and two are non-locking for stability.

Image: Close-up view of a trundle bed wheel, demonstrating its attachment to the frame.

Step 7: Install Slats

Place the metal slats onto the support rails for all three beds (upper, lower, and trundle). Ensure they are evenly spaced and securely fastened if applicable.

Step 8: Final Tightening

Once all components are assembled, go back and fully tighten all bolts and fasteners using the provided Allen wrench. Do not overtighten.

Image: Fully assembled GLORHOME Twin-Over-Twin Metal Triple Bunk Bed in white, with the trundle bed neatly stored underneath the lower bunk.

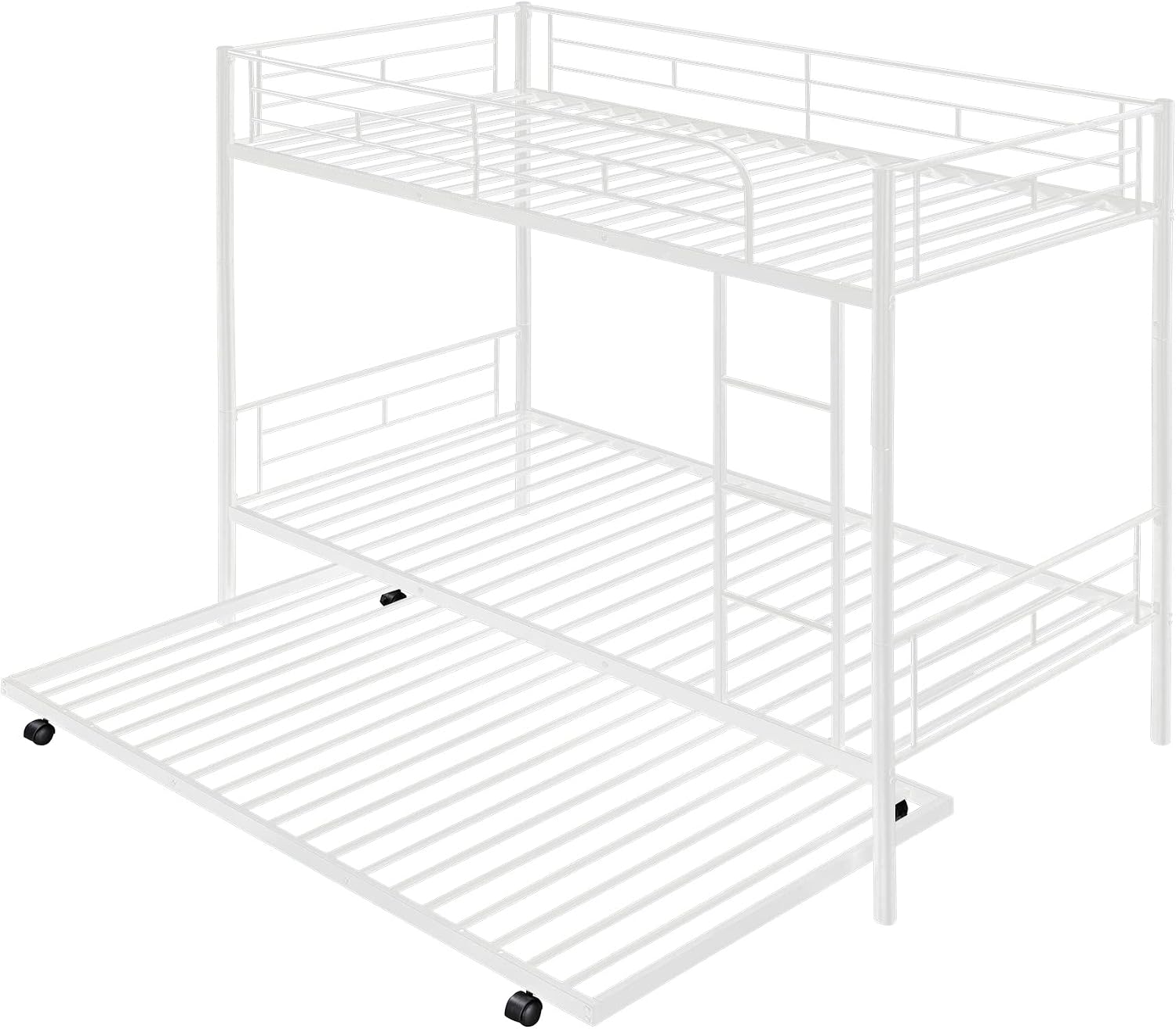

Image: Fully assembled GLORHOME Twin-Over-Twin Metal Triple Bunk Bed in white, with the trundle bed pulled out, ready for use.

Operating Instructions

Using the Trundle Bed

The trundle bed is designed to slide out from under the lower bunk. To use, gently pull the trundle frame outwards until it is fully extended. To store, push the trundle back under the lower bunk. Ensure the locking casters are engaged when the trundle is in use to prevent unwanted movement.

Separating into Two Twin Beds

This bunk bed can be separated into two independent twin beds. To do so, carefully remove the upper bunk from the lower bunk by disassembling the connecting hardware (Step 4 in assembly). Then, reattach the original headboards and footboards to create two complete twin bed frames. This process requires two adults for safety.

Image: The GLORHOME bunk bed disassembled into two separate twin bed frames, showcasing its versatile configuration.

Maintenance

• Cleaning: Wipe the metal frame with a damp cloth and mild soap. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
• Inspection: Periodically check all bolts, screws, and connections to ensure they are tight. Re-tighten if necessary.
• Mattress Care: Follow the mattress manufacturer's care instructions. Ensure mattresses fit snugly within the frame to prevent gaps.

Troubleshooting

Issue: Bed feels wobbly or unstable.

Solution: Check all assembly bolts and ensure they are fully tightened. Ensure the bed is placed on a level surface. If the issue persists, disassemble and reassemble, paying close attention to each connection.

Issue: Trundle bed does not slide smoothly.

Solution: Check the wheels for any obstructions or debris. Ensure the wheels are properly installed and not damaged. Lubricate the wheel axles if necessary.

Issue: Missing parts during assembly.

Solution: Do not proceed with assembly. Contact GLORHOME customer support immediately with your product model and a description of the missing parts.

Specifications

The following specifications apply to the GLORHOME Twin-Over-Twin Metal Triple Bunk Bed with Trundle:

Image: Technical diagram showing all key dimensions of the bunk bed and trundle in inches.

Warranty Information

This GLORHOME product comes with a one-year limited warranty from the date of purchase. The warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage resulting from improper assembly, misuse, abuse, accident, or unauthorized modifications. Please retain your proof of purchase for warranty claims.

Customer Support

For assistance with assembly, missing parts, or warranty claims, please contact GLORHOME customer support. Refer to your purchase documentation for specific contact details or visit the official GLORHOME website.
