1. Important Safety Information
Please read all instructions carefully before assembling and using the Deryan Rolo X2 Stroller Buggy. Keep this manual for future reference.
- Always secure children with the 5-point safety harness. Ensure straps are snug but comfortable.
- Engage the innovative braking system when the stroller is stationary to prevent accidental movement.
- Do not overload the stroller. The maximum load capacity per seat is 22 kg.
- Ensure all locking mechanisms are engaged before placing children in the stroller.
- Never leave children unattended in the stroller.
- Avoid placing heavy bags on the handles as this can cause the stroller to tip over.

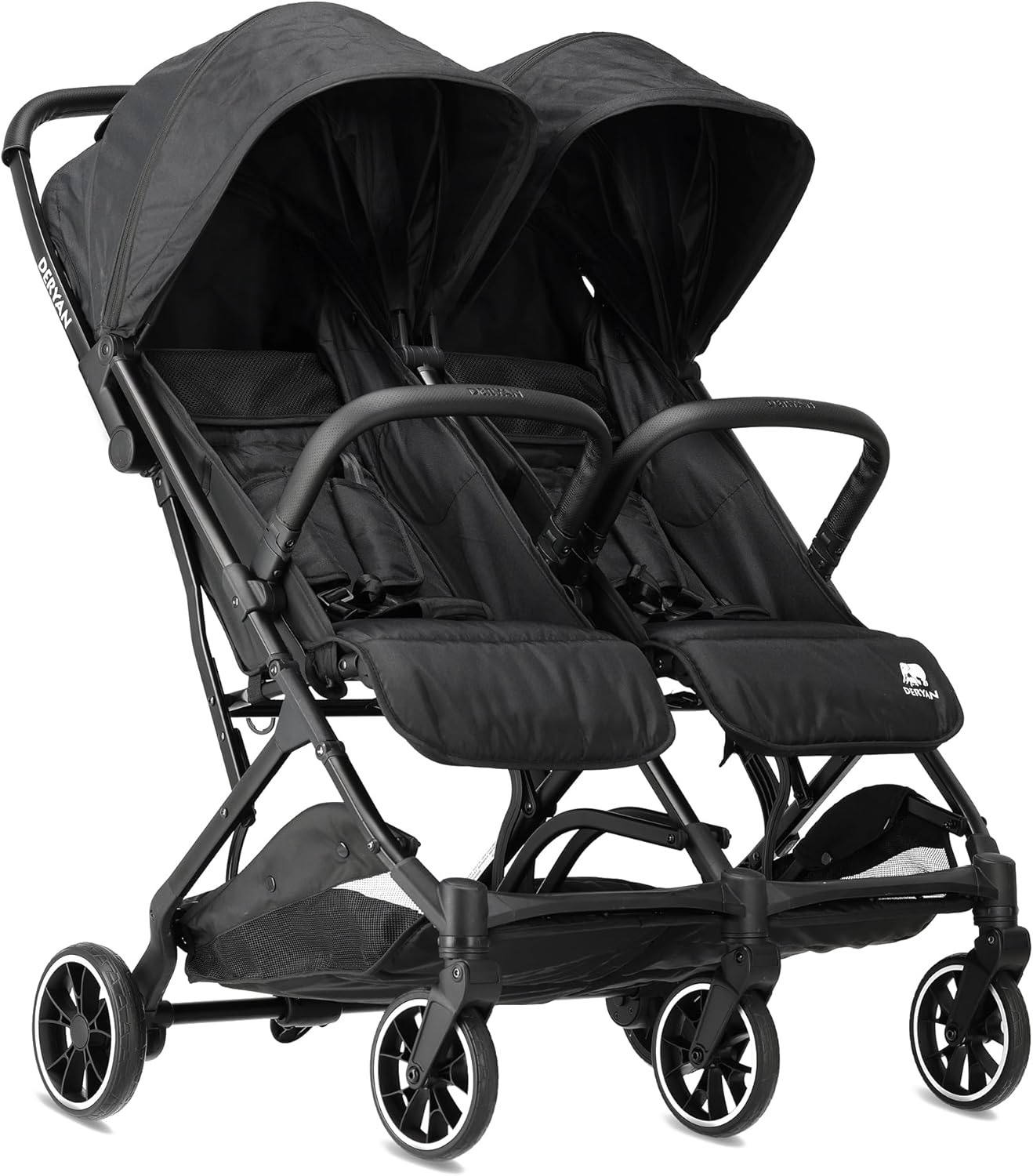

Image 1: The Deryan Rolo X2 double stroller, showcasing its compact design and dual seating.
2. Setup and Assembly
The Deryan Rolo X2 Stroller Buggy features a convenient folding system designed for easy setup and storage.
2.1 Unfolding the Stroller
- Place the folded stroller on a flat, stable surface.
- Release the folding latch (if present).
- Grasp the handle and lift upwards firmly. The stroller is designed to unfold automatically with a single motion.
- Ensure all frame components click into place and are securely locked before use.
2.2 Folding the Stroller
- Remove children and any items from the stroller.
- Ensure the canopies are retracted and seats are in an upright position if possible.
- Locate the folding buttons/levers, typically on the handle or frame.
- Press or slide the mechanisms as instructed (refer to specific labels on your stroller). The stroller will collapse into a compact form.
- Secure the folding latch to keep the stroller in its folded position.
3. Operating the Stroller
The Deryan Rolo X2 is designed for flexibility and maneuverability, offering comfort for your children and ease of use for parents.
3.1 Adjusting the Seats
- Backrest: Each seat features a 3-position adjustable backrest. Locate the recline mechanism behind the seat and adjust to the desired angle for sitting or sleeping.
- Footrest: The footrest is adjustable in 2 positions. Adjust it to provide optimal comfort and support for your children's legs.
Image 2: A parent adjusting the canopy of the Deryan Rolo X2, highlighting the individual seat adjustments.
3.2 Using the Safety Harness
The 5-point safety harness ensures your children are securely fastened. Insert each buckle into the central locking mechanism until it clicks. To release, press the button on the central buckle.
3.3 Engaging the Brakes
The innovative braking system is located on the rear wheels. Press down firmly on the brake pedal to engage the brakes. Lift the pedal to release. Always engage the brakes when the stroller is stationary, especially on inclines.
Image 3: A man pushing the Deryan Rolo X2 double stroller with two children, demonstrating its ease of maneuverability.
Image 4: The Deryan Rolo X2 double stroller being used outdoors, highlighting its practical design for daily outings.
4. Maintenance
Proper maintenance will extend the life and performance of your Deryan Rolo X2 Stroller Buggy.
- Cleaning: Clean the fabric components with a damp cloth and mild soap. For the leather-covered handles, wipe with a damp cloth and apply a leather conditioner periodically to maintain their quality.
- Canopy: The canopy offers UV 50+ protection. Wipe clean with a damp cloth.
- Wheels: Regularly check the wheels for debris and clean as necessary. Ensure they rotate freely.
- Storage: Store the stroller in a dry place, away from direct sunlight and extreme temperatures, when not in use.
5. Troubleshooting
If you encounter any issues with your Deryan Rolo X2 Stroller Buggy, please refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Stroller difficult to fold/unfold | Folding mechanisms are stiff or misaligned. | Ensure all components are clear of obstructions. Apply light lubricant to moving parts if necessary. Practice the folding motion without children in the stroller. Some users report that the folding buttons may require firm, simultaneous pressure. |
| Wheels not turning smoothly | Debris caught in wheels or axles. | Remove any hair, dirt, or debris from the wheel axles. Clean and lubricate if needed. |
| Brake not engaging/disengaging | Brake mechanism is obstructed or misaligned. | Check for any obstructions around the brake pedal and wheel mechanism. Ensure the pedal is fully pressed down or lifted. |
| Harness buckles are stiff | Dirt or residue in the buckle mechanism. | Clean the buckle mechanism with a damp cloth. Ensure no food particles or debris are lodged inside. |
6. Specifications
- Model Number: 8720618620309
- Maximum Supported Weight (per seat): 22 Kilograms
- Main Material: Leather (for handles), Aluminium (frame)
- Special Features: Foldable
- Number of Items in Package: 1
- Batteries Required: No
- Harness Type: 5-point
- Number of Seating Positions: 2
- Wheel Material: Plastic, Rubber/Foam
- Folded Product Dimensions (L x W x H): 105 cm x 77 cm x 81 cm
- Unfolded Product Dimensions (L x W x H): 81 cm x 77 cm x 105 cm
- Item Weight: 12 Kilograms
- Color: Black
7. Warranty and Support
At DERYAN, your satisfaction is our priority. We are committed to providing high-quality products and excellent customer service.
If you encounter any issues with your Deryan Rolo X2 Stroller Buggy or have questions not covered in this manual, please do not hesitate to contact our customer support team. We are always available to assist you and work together to find a solution.
For support, please visit the official Deryan website or contact the retailer where you purchased the product.
