Goodhome Square Steel Gazebo User Manual

1. Product Overview

The Goodhome Square Steel Gazebo is designed to create a comfortable and stylish outdoor living space in your garden. It features a sturdy powder-coated steel construction and a durable 180 g/m2 fabric canopy. This traditional gazebo includes fabric side curtains for added privacy and protection. The canopy is water repellent, providing shelter from light rain, and the entire unit comes with a convenient carry bag for storage and transport.

Figure 1: Full view of the assembled Goodhome Square Steel Gazebo with its grey fabric canopy and side curtains.

Figure 2: An illustrative diagram of the Goodhome Square Steel Gazebo with its overall dimensions (300cm length, 300cm width, 270cm height) clearly labeled.

2. Safety Information

It is crucial to follow general safety guidelines during the installation, use, and maintenance of your gazebo. Always ensure the shelter is secured to a stable foundation to prevent movement, especially in windy conditions. Do not exceed any weight limits for hanging items from the frame. Regular inspection for wear and tear is recommended to ensure continued safe use.

• Always assemble the gazebo on a flat, level surface.
• Securely anchor the gazebo to the ground using appropriate stakes or weights, especially in areas prone to wind.
• Do not use the gazebo during extreme weather conditions such as heavy winds, storms, or snow. Disassemble and store it if severe weather is anticipated.
• Keep all flame and heat sources away from the gazebo fabric.
• Ensure all connections and bolts are tightened securely during assembly and periodically checked thereafter.

3. Components List

Before beginning assembly, ensure all components are present and undamaged. The main components typically include:

• Powder-coated steel frame sections (legs, roof beams, connectors)
• Fabric canopy (180 g/m2 water repellent fabric)
• Fabric side curtains
• Hardware (bolts, nuts, washers, pins)
• Carry bag

Figure 3: Underside view of the central hub connecting the roof support beams of the gazebo frame.

Figure 4: Detailed close-up of a bolted joint within the steel frame structure of the gazebo.

Figure 5: Close-up of the base of a gazebo leg, showing the flat foot with pre-drilled holes for securing to the ground.

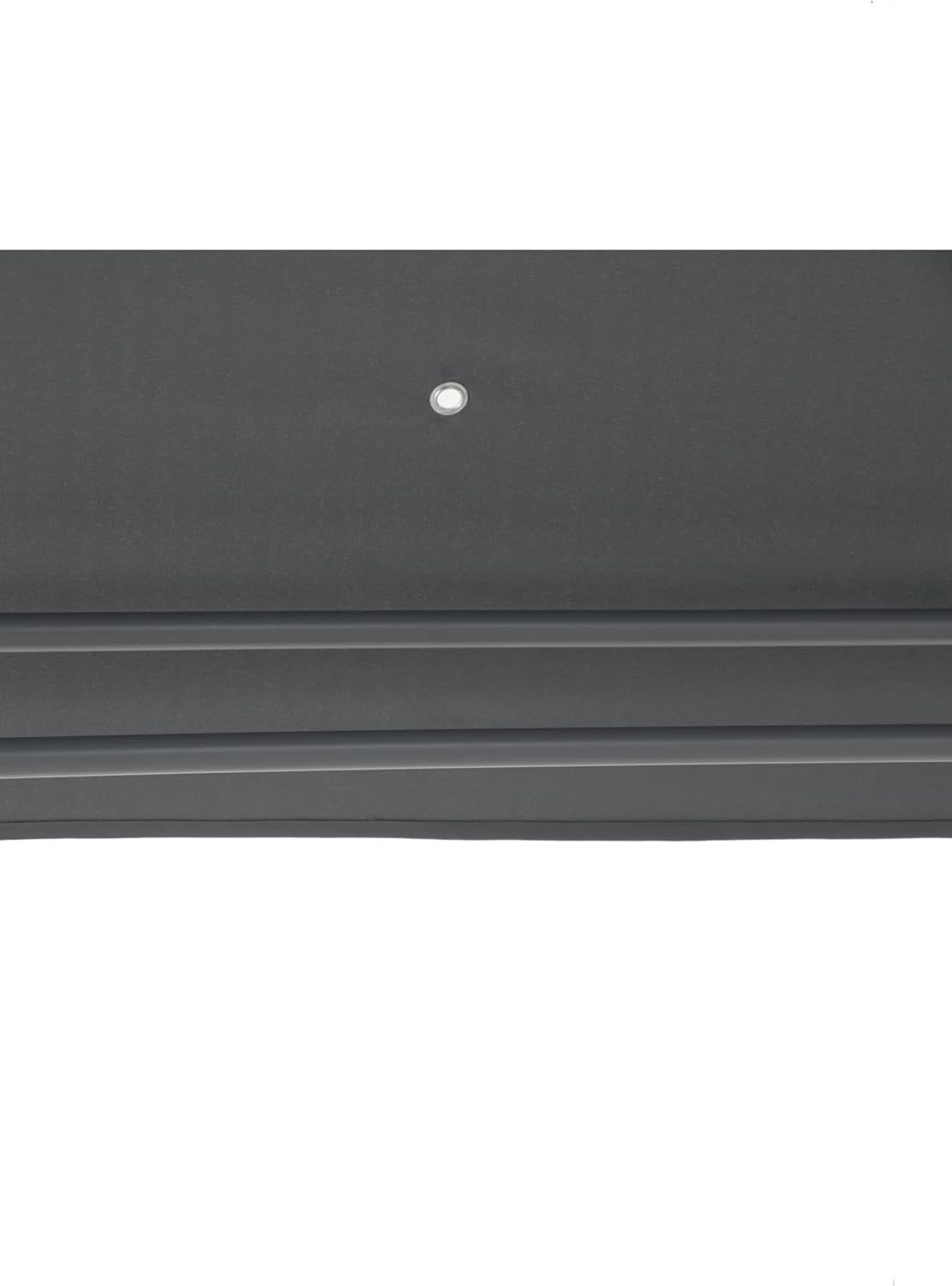

Figure 6: Close-up view of the gazebo's roof fabric, showing the material texture and a central vent grommet.

4. Setup and Assembly

Assembly typically requires two people. Choose a clear, level area for setup. While specific step-by-step instructions are usually provided with the product packaging, the general process involves:

1. Unpack and Identify Parts: Lay out all components and verify against the components list.
2. Assemble the Base Frame: Connect the leg poles and base connectors to form the square base of the gazebo.
3. Attach Roof Support Beams: Connect the roof support beams to the central hub and the top of the leg poles.
4. Install the Canopy: Drape the fabric canopy over the assembled roof frame, ensuring it is taut and properly aligned. Secure the canopy to the frame as per instructions (e.g., with ties or velcro straps).
5. Attach Side Curtains: Hang the fabric side curtains from the frame, typically using rings or loops that slide onto the frame.
6. Secure the Gazebo: Crucially, anchor the gazebo to the ground using the provided stakes or by bolting the leg bases to a stable surface. This is vital for stability and safety, especially in windy conditions.

Always refer to the detailed assembly instructions included in your product packaging for precise steps and diagrams.

5. Operating Instructions

The Goodhome Square Steel Gazebo is designed for general outdoor use, providing shade and a comfortable gathering space.

• Canopy Use: The 180 g/m2 fabric canopy offers protection from sun and is water repellent for light rain. It is not designed for heavy downpours or as a permanent waterproof structure.
• Side Curtains: The fabric side curtains can be drawn closed for privacy or protection from light wind, or tied back to the legs when not needed.
• Ventilation: Ensure adequate ventilation, especially if using any heat sources (e.g., outdoor heaters) nearby, and always keep them at a safe distance from the fabric.
• Wind Management: In windy conditions, ensure side curtains are either fully open and tied back, or fully closed and secured to minimize wind resistance. If winds become strong, it is advisable to lower or remove the canopy and side curtains, or disassemble the gazebo entirely.

6. Maintenance

Proper maintenance will extend the life of your gazebo.

• Cleaning the Fabric: Clean the canopy and side curtains with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Rinse thoroughly and allow to air dry completely before storing.
• Cleaning the Frame: Wipe down the steel frame with a damp cloth to remove dirt and debris. Inspect the powder coating for any chips or scratches and touch up with appropriate paint to prevent rust.
• Hardware Check: Periodically check all bolts, nuts, and connections to ensure they remain tight. Re-tighten as necessary.
• Storage: When not in use for extended periods or during off-season, disassemble the gazebo and store it in its carry bag in a dry, sheltered location to protect it from extreme weather and prolong its lifespan.

7. Troubleshooting

Here are some common issues and their potential solutions:

• Gazebo feels unstable or wobbly:
  Solution: Ensure all frame connections are securely tightened. Verify that the gazebo is properly anchored to the ground. If on soft ground, consider using larger stakes or sandbags/weights on the legs.
• Water pooling on the canopy:
  Solution: Ensure the canopy is stretched taut and evenly distributed over the frame. Check that the frame is assembled correctly and not sagging in any area.
• Fabric tears or holes:
  Solution: Small tears can often be repaired with fabric repair tape or patches designed for outdoor materials. For larger damage, replacement parts may be necessary.
• Difficulty with assembly:
  Solution: Double-check that you are following the manufacturer's instructions precisely. Ensure all parts are correctly oriented. Sometimes, parts may require a firm push or gentle tap to fit into place. Two people are often required for easier assembly.

8. Specifications

9. Warranty and Support

Specific warranty details for the Goodhome Square Steel Gazebo are not available in the provided product information. For warranty claims, technical support, or inquiries about replacement parts, please contact the manufacturer, Shamal goodhome, or the retailer from whom you purchased the product. Keep your proof of purchase for any warranty-related requests.
