Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Premiertek 60" 3 Row 432 LED Strip Tailgate Light Bar. This versatile light bar is designed to enhance vehicle visibility and safety by providing multiple lighting functions including running lights, brake lights, turn signals, and reverse lights. It is suitable for most trucks, SUVs, jeeps, and RVs.
Image: The 60-inch LED tailgate light bar, demonstrating its appearance and how it looks installed on the rear of a truck, illuminating in red for running lights.
Setup and Installation
The Premiertek LED Tailgate Light Bar is designed for universal fit and easy installation. Ensure your vehicle's surface is clean and dry before applying the adhesive tape.
Mounting Instructions:
- Clean the mounting surface on your vehicle's tailgate or bumper thoroughly. Ensure it is free of dirt, dust, grease, and moisture.
- Peel off the protective backing from the adhesive double-sided tape on the back of the LED strip.
- Carefully align the light bar and firmly press it onto the desired smooth surface. Apply even pressure along the entire length to ensure proper adhesion.
Wiring Connections:
The light bar features multiple wires for different functions. Connect them to your vehicle's existing wiring harness. A 4-pin trailer connector is NOT included and may be required for some installations.
Image: A detailed diagram illustrating the color-coded wires and their corresponding functions: Black for Ground, Green for Turn Signal, Yellow for Turn Signal, Red for Brake, and White for Reverse.
- Black Wire: Connect to Vehicle Ground.
- Green Wire: Connect to Left Turn Signal.
- Yellow Wire: Connect to Right Turn Signal.
- Red Wire: Connect to Brake Light and Driving/Running Light.
- White Wire: Connect to Reverse Light.
Ensure all connections are secure and properly insulated to prevent short circuits and ensure reliable operation. Test all functions before finalizing the installation.
Operating Instructions
The Premiertek LED Tailgate Light Bar offers multiple lighting modes that activate automatically based on your vehicle's electrical signals.
- Running Lights: When your vehicle's headlights or running lights are on, the light bar will illuminate in a steady red color.
- Brake Lights: When the brake pedal is pressed, the red lights on the bar will illuminate brighter to signal braking.
- Turn Signals: When the left or right turn signal is activated, the corresponding section of the light bar will flash in amber.
- Reverse Lights: When the vehicle is shifted into reverse, the white lights on the bar will illuminate to provide additional visibility.

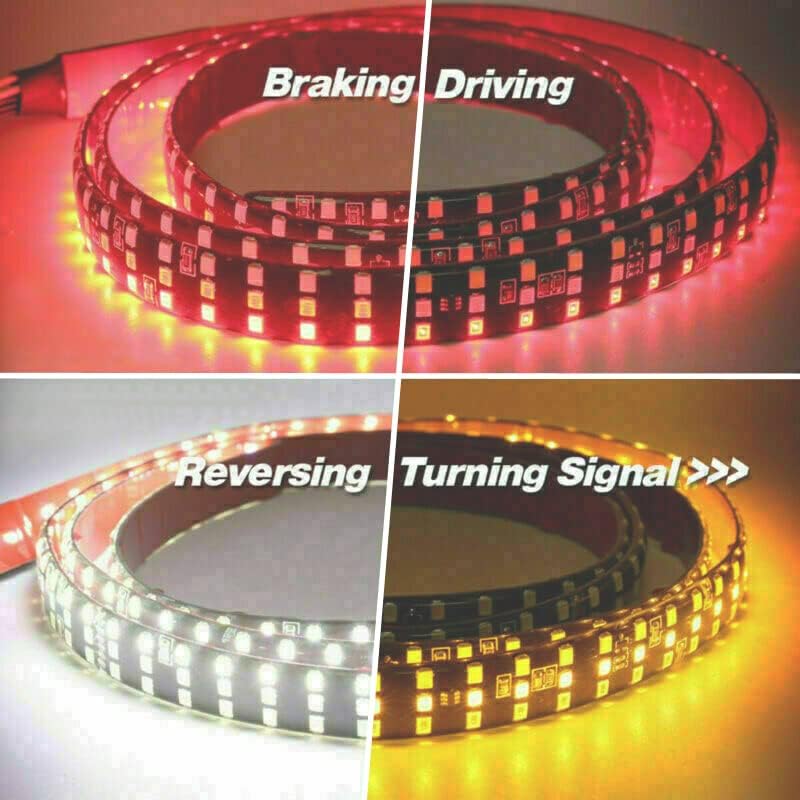

Image: Visual representation of the light bar's various functions, including sequential amber for turn signals, steady red for running, brighter red for brake, and bright white for reverse.
Maintenance
The Premiertek LED Tailgate Light Bar is designed for durability and minimal maintenance.
- Waterproof Design: The light bar features an IP68 waterproof rating, ensuring it can withstand various weather conditions.
- Cleaning: Periodically clean the surface of the light bar with a soft, damp cloth to remove dirt and debris. Avoid using abrasive cleaners or solvents that could damage the LED strip or housing.
- Adhesion Check: Occasionally check the adhesion of the light bar to ensure it remains securely attached to your vehicle.
Image: Depiction of the light bar's IP68 waterproof design, highlighting its ability to function reliably in wet conditions.
Troubleshooting
If you encounter issues with your LED Tailgate Light Bar, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light bar does not illuminate or only partially illuminates. |
|
|
| Adhesive tape is not holding the light bar securely. |
|
|
| Turn signals or other functions are not working correctly. |
|
|
| Wire length is too short for installation. |
|
|
Specifications
Key technical specifications for the Premiertek 60" 3 Row 432 LED Strip Tailgate Light Bar:

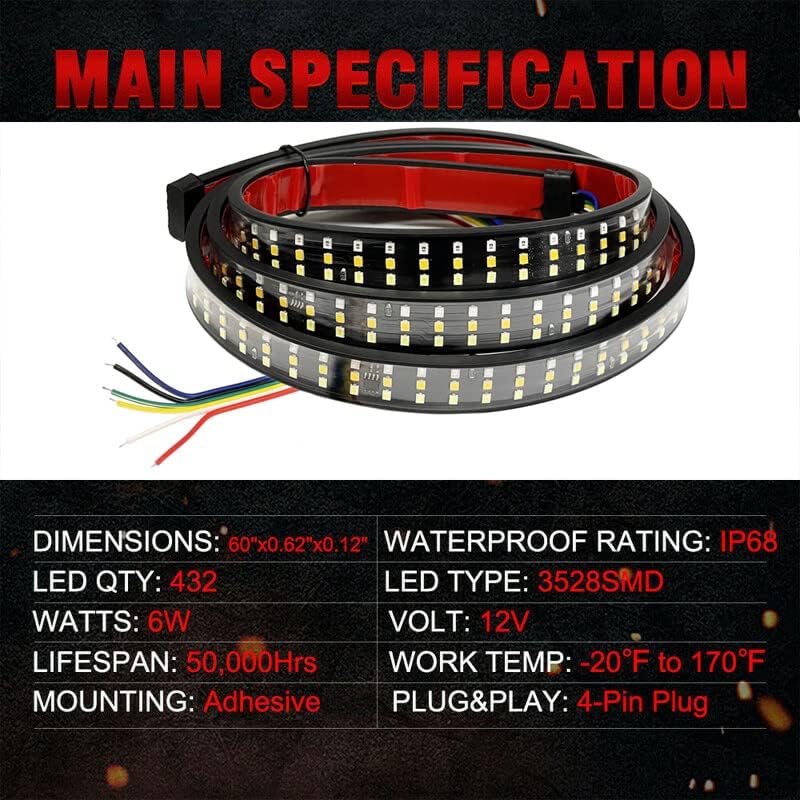

Image: A graphic displaying the main specifications of the light bar for quick reference.
| Feature | Detail |
|---|---|
| Model: | LS-3R-60 |
| Strip Light Length: | 60 inches |
| LED Quantity: | 432 pcs |
| LED Type: | 3528SMD |
| LED Color: | Red, Amber, White |
| Voltage: | 12V |
| Wattage: | 6W |
| Waterproof Rating: | IP68 |
| Mounting: | Adhesive (double-sided tape) |
| Lifespan: | 50,000 Hours |
| Work Temperature: | -20°F to 170°F |
| Item Weight: | 9.1 ounces (0.26 Kilograms) |
| Package Dimensions: | 9.06 x 6.26 x 1.22 inches |
| Included Components: | LED Strip |
Warranty and Support
For specific warranty information regarding your Premiertek LED Tailgate Light Bar, please refer to the product packaging or contact Premiertek customer support directly. Standard return policies may apply through your retailer.
For technical assistance or further inquiries, please visit the official Premiertek store on Amazon or contact their customer service department.
- Premiertek Amazon Store: Visit Store
