1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your MalTec MasterBlade 17300W Turbo 60L Lawn Mower. Please read this manual thoroughly before using the product and keep it for future reference.
Image 1.1: MalTec MasterBlade 17300W Turbo 60L Lawn Mower in operation.
2. Safety Instructions
Always prioritize safety when operating the lawn mower. Failure to follow these instructions may result in serious injury or damage to the equipment.
- Read the Manual: Familiarize yourself with all controls and proper use of the equipment.
- Personal Protective Equipment (PPE): Always wear sturdy footwear, long trousers, and eye protection. Hearing protection is recommended.
- Clear the Area: Before mowing, remove all objects such as stones, sticks, wires, and toys from the lawn.
- Keep Bystanders Away: Do not allow children or pets near the mower while it is in operation.
- Fuel Handling: Refuel outdoors only, with the engine off and cool. Do not smoke while refueling.
- Slope Operation: Mow across the face of slopes, never up and down. Exercise extreme caution when changing direction on slopes.
- Blade Safety: Never place hands or feet near rotating parts. Disconnect the spark plug wire before performing any maintenance or clearing blockages.
- Engine Off: Always turn off the engine and wait for all moving parts to stop before leaving the operating position, clearing blockages, or making adjustments.
3. Package Contents
Verify that all components are present and undamaged upon unpacking.
- MalTec MasterBlade 17300W Turbo 60L Lawn Mower unit
- Grass collection bag (60L capacity)
- Handle assembly
- Blade (1 installed + 2 extra)
- Instruction Manual
- Tools for assembly (if applicable)
4. Setup
Follow these steps to prepare your lawn mower for first use.
- Handle Assembly:
Attach the handle assembly to the main mower unit using the provided bolts and knobs. Ensure the handle is securely fastened and the cables are routed correctly.
Image 4.1: Handle adjustment mechanism.
- Grass Collection Bag Attachment:
Assemble the grass collection bag if required, then attach it to the rear discharge chute of the mower. Ensure it is firmly seated to prevent grass clippings from escaping.
- Add Engine Oil:
Locate the oil fill cap. Fill the engine with the recommended type and amount of engine oil. Do not overfill. Refer to the engine manual for specific oil requirements.
Image 4.2: Engine oil and fuel access points.
- Add Fuel:
Fill the fuel tank with unleaded gasoline. Use a funnel to prevent spills. Do not fill the tank completely; leave some space for expansion. Ensure the fuel cap is securely tightened.
- Adjust Cutting Height:
The mower features an 8-step central cutting height adjustment system, ranging from 2.5 cm to 7.5 cm. Adjust the lever to your desired cutting height before starting the engine.
Image 4.3: Blade and cutting height adjustment mechanism.
5. Operating Instructions
Follow these steps for safe and effective lawn mowing.
- Starting the Engine:
Ensure the spark plug wire is connected. Engage the blade control lever (if applicable) and pull the starter cord firmly until the engine starts. The mower features a soft start function.
- Mowing:
Push the mower forward at a steady pace. The mower has a self-propelled drive system. Overlap cutting paths slightly to ensure even coverage. Avoid mowing wet grass, as it can clog the mower and reduce cutting efficiency.
Image 5.1: Illustration of grass cutting and mulching.
- Emptying the Grass Collection Bag:
The mower is equipped with an indicator for a full grass collection bag. When the bag is full, turn off the engine, wait for the blade to stop, and carefully remove the bag. Empty the clippings and reattach the bag securely.
- Stopping the Engine:
Release the blade control lever (if applicable) and turn off the engine using the designated switch. Wait for all moving parts to come to a complete stop before leaving the mower unattended.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your lawn mower. Always disconnect the spark plug wire before performing any maintenance.
- Clean the Mower: After each use, clean the underside of the mower deck to prevent grass buildup. Use a brush or scraper.
- Check Blade: Regularly inspect the blade for sharpness and damage. A dull or damaged blade can lead to poor cutting performance and strain the engine. Replace or sharpen the blade as needed. The product includes 2 extra blades.
- Engine Oil: Check the engine oil level before each use and change it according to the engine manufacturer's recommendations (typically after the first 5 hours, then every 25-50 hours).
- Air Filter: Clean or replace the air filter regularly, especially in dusty conditions, to ensure proper engine performance.
- Spark Plug: Inspect and clean the spark plug periodically. Replace it if it is fouled or damaged.
- Storage: For long-term storage, drain the fuel tank or add a fuel stabilizer. Clean the mower thoroughly and store it in a dry, protected area.
7. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine does not start | No fuel, old fuel, spark plug disconnected, clogged air filter, low oil. | Check fuel level, use fresh fuel, connect spark plug, clean/replace air filter, add oil. |
| Mower cuts unevenly | Dull or bent blade, incorrect cutting height setting, uneven terrain. | Sharpen or replace blade, adjust cutting height, mow on level ground. |
| Excessive vibration | Bent blade, loose blade, engine imbalance. | Inspect and replace blade if bent, tighten blade bolt, consult service center for engine issues. |
| Engine loses power | Clogged air filter, dirty spark plug, low fuel, incorrect oil level. | Clean/replace air filter, clean/replace spark plug, refuel, check oil level. |
8. Specifications
Key technical specifications for the MalTec MasterBlade 17300W Turbo 60L Lawn Mower.
| Feature | Value |
|---|---|
| Brand | MalTec |
| Model | MasterBlade17300W |
| Engine Type | Original OHV, 4-stroke combustion engine |
| Nominal Power | 3.0 kW / 4.02 HP |
| Maximum Start Power | 8 HP Turbo Power |
| Engine Displacement | 173 cm³ |
| Engine Speed | 3000 rpm |
| Fuel Type | Gasoline |
| European Emission Standard | EURO 5 |
| Grass Collector Capacity | 60 L |
| Noise Level | 96 dB |
| Cutting Height Adjustment | 8 steps, central adjustment |
| Cutting Height Range | 2.5 - 7.5 cm |
| Cutting Width | 51 cm |
| Suggested Mowing Area | Up to 2800 m² |
| Housing Material | Steel |
| Drive System | Self-propelled |
| Foldable Handle | Yes |
| Edge Mowing | Yes |
| Full Grass Bag Indicator | Yes |
| Soft Start | Yes |
| Included Blades | 1 used + 2 extra |
| Fuel Tank Capacity | 1.2 L |
| Oil Tank Capacity | 0.6 L |
| Mower Dimensions (L x W x H) | 160 x 55 x 114 cm |
| Mower Weight | 33 kg |
| Wheel Sizes | 7 inch and 10 inch (17.78 cm and 25.4 cm) |

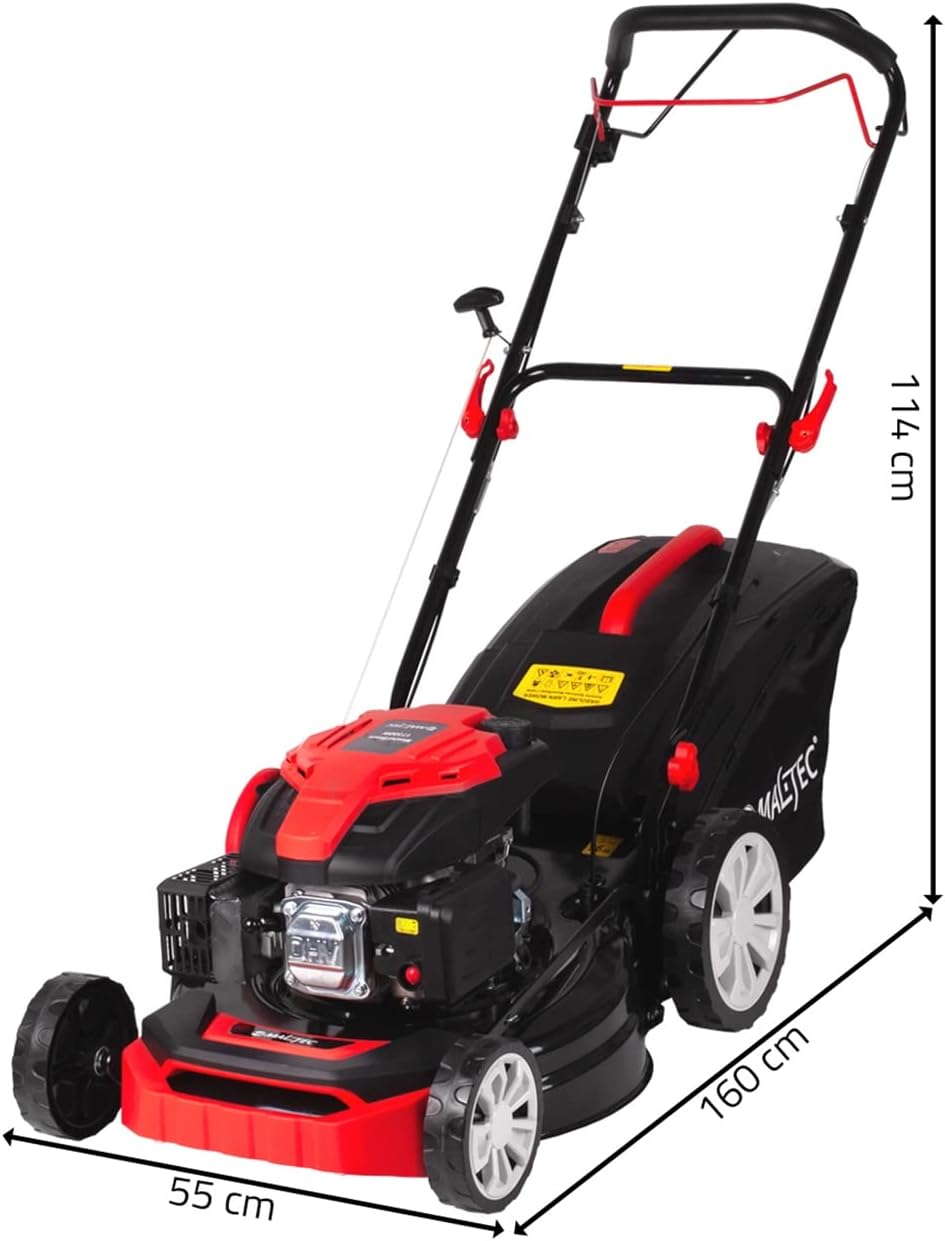

Image 8.1: Key dimensions of the lawn mower.
Image 8.2: Weight of the lawn mower.
9. Warranty and Support
For warranty information or technical support, please refer to the documentation included with your purchase or contact MalTec customer service.
Manufacturer: MalTec
